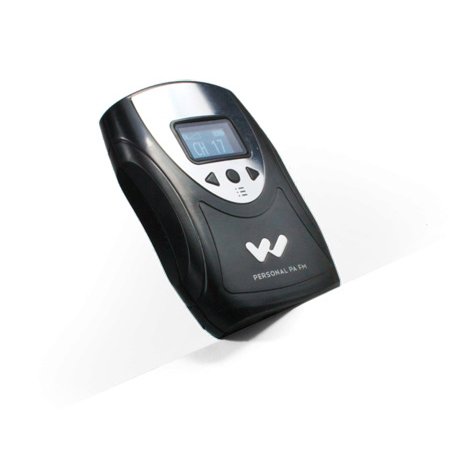

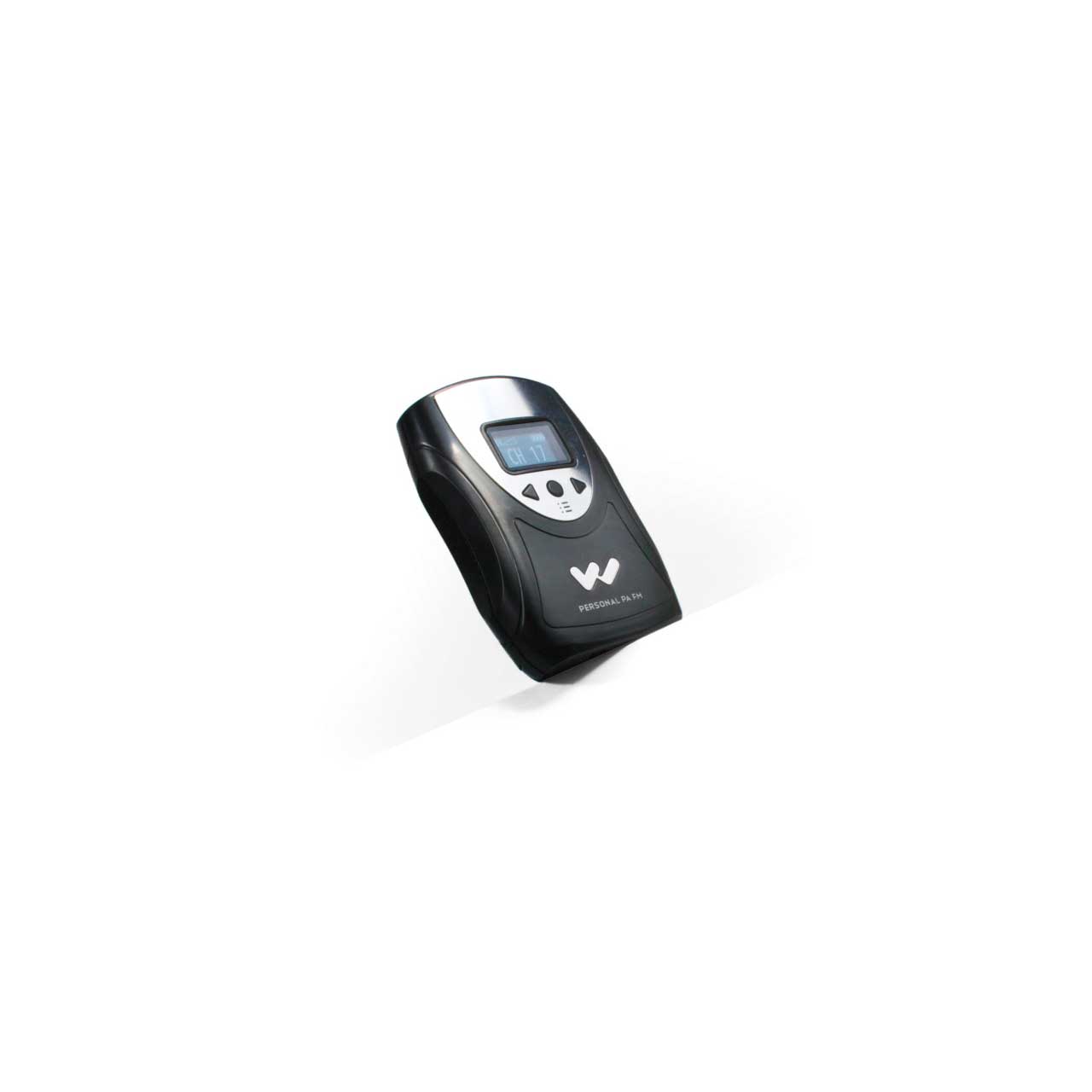

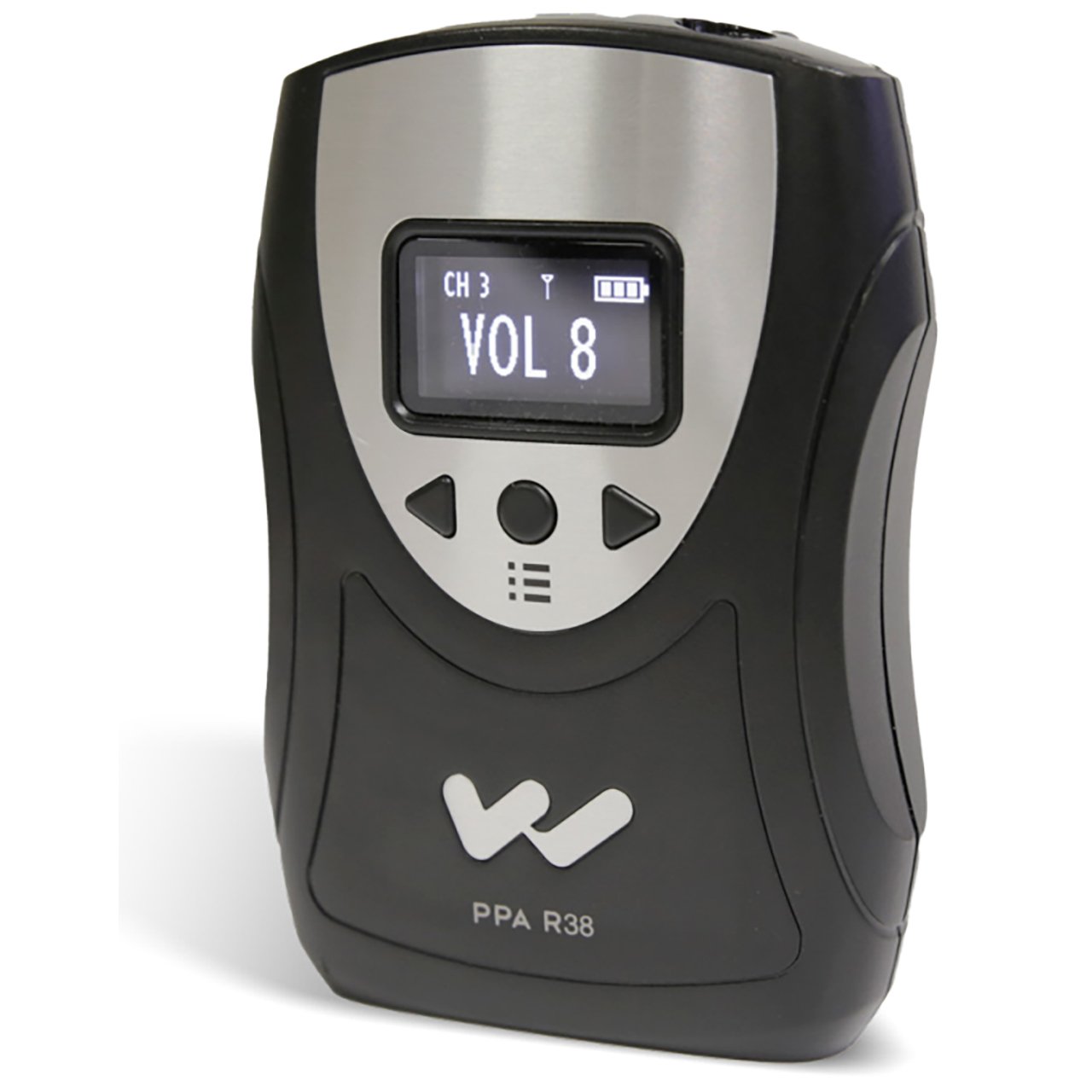

WILLIAMS AV PPA R38N Multichannel FM Receiver with OLED Display

ITEM #: WLS-PPA-R38N MFG #: PPA-R38N

Primary Image
WILLIAMS AV
Free Shipping with $49 Minimum Order

List Price:

$210.00

Our Price:

$188.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

PPA-R38N - Overview

PPA SelectView (PPA R38N) FM Receiver. High-resolution OLED screen. Quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wideband frequencies (72-76 MHz). Digitally synthesized for exceptional audio clarity and stability. Digital tuning, digital squelch and battery-saving sleep mode. New stereo jack paired with the mono jack adds compatibility with variety of earphones/headphones. Rechargeable.

  • Features:

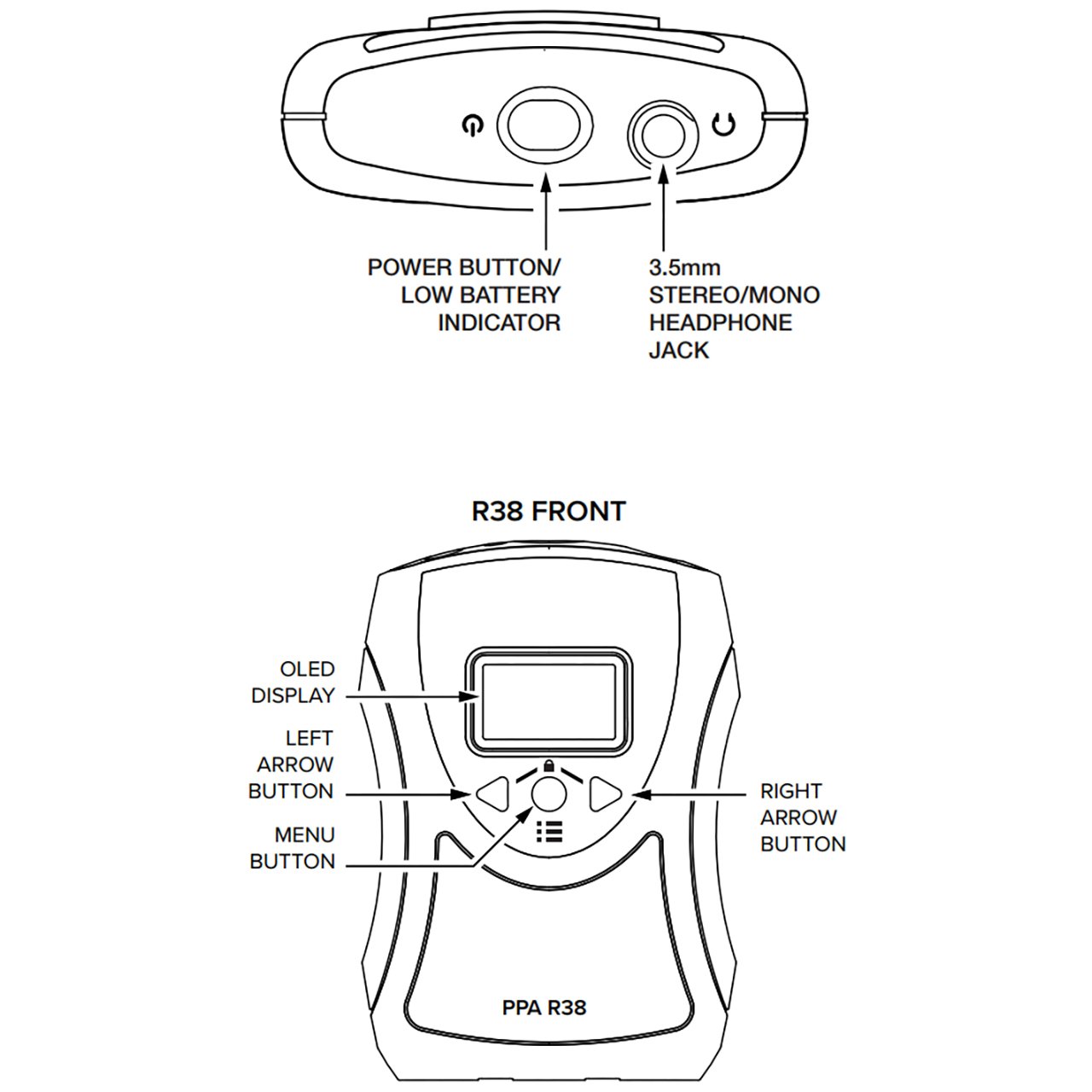

    • OLED high-resolution screen - easy to read and provides a quick view of receiver status.
    • All user settings are accessible via the on-screen menu - including all 17 wideband channels.
    • Stylish new design
    • Now features stereo headphone jack
    • Rechargeable or non-rechargeable batteries
    • Digital Volume Controls
    • 4-step battery level indication
    • Display shows channel or frequency
    • Step/seek function allows user to increment channel manually, or seek to the next active channel
    • Sleep Mode/Auto-Off saves battery power
    • Soft Audio Turn-On


  • Specifications:

    • Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
    • Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
    • Color: Black/Silver. Black ABS Plastic case with Aluminum faceplate.
    • Battery Type: (2) AA Alkaline or (2) AA NiMH Rechargeable
    • Battery Life: (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
    • Current Consumption: 52mA nominal
    • Operating Temp. Range: 32° - 122°F (0° to 50°C)
    • Channels: 17 Wideband, accessed via menu

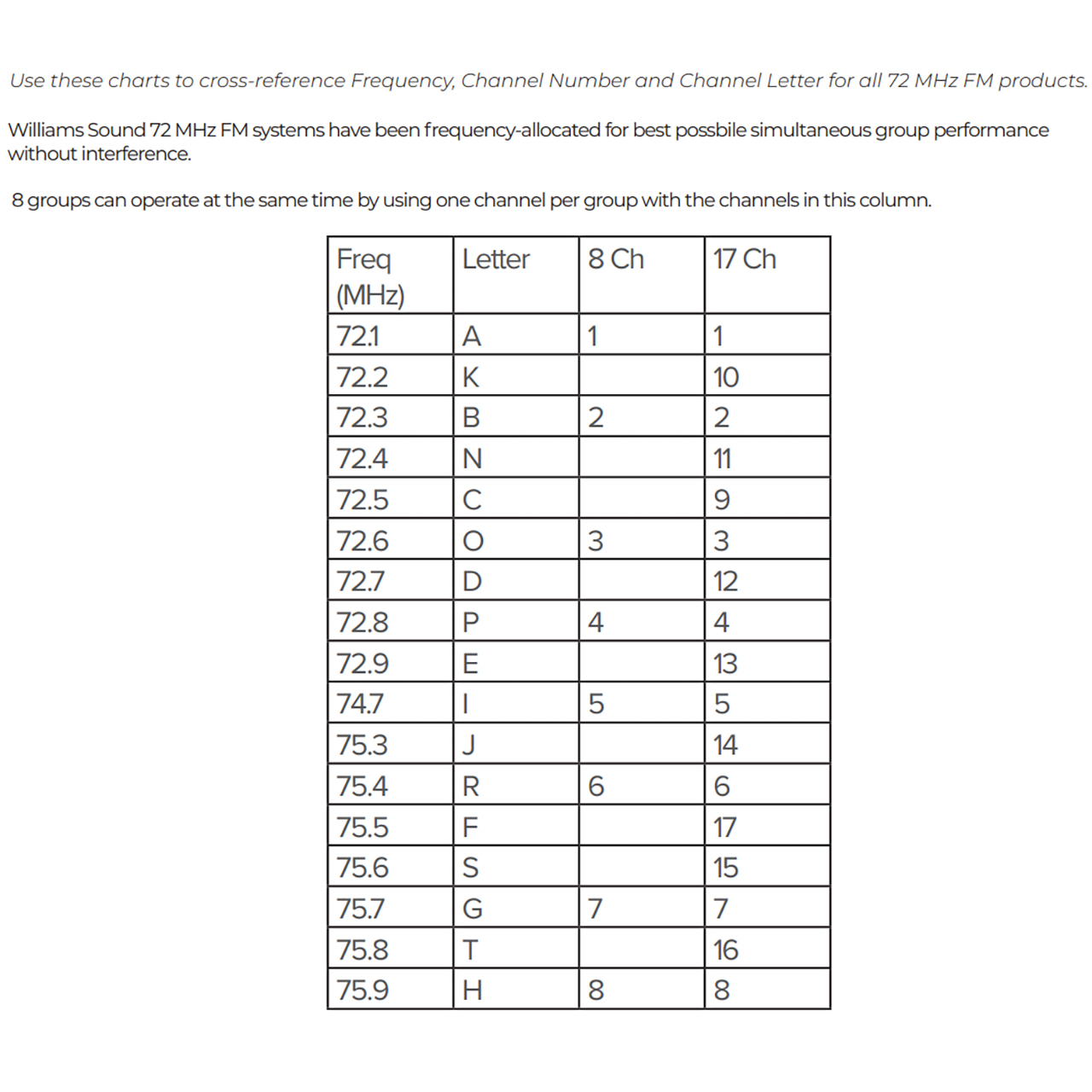

    • Operating Frequencies: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
    • FM Deviation: 75 kHz
    • De-Emphasis: 75 µS
    • Display Screen: 1" OLED
    • Power Indication: Power button, backlit green.
    • Good battery strength - glows solid. Low battery - flashes.
    • Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
    • Input Overload: 100 mV
    • Frequency Response: 200 Hz - 15 kHz, ±3dB
    • Modulation: FM, +/- 75 kHz peak deviation
    • Signal-to-Noise Ratio: Minimum 65 dB @ 1.0V
    • Receive Antenna: Integral with earphone/headphone cord
    • Audio Output: 35 mW max at 16 Ω
    • Headphone Connector: 3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
    • Supplied Earphone: Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 Ω
    • Power Save Mode: Enters sleep mode after approximately 3 minutes of no RF signal
    • Approvals: FCC, Industry Canada, RoHS, WEEE
    • Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.


  • Item Includes:

    • (1) PPA R38N Receiver
    • (1) CLP 015 Belt Clip
