WILLIAMS AV WIR-RX18 SoundPlus Two-Channel Infrared Receiver

ITEM #: WLS-WIR-RX18 MFG #: WIR-RX18

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WLS-WIR-RX18

WIR-RX18 - Overview

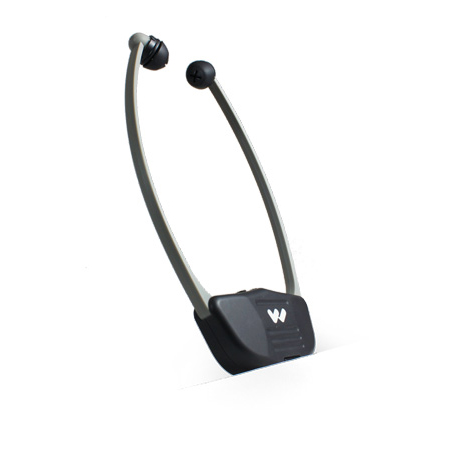

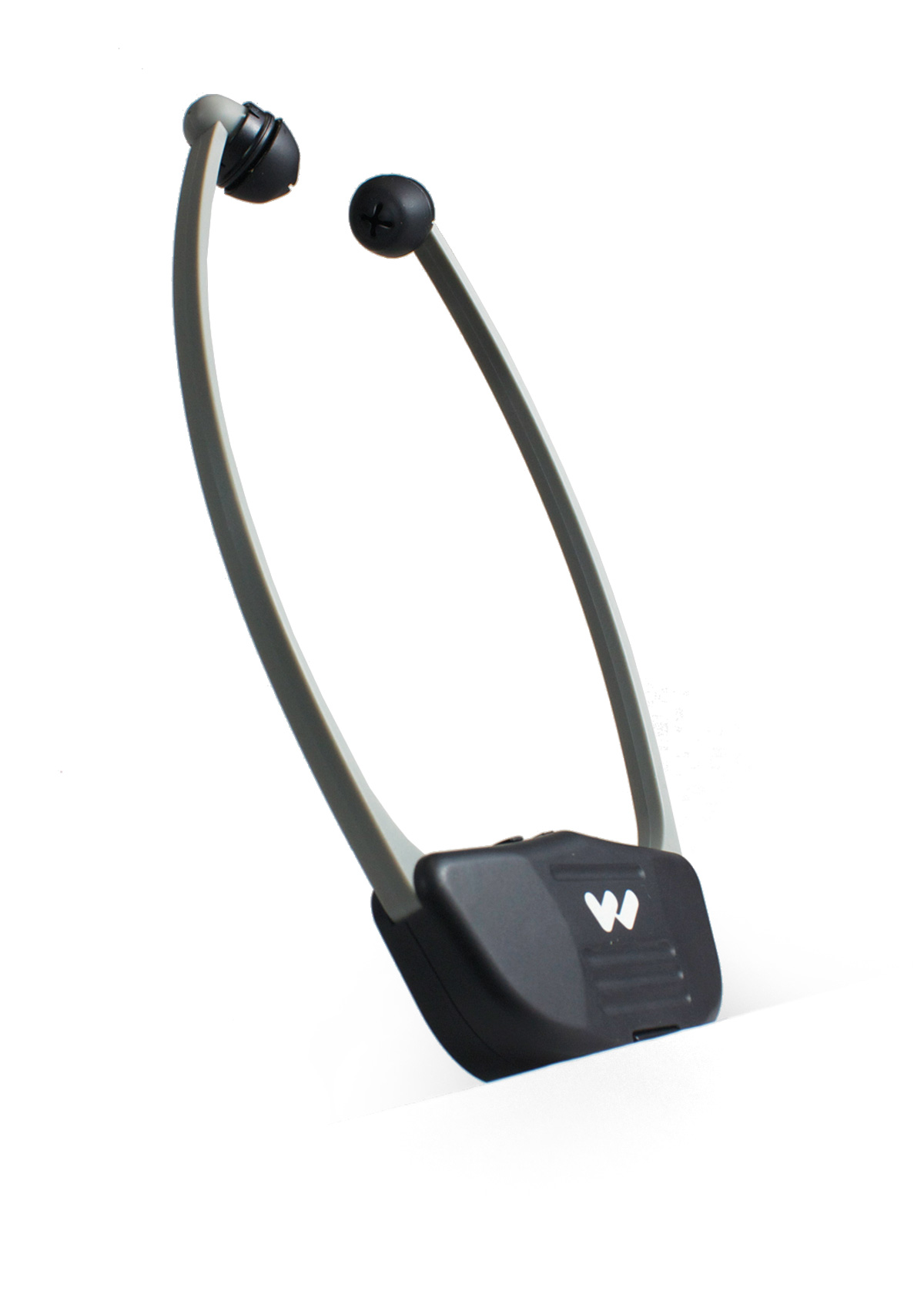

The WIR RX18 is a under-the-chin style two-channel infrared receiver designed for use with a transmitter operating on 2.3 or 2.8 MHz or stereo. This easy-to-operate, stethoscope-style receiver is ideal for listening applications where optimal sound quality is essential. Provides a range of up to 3,063 square feet (285 square meters) in single-channel mode when used with a WILLIAMSAV WIR TX925 or WIR TX90 infrared system. Lightweight, one-piece design is comfortable and easy-to-clean. An on/off control is built into the arms of the unit, saving on battery life. BAT AP11A battery is included. Use with optional CHG 518 charger.

  • Features:

    • Use with CHG 518 drop-in charger (sold separately)
    • Operates 7 hours per charge
    • Closed ear design / comfortable silicone eartips
    • Lightweight, one-piece design
    • Five-year warranty (90 days on accessories)


  • Specifications:

    • Weight: 2.0 oz (56 g) with battery
    • Material and Color: ABS plastic, Black and Grey
    • Battery Type, Life: BAT AP11A NiMH Battery Pack, 7 hours
    • Operating Range:
    • Up to 3,063 sq ft (285 sq m) when used with the TX9 emitter or TX90 transmitter in single-channel mode
    • Up to 1,000 sq ft (93 sq m) when used with the TX75 in single-channel mode
    • Modulation Frequency: 2.3 MHz or 2.8 MHz or stereo
    • Frequency Response: 200 Hz to 8 kHz, ± 5 dB
    • Signal to Noise Ratio: 60 dB at 10 m
    • Controls:
    • Volume control thumbwheel
    • 3-position selection switch (2.3 MHz, 2.8 MHz, stereo)
    • Acoustic Output: 120 dB MAX SSPL90 with 2 cc coupler
    • Compatibility: Compatible with 2.3 MHz and 2.8 MHz IR transmitters, WIR TX900 and WIR TX925 systems
    • Battery Charger: CHG 518
    • Power Switch: Built into receiver "arms"
    • Ear pads: Uses EAR 240 silicon eartips
    • Approvals: CE, RoHS


  • Item Includes:

    • (1) WIR RX18 receiver
    • (1) BAT AP11A battery


  • Warranty:

    • Five-year warranty (90 days on battery)
