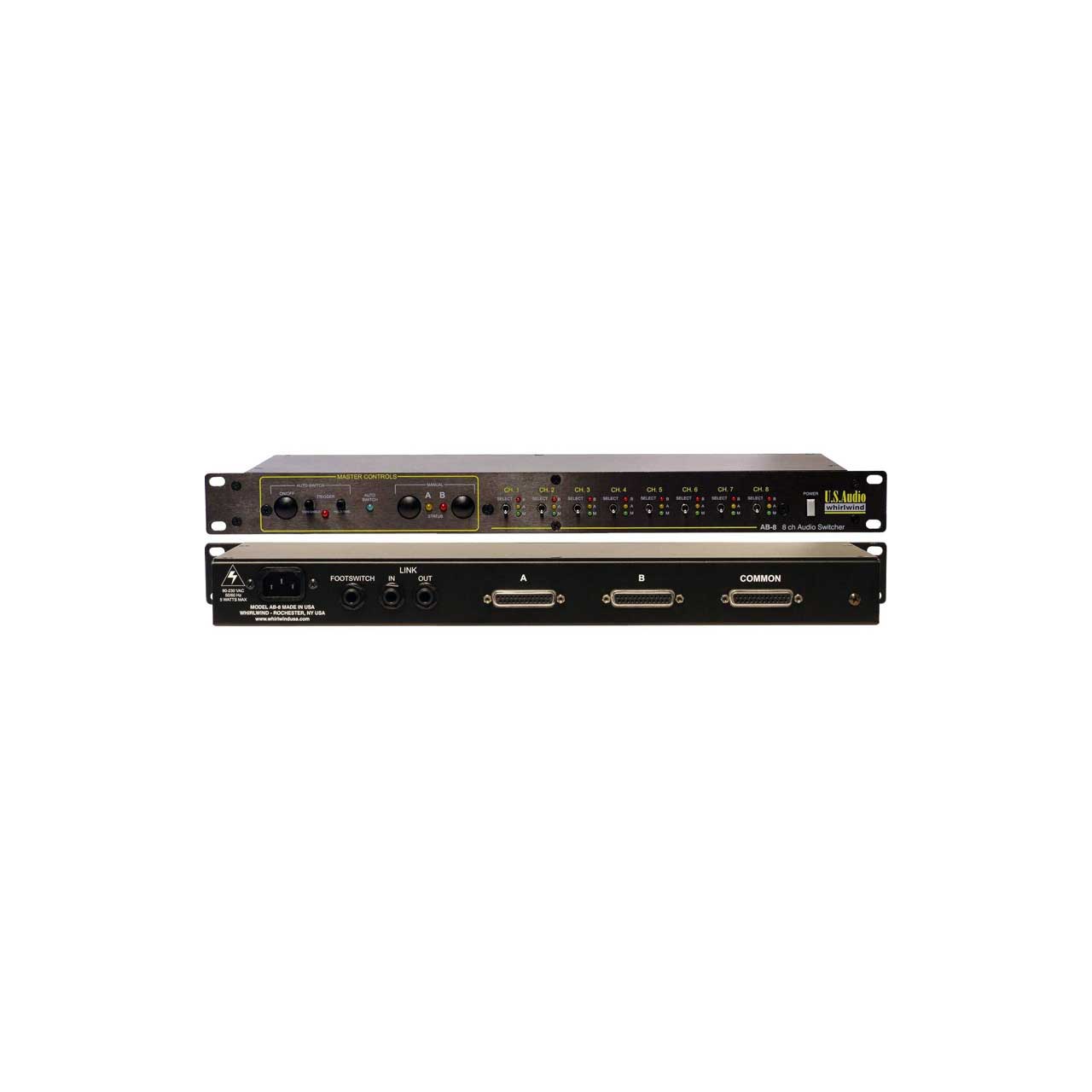

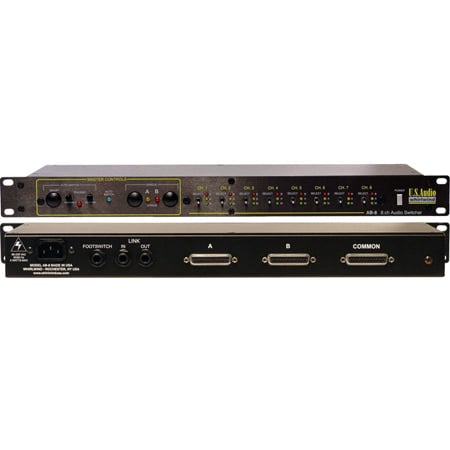

Whirlwind AB-8 8-Channel Mic/Line Switcher

AB-8 - Overview

• Features:

  • Eight channels of balanced A - B switching for line, mic or MIDI signals.
  • Each of the eight channels can be individually switched or assigned to a Master Control circuit.
  • Master switching is controlled through front panel pushbuttons, optional footswitch or automatically triggered by loss of signal on channel one of A input.
  • Can be configured as two inputs to one output, one input to two outputs or a mixture of both.
  • Multiple units can be ganged together under Master Control of the first unit or through control Voltage input.
  • Indicator lights show status of each channel.
  • AUTO SWITCH functions automatically switches to redundant copy of backing tracks for live performance.
  • AUTO SWITCH has sensitivity and hold time controls to accommodate input signal levels from -20dB to +20dB
  • Easily switch from tracking to mixing in recording setups.
  • All signal paths revert A to Common when AC power is removed.
  • Internal DIP switches configure ground path switching and DC Voltage blocking requirements.


• GTIN:

  0692465018128
