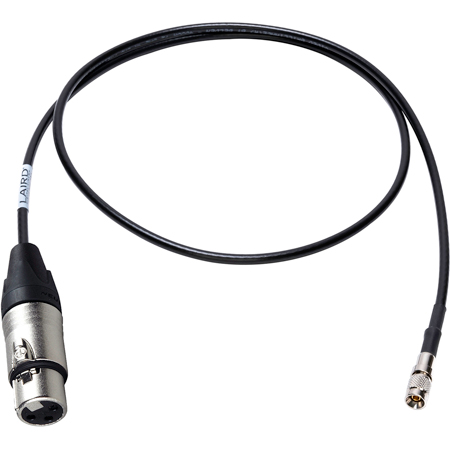

Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 6 Foot

XLF-DIN-006 - Overview

• Features:

  • Feeds Time Code Signal Through XLR & DIN Connections
  • Compatible with the UltraSync ONE
  • Neutrik XLR Connector
  • DIN 1.0/2.3 Connector
  • Belden 4K UHD Precision Video Sub-Miniature Coax Cable


• Specifications:

  • Belden 4855R Mini Coax Video Cable
  • 75 Ohm
  • Nom. Inductance (µH/ft): .107
  • Nom. Capacitance Conductor to Shield (pF/ft): 16.3
  • Max. Recommended Pulling Tension: 40 lbs.
  • Min. Bend Radius/Minor Axis: 1.600 in.
  • Neutrik XLR
  • Capacitance Between Contacts: ≤ 4 pF
  • Contact Resistance: ≤ 3 mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Voltage: < 50 V
  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion Force: ≤ 20 N
  • 1.0/2.3 DIN Connector
  • Quick Connect Push/Pull system
  • Operation up to 10 GHz


• Warranty:

  • 1 Year
