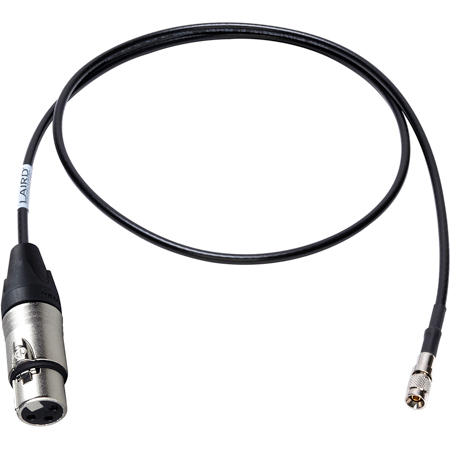

Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 15 Foot

Name: Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 15 Foot
Brand: Laird Digital Cinema
SKU: XLF-DIN-015
Price: 45.95 USD
Availability: PreSale

ITEM #: XLF-DIN-015 MFG #: XLF-DIN-015

Laird Digital Cinema

XLR Genders:

Lengths:

XLR Genders

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$52.49

Our Price:

$45.95

Add to Wish List Leasing Options

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

XLF-DIN-015 - Overview

Provide the most reliable connection for your timecode signals with the Laird XLF-DIN-015. The XLF-DIN-015 is compatible with the Timecode Systems UltraSync One and and model TCB-50. It features a DIN 1.0/2.3 connector to XLR Female for any devices with a 3-Pin XLR input.

Features:
- Feeds Time Code Signal Through XLR & DIN Connections
- Compatible with the UltraSync ONE
- Neutrik XLR Connector
- DIN 1.0/2.3 Connector
- Belden 4K UHD Precision Video Sub-Miniature Coax Cable
Specifications:
- Belden 4855R Mini Coax Video Cable
- 75 Ohm
- Nom. Inductance (µH/ft): .107
- Nom. Capacitance Conductor to Shield (pF/ft): 16.3
- Max. Recommended Pulling Tension: 40 lbs.
- Min. Bend Radius/Minor Axis: 1.600 in.
- Neutrik XLR
- Capacitance Between Contacts: ≤ 4 pF
- Contact Resistance: ≤ 3 mΩ
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 10 GΩ (initial)
- Rated Voltage: < 50 V
- Cable O.D.: 3.5 - 8.0 mm
- Insertion Force: ≤ 20 N
- 1.0/2.3 DIN Connector
- Quick Connect Push/Pull system
- Operation up to 10 GHz
Warranty:
- 1 Year
Tags:
- #TCB-51 #UltraSync One Cable
