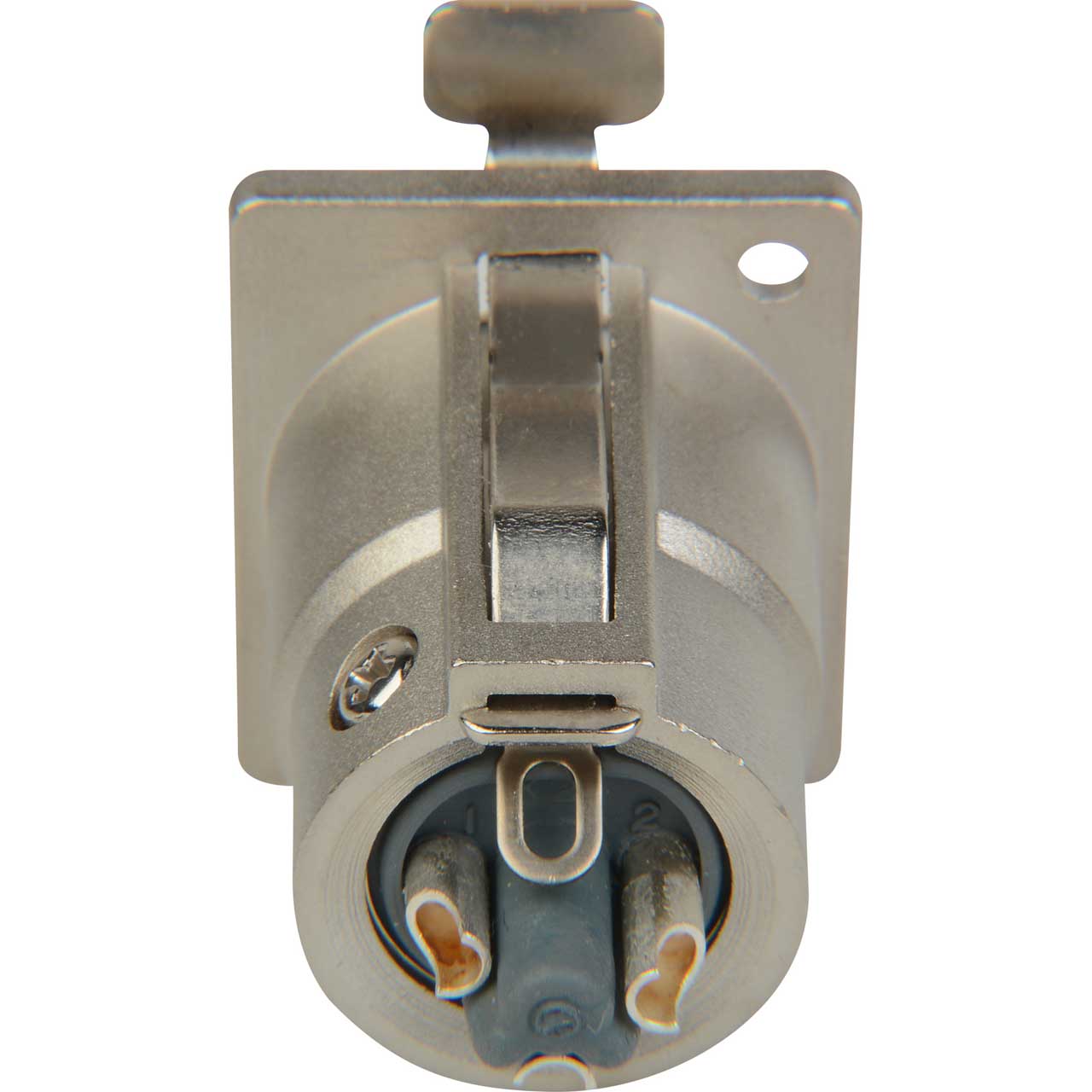

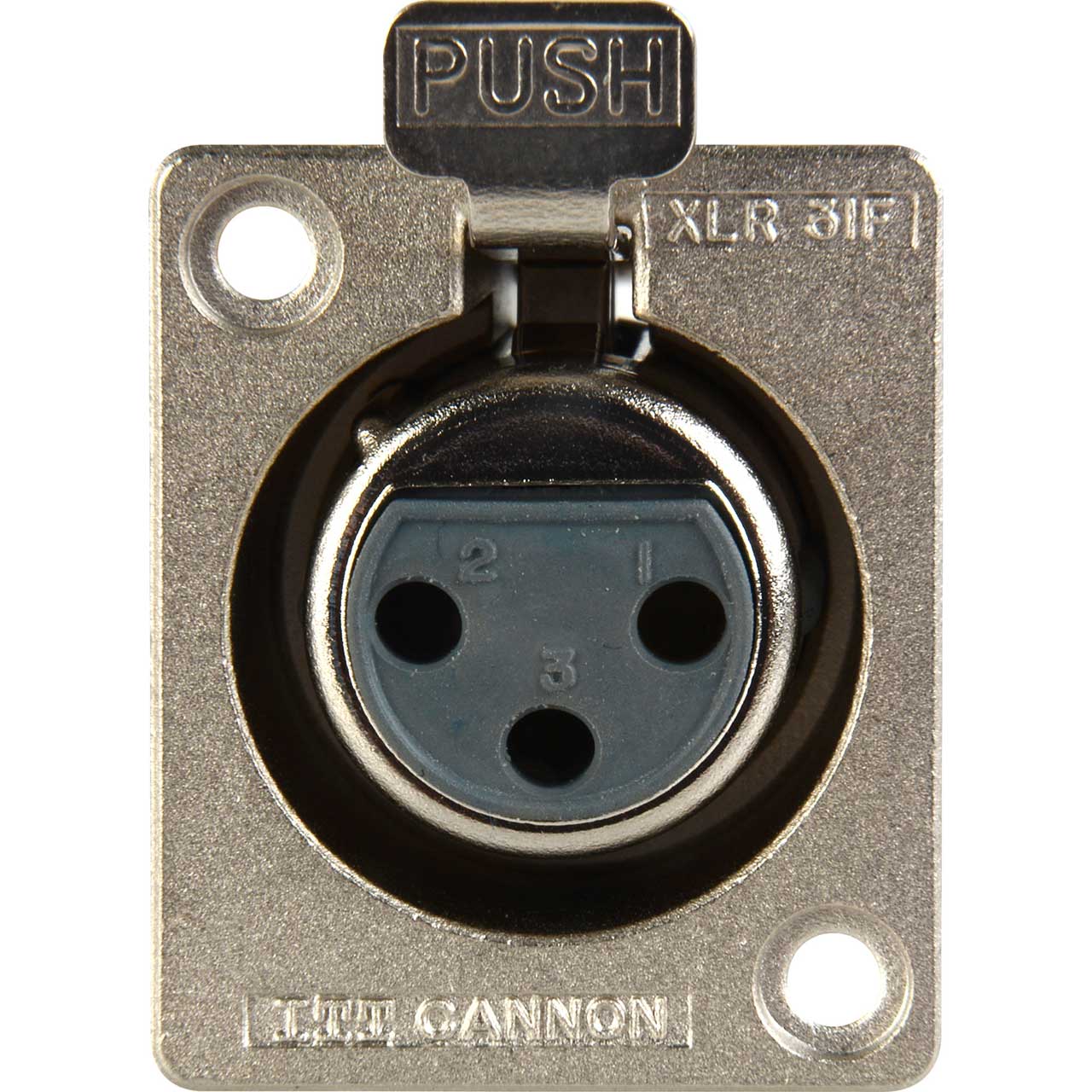

Canare D-Hole XLR-3-31F77 ITT Cannon Solder Back Rectangular Small Flange 3-Pin XLR Panel Mount Female Jack

ITEM #: XLR-3-31F77 MFG #: XLR-3-31F77

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$12.57

Our Price:

$12.38

Availability: In Stock
iAvailability Description Popup


XLR-3-31F77 - Overview

Cannon pioneered the first Audio connectors during the early 1920's, the birth of the entertainment industry. Continuing our innovation in these markets, Cannon has moved beyond these early products into today's digital age. Cannon's expertise stems from a commitment to the entertainment industry, a commitment extending longer than any other supplier. Cannon's audio product line offers a broad spectrum of choices encompassing low cost products for less demanding applications to higher-end connectors for applications requiring extra durability.

ITT's broad range of XLR connectors are extensively used in a wide variety of audio OEM applications. The XLR Series features a quick disconnect latch lock along with a rugged design to withstand extended field use. Available in configurations of 2 and 7 positions, our plugs and receptacles offer precision, machined contacts, shock-absorbing rubber insulators, and lightweight aluminum shells. All XLR connectors are RoHS Compliant.

  • Features:

    • Rugged design to withstand extreme field use
    • Resilient socket insulator which minimizes vibration and electrical noise
    • Quick disconnect latch lock
    • Low reflectivity satin finish
    • Interchangeable and intermateable with XLB-PCB and XLM-PCB

  • Specifications:

    • Temperature Rating: -35°C to +125°C
    • Number of Contacts: 2 to 7
    • Rated Current 5A to 15A
    • Rated Voltage(AC): 133V to 200V
    • Dielectric Withstanding Voltage (AC): 1,400V to 1,600 V
    • Insulation Resistance: 5,000M-Ohms min at 500 VDC
    • Contact Resistance: 5m-Ohms Max to 10m-Ohms Max
    • Durability Cycles: 500 Mating Cycles
    • Wire Accommodation Reference AWG: (Max) #14 to #20
    • Wire Cross Selection (Max): 0.5mm to 2.1mm
