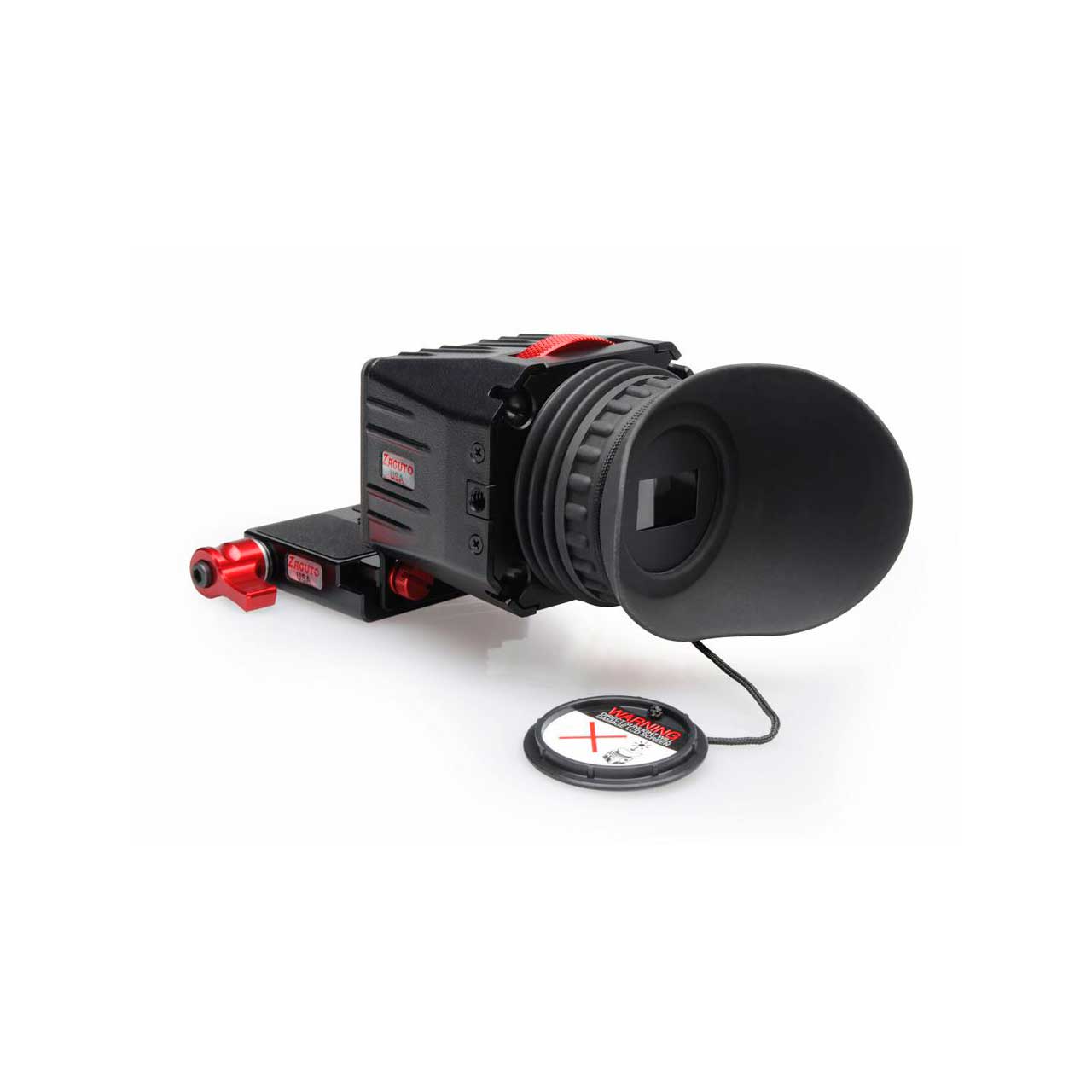

The Z-Finder Pro 2.5x for 3.2" screens is our standard Z-Finder Pro 2.5x packaged with a Z-Finder 3.2" Mounting Frame for Small Body DSLRs. This frame is compatible with small body cameras with 3.2" screens like the Canon 5D MIII and the Nikon D800. This is not a new Z-finder.
The Z-Finder Pro 2.5x for 3.2" screens is an optical viewfinder that allows DSLR cameras to have the correct form factor for video. This Z-finder will magnify the LCD screen by 2.5x and has a diopter for specific focus tuning. It cuts out any extraneous light and offers an initial point of stability by pressing your eye against our comfy, large eyecup. The Z-finder Pro 2.5x for 3.2" screens comes with a 40mm diameter Zacuto optical designed lens, anti-fog coated protective covers, and a mounting system designed for 3.2" LCD screens. The diopter allows you to dial in the focus to match your eye. If you need extra focal points you can use the included Z-Finder Extender Frames. These are semi-permanent stackable frames that attach to the body of the Z-Finder Pro and extend the Z-Finder glass further away from the LCD screen for people who are farsighted.
The 2.5x magnification is recommended in particular for users who are near sighted and may have problems seeing long distances. The Z-Finder Pro 2.5x for 3.2" screens has a diopter range of -4.75 and up (unlimited with extender frames). Users with 20/20 vision can use either magnification. It is a personal preference. This is the model we use with our electronic viewfinder packages. Your camera model is irrelevant when choosing between the 2.5x and 3x magnifications. If you are particularly far sighted (wear strong reading glasses) or are just looking for the biggest magnification possible we recommend the Z-Finder Pro 3x for 3.2" screens.

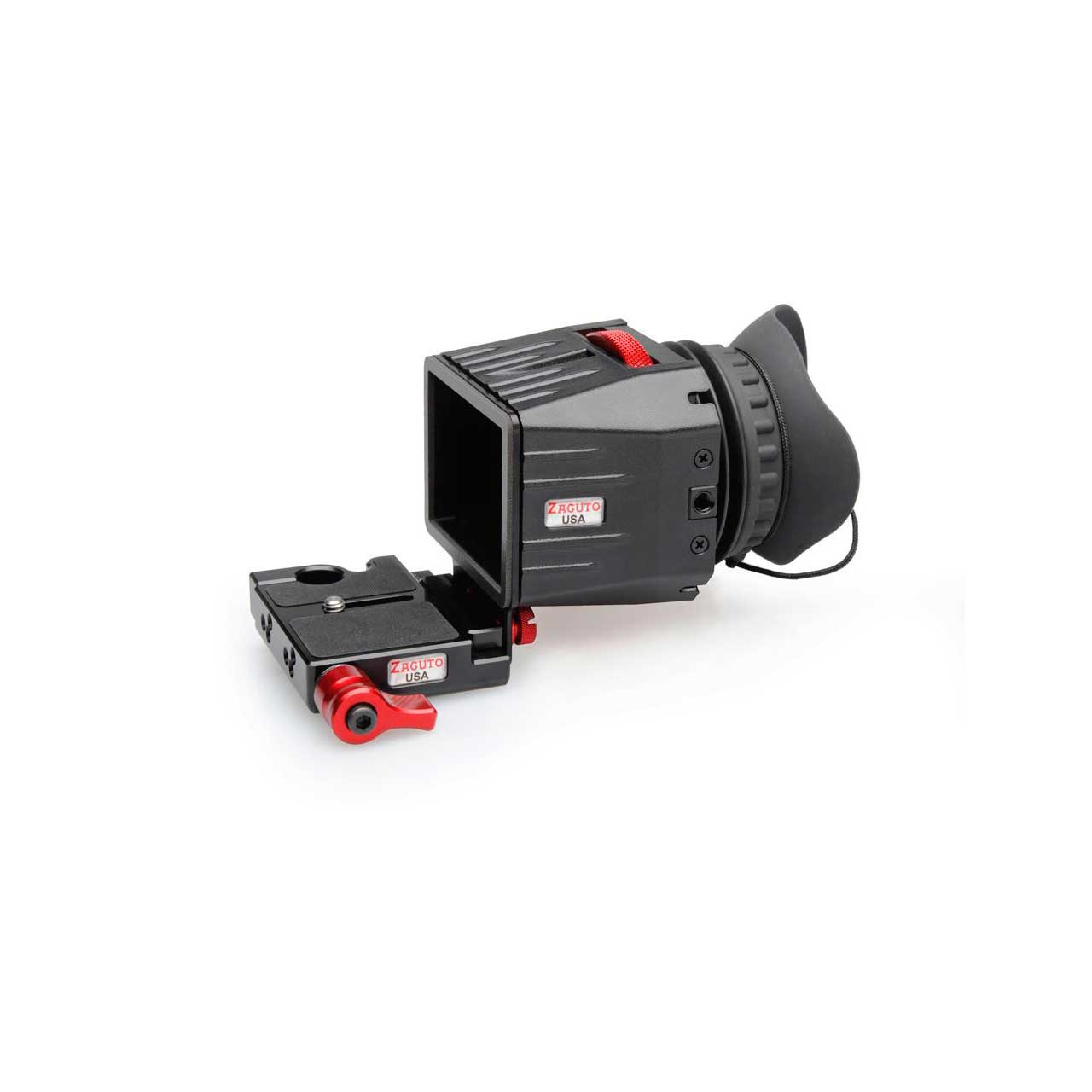

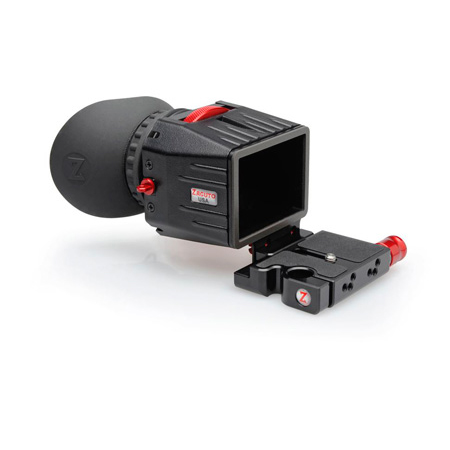

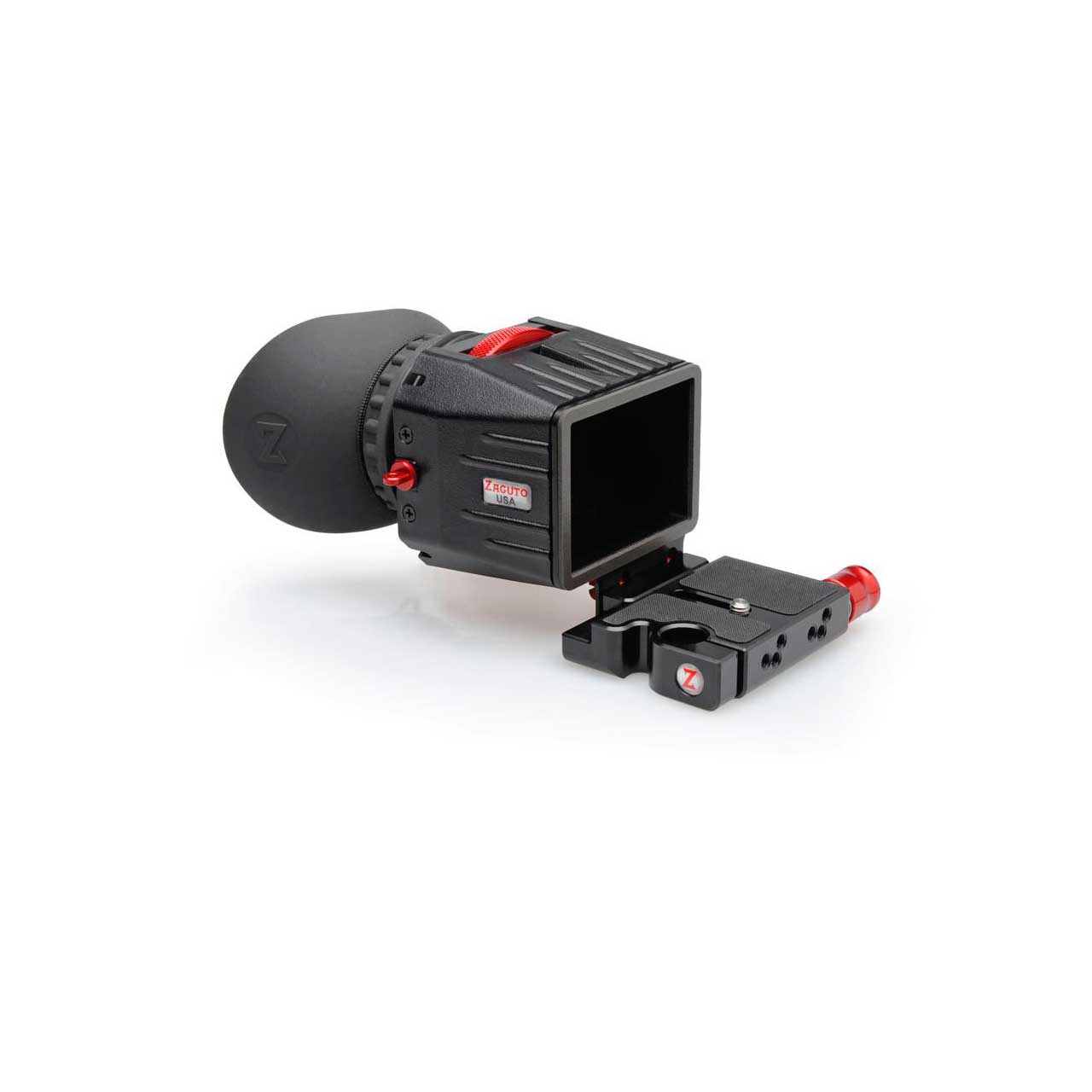

The Z-Finder Pro attaches to your camera with the included Gorilla Plate V2 and Z-Finder 3.2" Mounting Frame for Small DSLR Bodies. (The Z-Finder Mounting Frame can also be attached to our DSLR Baseplate. ) The Gorilla Plate V2 attaches to the bottom of your camera using a ¬ 20" screw and has ¬ 20" screw holes underneath to attach a tripod plate. The metal Z-Finder Mounting Frame attaches to the Gorilla Baseplate using the provided red thumb screws. The Z-finder itself pops on and off the Z-finder Mounting frame. No magnets or glue are used. The metal Z-Finder Mounting Frame is backed with rubber to prevent scratching or slippage. If you want to remove the entire mounting frame from your camera, you can do so by loosening the thumb screws and pulling up on the metal mounting frame to release.
PLEASE NOTE
1.All Z-finder bodies are the same size and can fit on any of our frames. The Z-Finder Pro 2.5x for 3.2" screens comes standard with a 3.2" Z-Finder Mounting Frame for Small DSLR Bodies. That will fit a standard small body DSLR with a 3.2" screen like the Canon 5D MIII or Nikon D800/600. Any other frames need to be purchased in addition to the Z-Finder. You can find a la carte frames for tall cameras, battery grips, 3" LCD screens, and our adhesive frame here. You can find a Z-finder Pro 2.5x packaged with a mounting frame for small body DSLRs with 3" LCD screens (Canon 5D MII/7D/550D, Nikon D5100/3000) here.
2. The tapped holes on the bottom of the Gorilla Plate V2 are offset from the center of the lens for use with some of our equipment. This is only a concern if you are using the Gorilla plate with other rigs that do not have side to side movement and need the matte box in line with the lens/mounting screw hole. To compensate for this issue, you can either use an adhesive mounting frame to attach the Z-finder or add a Gorilla Plate Adapter to your plate. Our Gorilla Plate Adapter centers the tripod holes on the bottom of the gorilla plate. Please note that this adapter does come with a longer 1/4 20" screw that will replace the smaller 1/4 20" screw that comes with the Gorilla Plate. You will need to take your screw out and use the longer one provided with the adapter to attach your camera to the plate.
3.In order for the Gorilla Plate and mounting frame to correctly align with the LCD screen the plate needs to be directly underneath your camera. This means it cannot be used in combination with L brackets like Really Right Stuff or camera specific contour plates like Arca Swiss. You can use an adhesive frame on your camera with our Z-finder and continue using your camera specific plates as usual.
The Z-Finder Pro 2.5x for 3.2" Screens includes:
Z-Finder Pro loupe with 2.5x magnification and diopter
Three (3) Extender Frames
Gorilla Plate V2 and 3.2" Mounting Frame for Small DSLR Bodies (Canon 5D M3 Nikon D800/600 type cameras)
Lanyard and Lanyard Hook
Lens Cap, Sun Mask, and protective boot
Z-Finder Dust Cover
One installed and one additional Anti-Fog disc. This also acts as a lens protector and is expendable. More can be purchased here. We also have anti-fog wipes.
WARNING The Z-finder is a magnifier and as such will magnify the sun and could damage the LCD screen if the sun is allowed to shine directly through the Z-finder lens. This is not a defect but a physical property. Caution should be taken to avoid direct sun light. Proper use of the included lens cap and sun mask will dramatically reduce but not eliminate risk.
