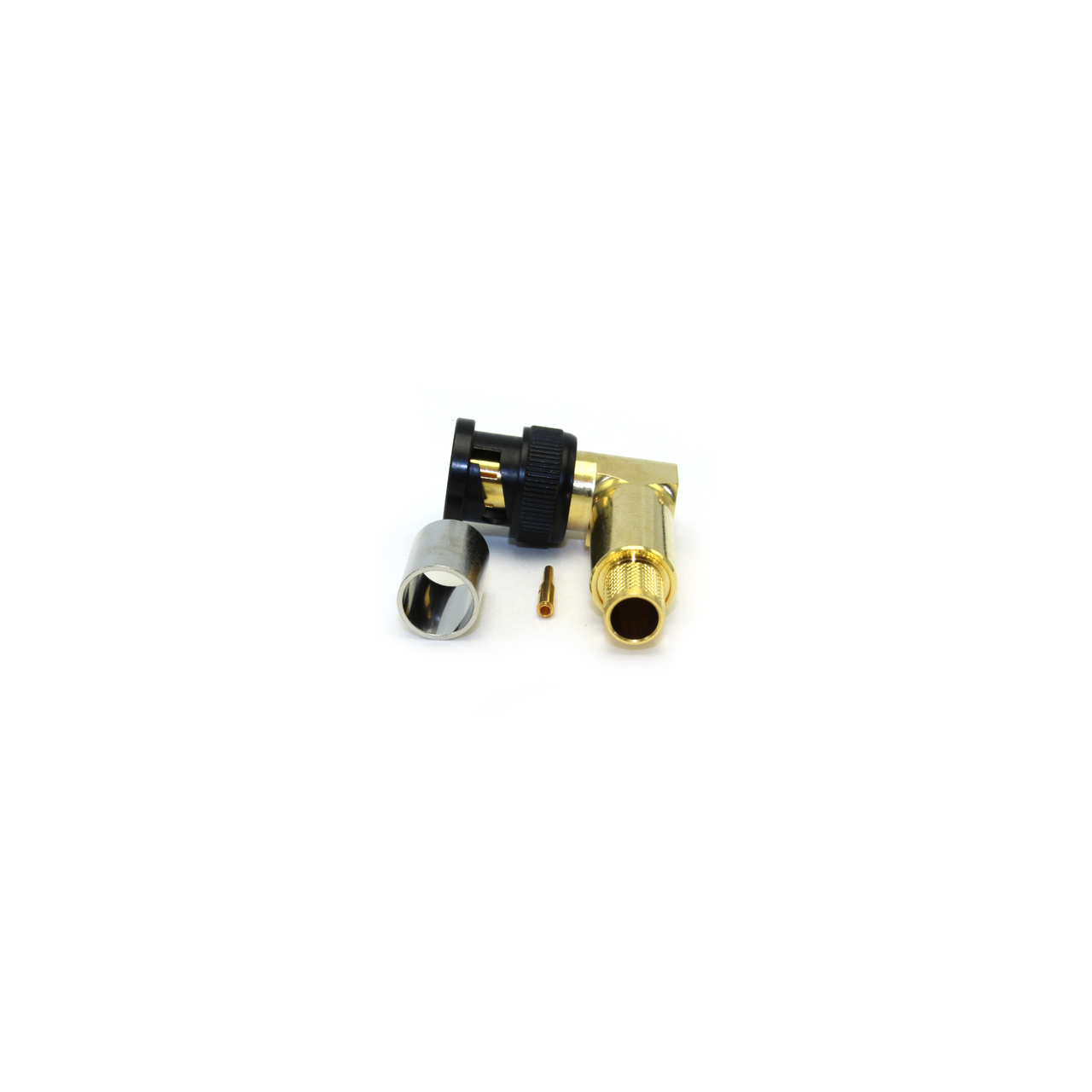

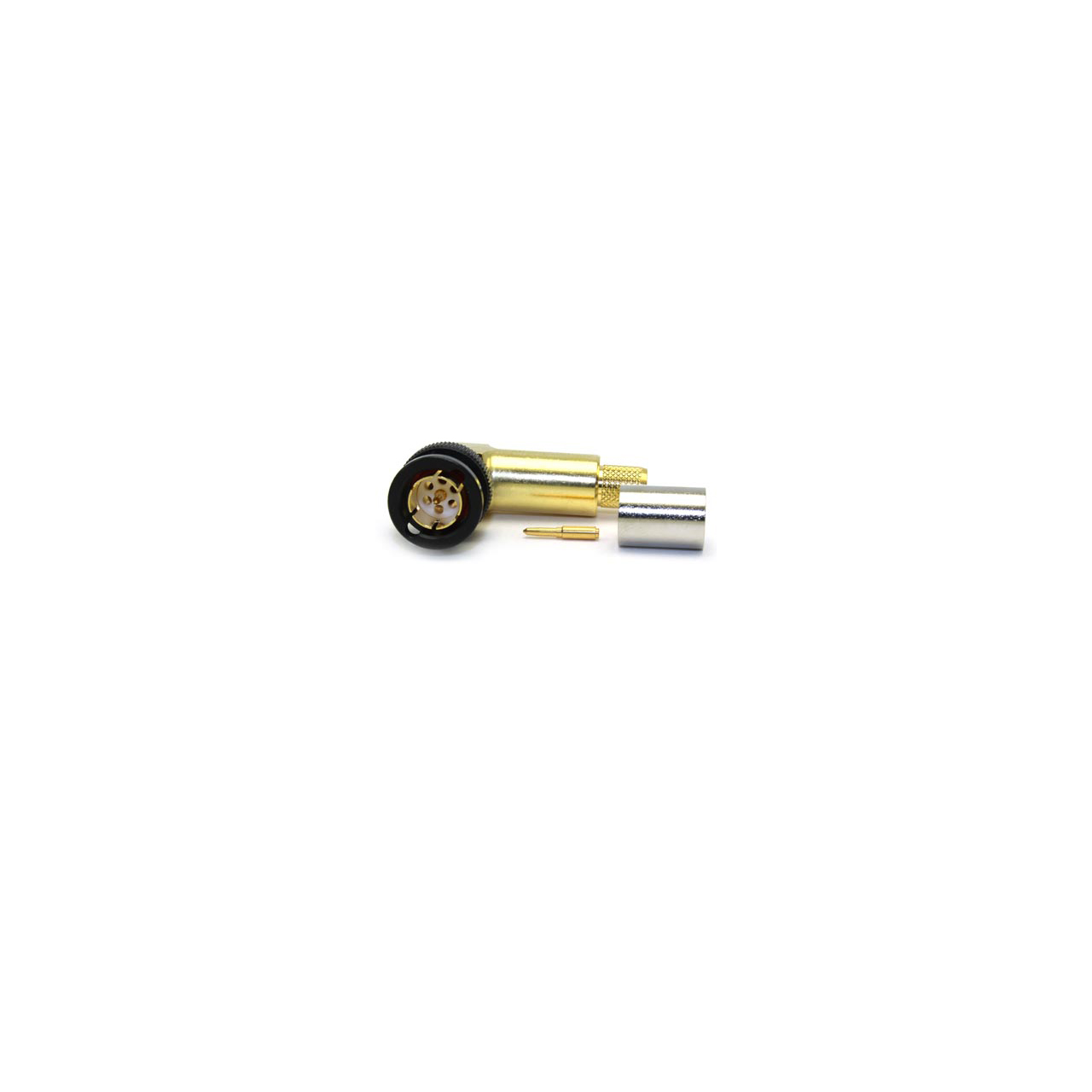

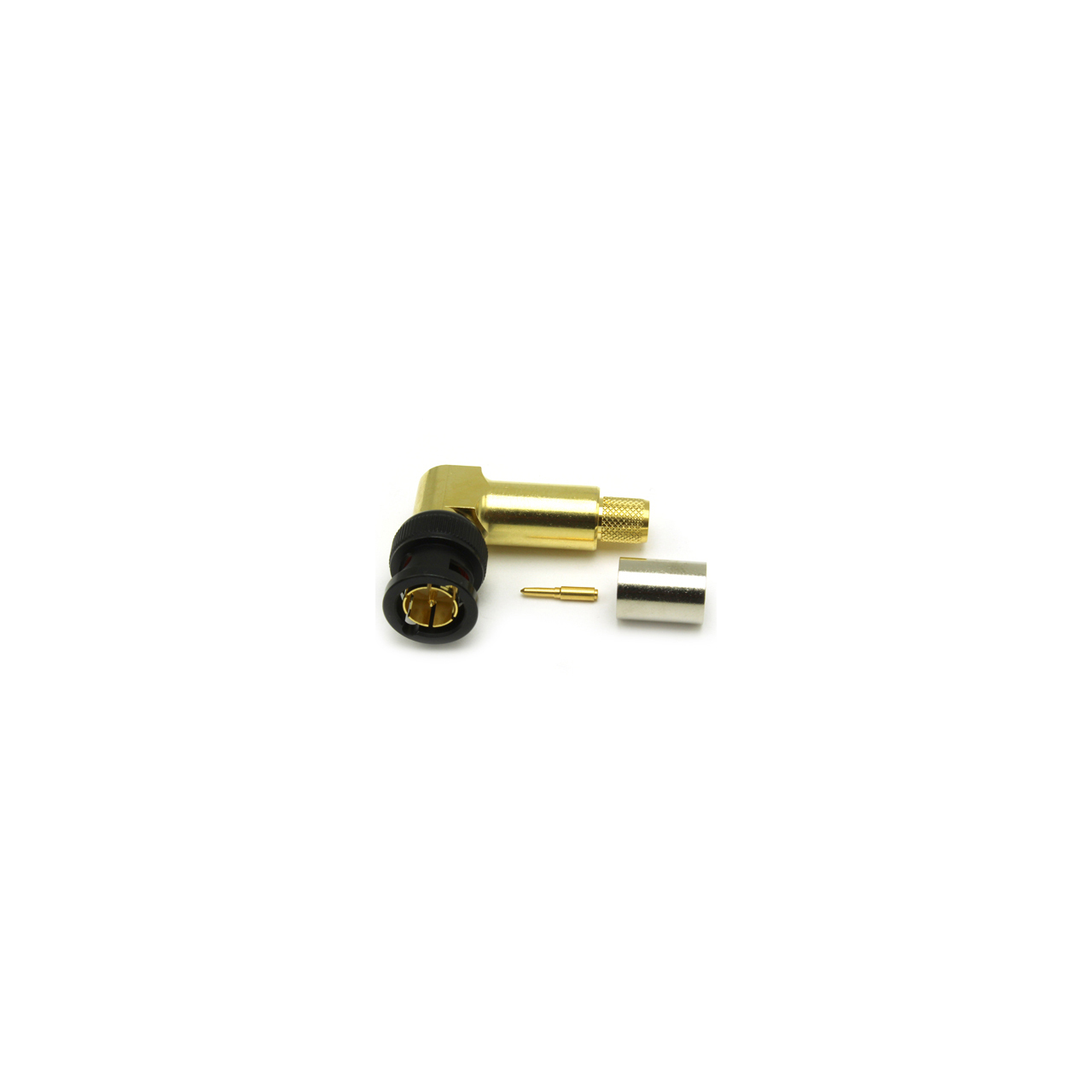

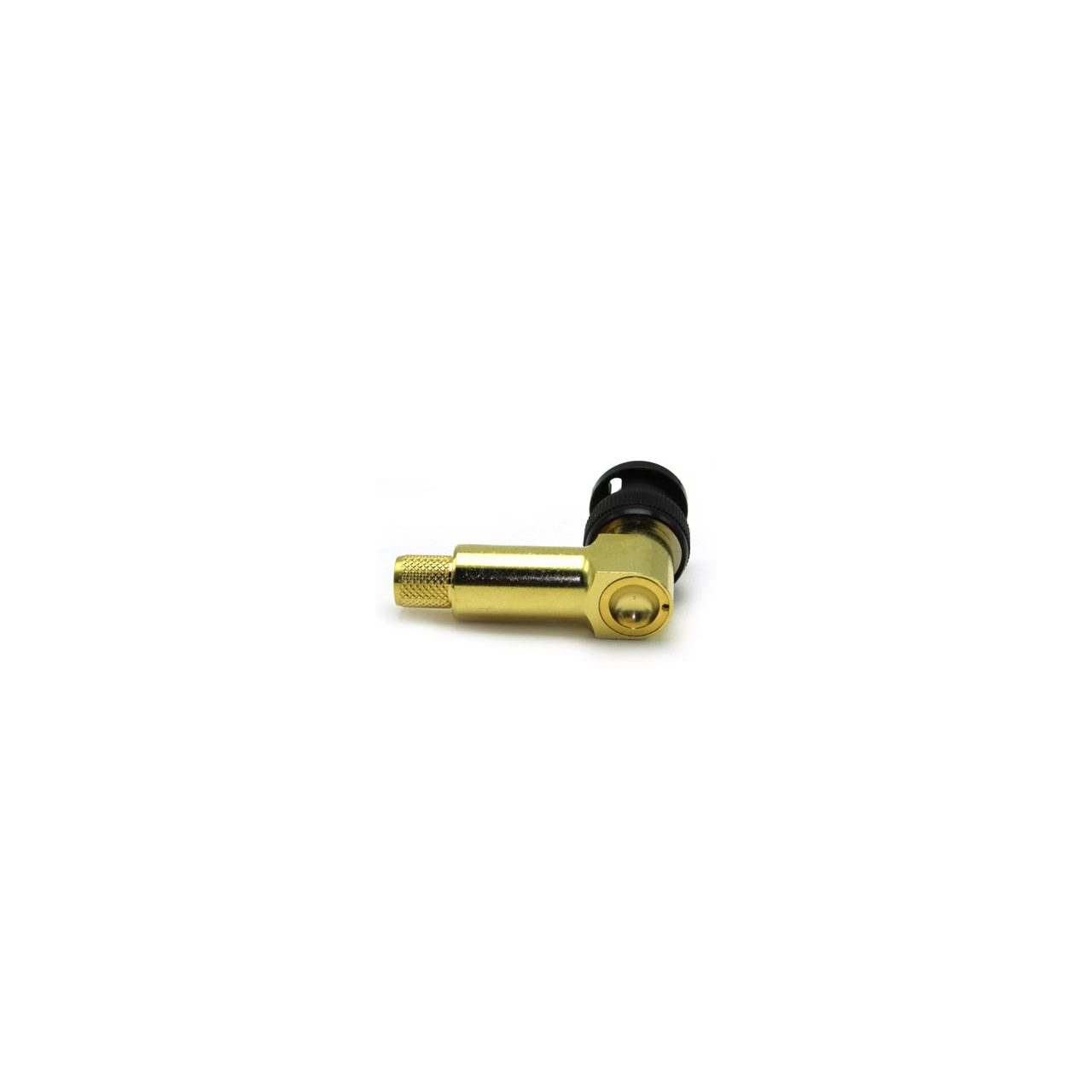

The Coax Connectors 10-104-W66-FC is a high performance `KORUS' 12GHz True 75 ohm BNC with black finished body and gold plated inner and outer contact. This Right Angle Crimp/Crimp plug gives stable low loss performance to beyond 12GHz and is ideal for 4K / Ultra HD broadcast applications. Both contact and crimp sleeve are annealed to provide a robust and durable termination. Suitable for cables in group FC. These have been tested to 18GHz.
Suitable for Cables:
(FC) Belden 1694A, Belden 1694F, Draka 1.0/4.8 A/F,
Bryant BD SD11, Image 1000, Conducfil 13653,
Percon VK7, VK77
