Belden 1694F Flexible CM Rated 6G-SDI RG6 75 Ohm Digital Coaxial Video Cable 19AWG - Black - Per Foot

ITEM #: BL-1694F MFG #: 1694F B591000 PER FOOT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.90

Our Price:

$1.43

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1694F B591000 PER FOOT - Overview

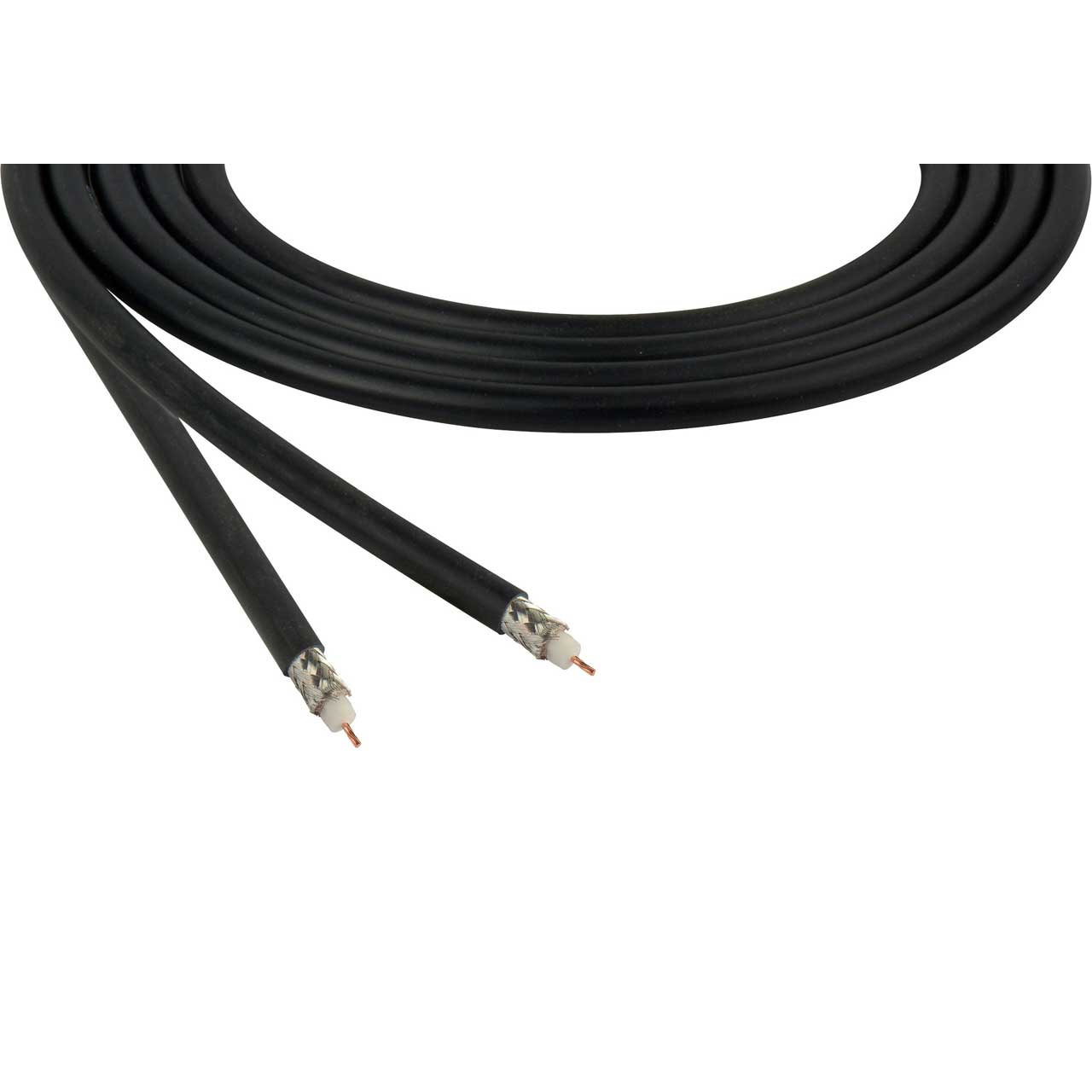

Belden 1694F is a flexible, 6G-SDI, 75 Ohm, RG-6 Coax, with a 19 AWG (7x27) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield and a PVC Jacket that is CM rated. 1694F is an extremely flexible version of Belden's popular industry standard, 1694A and works with the same connectors and tooling as 1694A.

Belden’s premium multi-channel 6G-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

Applications
6 Gb/s UHDTV
HD-SDI 1080p
Analog and Digital Video
Studio Wiring
Patch Bays
Broadcast Trucks
Remote Locations

  • Features:

    • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
    • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
    • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance

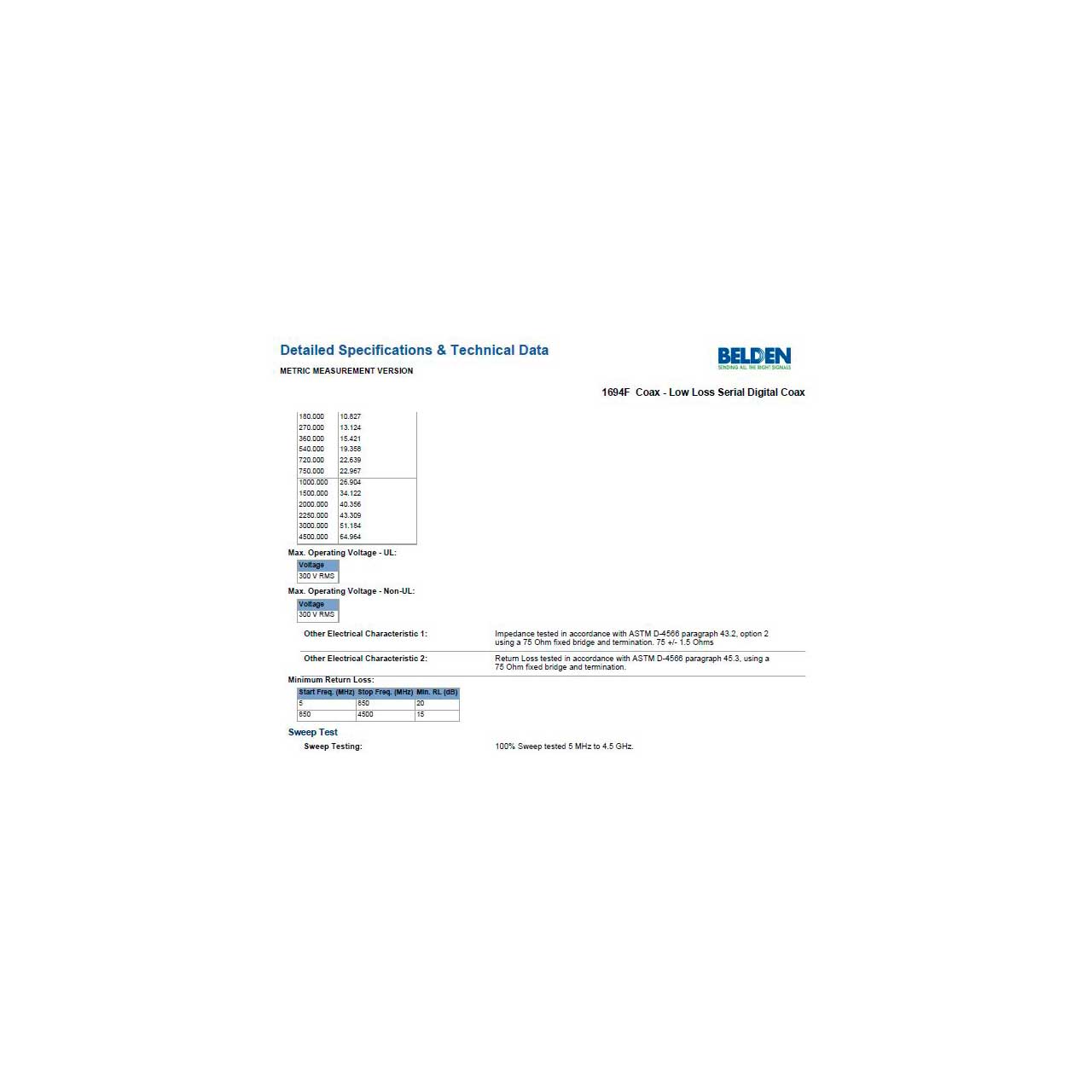

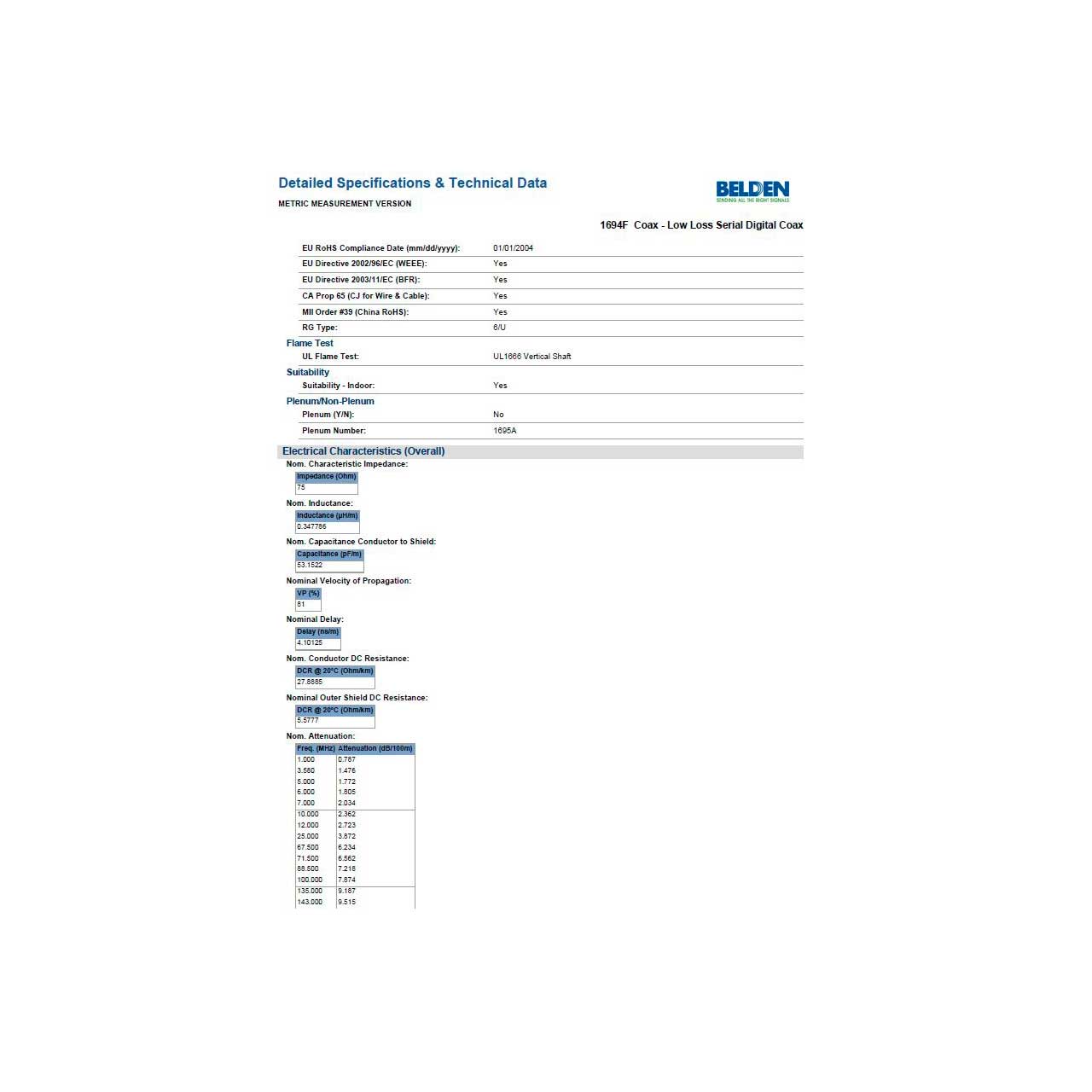

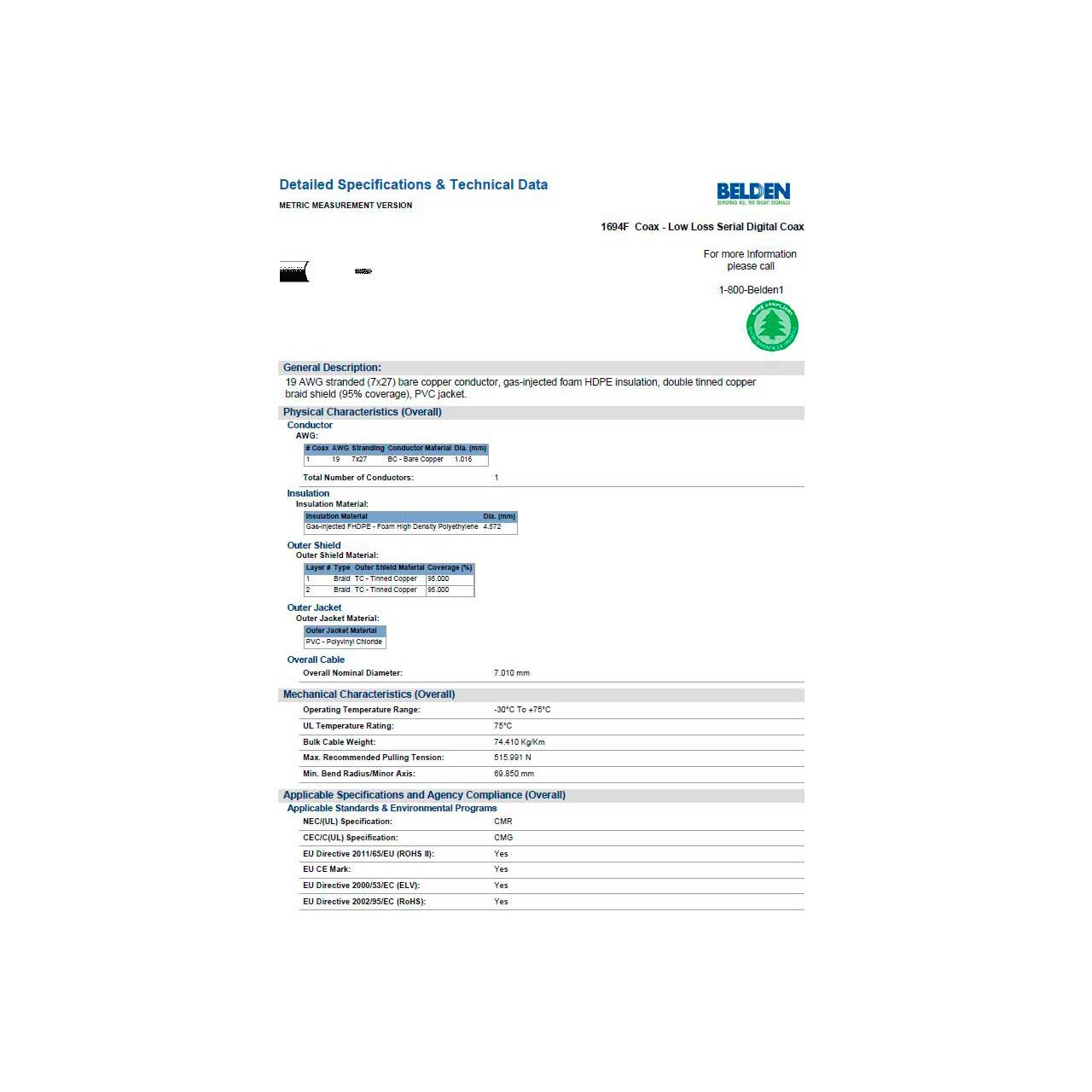

  • Specifications:

    • RG Type 6
    • No. of Coax: 1
    • Conductor AWG: 19
    • Conductor Stranding: 7x27 Stranded
    • Material: BC - Bare Copper
    • Conductor Nominal Diameter: 0.041 in
    • Outer Jacket Nom. Diameter: 0.276 in (7.01 mm)
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Insulation Material PE - Polyethylene (Foam)
    • Nom. Insulation Diameter: 0.180 in (4.57 mm)
    • Nominal Conductor DCR: 8.5 Ohm/1000ft
    • R Nominal Outer Shield DCR: 1.7 Ohm/1000ft
    • Outer Conductor DCR: 1.7 Ohm/1000ft
    • Nom. Capacitance Conductor to Shield: 7.0 pF/ft
    • Nominal Inductance: 0.106 µH/ft
    • Nominal Characteristic Impedance: 75 Ohm
    • UL Temp Rating: 75°C
    • Operating Temp Range: -30°C To +75°C
    • Bulk Cable Weight: 50 lbs/1000ft
    • Max Recommended Pulling Tension: 90 lbs
    • Min Bend Radius/Minor Axis: 2.75 in
    • UL Flammability: UL 1685 - UL Loading
    • UL voltage rating: 300 V RMS


  • Item Includes:

    • 1694F Flexible CM Rated 6G-SDI RG6 75 Ohm Digital Coaxial Cable 19AWG - Black - Per Foot


  • Warranty:

    • Limited 10 Year Warranty
