MuxLab 500700 HD-SDI Over CAT5 / CAT6 Extender Kit

500700 - Overview

• Features:

  • Supports SDI-SMPTE 259M-C (270Mbps)
  • Supports HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps)
  • Supports HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
  • Up to 400 ft (122m) via Cat6 cable
  • Up to 330 ft (100m) via Cat5e at all resolutions
  • LED diagnostics; sync, signal detect
  • Cast aluminium enclosure
  • 2 yr warranty


• Specifications:

  • Environment: SDI single link : SD, HD & 3G

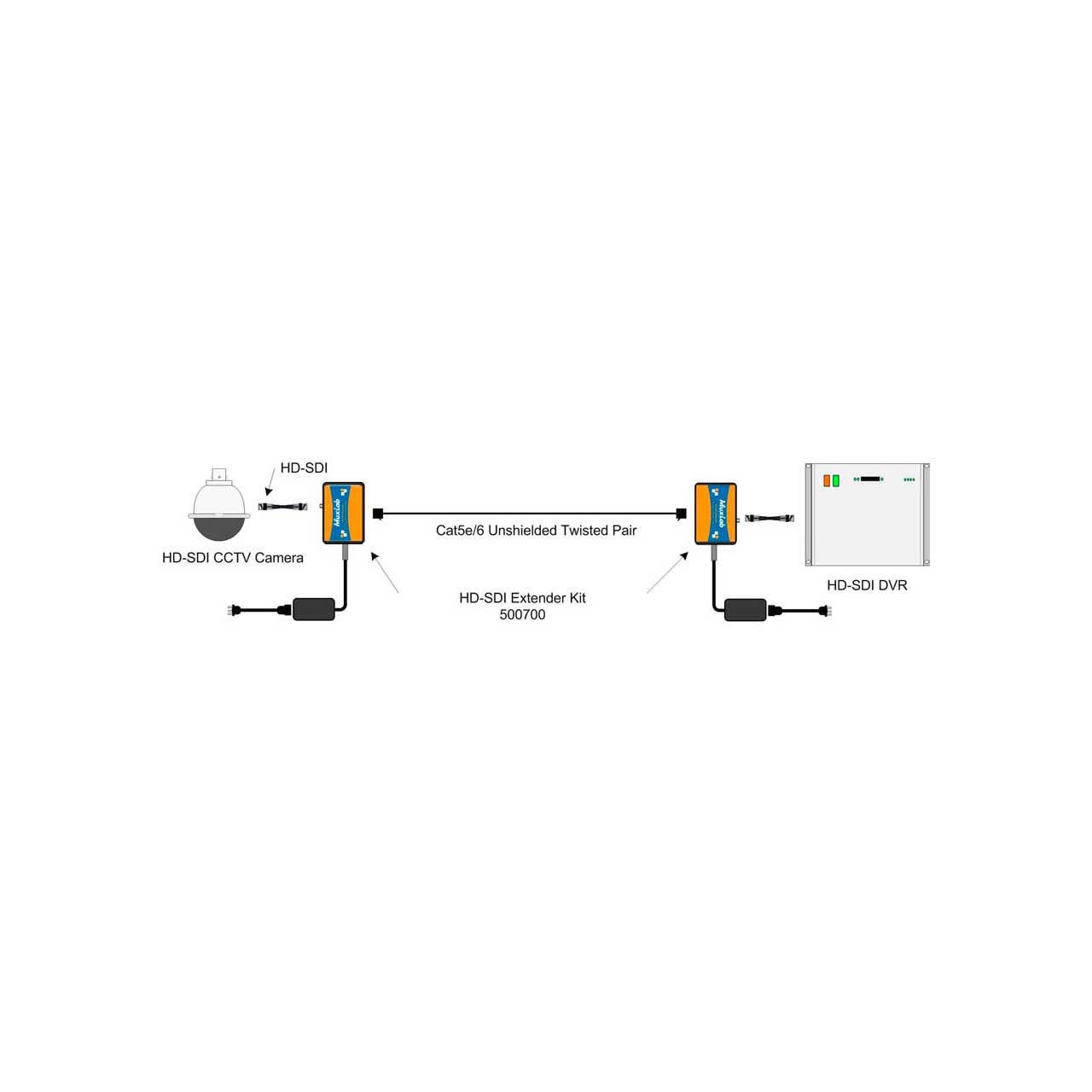

  • Devices: Camcorders, video processors, monitors, projectors, scan converters, CCTV cams/DVR and any equipment supporting HD-SDI single link
  • Standards: SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M
  • Speed: 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection)
  • Format Tested
  • SD: 525i, 59.94 Hz & 625i, 50 Hz
  • HD: 1035i, 60 Hz & 1080i, 50 Hz & 1080p, 30 Hz & 1080i, 60 Hz & 1080p,
  • 25 Hz & 1080i, 50 Hz & 1080p, 24 Hz & 720p, 60 Hz
  • 3G: 1080p, 4:2:2, 10b, 60Hz & 1080p, 4:2:2, 10b, 50Hz
  • 720p, 4:4:4:4, 10b, 60Hz & 720p, 4:4:4:4, 10b, 50Hz
  • 1080p, 4:4:4:4, 10b, 30Hz & 720p, 4:4:4:4, 10b, 30Hz
  • 1080p, 4:4:4:4, 10b, 25Hz & 720p, 4:4:4:4, 10b, 25Hz
  • 1080p, 4:4:4:4, 10b, 24Hz & 720p, 4:4:4:4, 10b, 24Hz
  • 1080i, 4:4:4:4, 10b, 30Hz & 1080i, 4:4:4:4, 10b, 25Hz
  • 1080p, 4:4:4, 12b, 30Hz & 1080p, 4:4:4, 12b, 25Hz
  • 1080p, 4:4:4, 12b, 24Hz & 1080i, 4:4:4, 12b, 30Hz
  • 1080i, 4:4:4, 12b, 25Hz & 1080p, 4:2:2, 12b, 30Hz
  • 1080p, 4:2:2, 12b, 25Hz & 1080i, 4:2:2, 12b, 30Hz
  • 1080i, 4:2:2, 12b, 25Hz

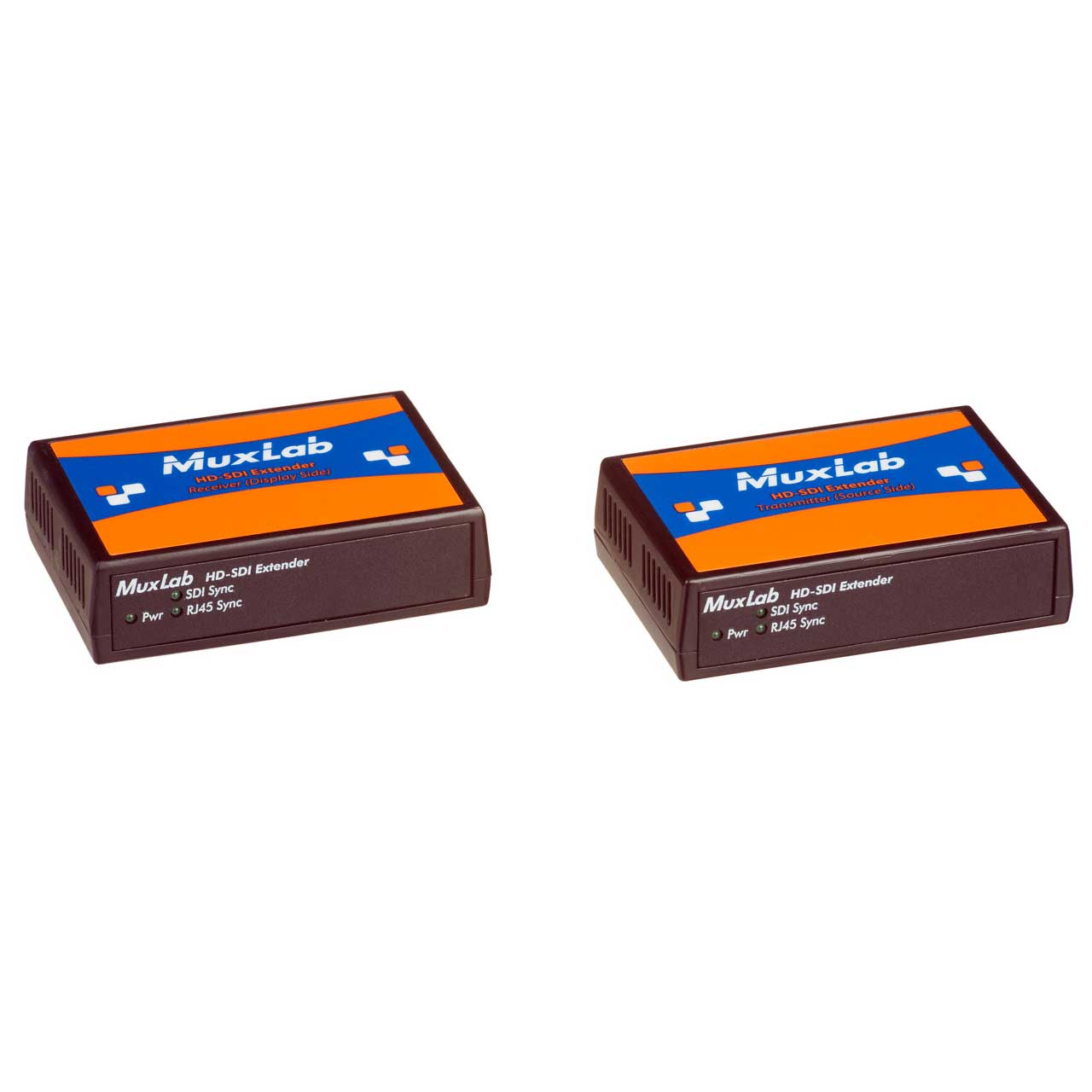

  • Indicators:
    Power on (on both end)
    Signal detect (on rx side).
    Synchronisation detect (on both end)
    Link between the two unit working (on both end).

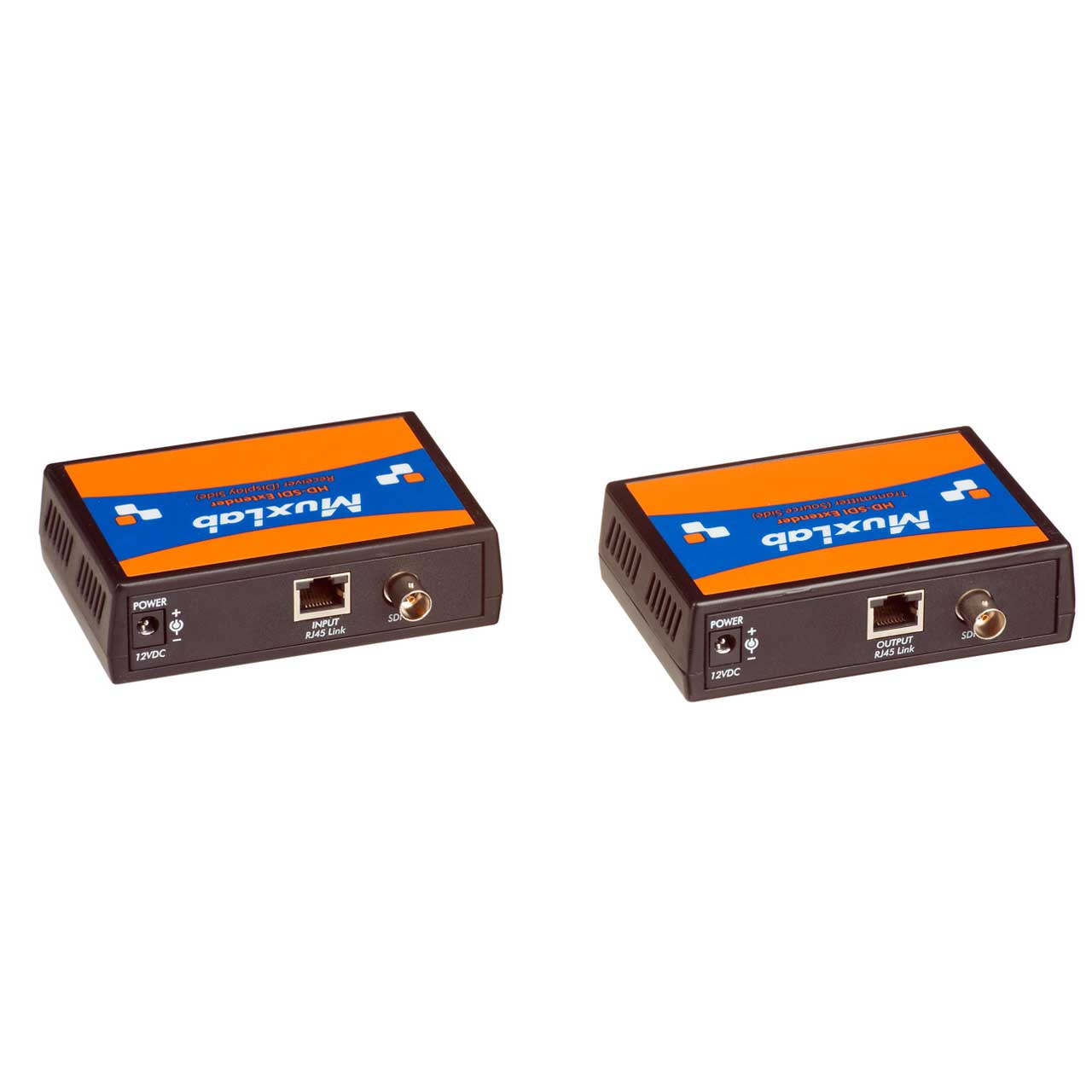

  • Connectors: One BNC 75 ohm female
  • One RJ45S for Cat 5e/6 unshielded or shielded twisted pair
  • One power connector, 2mm
  • Maximum Distance: Cat5e UTP/STP: 330 ft (100 m)
  • Cat6 UTP/STP: 400 ft (122 m)
  • Power Supply: Two 100-240V/12VDC 1.25A power supplies with interchangeable blades for NA, Eur & UK
  • Power Consumption: Transmitter: 4 Watts
  • Receiver: 8 Watts
  • Operating Temperature: 0 to 104§F (0 to 40§C)
  • Humidity: Up to 95% non-condensing
  • Enclosure: Aluminum
  • Dimensions: 4.5 x 3.0 x 1.25"
  • Weight: 2.5lb (1.1kg)


• Warranty:

  • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products


• GTIN:

  0627699007006
