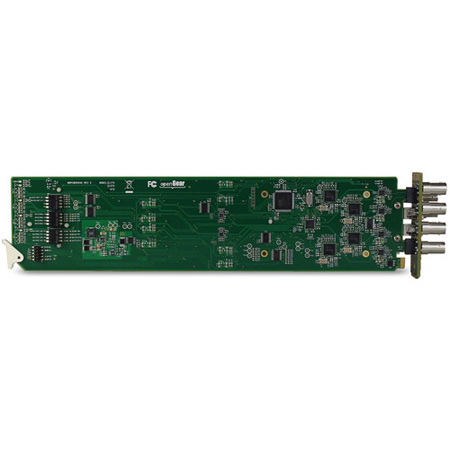

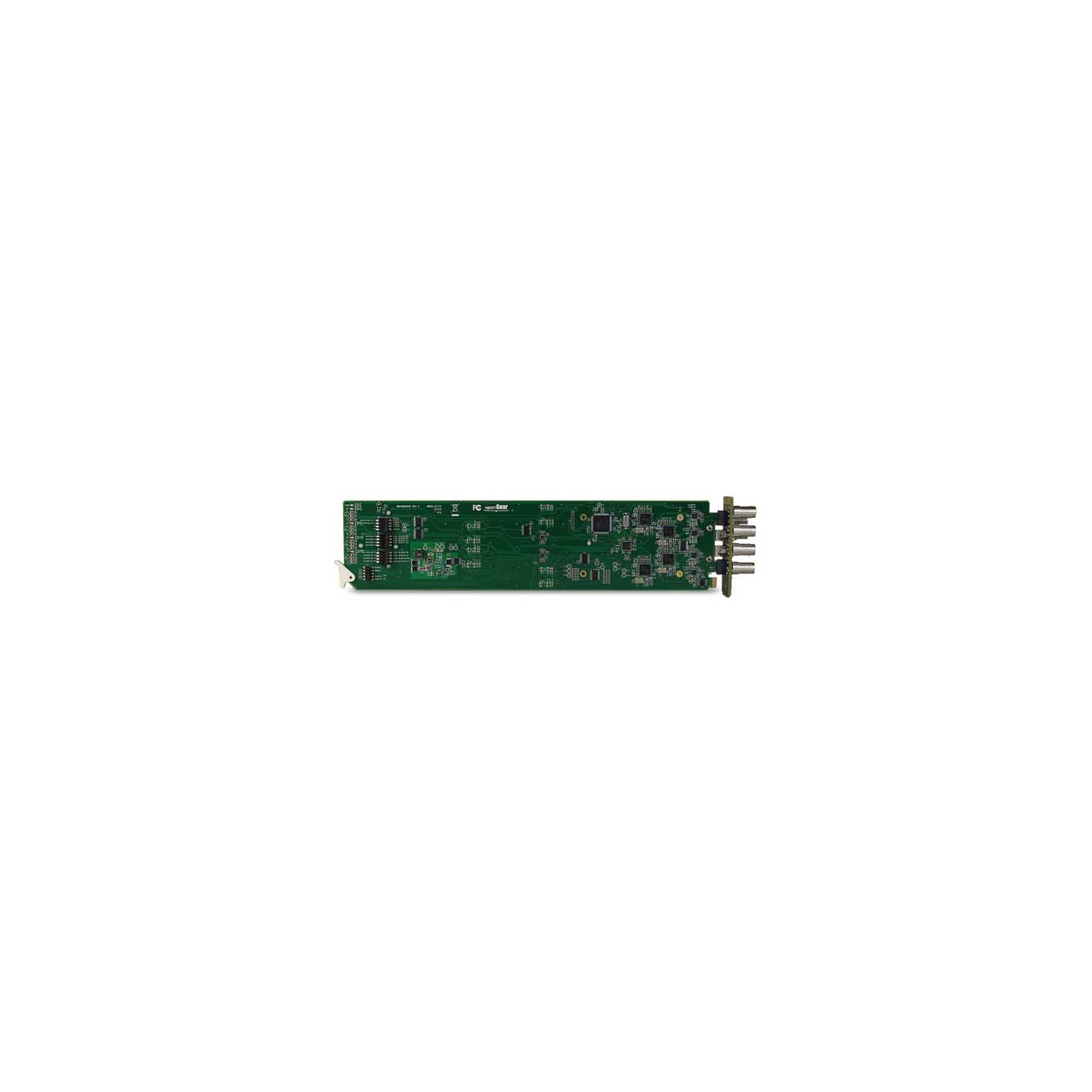

Multidyne HD-4400OG-FRX-50 4 Channel 3.0 Gbps HD-SDI Fiber Optic Receiver Card

ITEM #: HD-4400OG-FRX-50 MFG #: HD-4400OG-FRX-50

Primary Image
Multidyne
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,025.00

Our Price:

$2,683.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HD-4400OG-FRX-50 - Overview

The Multidyne HD-4400OG-FRX-50 HD-4000 series of modules for the openGear platform provides unprecedented flexibility in how you handle your SDI signal transport. Capable of handling SDI rates from 5 Mb/sec all the way up to 3 Gb/sec uncompressed, these cards will automatically detect the incoming signal and give you full control over re-clocking and routing.

Applications:
Studio Links
Signal Trunking
Signal distribution
Campus interconnects
Transmission links
Telco circuits
Outside Broadcast "B-Unit" interconnects

PLEASE NOTE! This is the Receiver Fiber Card ONLY! Rear Module is required and sold separately.

  • Features:

    • Supports SMPTE 424M, 292M, 310M & 259M
    • Reclocking @ 270Mbps, 1.483Gbps, 2.970 Gbps & DVB-ASI
    • Auto-detect of incoming data rate
    • Card-edge LEDs for signal presence, rate & other key parameters
    • Blind-mating SC fiber connectors
    • 4x4 Matrix/cross-point
    • 1,2,3 or 4 signals/card
    • Up to 18 signals/fiber
    • Up to 40 signals in 2RU
    • Dashboard enabled
    • Supports embedded audio and data


  • Specifications:

    • General
    • Fiber Compatibility: singlemode
    • Optical Connector: ST, LC, SC or FC
    • Distance limit: Up to 40 km @ SD, Up to 24 km @ HD
    • Dimensions (LxWxH): 13" x 3"
    • Weight: 6 oz
    • Temperature Range: -0° to +70°C
    • Humidity Range: 0 to 95% RH Noncondensing
    • Power Requirement: 12 VDC @ 10w

      SDI Video In
    • Input Type: BNC
    • Input Impedance: 75 Ohms
    • Optical Sensitivity (w/HD-SDI Signal): -20 dBm
    • Output Return Loss: >15 dB up to 1.5GHz, >10dB up to 3 GHz
    • Added Jitter: <0.03UI under 1MHz
    • Wavelength: 1310nm Std CWDM 1271-1611 DFB
    • Optical Power: -5 dBm to 0 dBm
    • Laser Strength: Laser Class 1
    • Standards: SMPTE 259M-C, 292M, 425M, 297M & DVB/ASI


  • Item Includes:

    • 1x Multidyne HD-4400OG-FRX-50 4 Channel 3.0 Gbps HD-SDI Fiber Optic Receiver Card
