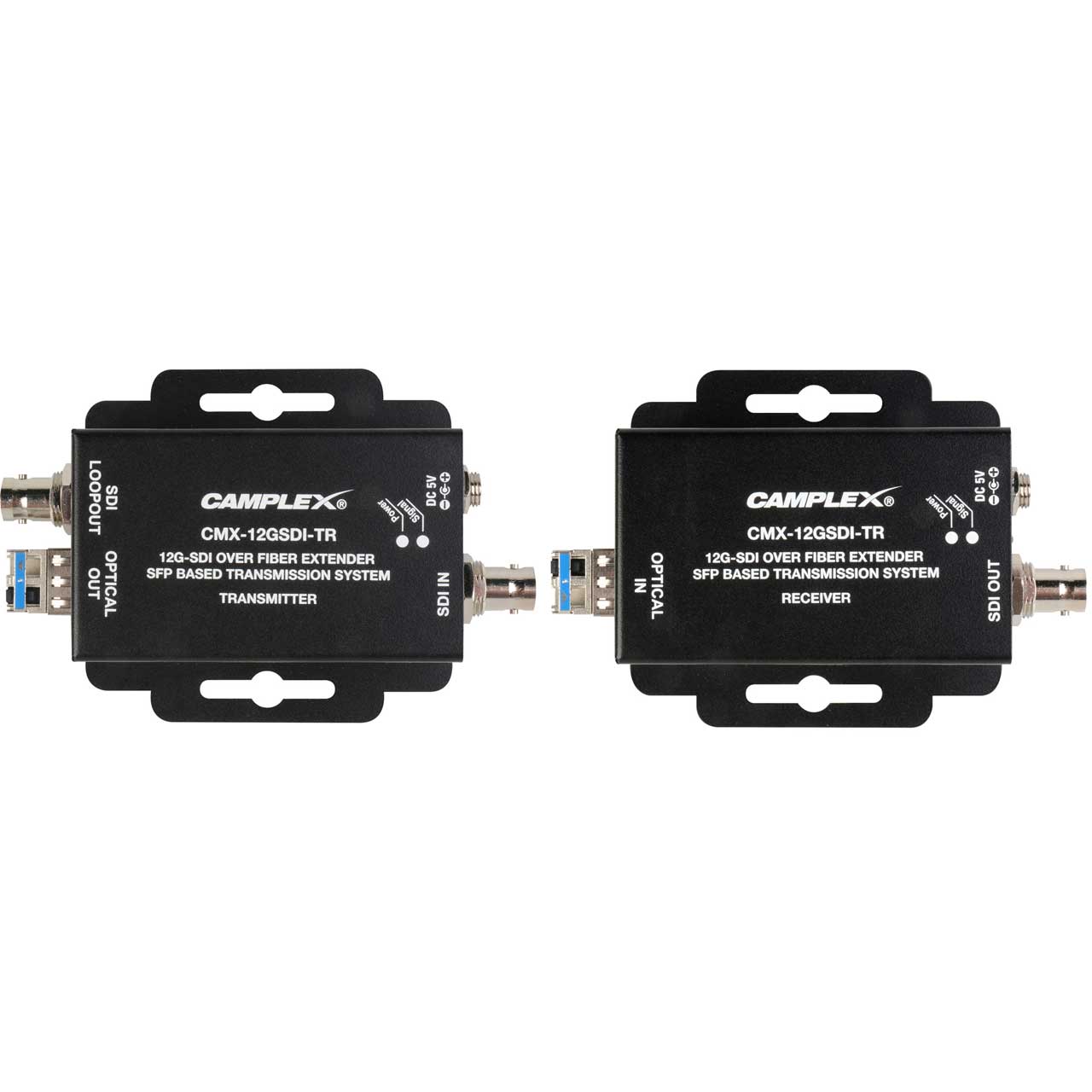

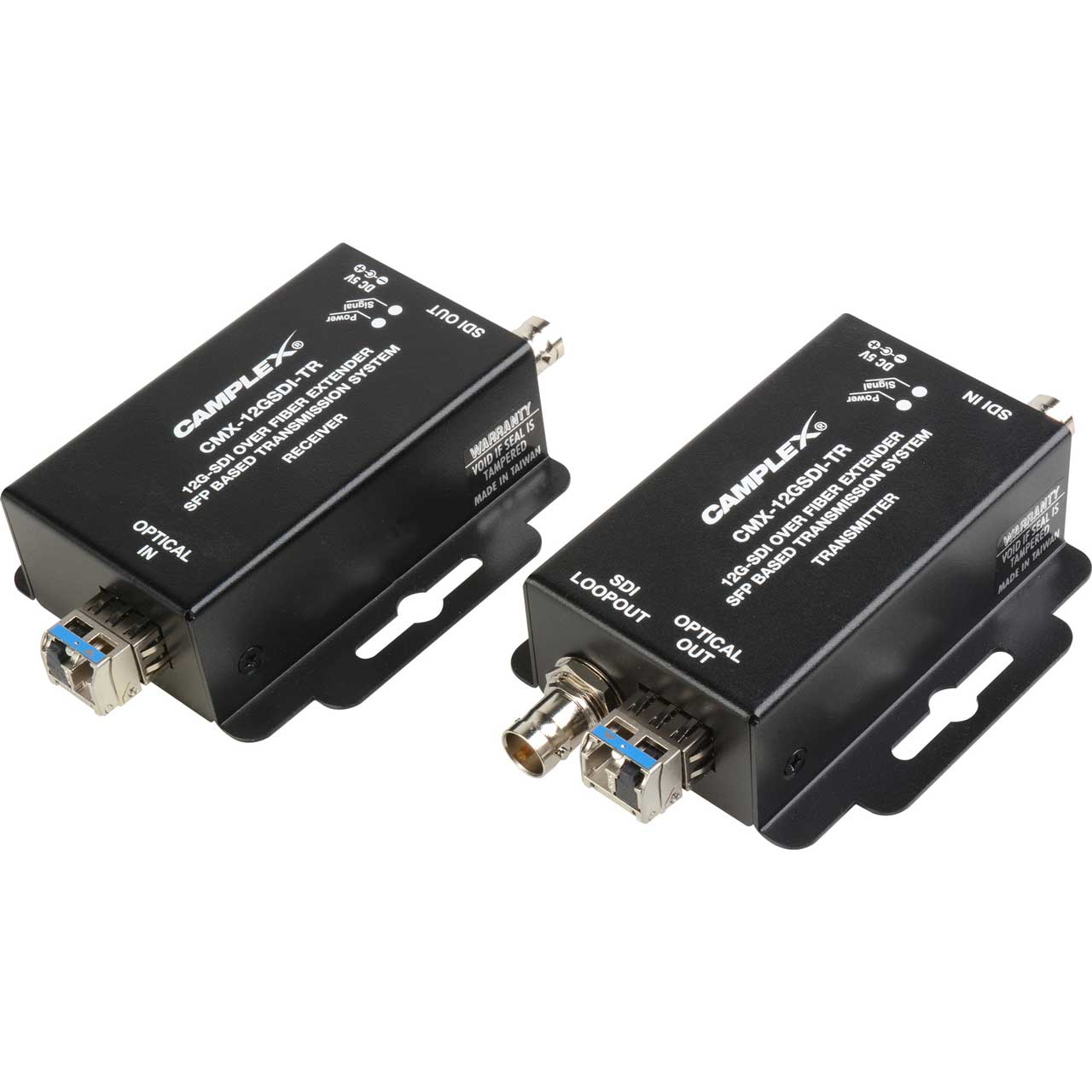

Harness the power of long-haul 12G-SDI transmission with the Camplex CMX-12GSDI-TR fiber extender. This single-link system is engineered to deliver exceptional image resolution and embedded audio over singlemode fiber up to 6.2 miles.
Input signals are automatically equalized & reclocked and the transmitter features an SDI looping output for monitoring. The Camplex CMX-12GSDI-TR is perfect for outside broadcast, live event production, rental, digital signage and medical applications. The system is backwards compatible for use with 3G-SDI and SD-SDI video signals.
This SFP based system has distinct advantages over conventional fiber extenders. SFP modules allow for interchangeability when SFPs need cleaning or you need to change speed and distance. In addition, when used with compatible Camplex brands, the receiver unit can be eliminated from the video chain for direct transmission to SFP module devices. Fiber connection is LC simplex single mode.
Meets SMPTE ST 2082-1 and ST 2082-2 standards.
