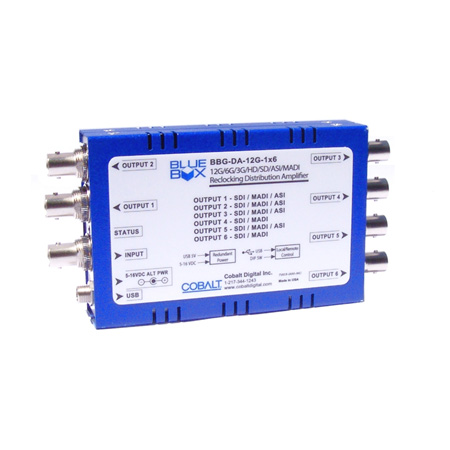

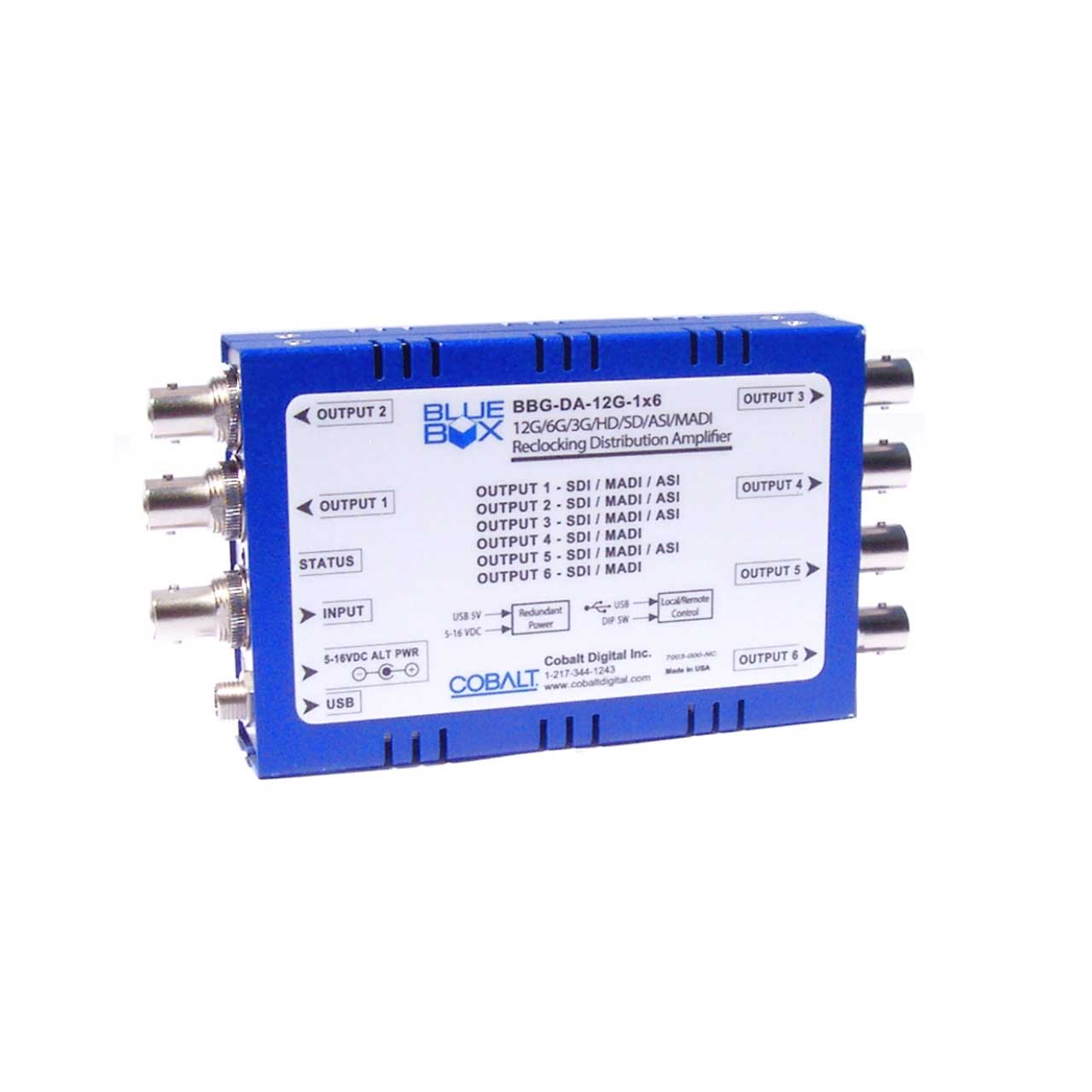

Cobalt Digital BBG-DA-12G-1x6 12G-SDI ASI MADI Reclocking Distribution Amplifier w/ Input Status LED & PS4

ITEM #: CB-BBGDA-12G-1X6 MFG #: BBG-DA-12G-1X6

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Cobalt Digital
Free Shipping with $49 Minimum Order

List Price:

$435.00

Our Price:

$434.94

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BBG-DA-12G-1X6 - Overview

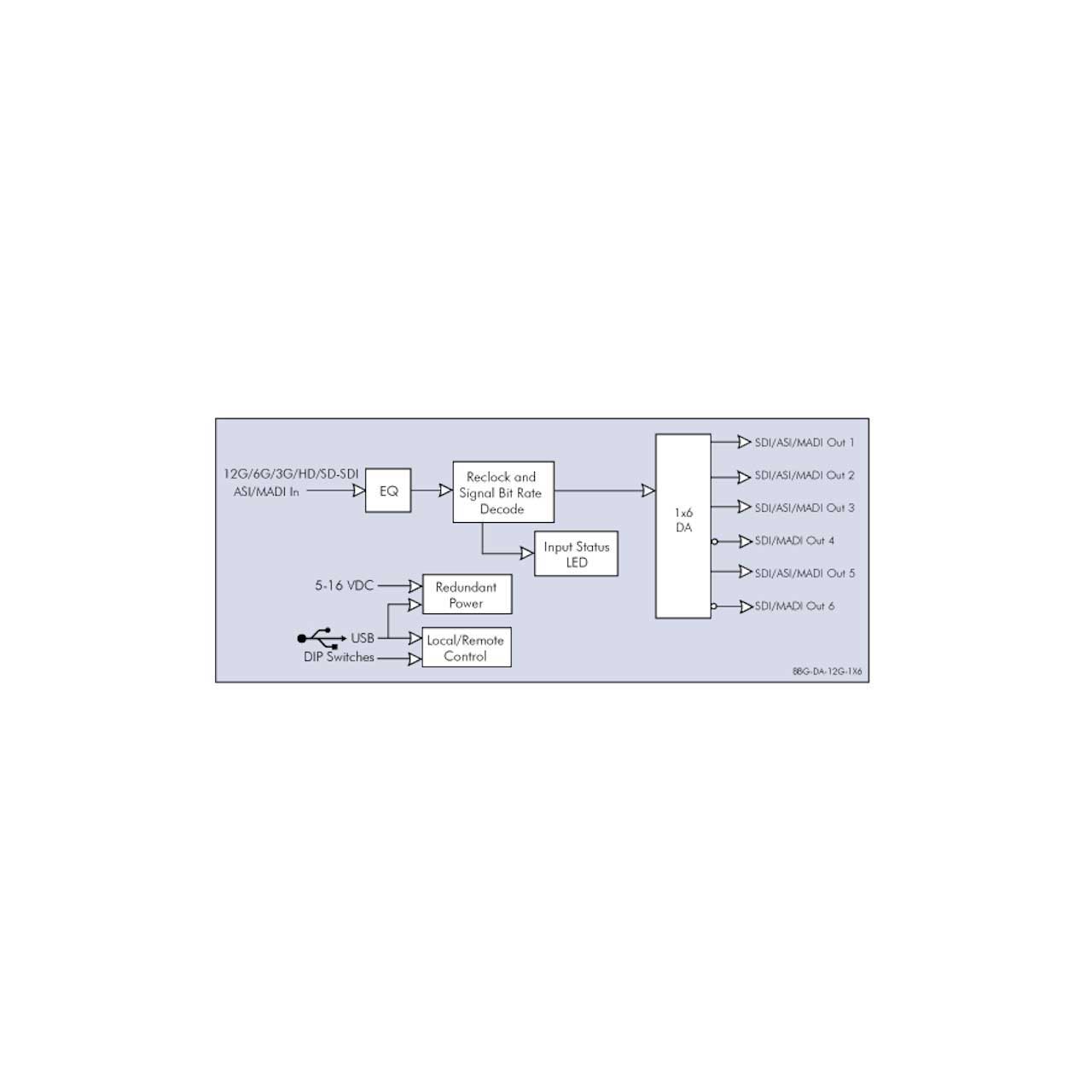

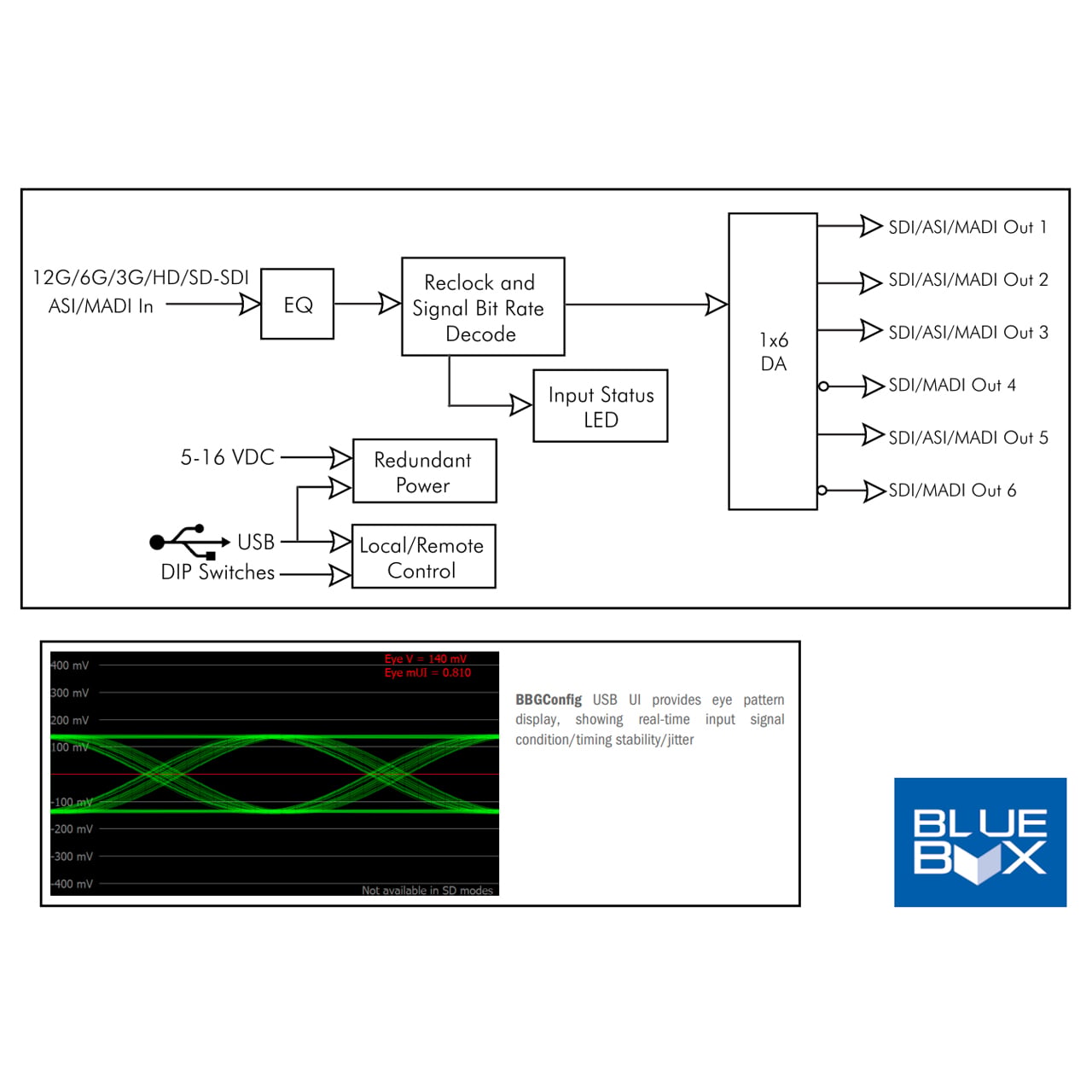

The BBG-DA-12G-1x6 by Cobalt is a 12G/3G/HD/SD-SDI / ASI / MADI multi-rate distribution amplifier that features an input status LED. The unit is fully automatic and supports SMPTE 2082-1 (12G), 424M (3G), 292M and 259M SDI video signals as well as ASI and MADI, and is equipped with 1 input and 6 reclocked SDI outputs. (Reclocking for 12G/3G/HD/SD-SDI and MADI inputs; all other bit rates are non-reclocking.) The unit supports 1x3 ASI distribution using its non-inverting outputs.

Please Note: Device includes one PS4 Universal Power Supply, UL/CSA. Input: 100-240V, 60/50 Hz. Output: 5 VDC @ 12 Watts.

  • Features:

    • Six 12G/3G/HD/SD equalized and reclocked outputs
    • 1x3 ASI distribution capability
    • Input present LED indicator
    • Auto-standard detect and configuration for SMPTE 2082-1, 424M, 292M, 259M
    • Small rugged portable standalone package ideal for portable installations
    • Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces
    • Rugged construction backed with a five-year warranty


  • Specifications:

    • 12G/3G/HD/SD-SDI / ASI / MADI Inputs
    • Number of inputs: 1
    • Impedance: 75Ω
    • SDI Formats Supported: SMPTE 2082-1, 424M, 292M, 259M
    • Other Formats Supported: ASI, MADI

      Receive Performance; Equalized (Cable Length; Belden 1694A)
    • 12 Gbps: 60m
    • 3 Gbps: 100m
    • 1.485 Gbps: 150m
    • 143-360 Mbps: 400m

      12G/3G/HD/SD-SDI / ASI / MADI Outputs
    • Number of DA outputs: 6
    • Signal Level: 800 mV +/- 10%
    • DC Offset: 0.0V +/- 0.5V
    • Jitter 12Gbps: Alignment (<100 kHz) Jitter: < 0.3 UI; Timing (<10 Hz) Jitter: < 8 UI
    • Jitter 3Gbps: Alignment (<100 kHz) Jitter: < 0.3 UI; Timing (<10 Hz) Jitter: < 2 UI
    • Jitter 1.5Gbps: Alignment (<100 kHz) Jitter: < 0.2 UI; Timing (<10 Hz) Jitter: < 1 UI
    • Jitter 270Mbps: Alignment (<1 kHz) Jitter: < 0.2 UI; Timing (<10 Hz) Jitter: < 0.2 UI
    • Impedance: 75 Ω

      General
    • Dimensions (WxHxD): 5.8" x 2.9" x 1.1" (including connector projections)
    • Power: <2 Watts; 5-18 VDC (compatible with Power Supply PS11 or PS12; shipped with Power Supply PS11)


  • Item Includes:

    • PS4 Universal Power Supply, UL/CSA. Input: 100-240V, 60/50 Hz. Output: 5 VDC @ 12 Watts.


  • Warranty:

    • 5 Years
