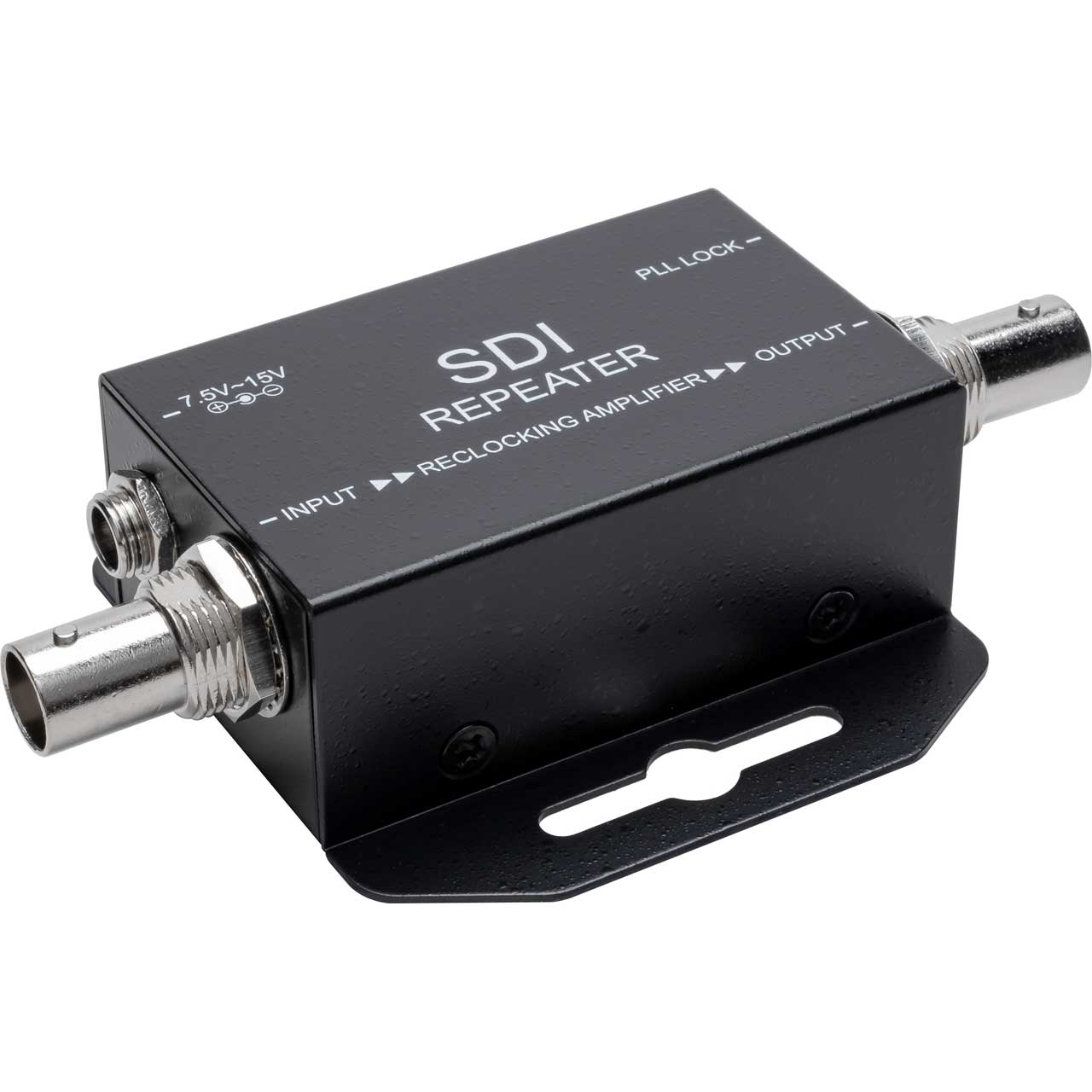

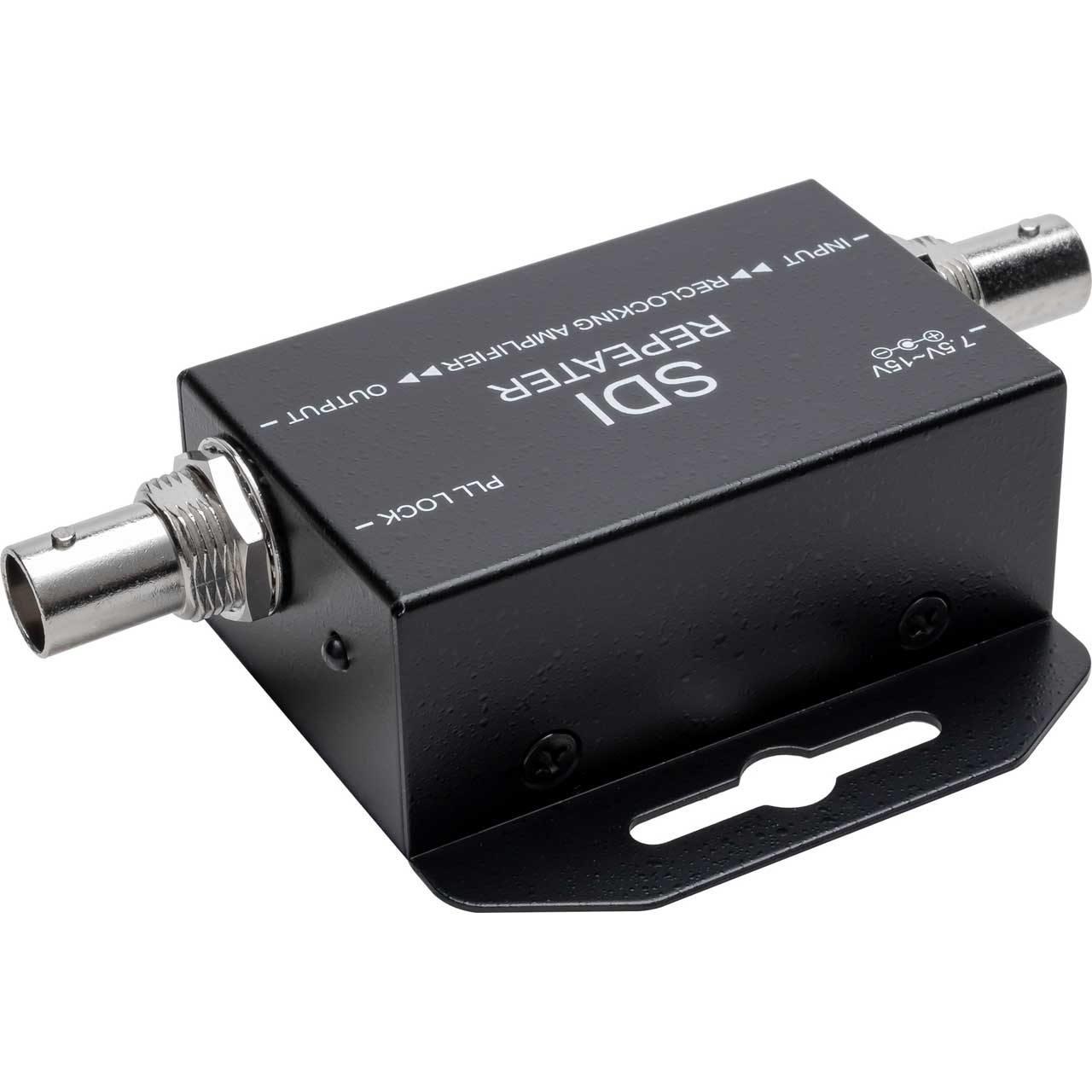

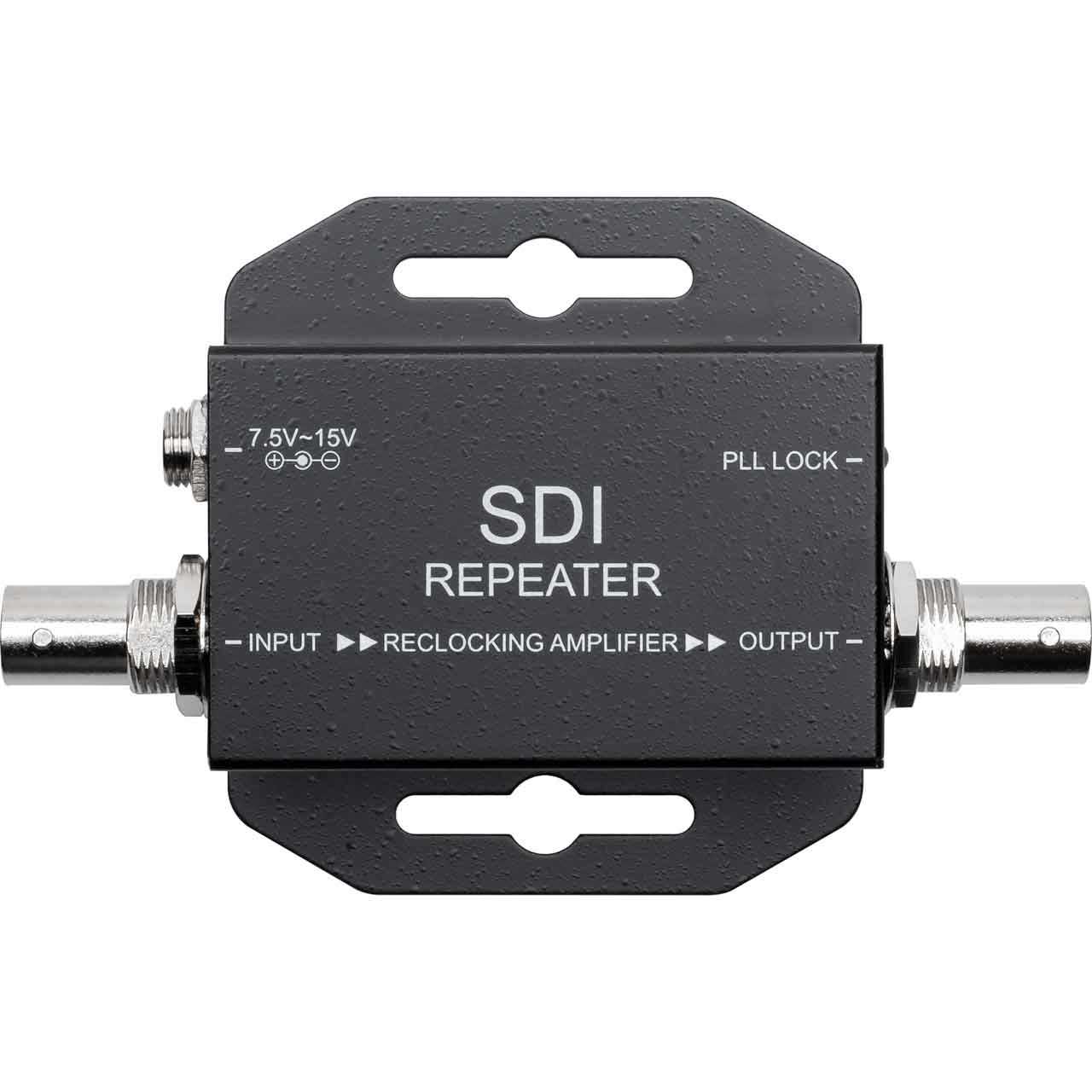

KanexPro SDI-HDRPTPRO 3G/SDI/HD SDI Repeater

SDI-HDRPTPRO - Overview

• Features:

  • Extend and repeat SDI signals up to 300 meters
  • Auto-input detection for 3G/HD/SD-SDI
  • Supports full HD 1080p/60
  • Built-in signal equalizer & re-clock function
  • 3G mode length up to 130m
  • HD mode length up to: 170m
  • SD mode length up to 300m
  • Audio format support up to 16-channel@24 bit, 48KHz
  • Compact & rugged housing
  • Locking power supply & mounting ears
  • Micro-USB Port for firmware update


• Specifications:

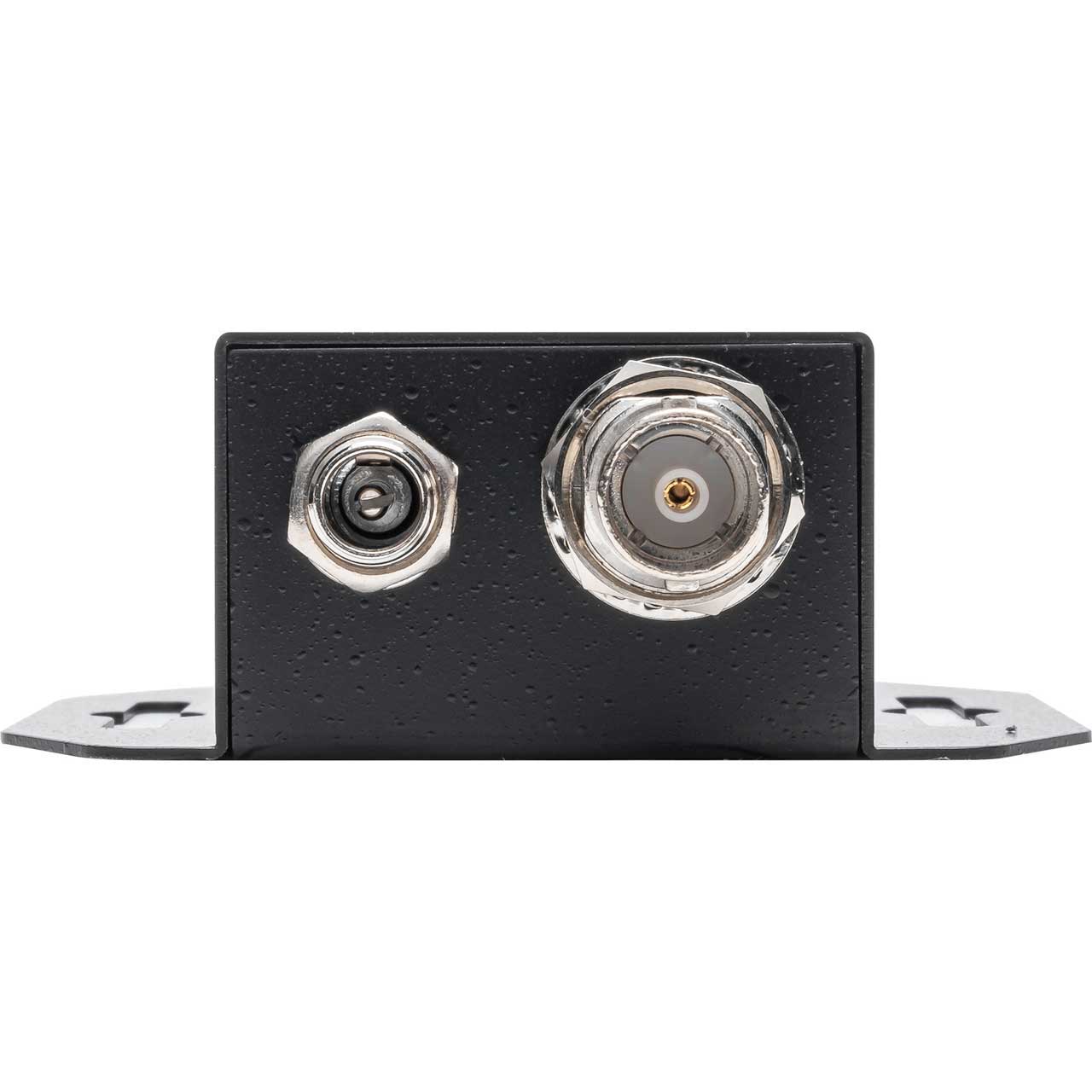

  • Input: 1 x SDI

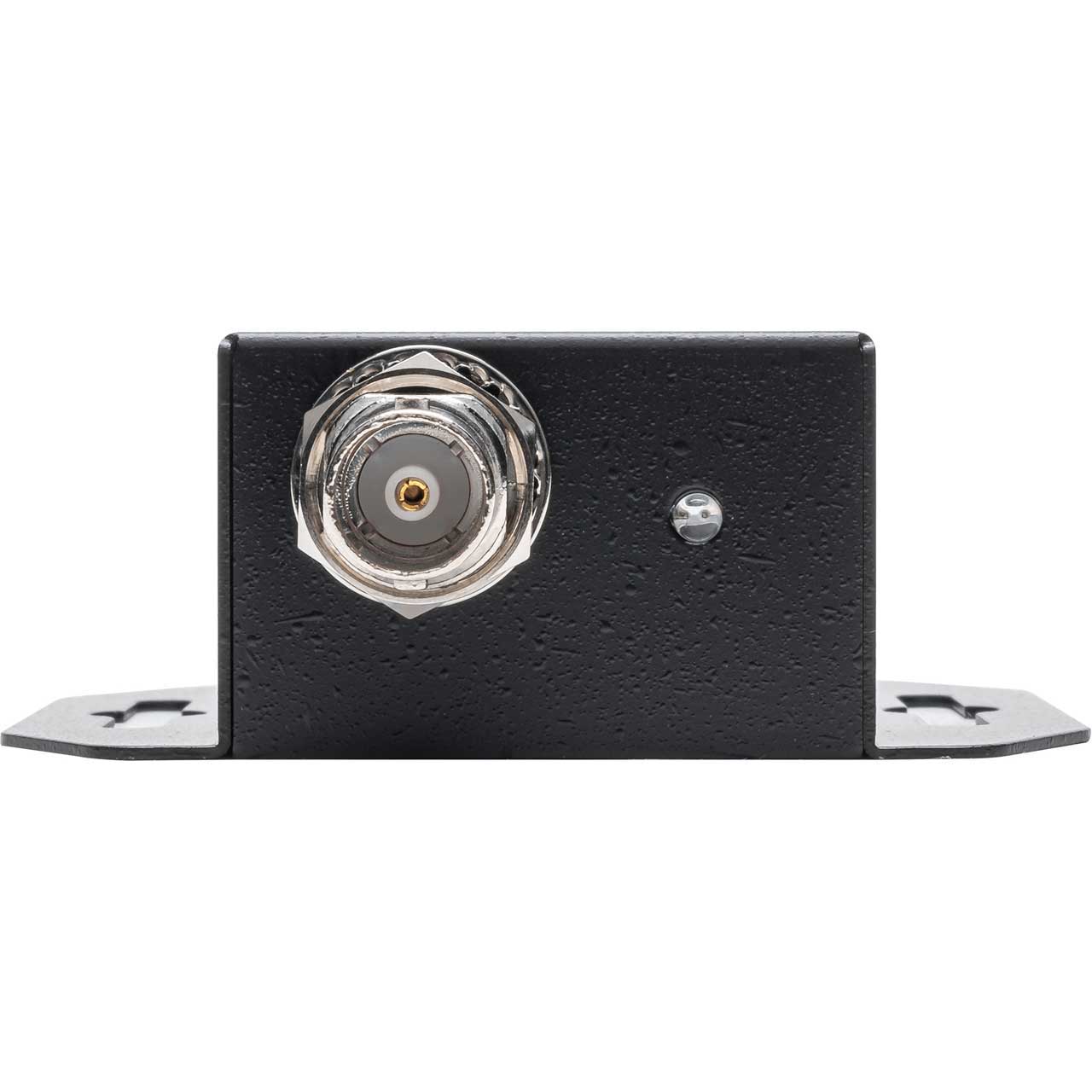

  • Output: 1 x SDI

    Supported Video Resolutions:
  • 3G: 1080p60 / 59.94 / 50
  • HD: 1080p30 / 29.97 / 25 1080i60 / 59.94 / 50
  • 720p60 / 59.94 / 50
  • SD: 625i (PAL) / 525i (NTSC)
  • 720p60 / 59.94 / 50?SD: 625i (PAL) / 525i (NTSC)

    SDI formats:
  • 3G-SDI (SMPTE 424M) HD-SDI (SMPTE 292M) SD-SDI (SMPTE 259M)

    Cable Equalization
  • HD: 200m of RG6
  • 140m of RG59
  • 3G: 140m of RG6 100 m of RG59
  • SDI formats: 3G-SDI, HD-SDI, SD-SDI


  • Supported Audio Formats: up to 16-channels, 24-bit@48KHz
  • Power: DC in: 7.5V ~ 15V
  • Regulatory Approvals: FCC, CE, and UL


• Item Includes:

  • User Manual x 1
  • DC Adapter x 1


• Warranty:

  • 3 Years


• GTIN:

  0813982020931
