Freakshow HD MSX4-L 1x4 Microsplit Reclocking DA 4K 12G/3G SDI Splitter - LEMO Power Connector

ITEM #: FREAKS-MSX4-L MFG #: MSX4-L

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Freakshow HD
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$459.00

Our Price:

$418.11

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MSX4-L - Overview

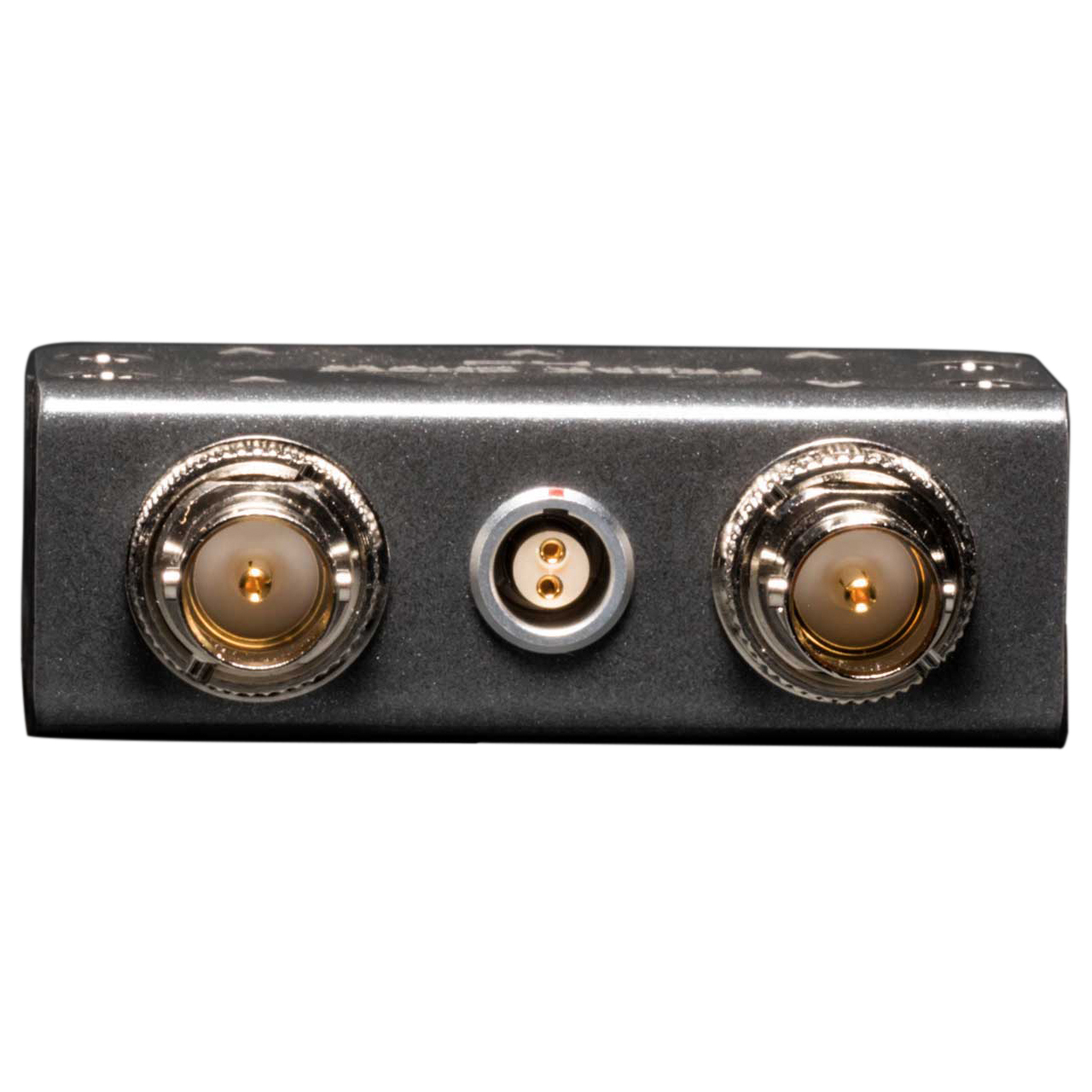

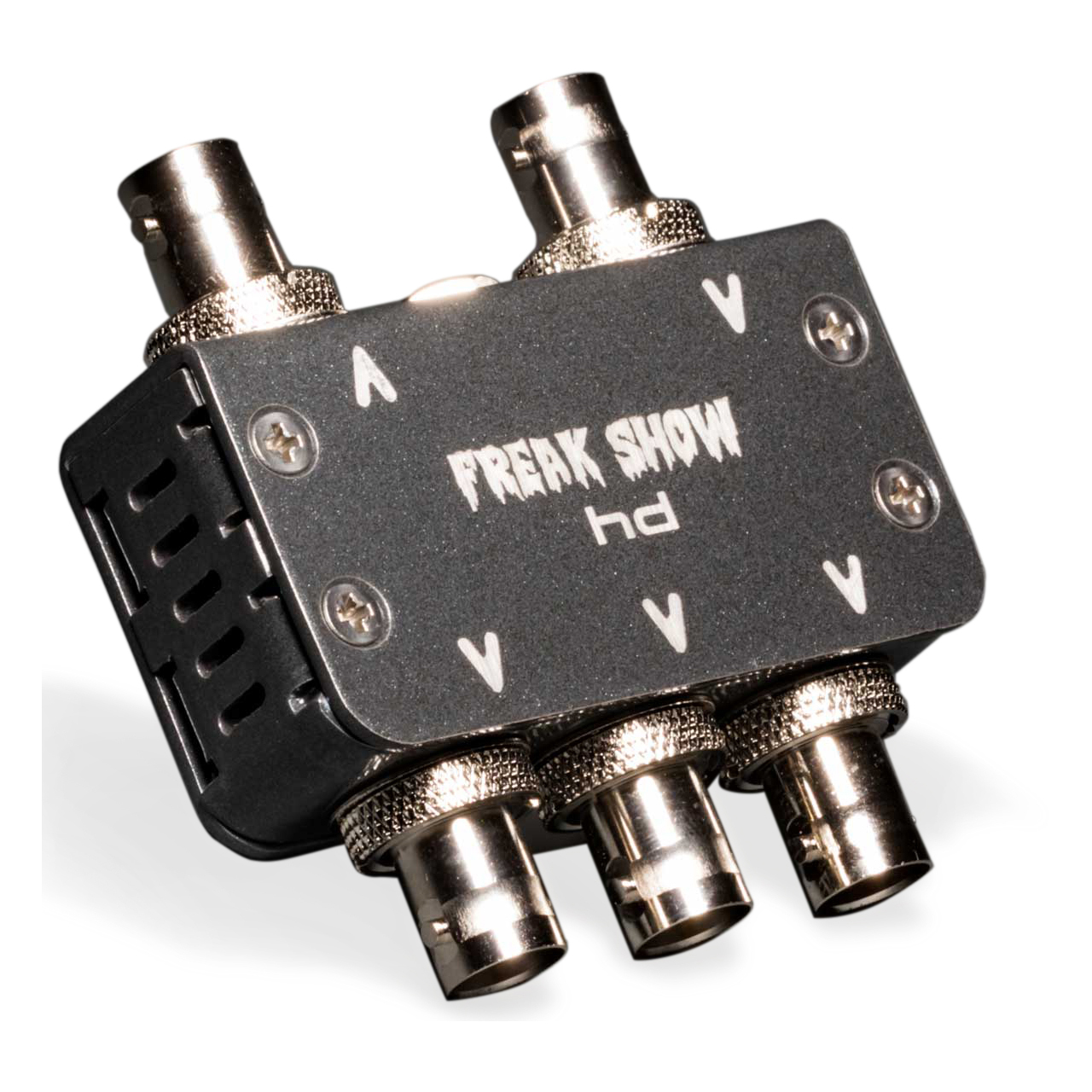

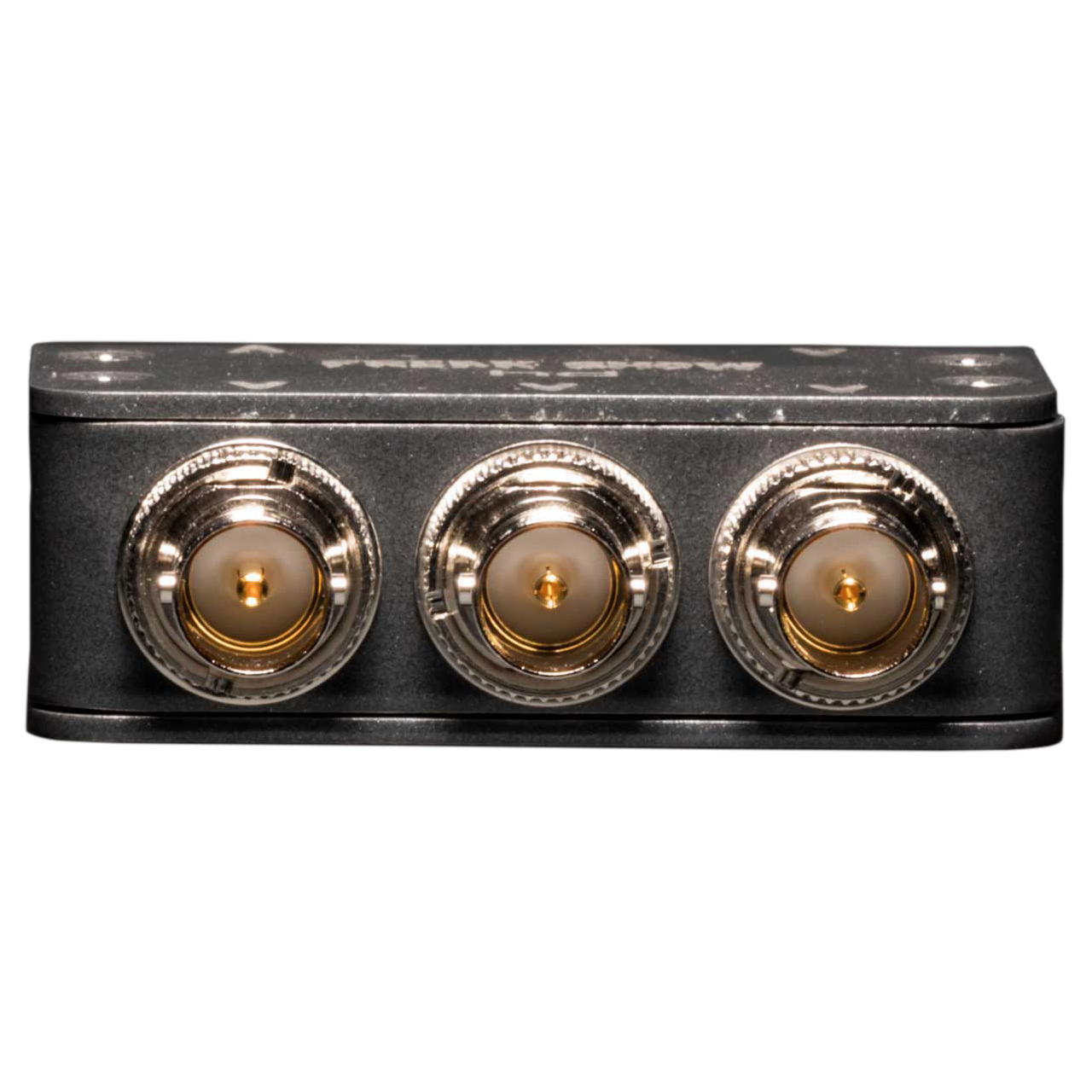

Freakshow, the company with the biggest ideas in 4K/12G distribution, introduces the smallest product yet. Meet the Freakshow HD Micro Split MSX4-L, the worlds most compact 4K/12G Reclocking DA. The Micro Split is available in O-series with a standard FREAKSHOW connector or in L-series with a locking Lemo connector. The latest in reclocking and cable EQ technology extends cable runs up to 700 feet! The Micro Split's 12G/HD/SD-SDI flexibility is future proof, and exceeds previous generations' performance.

Freakshow products are proudly made in the USA and now come with a One Year Manufacturer's Warranty.

  • Features:

    • 4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, 270Mb-SDI. Meets and exceeds SMPTE-424, SMPTE-292, SMPTE-259


  • Specifications:

    • Formats: 4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, 270Mb-SDI. Meets and exceeds SMPTE-424, SMPTE-292, SMPTE-259
    • Inputs: 1x12G/ 6G/ 3G/ 1.5G/ 270Mb - Auto-selectable SDI, 1xBNC
    • Outputs: 4x12G/ 6G/ 3G/ 1.5G/ 270Mb, equalization and re-clocking

      Cable Re-clocking and Equalization (all with Belden 1694A - divide by half for Belden 1505):
    • 75 meters (246ft) at 12G
    • 100 meters (328ft) at 6G
    • 220 meters (722ft) at 3G
    • 265 meters (870ft) at HD
    • 530 meters (1740ft) at SD

    • Input return loss: -8dB at 12G, -9dB at 6G, -13dB at 3G, -18dB HD/SD
    • Output return loss: Return loss -6dB at 12G, -8.5dB at 6G, -15dB at 3G, -23dB at HD/SD 5-36v operation


  • Item Includes:

    • 1x Freakshow HD MSX4-L 4K 12G-SDI - 1x4 Microsplit 4K/12G Reclocking Distribution Amplifier
    • 1x Power Supply with Locking LEMO Connector
