Blackmagic Design Web Presenter HD H.264 Live Streaming Encoder - 12G-SDI - Supports 720 HD/1080 HD/Ultra HD

ITEM #: BMD-WEBPRESPROHD MFG #: BDLKWEBPTRPRO

Primary Image

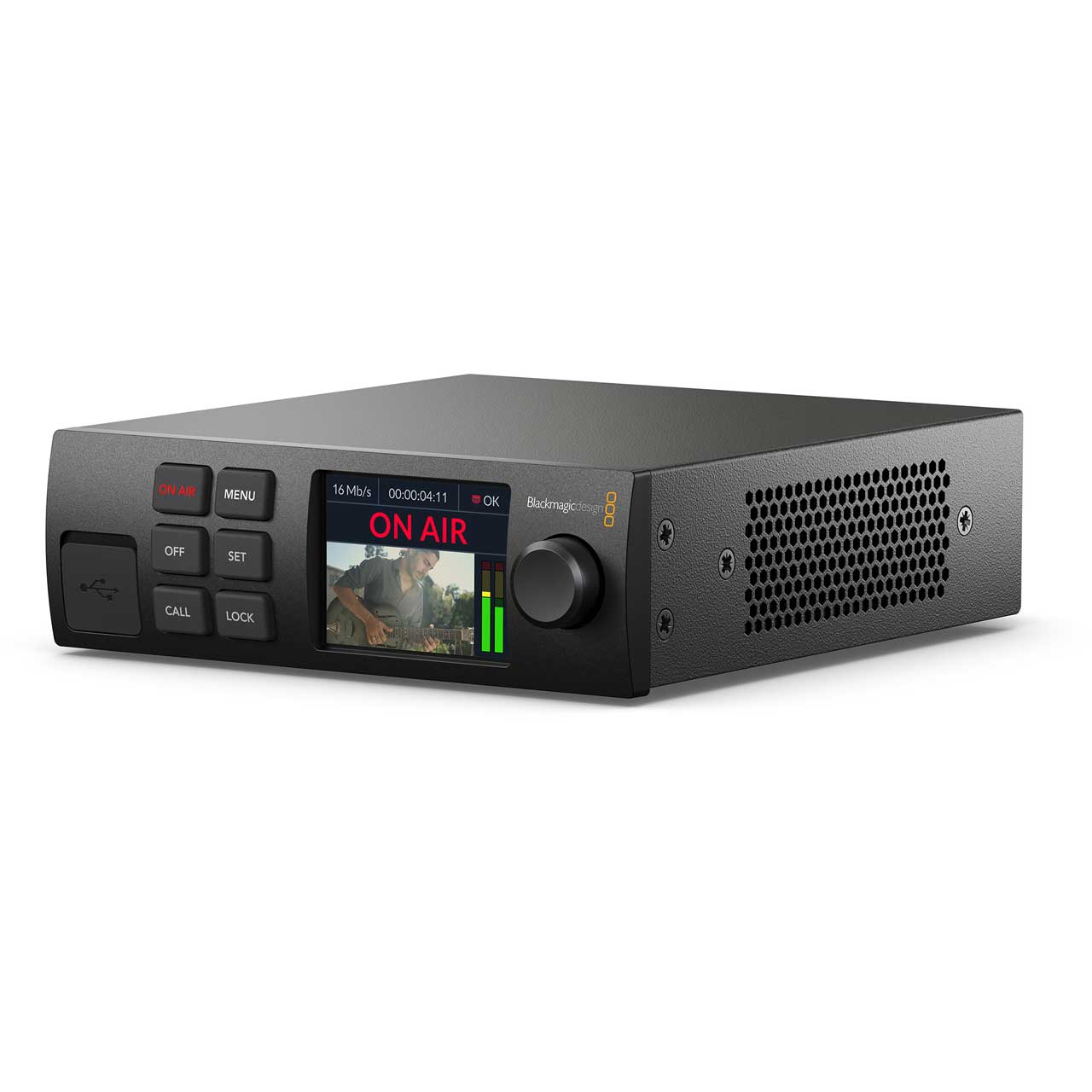

  • Product Image Thumbnail 1 of 3

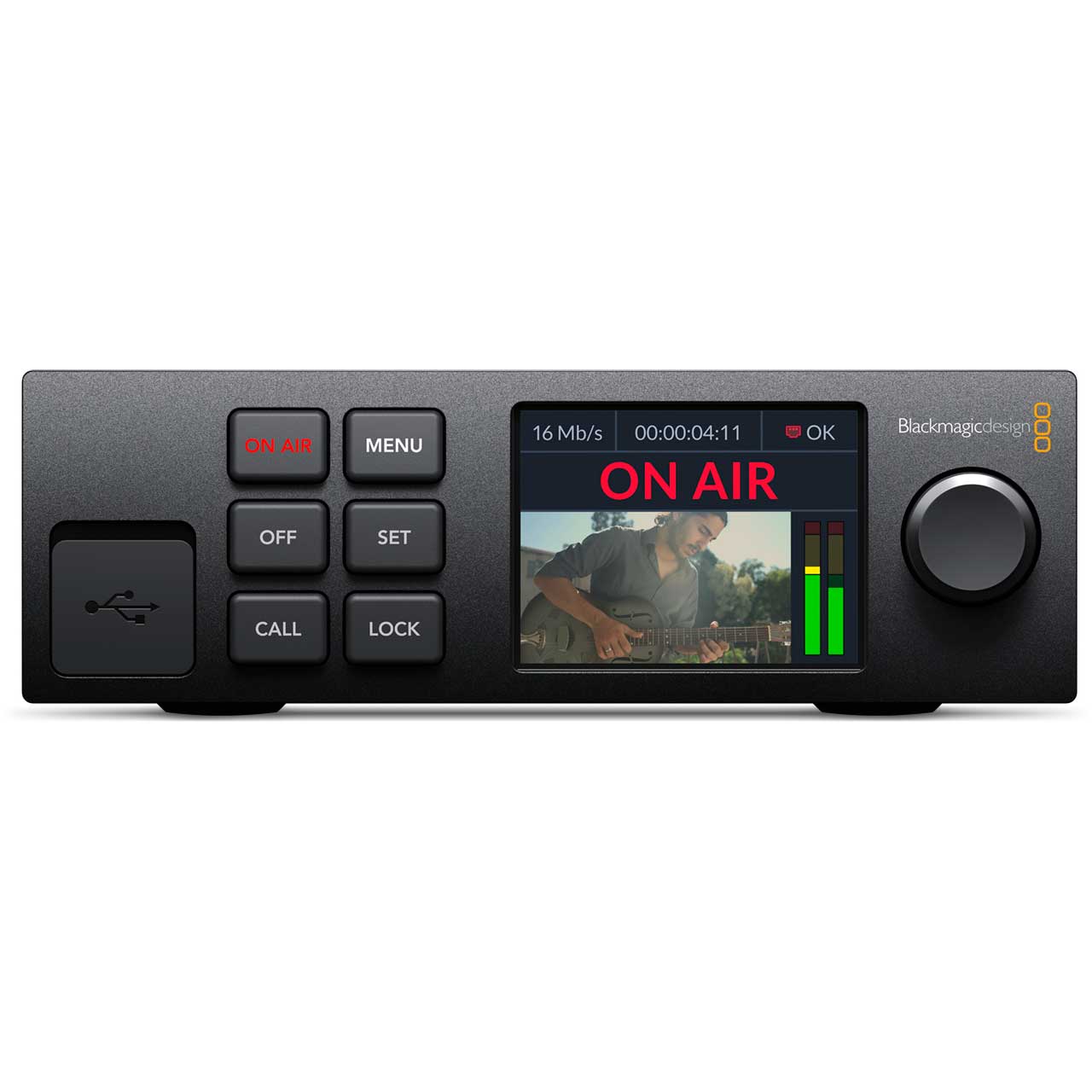

  • Product Image Thumbnail 2 of 3

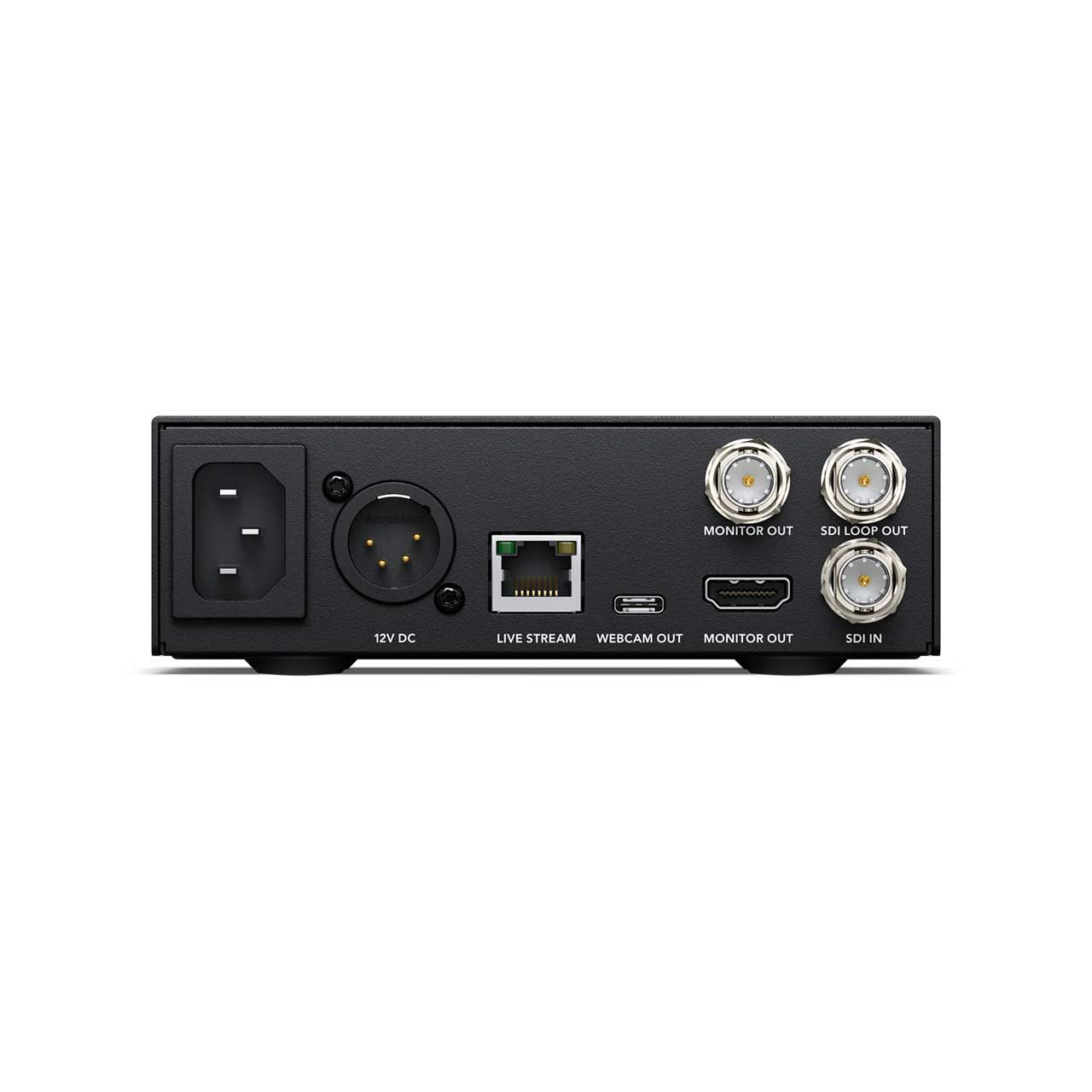

  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$515.00

Availability: In Stock
iAvailability Description Popup


BDLKWEBPTRPRO - Overview

Live Stream From Any 12G-SDI Video Source Direct To YouTube, Facebook, Twitter And More!

Now you can live stream to the world! Blackmagic's Web Presenter Pro HD is a complete streaming solution that includes a professional hardware streaming engine for direct streaming via Ethernet to YouTube, Facebook, Twitter and more! It's just like a modern broadcast television transmitter for a new global streaming audience! Plus the built in USB connections work like a webcam, so you can connect a computer and use any streaming software, or even Skype or Zoom. For redundancy, you can stream to the internet via Ethernet or connect a 5G or 4G phone to use mobile data! Web Presenter also includes a technical monitoring output that includes video, audio meters, trend graphs and even SDI technical data!

Make Live Streaming Easy!
Blackmagic Web Presenter is a self contained solution that includes a powerful hardware encoder, software for connecting to streaming platforms, and network connections. That means you don't need to buy an expensive computer or use complicated streaming software. Simply connect an SDI video source such as a live production switcher or a camera, then connect to the internet using the built in Ethernet connection. Or plug in a mobile phone to use mobile data! With settings built in for popular streaming platforms, you simply need to enter a streaming key and press on air! Plus you can simultaneously use the USB webcam output to connect to a computer, allowing other video software to be used!

Connect 5G or 4G Phones for Mobile Data
If you're streaming from a remote location, or you need a backup for the main Ethernet connection, you can plug in an Apple or Android phone to connect to the internet via mobile data. For convenience, there are USB connections on both the front and rear panel that can be used for tethering phones. Plus it works with the latest high speed 5G phones, as well as 4G phones! Blackmagic Web Presenter will auto detect when a phone is connected and switch its internet connection to use it. You can select Ethernet or phone priority, which makes phone internet backup fully automatic.

USB Webcam Output for Video Software
For increased compatibility, Blackmagic Web Presenter also features two USB connections that operate as a simple webcam source. That means you can plug into any computer and work with any video software. The software is tricked into thinking the web presenter is a common webcam, but it's really a broadcast quality SDI video source! That guarantees full compatibility with any video software and in full resolution 1080 HD quality. Imagine connecting web presenter to a camera and then Skype or Zoom calling your client with live video of a shoot! Web Presenter works with any video software including Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster and more!

Built-in Technical Monitoring
Traditional broadcast transmitters are critical equipment in a television station, however now the streaming server is just as critical because millions of viewers can be watching globally! To help, Blackmagic Web Presenter includes a feature rich technical monitoring output. The graphics based monitoring output includes a video view, audio meters with accurate ballistics, trend graphs for codec data rates and cache fill, plus a summary of the streaming settings and detailed SDI technical information.

Includes Web Presenter Utility
The Blackmagic Web Presenter Utility software provides a single place to manage multiple web presenters and to update the settings and software. Simply plug directly into the front of the web presenter's USB connection, or connect using Ethernet so you can configure remotely, which is important when you're managing multiple remote sites.

  • Features:

    • Connect 5G or 4G Phones for Mobile Data
    • USB Webcam Output for Video Software
    • Built-in Technical Monitoring
    • Includes Web Presenter Utility
    • 12G-SDI Supports 720 HD, 1080 HD and Ultra HD
    • Built in Redundancy Keeps You On Air
    • Broadcast Links with ATEM Streaming Bridge

  • Specifications:

    • Connections
    • SDI Video Inputs: 1
    • SDI Video Outputs: 1x loop out, 1x monitor out
    • SDI Rates: 1.5G, 3G, 6G, 12G
    • HDMI Video Outputs: 1x monitor out
    • Webcam Output: 1x Type USB-C
    • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates

      Standards
    • HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • Ultra HD Video Input Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • Video Input Color Space:Rec.601, Rec.709, Rec.2020
    • 3G SDI: Auto detects SMPTE level A or B on SDI input
    • SDI and HDMI Monitor Out Video Standards: 1080p50, 1080p59.94, 1080p60
    • Video Streaming Standards: 720p25, 720p30, 720p50, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

      Streaming
    • Direct Streaming: Blackmagic Web Presenter HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP)
    • Closed Captions: Web Presenter HD supports embedding CEA-608 and CEA-708 closed captions in your live RTMP stream

      Control
    • Control Panel: Built in control panel with 2.2 inch color display for video preview, audio meters and status
    • Device Control: Front panel, USB-C or ethernet

      General
    • Power Supply: 1x Internal 100 - 240V AC.12V DC Input, 1x +12V DC 4-pin XLR.
    • Power Usage: 21 W
    • Dimensions (LxWxH): 5.51" x 6.9" x 1.75"
    • Weight: 1.66lbs
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 113°F (-20°C - 45°C)
    • Relative Humidity: 0% - 90% non-condensing

  • Item Includes:

    • 1x Blackmagic Web Presenter HD

  • Warranty:

    • 3 year Limited

  • GTIN:

    9338716007398
