Sescom Pro Audio Hum Eliminator Inline with Isolation

ITEM #: IL-19 MFG #: IL-19

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$55.95

Our Price:

$50.49

Availability: In Stock
iAvailability Description Popup


IL-19 - Overview

The Only Product that Removes All Types of Hum in Live Sound & Pro-Audio Gear!

You run the wires, make the XLR connections and power up your sound system only to find it's not music to your ears. One of the most dreaded sounds is prevalent across your system - speaker hum and noise. This isn't 1970 but an age old problem can still prevail in today's PA systems and that's why the Sescom IL-19 hum eliminator has stood the test of time. Its clever design isolates ground loop noise to remove that annoying buzz in your speakers.

The Industry Standard - Designed as 3 products in-one, the Sescom® IL-19® is the solution for instantly troubleshooting audio hum and noise problems in live sound & broadcast applications providing quick fix line isolation to stop noise at the source. Removes ground loop hum, mode noise & differentially induced hum without the need for multiple transformers, ground lifters or phase inverters. Other in-line problem solvers solve only one problem at a time.

The IL-19 is the only Bi-Directional device designed to plug directly into your equipment's inputs OR outputs!

Sescom transformers are specifically engineered for flatter and broader frequency response allowing a hotter signal throughput without saturation.

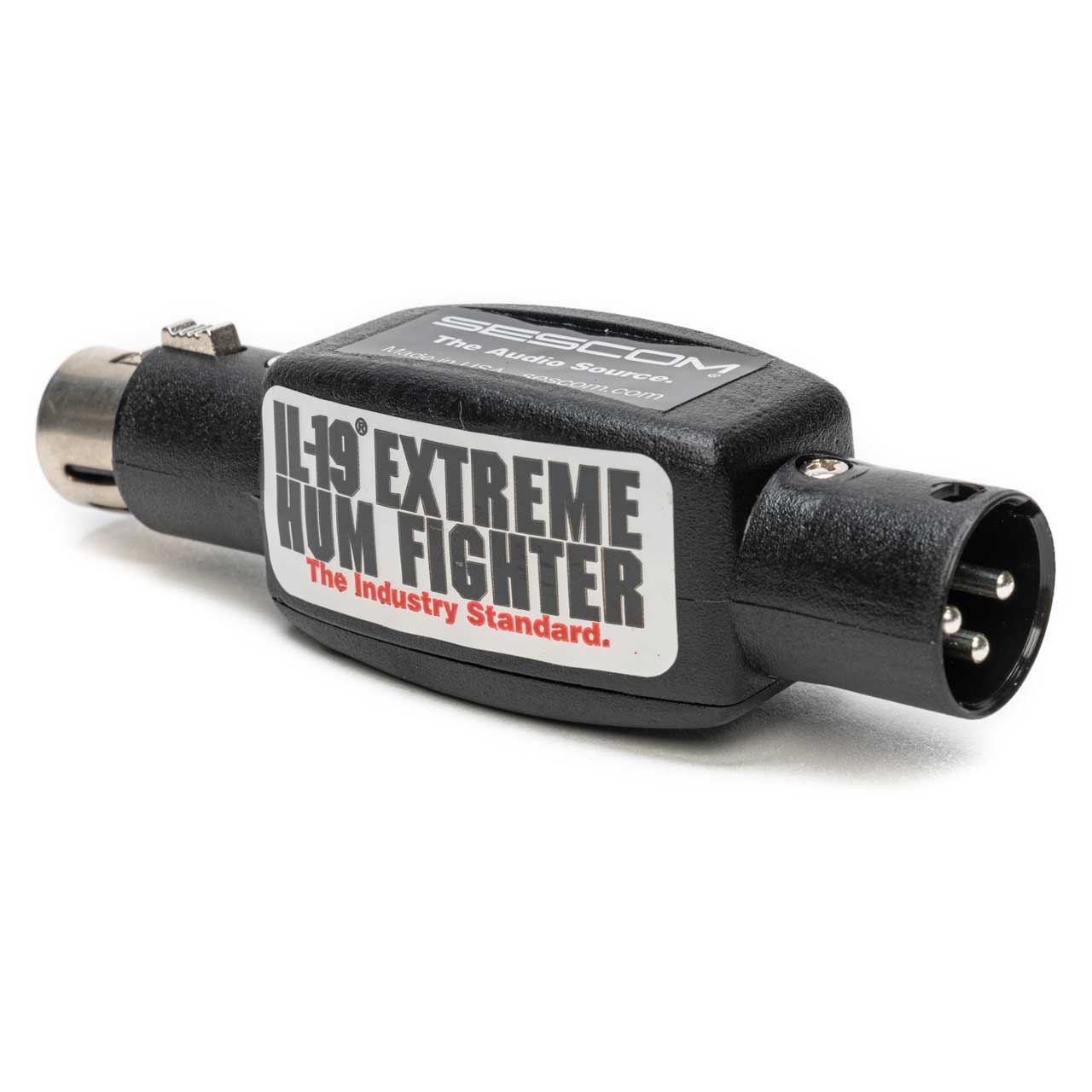

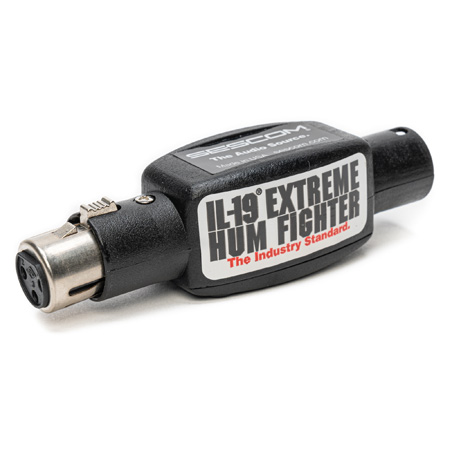

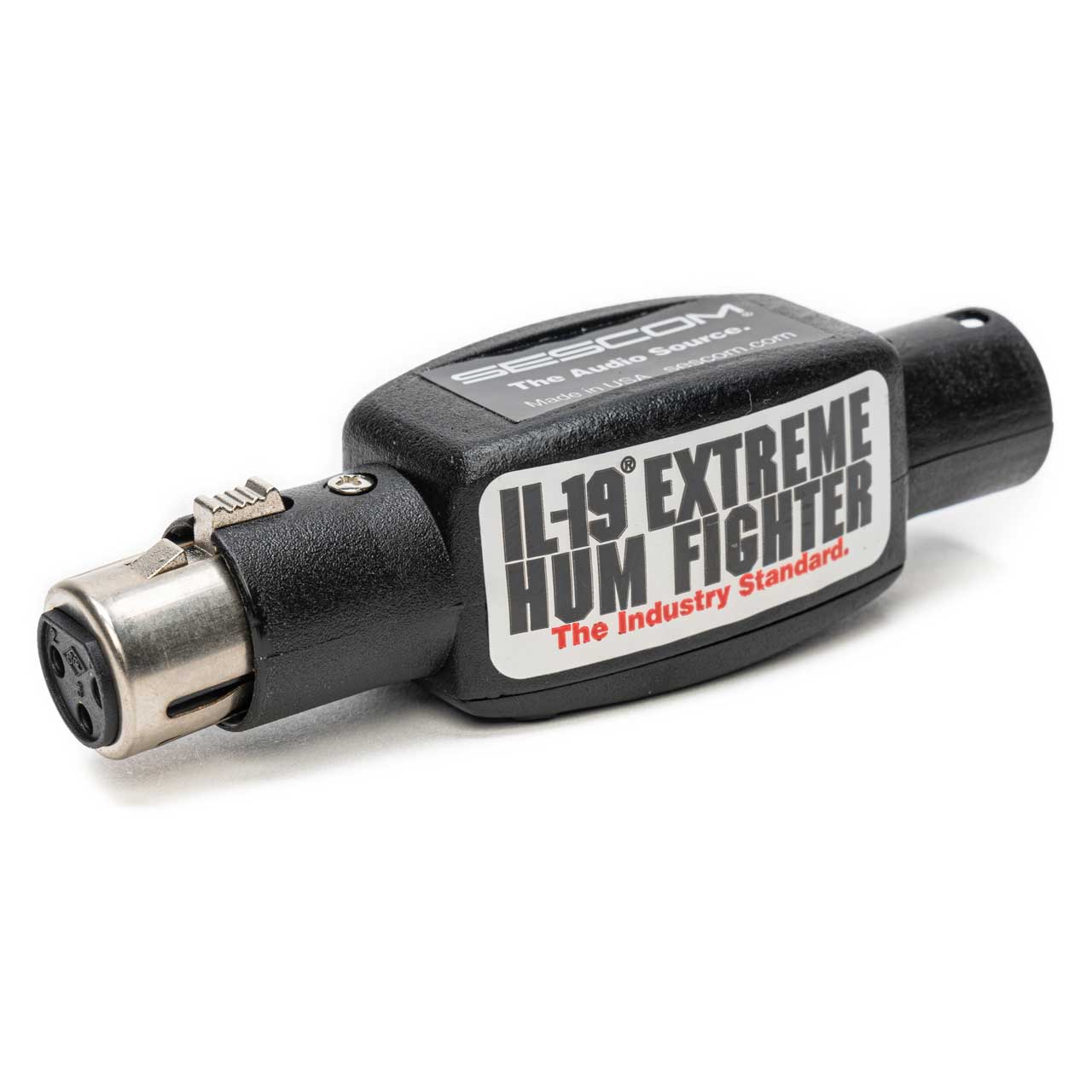

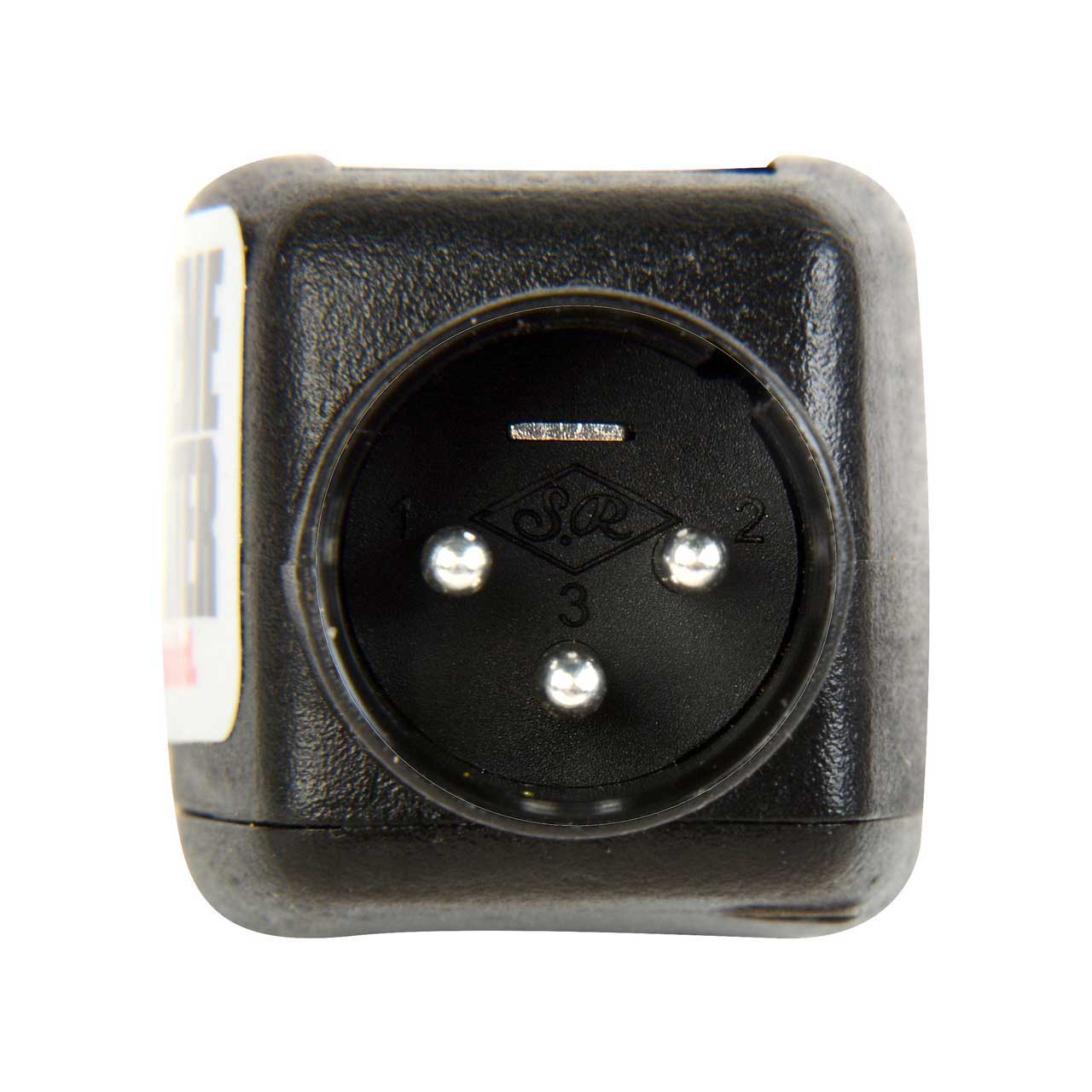

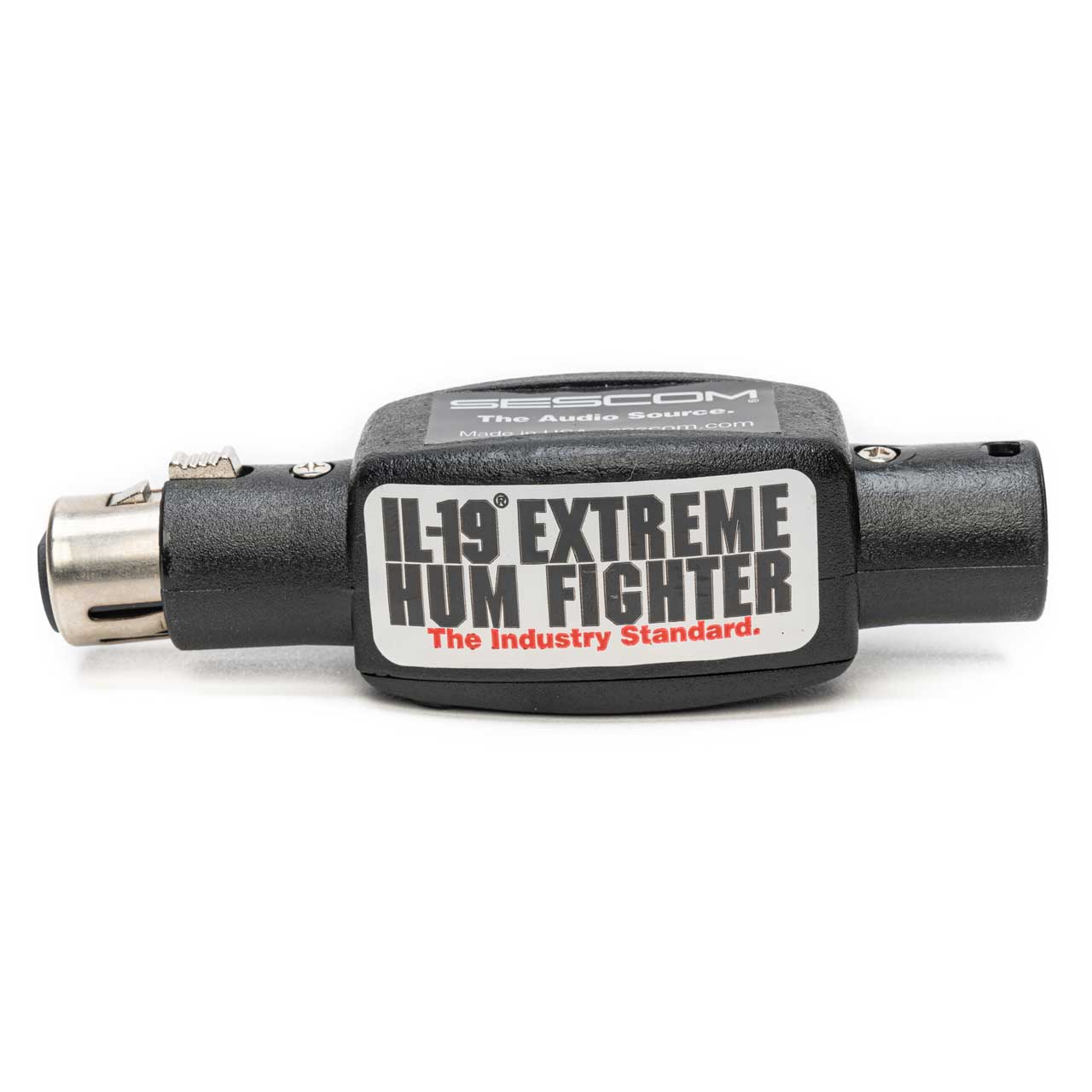

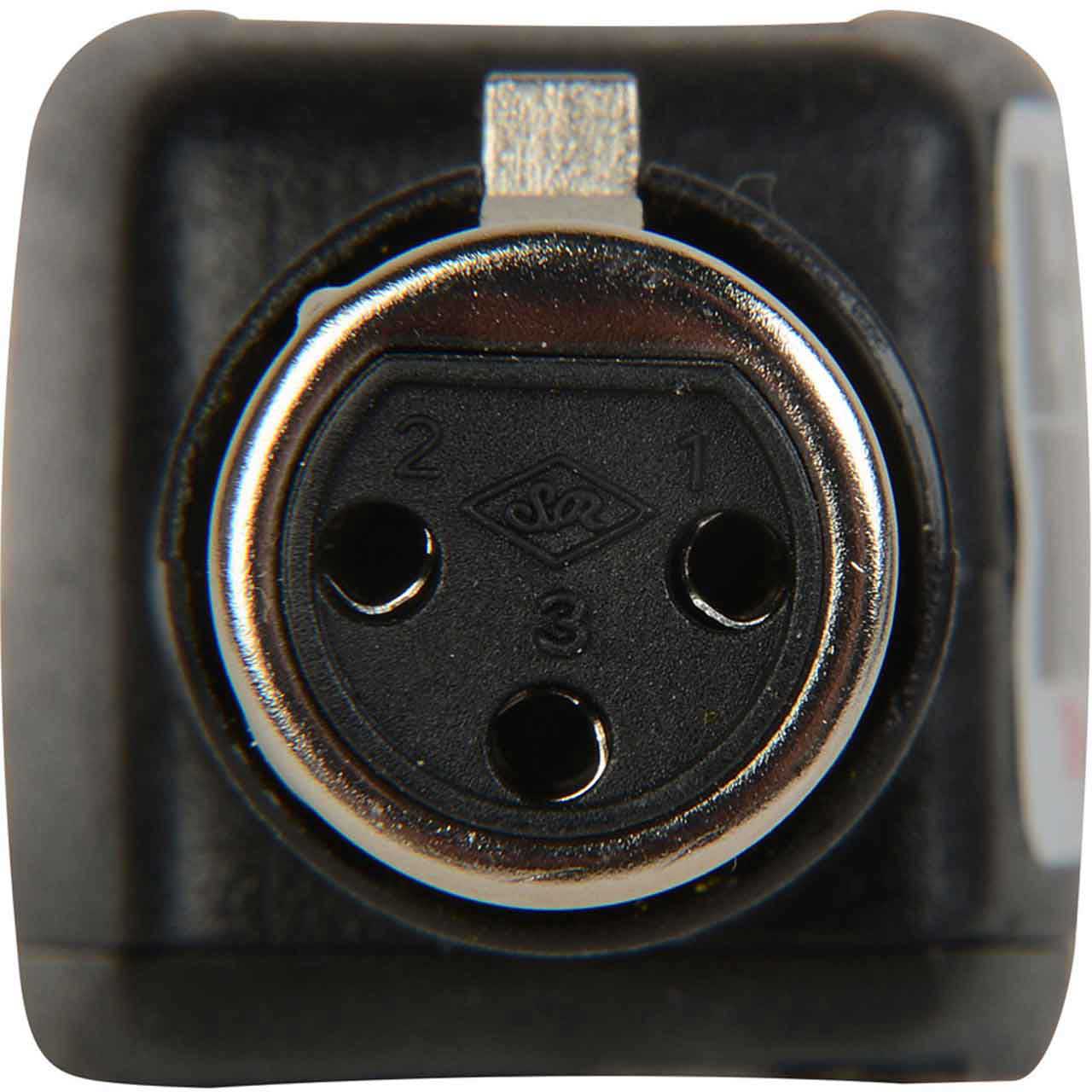

In-line XLR Male to XLR Female Matching Transformer built into a high impact ABS thermoplastic housing.

Not for use with phantom power devices.

  • Features:

    • Provides Instant Relief For:
    • Live Sound Equipment
    • Radio & Broadcast Audio
    • Line Level Equipment Interface
    • Decoupling Lines to Reduce Hum
    • Isolating Drive Lines to On-Stage Power Amps
    • Long Line Cable Runs

  • Specifications:

    • Nominal Target I/O Levels: -16dB to +8dB*
    • *No Lower Limit / Upper Limit: Approx. +24dB
    • Nominal Input Impedance: 600 ohms
    • Nominal Output Impedance: 600 ohms
    • Frequency Response: +/- 1db at 20hz to 20khz Input & Output Device Dependent
    • Product Dimensions: 3.75" x 1.06" x 1.13"

  • Warranty:

    • 1 Year


IL-19 - Required Accessories
