Sescom Portable Battery Operated 2-Channel XLR Mic & Line Level Audio Over Single Fiber Extender Kit

ITEM #: SES-X-FA2 MFG #: SES-X-FA2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$799.95

Our Price:

$749.95

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SES-X-FA2 - Overview

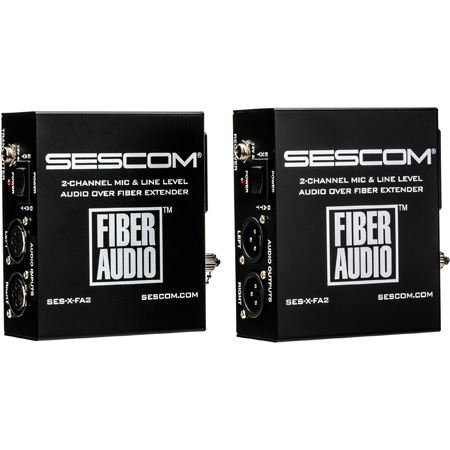

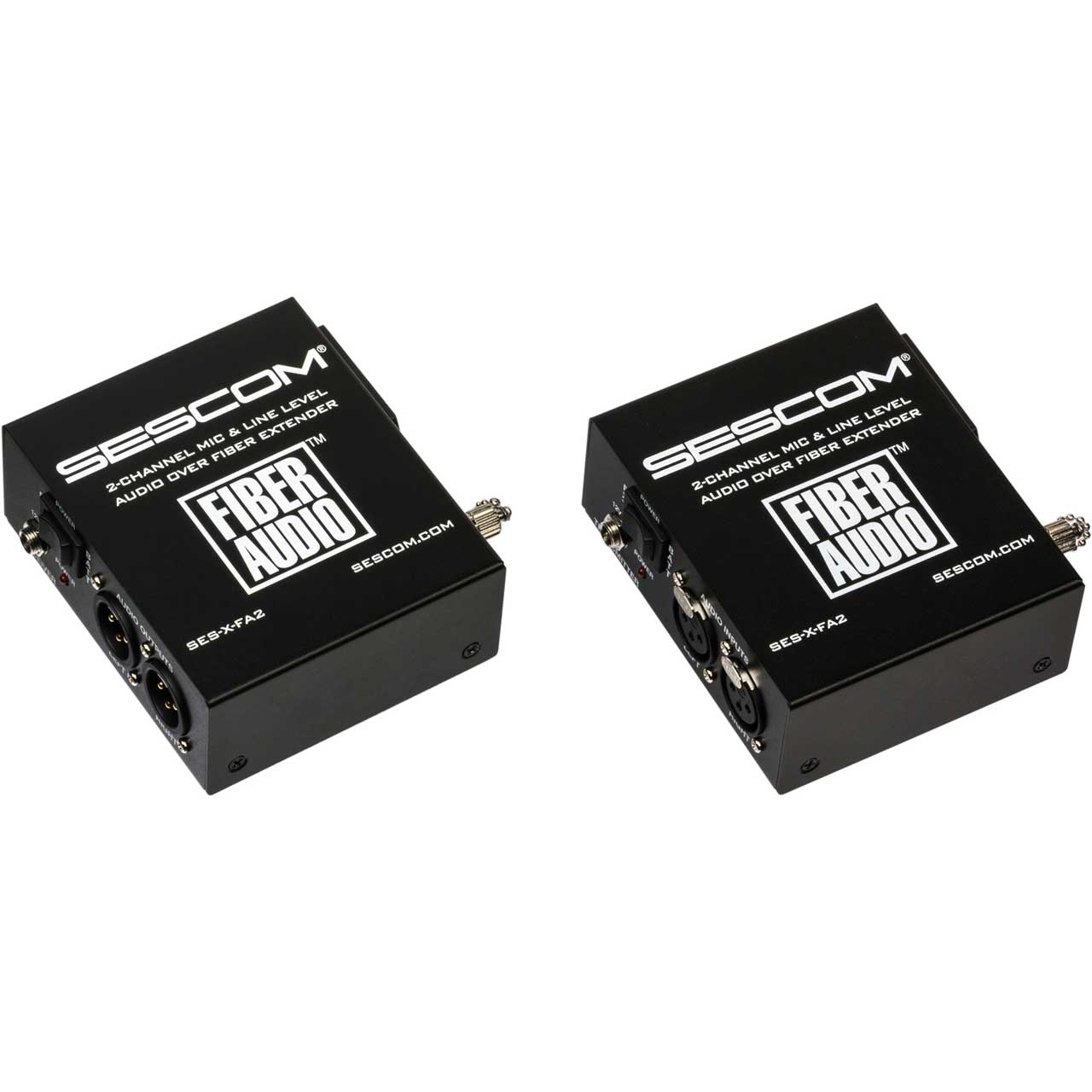

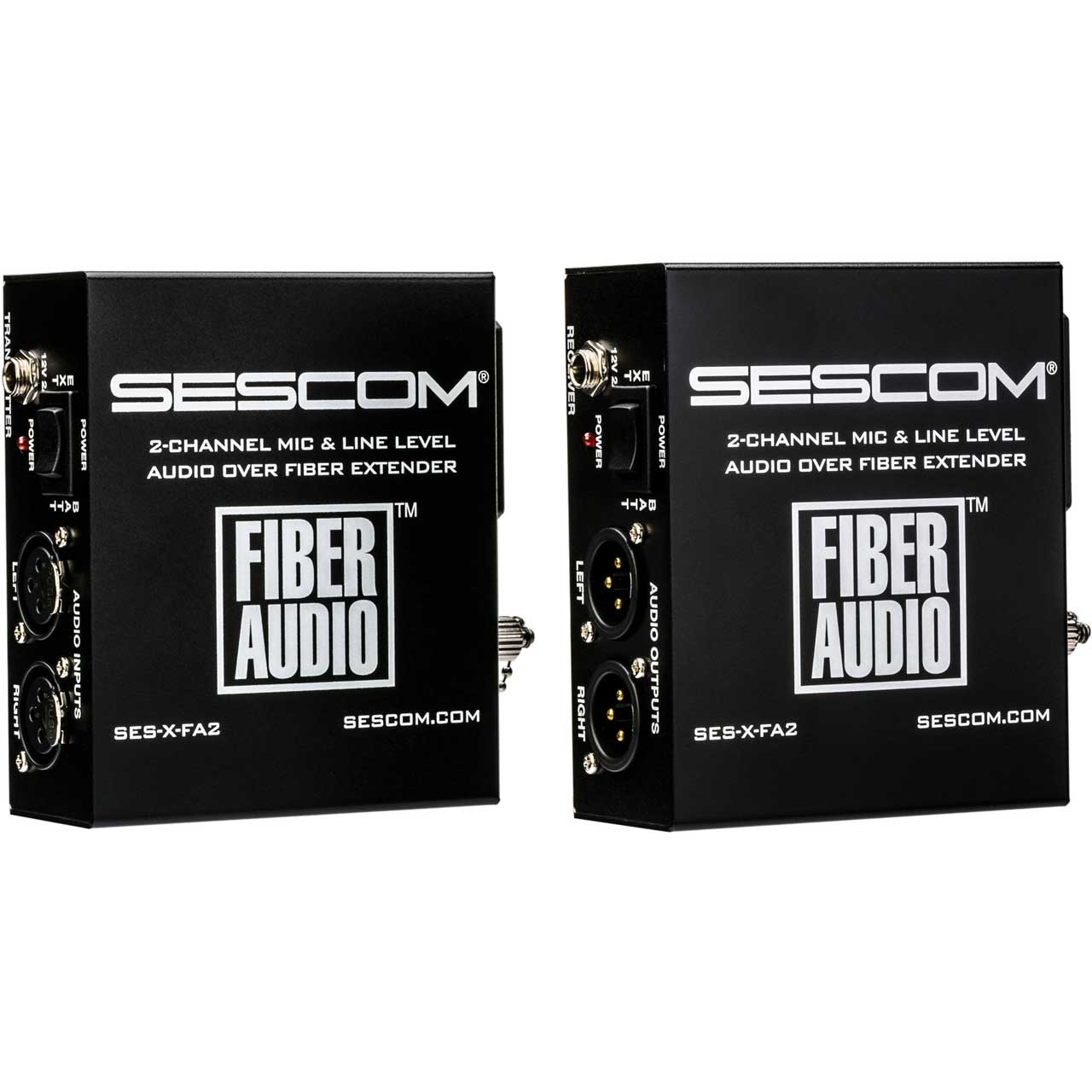

Sescom's X-FA2 is a battery powered 2-Channel XLR line level audio over fiber optic extender system that's perfect for broadcast or corporate studios, field audio operations, OB vans, rental, theaters, stadiums and more! Sescom's new and improved X-FA2 design eliminates potential crosstalk issues. The Sescom X-FA2 supports optical transmission of balanced and unbalanced 24 Bit PCM - AES3 encoded line level audio signals. Transmission of audio signals supports short and long-distance requirements through multimode or singlemode optical fiber.

9V Battery or AC Powered!
The Sescom X-FA2 can be powered externally or with a 9-volt battery making it the perfect fit in field applications.

Selectable Mic or Line Level on Each Channel

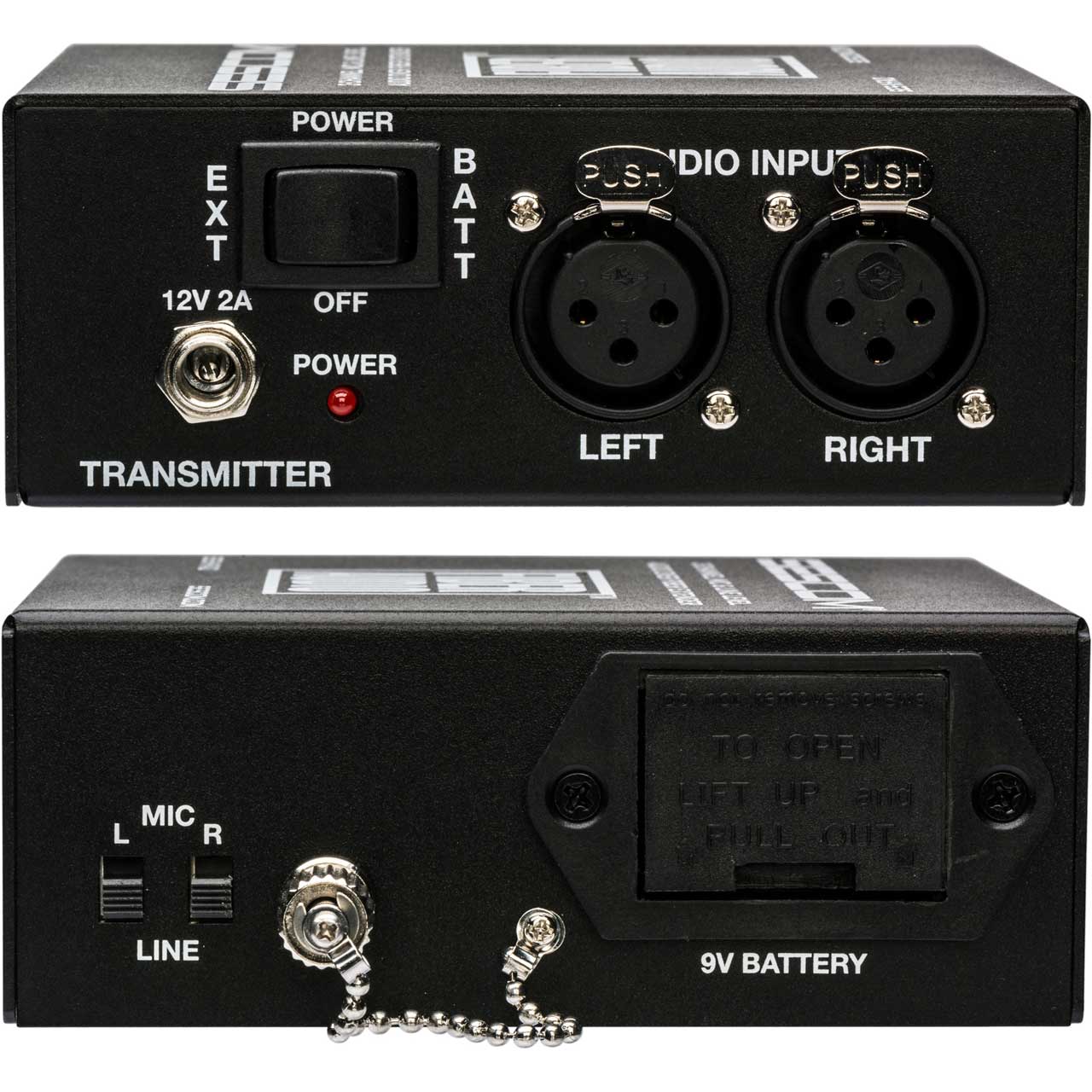

The Sescom X-FA2 provides two XLR line level inputs via XLR connectors. The transmitter features an independent mic/line level switch on each channel giving you the flexibility to convert the line level audio to mic level.

Complete transmitter & receiver system with professional ST Connectors! The X-FA2 has a range of 12.4 miles using single mode fiber and up to 984 feet over multimode fiber cable.

Please Note: The Sescom X-FA2 is designed for mic or line level signals only and not intended for intercom use.

  • Features:

    • 2-Channel Analog Audio to Fiber Transmission
    • 24-Bit Digitally Encoded Analog Audio
    • Transmission Distance: Multimode Fiber up to 984 feet / Single Mode Fiber up to 12.4 miles
    • Switchable Balanced Mic or Line Level
    • Wide Dynamic Optical Range Requires No Optical Adjustments

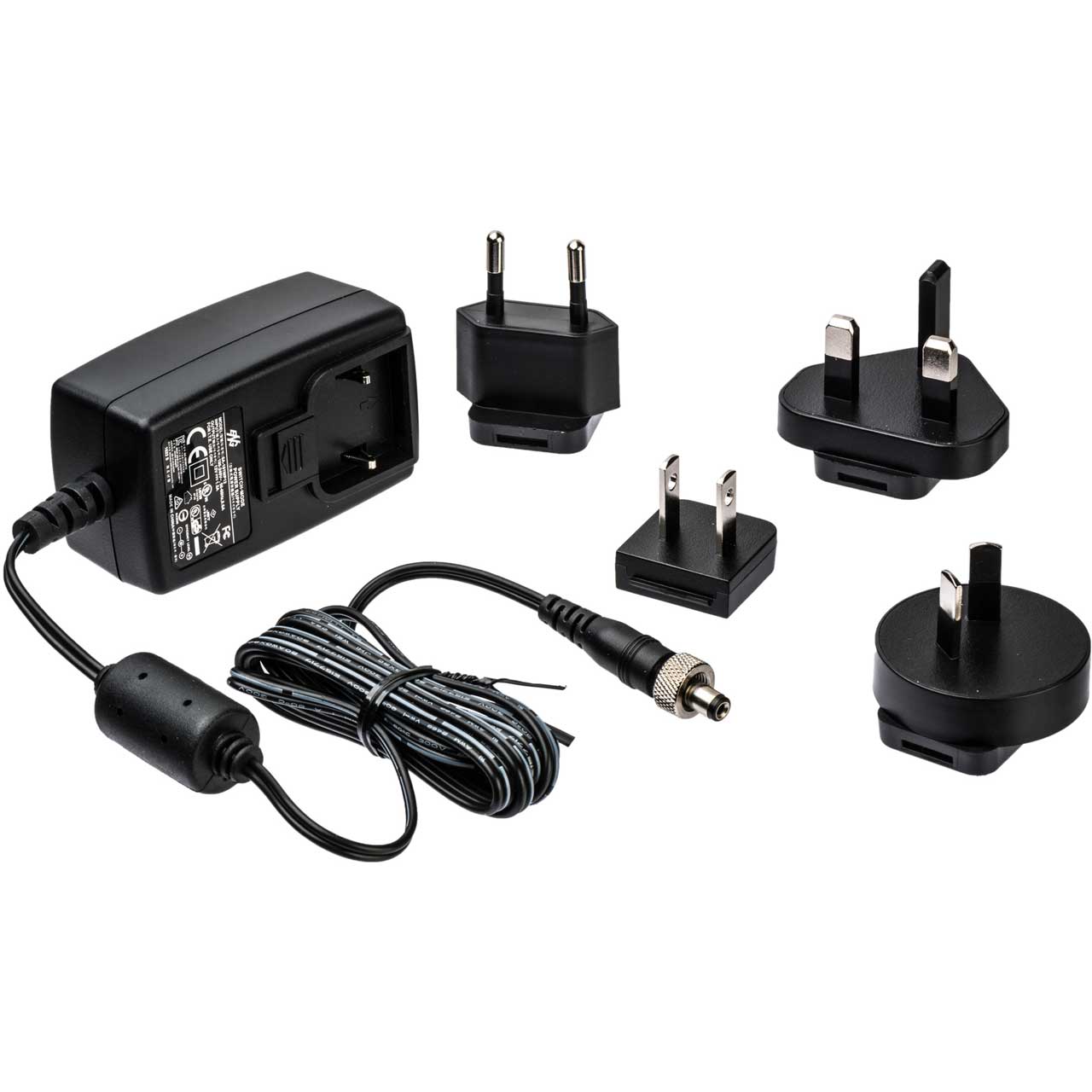

    • Power: AC Adapter or Standard 9VDC Battery
    • Battery Runtime: Alkaline - Approx 4 hours
    • FCC & RoHS Compliant

  • Specifications:

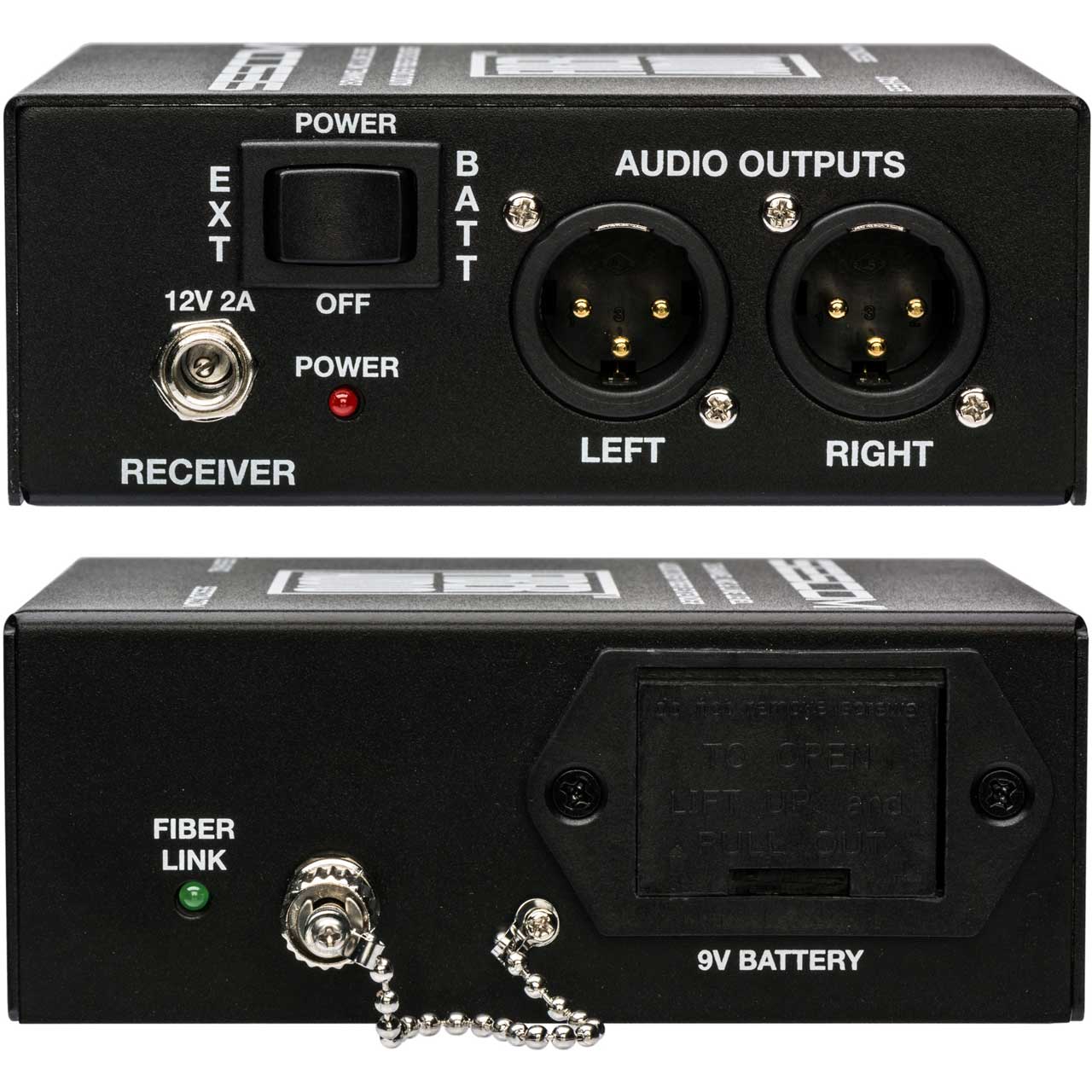

    • Transmitter - 2 Balanced XLR Inputs / Receiver -2 XLR Outputs
    • Simplex ST Connectors
    • Bit rate: 24bit
    • Sampling Rate: 48Khz
    • Signal to Noise Ratio > 85dB
    • Input Impedance: 10KΩ
    • Mic Level: -30dB
    • Line Level: 0dB in/0dB out
    • Humidity Operating Range up to 20-90% RH (no condensation)
    • Not for use with IFB systems where audio is modulated with voltage
    • Not for use with phantom powered devices
    • Dimensions Each Unit: 4.33 x 3.62 x 1.65 in / 110mm x 92mm x 42mm
    • Weight Each Unit: 7.9 oz / 224 g

  • Item Includes:


  • Warranty:

    • 1 Year
