Thor Fiber F-2A-TXRX 2 Unbalanced Uni-Directional Audio over 1 Fiber Transmitter and Receiver Kit - 20hz-20Khz

ITEM #: THR-F-2A-TXRX MFG #: F-2A-TXRX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$474.00

Our Price:

$395.00

Availability: In Stock
iAvailability Description Popup


F-2A-TXRX - Overview

The Thor Fiber F-2A-TXRX Analog Audio over One Fiber Transmitter and Receiver Kit helps solve sending unbalanced audio over long distances using fiber. The audio fiber optic transmitter, converts analog audio 20hz to 20Khz fiber optic modulated digital stream so it could be transported over single mode or multimode fiber. The optical receiver converts the optical signal back to its orginal analog wave form. Offers very low latency 1ms - so it's perfect for live events, shows, concerts, auditoriums, etc.

The small and compact form factor means it could be used for any applications where copper has a limited distance or noise issues. Applications such as: Churches, Concerts, Military, Schools, Apartments, Cinemas, Cable TV, Headsets, TV Studio, Stadiums, or any live events.

  • Features:

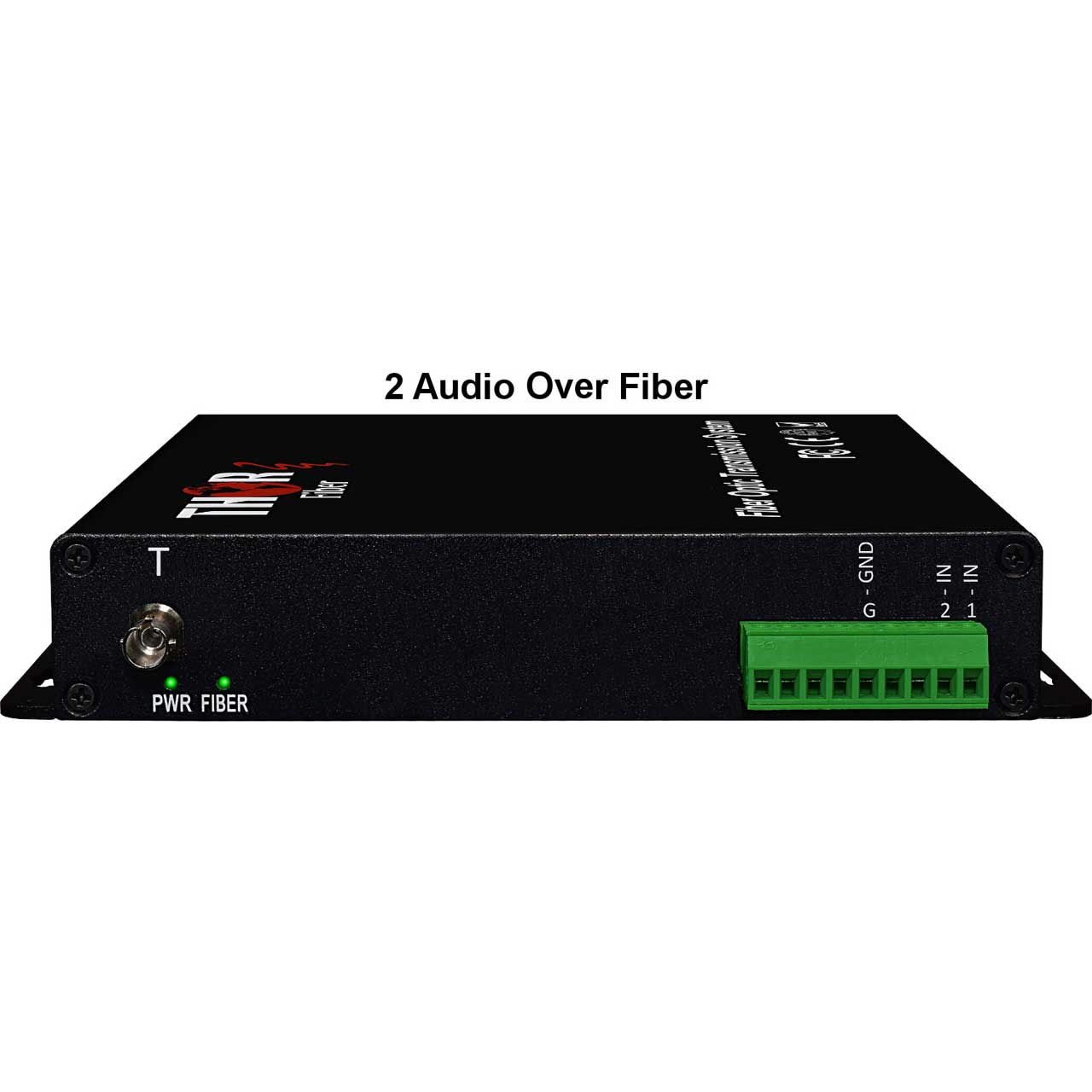

    • Terminal block connector

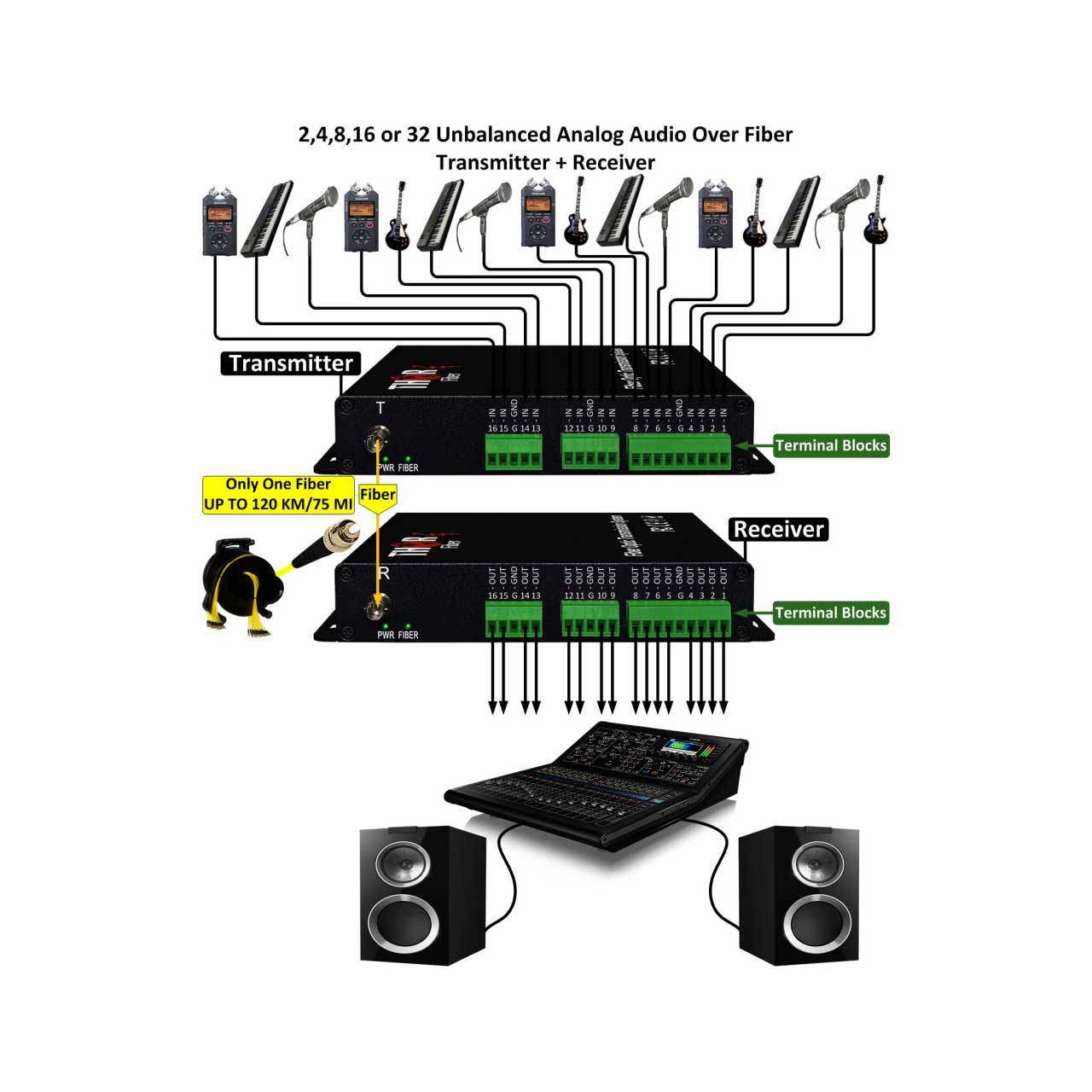

    • Point to point as well as point to multipoint transmission applications
    • Singlemode (20km) or multimode fiber (2000ft) supported
    • ST/PC fiber connector or different per request
    • LED indicators
    • Stand alone or rack mount blade available
    • Short and long haul siganl transport up to 120Km
    • Compact portable size
    • 600 Ω Unbalanced
    • Bandwidth: 20Hz ~ 20KHz
    • Bit Resolution: 24-Bit
    • Signal-to-Noise Ratio(SNR): > 80 dB

  • Specifications:

    • Audio Interface: Terminal block
    • Audio input/output impedance: 600 ohm unbalanced
    • Audio Level voltage: Up to 2V-pp
    • Audio Level: 0 dbm
    • Audio bandwidth: 10hz to 24.5khz
    • Sample Rates: 48kHz
    • Digital bandwidth: 24 bit
    • SNR: better than 79db
    • THD@1khz: 1%
    • Optical connector: ST/PC (other connectors available by request -extra $)
    • Optical fiber distance: Base unit supports 2000feet 50/125u, 62.5/125u multimode fiber and up to 20KM on - 9/125u single mode fiber (Other distnces are available by request - extra$ )
    • Optical Wavelength: 1310nm (other -1550nm or CWDM are avialable per request- extra$)
    • Power: 5V DC
    • Power Comsupcion: 3W
    • Power Adaptor: AC-90-240AVC / 5060HZ
    • Dimensions: 7 inch x 6.5 inch x 1 inch
    • Operating Temperature: -20°C ~ +75°C
    • Weight: 1 lb
    • MTBF: over 100,000 hours
