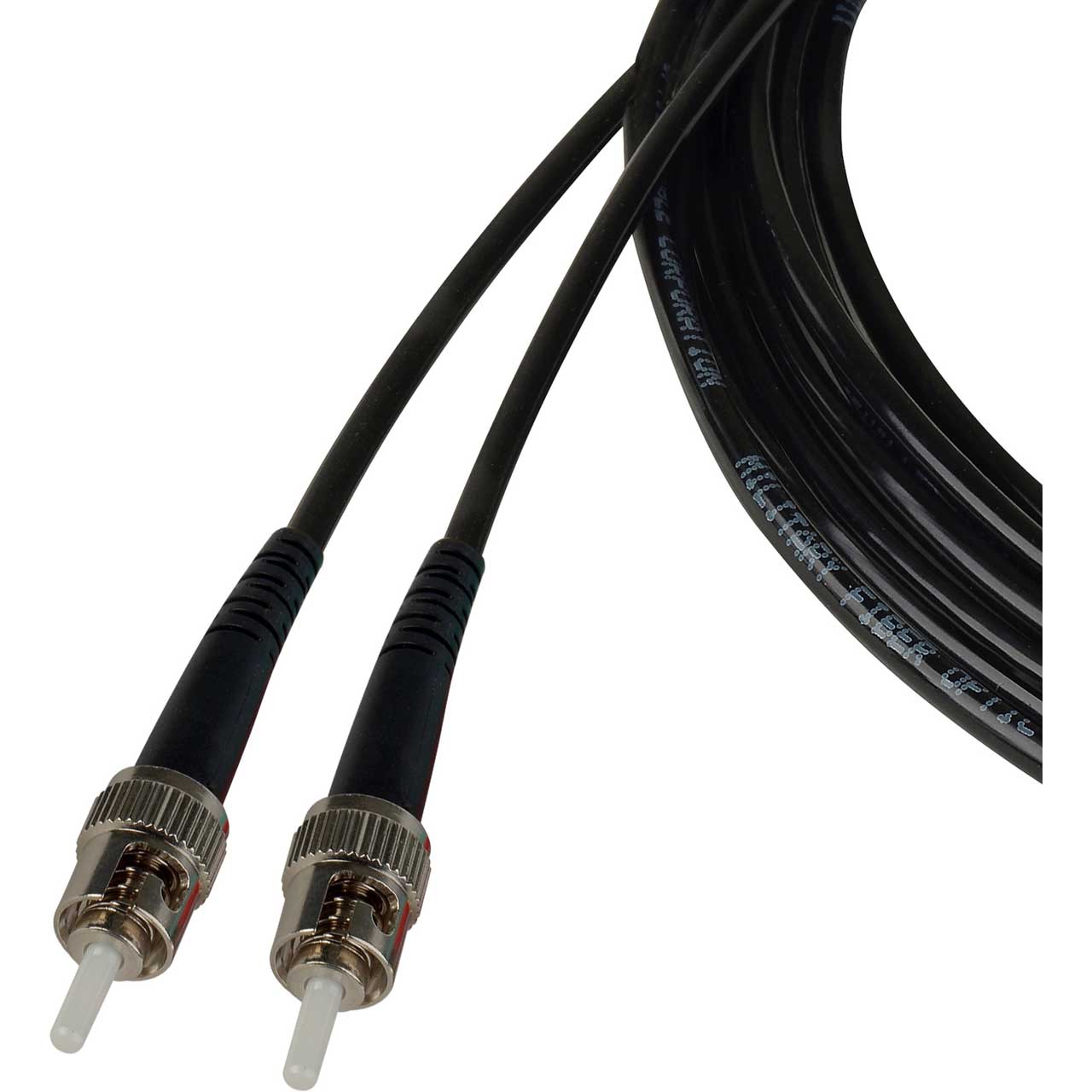

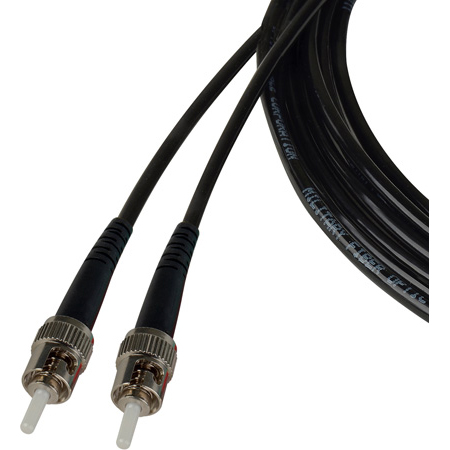

Camplex TAC1 Simplex OM3 Multimode ST Fiber Optic Tactical Cable - 656 Foot

ITEM #: HF-T1M3-ST-0656 MFG #: HF-T1M3-ST-0656

Primary Image
Camplex
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$941.49

Our Price:

$823.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

HF-T1M3-ST-0656 - Overview

Extremely Rugged & Lightweight ST Simplex OM3 Multimode Tactical Cables for Broadcast & Pro-Audio Applications! This cable is designed for Military Tactical deployment applications and meets all outdoor tactical needs for broadcast applications requiring an outdoor rated crush and impact resistant design. The tough Polyurethane Core-Locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field. Featuring Senko ST and LC premium fiber connectors. All assemblies are machine polished and interferometer tested to industry standards. All products are 100% tested and ship with a complete set of test documentation. SC, LC and FC UPC and APC connectors are also available. Custom Lengths & Configurations Always Available!

  • Features:

    • Strong & Lightweight Broadcast Deployable Cable
    • Indoor/Outdoor Rated Jacket
    • Typical RL <-55dB and IL<0.25dB
    • Wide Temperature Range (typically -55°C to 85°C)
    • 500µm Primary Acrylate Buffer with 900µm Secondary Hard Elastomeric Buffer (Ultra-Fox Plus)
    • Polyurethane Core-Locked Outer Jacket Provides Excellent Crush & Impact Resistance
    • Rugged Metal Dust Caps with Cable Lanyards


  • Specifications:

    • Industry Standard Designation: Laser Optimized OM3 ISO/IEC 11801
    • Core/Cladding Diameter (μm): 50/125
    • Numeric Aperture: 0.20
    • Wavelength (nm): 850/1310
    • Gigabit Ethernet Distance (m): 1000/600
    • 10-Gigabit Ethernet Distance (m): 300/300
    • Maximum Cabled Attenuation (dB/km): 3.5/1.5
    • Minimum Laser EMB Bandwidth (MHz-km): 2000/500
    • Minimum OFL LED Bandwidth (MHz-km): 1500/500
    • Primary Coating Diameter (μm): 500
    • Secondary Buffer Diameter (μm): 900
    • Proof Test Level (kpsi): 100
