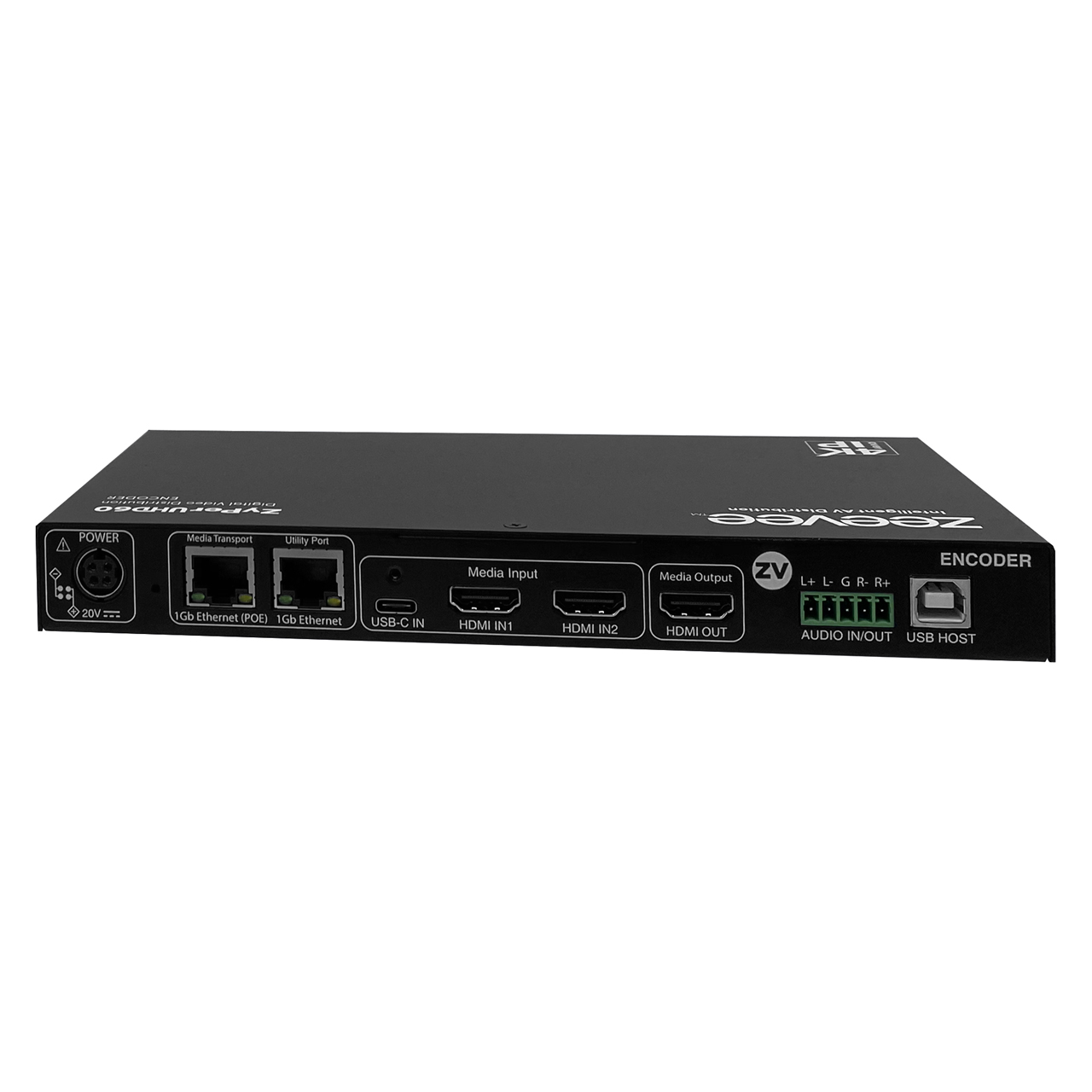

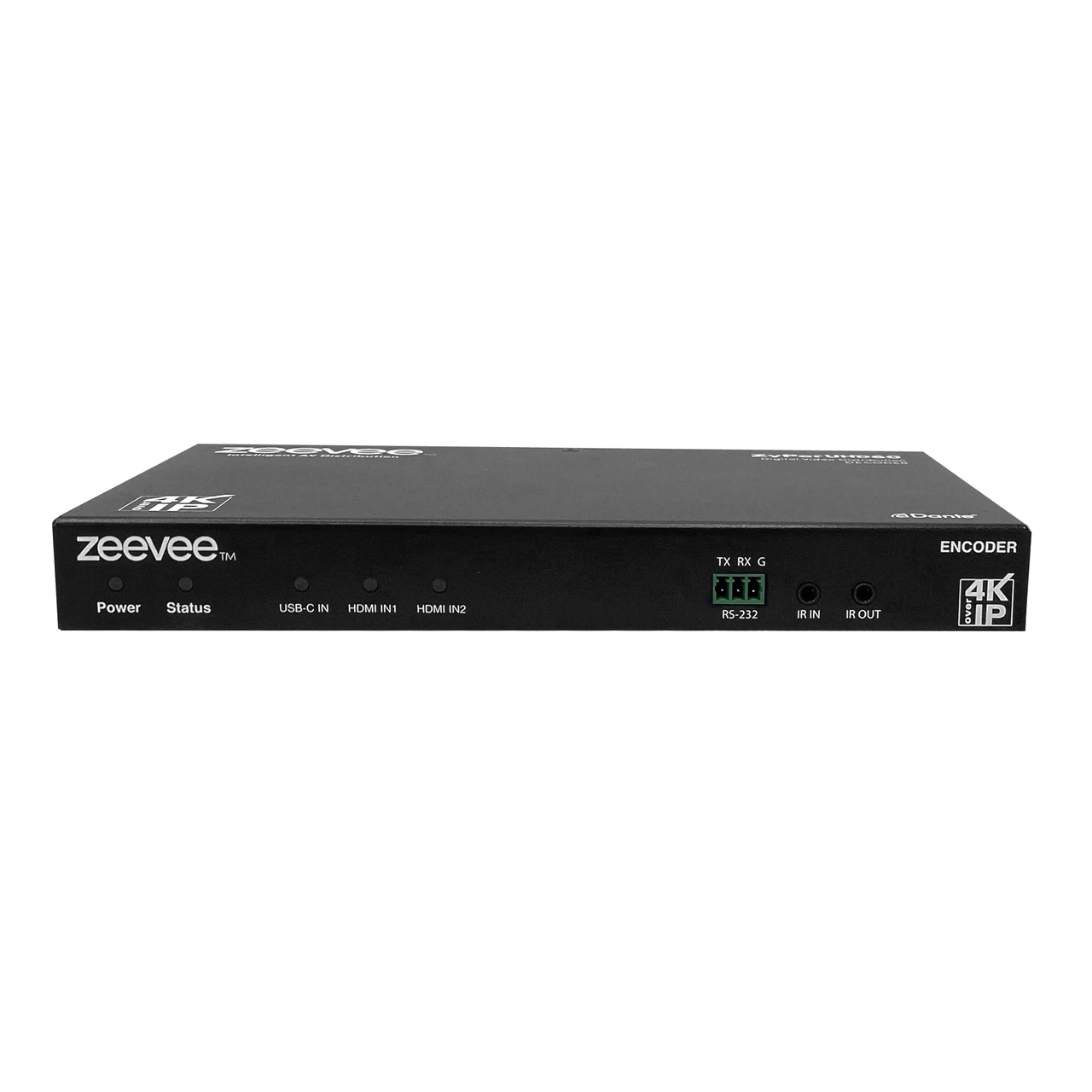

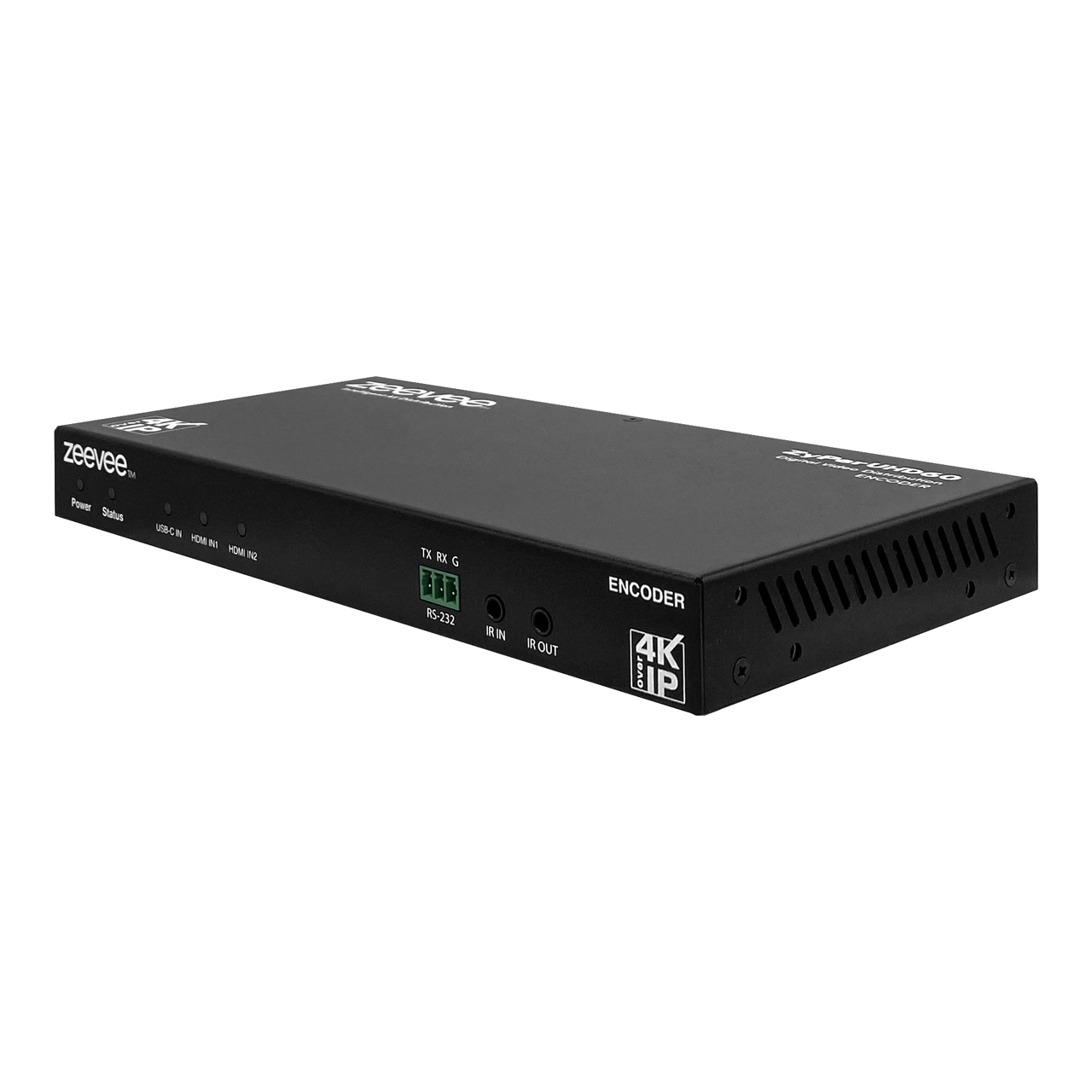

ZeeVee ZUHD60-2E ZyPerUHD60 3x1 Switching Streaming Encoder with Dual LAN

ITEM #: ZV-ZUHD60-2E MFG #: ZUHD60-2E

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
ZeeVee
Free Shipping with $49 Minimum Order

List Price:

$1,700.00

Our Price:

$1,360.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ZUHD60-2E - Overview

The ZeeVee ZUHD60-2E is an HDMI 2.0a, Switching, triple-input Encoder (Dual HDMI and USB-C) that is part of the ZyPerUHD60 product line. It supports IP streaming up to 4KP60 4:4:4 resolution with embedded and AES67 audio support; HDCP 2.3 and AES-256 encryption. This encoder has a 5-pin Phoenix/Euroblock connector for analog audio in/out and gigabit copper ethernet port. Other features include USB-A, IR, RS-232 (via 3-pin Phoenix/Euroblock), and HDMI loopout. The ZUHD60-2E requires a ZyPerUHD60 Decoder for operation and comes with an IR emitter, receiver, and wall mount bracket included. Ethernet, HDMI, USB, and audio/serial cables are not included. Can use POE or AC Power.

Please Note: 20 Volt 20V6APS Power supply sold separately.

  • Features:

    • 4K60 4:4:4 over 1Gb
    • Single USB-C Connection for Video, Audio, USB 2.0
    • Additional 2 HDMI inputs and USB 2.0 port
    • Auto Switching between inputs
    • Scalable, No need to Rip and Replace
    • Efficient and Cost-effective
    • Standalone or Network Manageable


  • Specifications:

      General

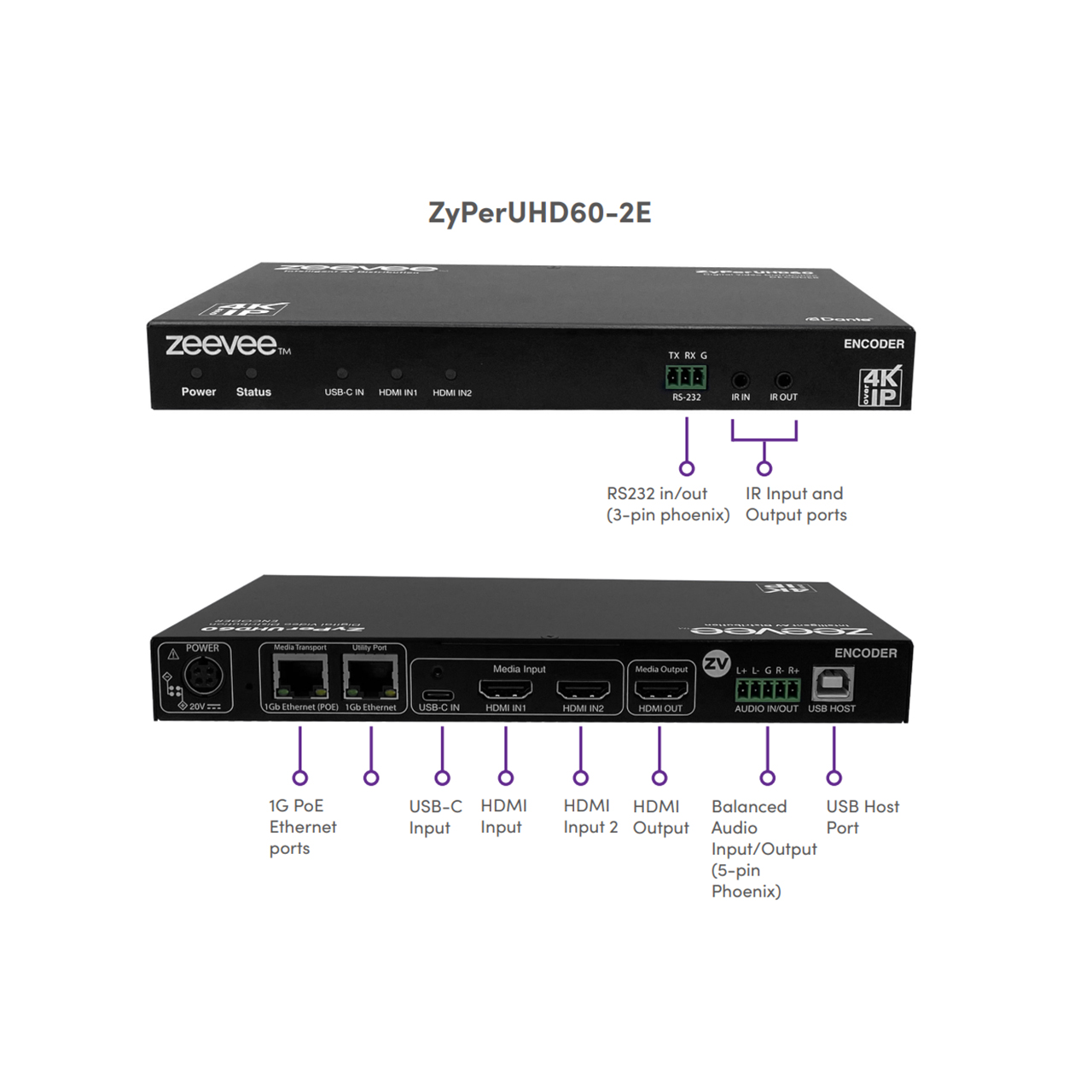

    • Video: 2x HDMI type A and USB-C
    • Video Loopout: HDMI type A
    • Audio (Analog): 5-pin Phoenix (3.5mm input on 0E units)
    • IR: 3.5mm mini jacks
    • Serial: 3-pin Phoenix
    • USB: USB Type B
    • Ethernet (PoE): 2x 1 Gb RJ45 port (One or two ports)

      Temperature
    • Operating Temperature: 32°F - 113°F (0°C - 45°C) Storage Temperature -4°F - 158°F (-20°C - +7°C)
    • Humidity: 10% - 90%, non-condensing

      Other
    • Color Depth: 24 bit, 30 bit
    • Maximum distance: Cat6a: 328 ft (100 m)
    • Copy Protection/Security: HDCP 2.3, 802.1X compatible
    • Power Consumption: Approximately 7W
    • Dimensions (WxHxD): 8" x 1" x 5" (215mm x 25mm x 120mm)
    • Weight: 1.5lbs (705g)


  • Item Includes:

    • 1x ZyPerUHD60 Encoder, 3x1 Switching Input and Dual LAN
    • 1x IR Emitter
    • 1x IR Receiver
    • 1x Wall Mount Bracket


  • Warranty:

    • 2 Year Limited Warranty
