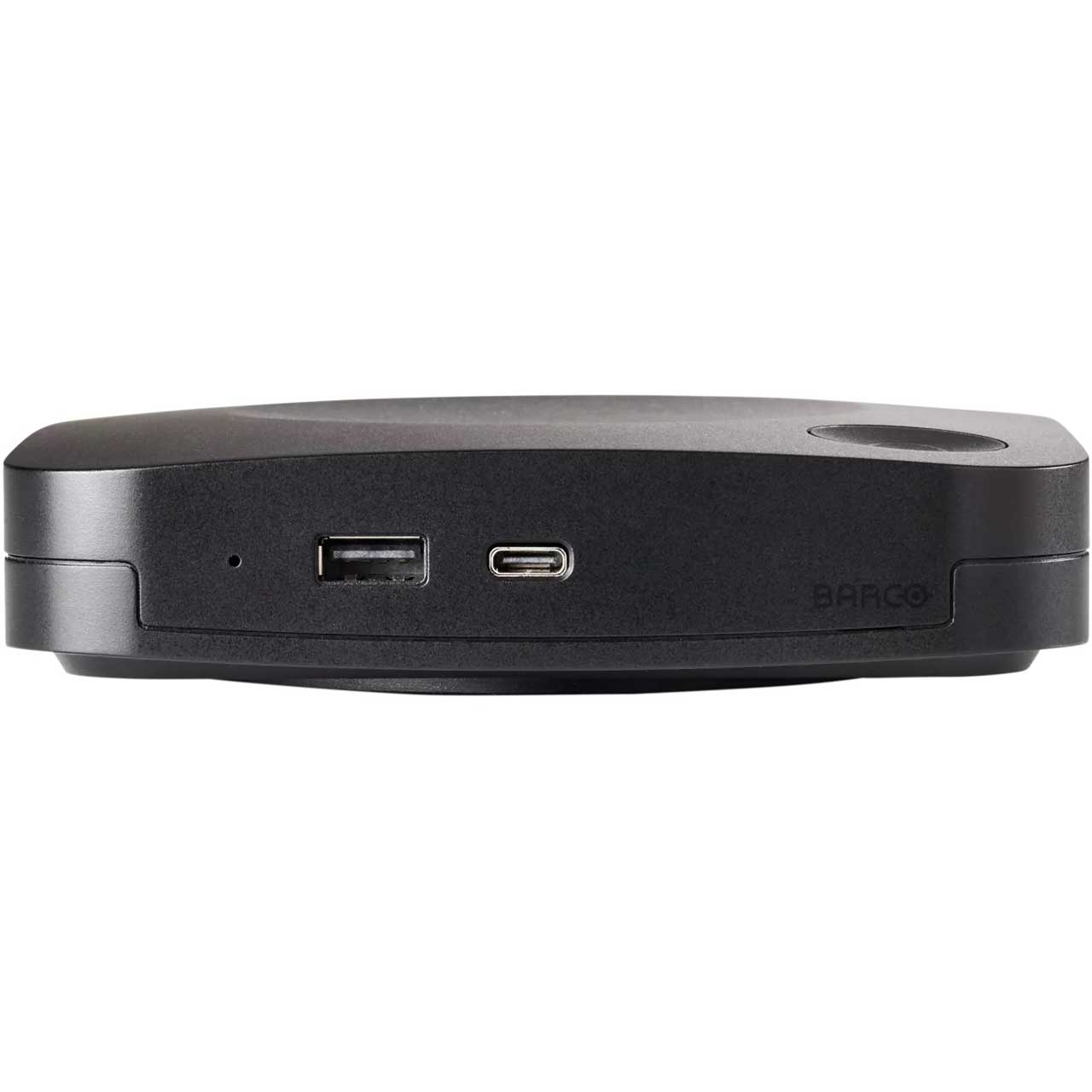

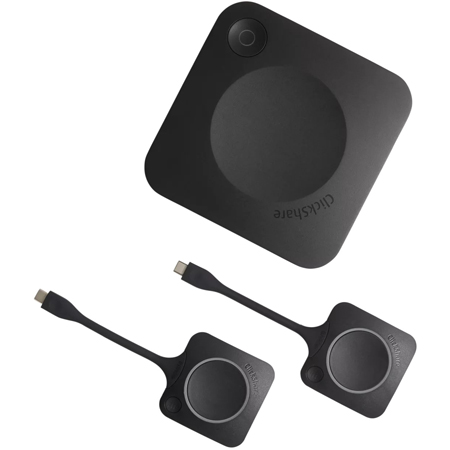

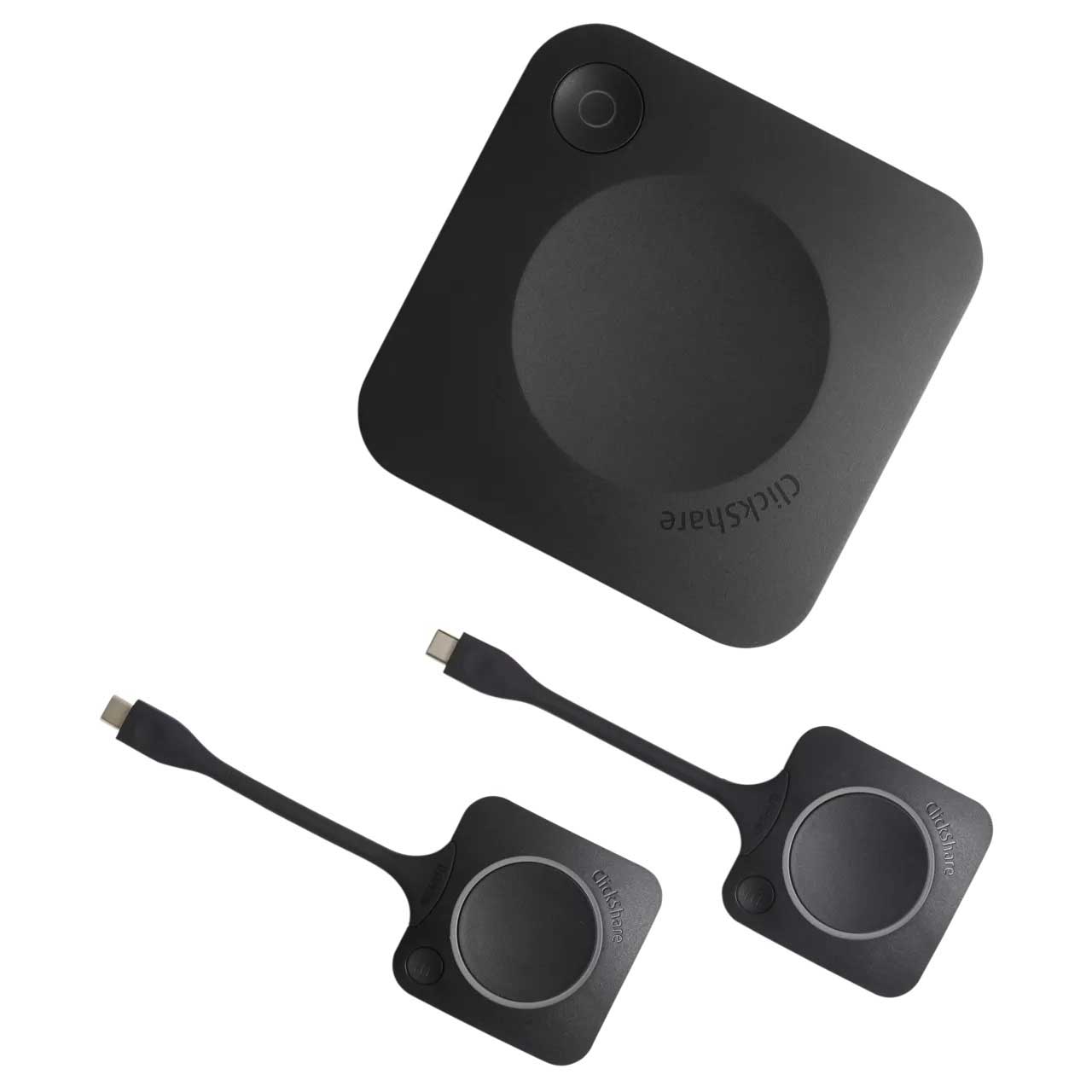

Barco ClickShare CX30-G2 Gen 2 Base Unit Plus 2 Buttons - Conferencing Set for Small to Medium-sized Conference Rooms

R9861613USB2 - Overview

• Features:

  • Interactive features: touchback, annotation and blackboarding
  • Increased collaboration with 2 sources on screen
  • Run video meetings from your laptop with Button or App
  • 100% secure, encrypted and cloud-managed


• Specifications:

  • Operating system: Windows 10 and higher macOS 11 (BigSur) and higher, Android v11 and higher (ClickShare App), iOS 14 and higher (ClickShare App)
  • System requirements: Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mojave latest build. Recommended: Intel i5 4-core processor / 8GB RAM / OS:Windows 10 latest build or Mac OS latest build
  • Video outputs: 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
  • Audio output: USB, HDMI
  • USB: 1x USB-A, 1x USB-C
  • ClickShare Buttons: 2
  • ClickShare App Desktop & Mobile
  • Native protocols: Airplay, Google Cast, Miracast
  • Maximum number of simultaneous connections (with Buttons and/or App): 32
  • Noise Level: Max. 25dBA @ 0-30°C, Max. 30dBA @ 30-40°C
  • Authentication protocol: WPA2-PSK in stand alone mode, WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
  • Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
  • Reach: Max. 100 ft between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHZ and 5 GHz (DFS)
  • Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

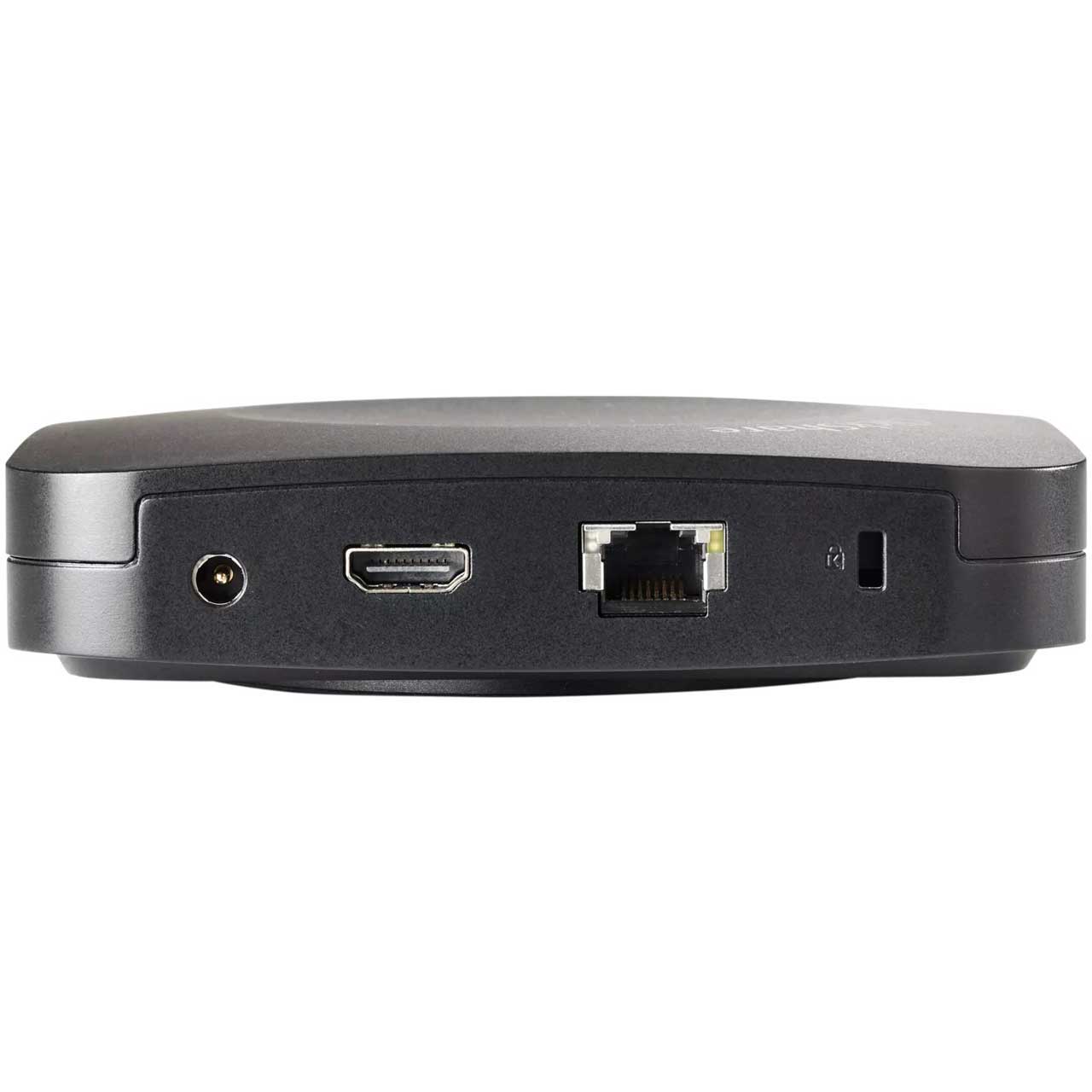

  • Connections: 1x Ethernet LAN 1Gbit; 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
  • Anti-theft system: Kensington lock
  • Touch screen support & Interactivity: Yes
  • Wireless conferencing: via App or Button
  • Local view: Yes
  • Network connection: LAN & WiFi
  • Management and reporting: Yes


• Item Includes:

  • 1x Barco ClickShare CX-30 Base Unit
  • 2x ClickShare Buttons


• Warranty:

  • 1-Year Warranty
