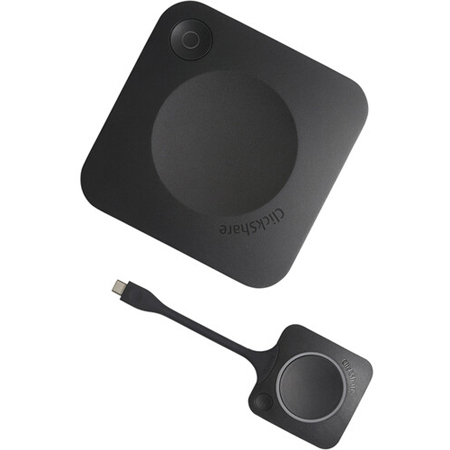

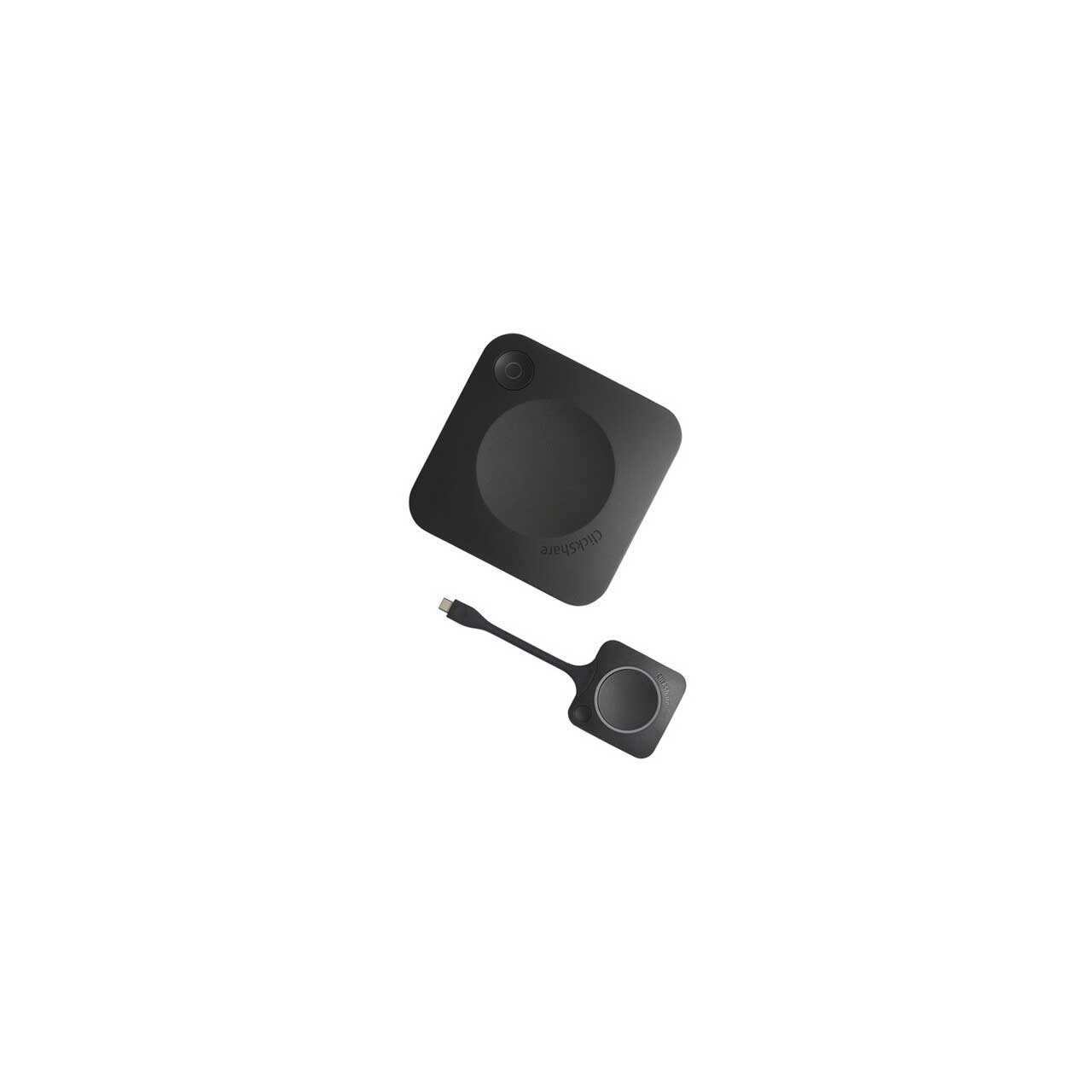

Barco C-10 Generation 2 ClickShare Button for Interactive Wireless Presentation

R9861611USB1 - Overview

Interactive wireless presentation for any meeting space

• Features:

  • Touchback, annotation and blackboarding
  • Increased collaboration with 2 sources on screen
  • Iconic ClickShare Button(s) for employees and guests
  • 100% secure, encrypted and cloud-managed
  • Interactive, engaged content sharing in any meeting space


• Specifications:

  • ClickShare Base Unit
  • Dimensions (HxWxD): 34 mm x 135 mm x 135 mm
  • Power consumption: 5-10W, 24W Max
  • Power supply: Standard 110/220 V AC plug or USB-C (only Gen2)
  • Weight: 900 gr

    General Specifications
  • Anti-theft system: Kensington lock
  • Audio output: HDMI
  • Authentication protocol: WPA2-PSK in stand alone mode, WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
  • Certifications: FCC/CE
  • ClickShare App: Desktop & Mobile
  • ClickShare Buttons: 1 or 2

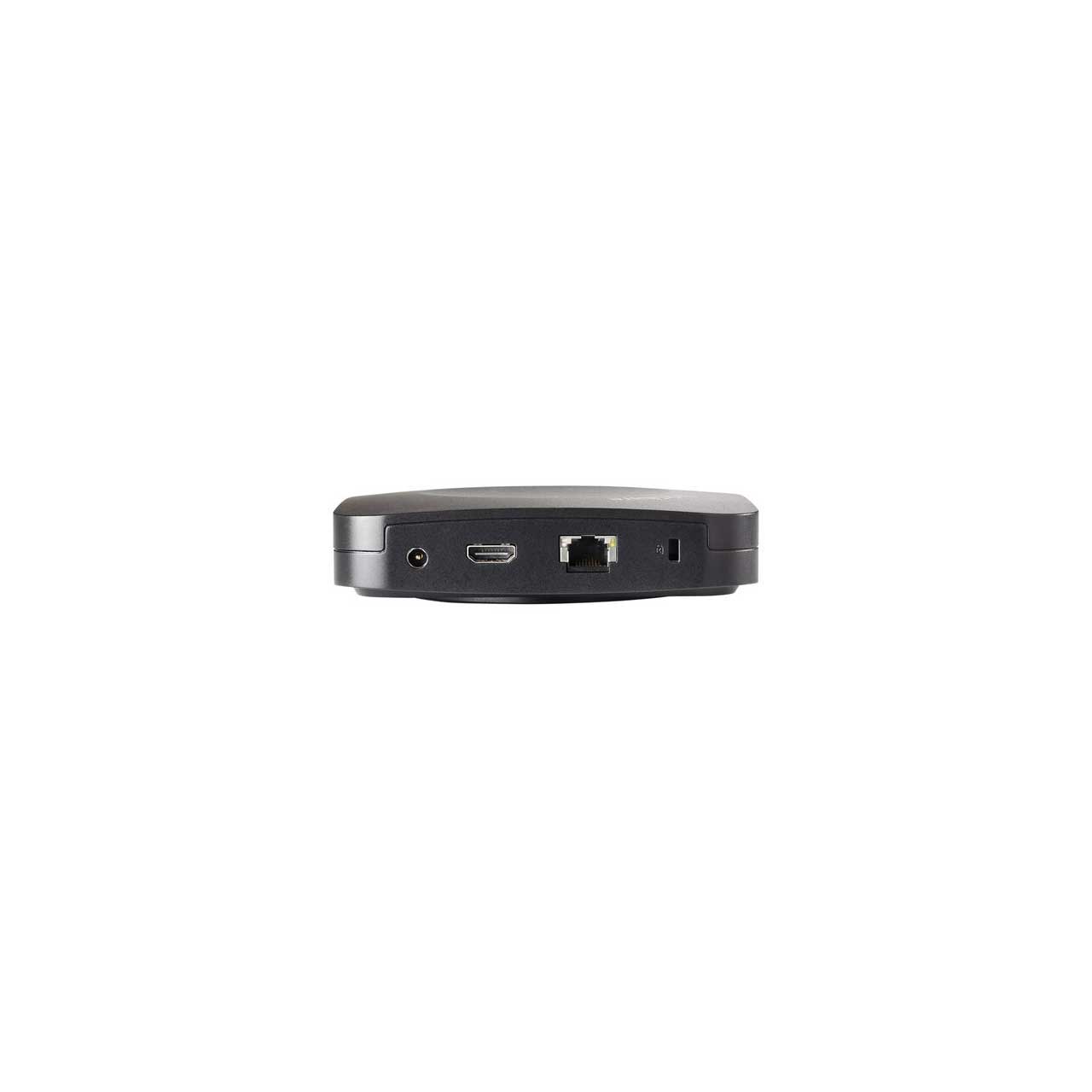

  • Connections: 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
  • Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
  • Humidity: Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
  • Local view: Yes
  • Management and reporting: Yes
  • Maximum number of simultaneous connections (with Buttons and/or App): 32
  • Native protocols: Airplay, Google Cast, Miracast
  • Network connection: LAN & WiFi
  • Noise Level: Max. 25dBA @ 0°C-30°C, 30dBA @ 30°C-40°C
  • Operating System: Windows 10 and higher macOS 11 (Bigsur) and higher, Android v9 and higher (Clickshare App), iOS 12 and higher (ClickShare App)
  • Reach: Adjustable with signal modulation; max. 30m (100ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHz and 5 GHZ
  • Room Dock (peripheral support): No
  • Temperature Range: Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)
  • Touch screen support & Interactivity: Yes
  • USB: 1x USB-A, 1x USB-C
  • Video Outputs: 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
  • Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1


• Item Includes:

  • 1x ClickShare Base Unit
  • 1x ClickShare Button


• Warranty:

  • 1-Year Warranty
