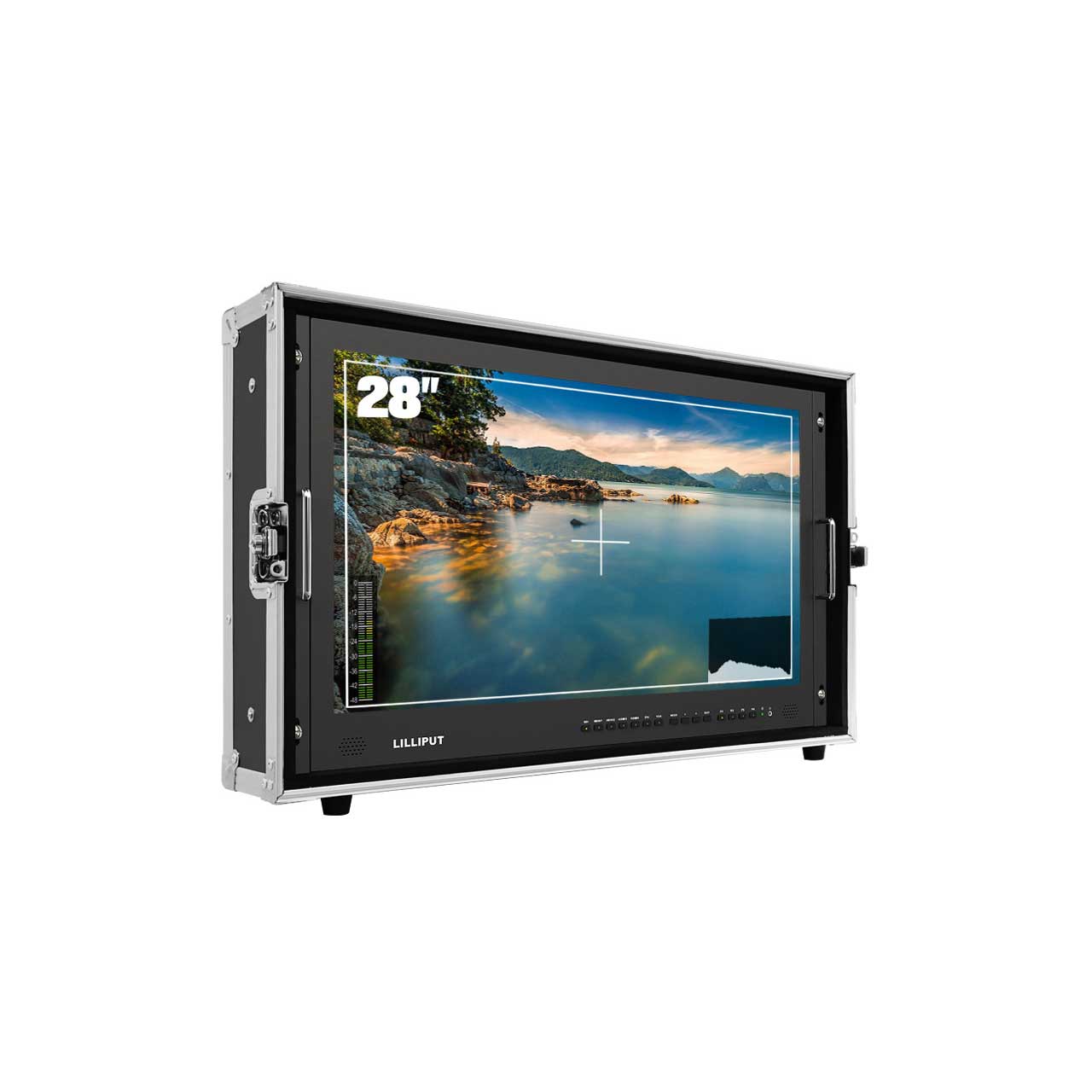

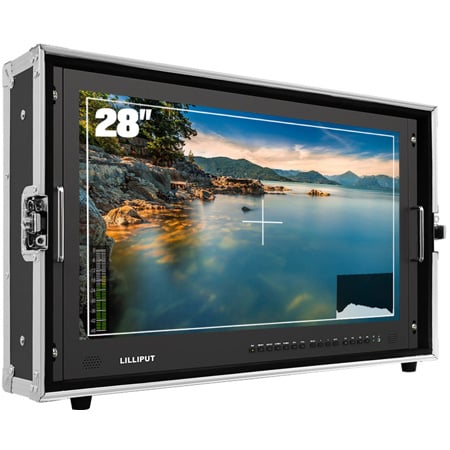

Lilliput BM280-4KS-VBP 28-Inch 4K Broadcast Director Monitor with HDR - 3D-LUT - Color space and Peaking Functions

BM280-4KSVBP - Overview

• Features:

  • 4K (3840*2160) Ultra-HD native resolution
  • 28" perfect size for both suitcase

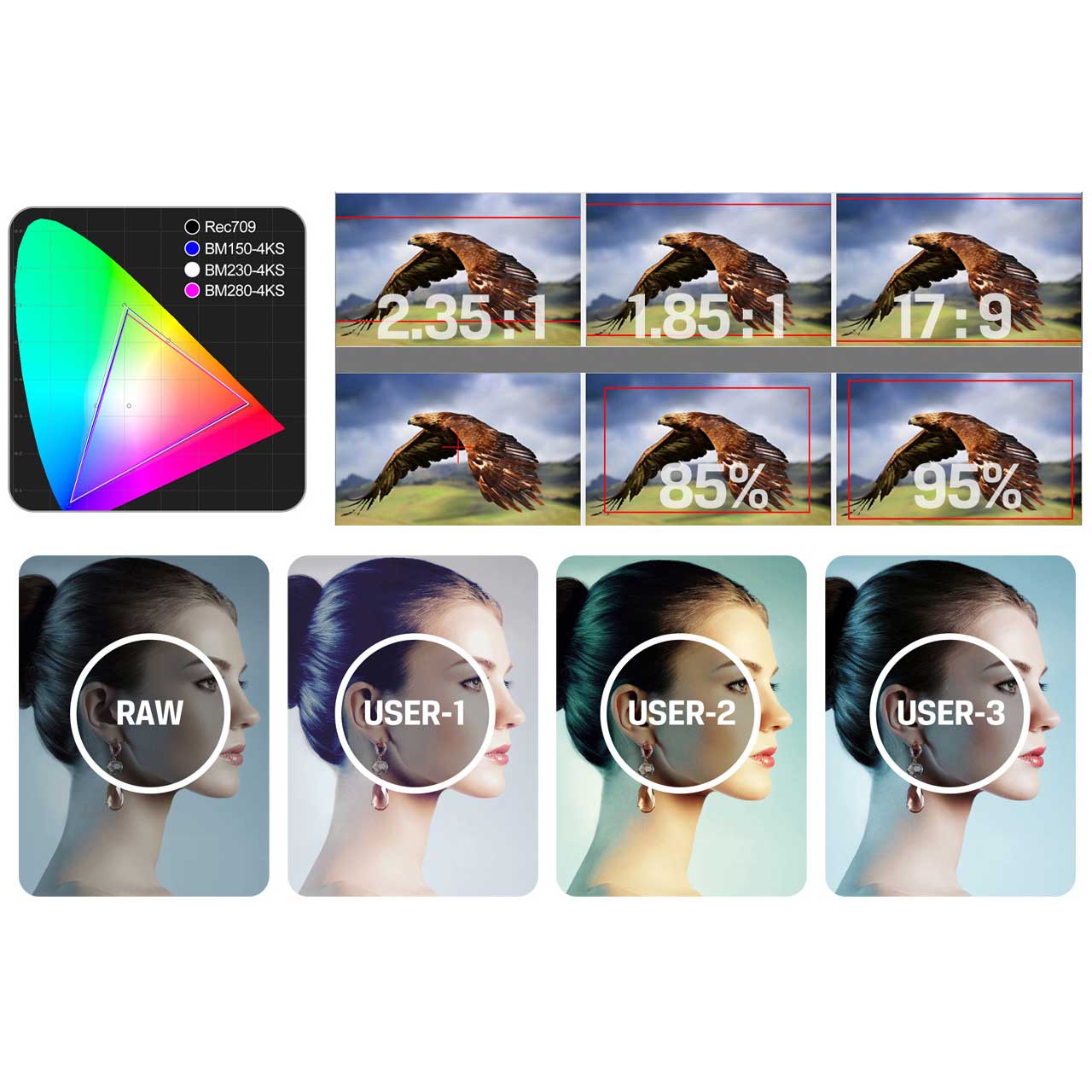

  • HDR, 3D-LUT & Color space
  • Peaking, False color & Time code
  • High contrast: 1000:1
  • 178° Ultra high viewing angle
  • Rich interfaces: 3G-SDI, HDMI 2.0, DVI, VGA, AV input
  • Wide voltage: DC12-24V


• Specifications:

  Display
  • Display Screen: 28" 8bit
  • Physical Resolution: 3840x2160, 4K
  • Aspect Ratio: 16:9
  • Brightness: 300cd/m²
  • Contrast: 1000:1
  • Viewing Angle: 170°/160°(H/V)

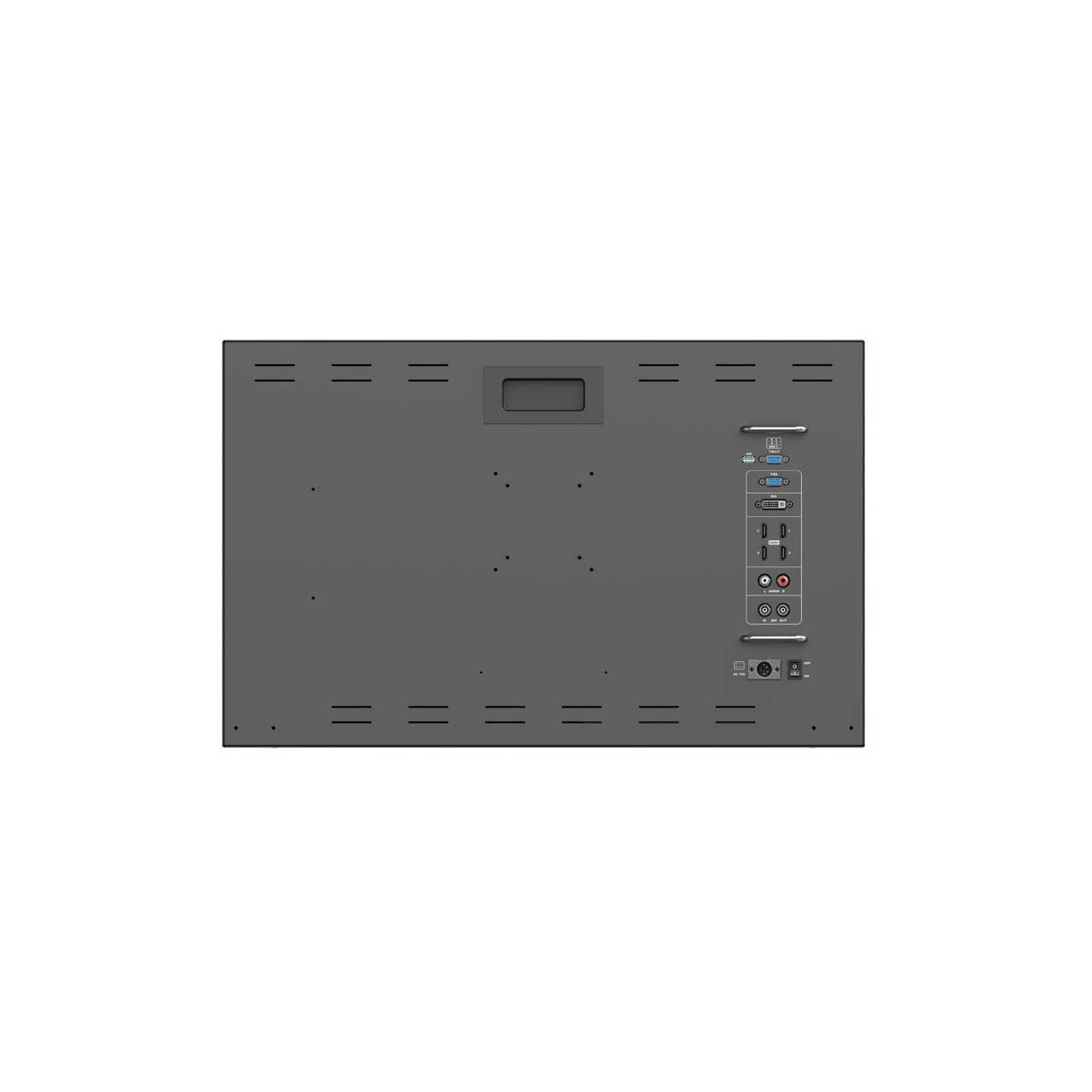

    Inputs
  • 3G-SDI: 1
  • Wireless HDMI: 1 (optional)
  • HDMI: HDMI 2.0x1 (4K@60Hz) HDMI 1.4x3 (4K@30Hz)
  • DVI: 1
  • VGA: 1
  • USB: 1 (3D-LUT)
  • Audio: 2 (L/R)
  • TALLY: 1

    Outputs
  • 3G-SDI: 1

    Audio
  • Speaker: 2
  • Ear Phone Slot: 1

    Power
  • Current: 3.4A (15V)
  • Input Voltage: DC 12-24V (XLR)
  • Battery Plate: V-mount / Anton Bauer mount
  • Power Consumption: ≤51W

    Environment
  • Operating Temperature: 32 to 140°F
  • Storage Temperature: -4 to 140°F

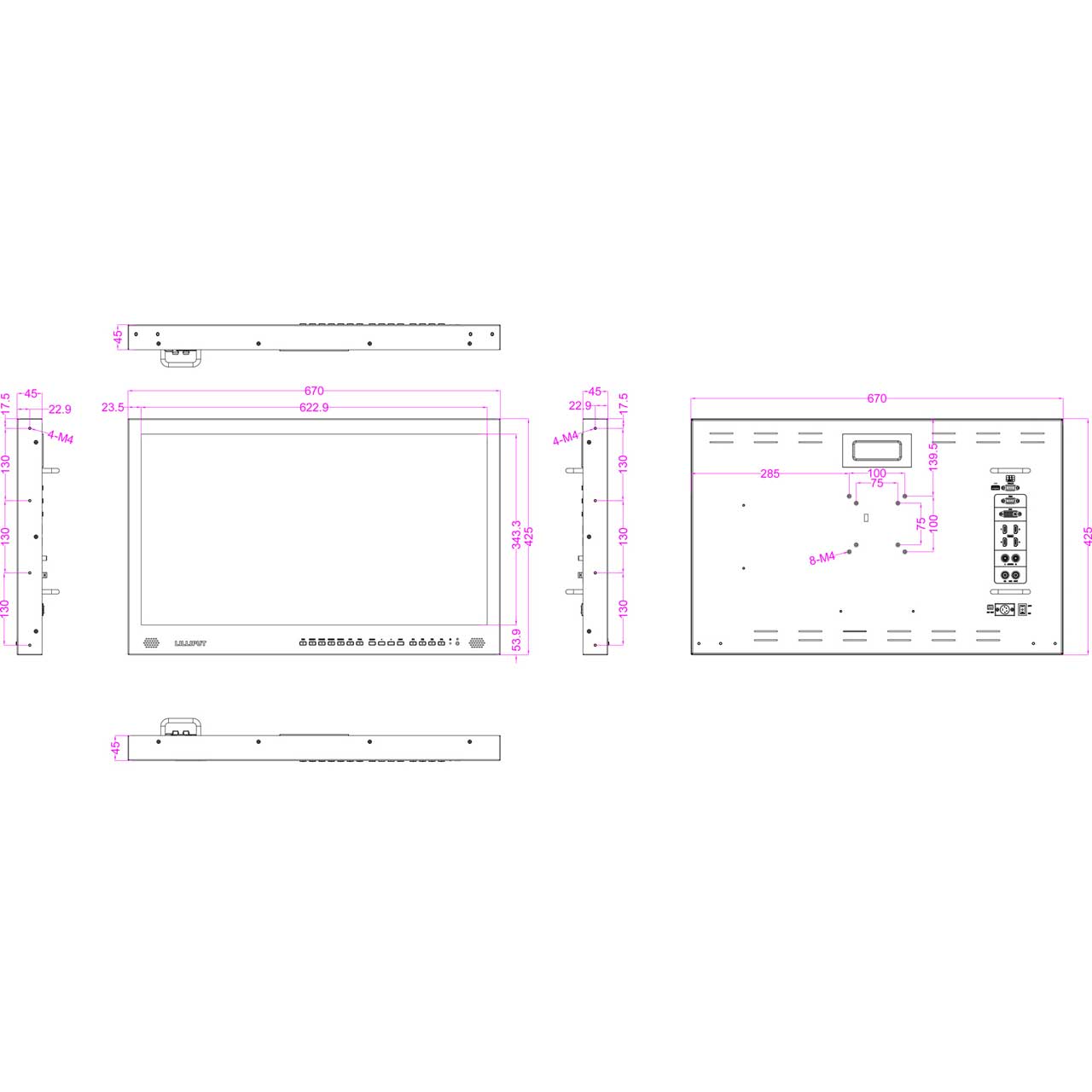

    Dimensions
  • Dimension (LxWxD) (without case): 26.38 x 16.73 x 1.77"
  • Dimension (LxWxD) (with case): 29.96 x 18.66 x 6.81"
  • Weight (without case): 20.72 lbs
  • Weight (with case): 46.30 lbs

    SDI Format
  • SMPTE-125M: 480i (59.94)
  • SMPTE-274M: 1080i (60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  • SMPTE-292M: 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
  • SMPTE-296M: 720p (60/59.94/50/30/29/25/24/23.98) 720p (60/59.94/50)
  • SMPTE-372M: 1080i (29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98)
  • SMPTE-425M: 1080p (60/59.94/50)
  • ITU-RBT.656: 576i (50)

    HDMI Format
  • 4K: 4096x2160/ 3840x2160
  • Other: 1080p, 1080i, 720p, 720i, 480p


• GTIN:

  6950821601549
