Q28-VBP - Overview

Lilliput Q28-VBP is a Q28-series 28 inch 12G-SDI professional broadcast production studio monitor with an V-mount battery plate. 12G-SDI 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI, and HDMI 2.0 input/output interfaces, it can support up to 4096 x 2160 (60p, 50p, 30p, 25p, 24p) signal.

  • Features:

    • 12G-SDI and 4K HDMI 2.0 Connectivity
    • 3840 x 2160 Display Resolution
    • Quad-Split Multiview Display
    • Multiple Color Temperature Presets
    • HDR and 3D-LUT Support
    • Built-In Speakers, 3.5mm Earphone Jack
    • Supports DCI 4K60 Input
    • Audio Vector, Histogram, and Waveform
    • RS-422 Remote Control Application
    • Integrated Tally Light


  • Specifications:

    • Audio In / Out (48 kHz PCM Audio)
    • Built In Speakers: 2x
    • Ear Jack: 3.5mm

      Display
    • Aspect Ratio: 16:9
    • Brightness: 300cdm⊃2
    • Contrast Ratio: 1000:1
    • Resolution: 3840 x 2160
    • Technology: Calibration to REC.709 with optional calibration unit
    • Viewing Angle: 178° / 178° (H/V)
    • HDR: ST2084 - 300/ 1000/10000/HLG
    • LUT Support: 3D LUT (.cube format)
    • Screen Size: 31.5"
    • Supported Log Formats: SLog2 / SLog3 / CLog / NLog / Arrilog / JLog / User

      Remote Control
    • GPI: 1
    • LAN: 1

      Supported Formats
    • HDMI Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
    • SDI Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
    • SFP Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60

      Video Loop Output
    • HDMI Video Loop Output: 1x HDMI 2.0
    • SDI Video Loop: 2x 12G, 2x 3G (Supported 4K-SDI Formats Single / Dual / Quad Link)

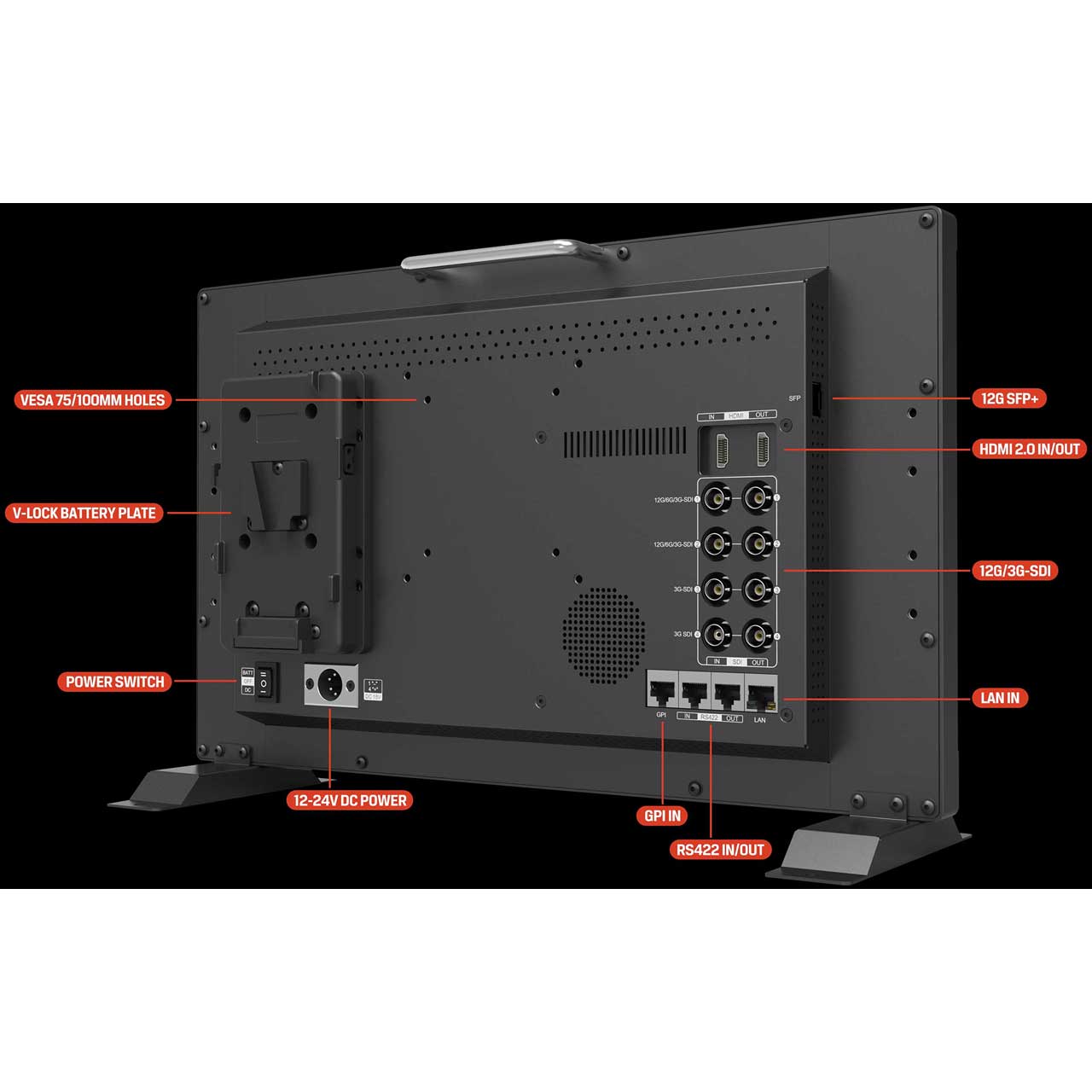

      Connections
    • HDMI Video Input: 1x HDMI 2.0
    • SFP: 1x 12G SFP+ (Fiber module optional)
    • SDI VIdeo Input: 2x 12G, 2x 3G (Supported 4K-SDI Formats Single / Dual / Quad Link)

      Size
    • Dimensions: 22.32 x 14.84 x 1.81 in (567 x 377 x 46mm)
    • Weight: 10.36lbs (7.4Kg)

      Power
    • Battery: V-lock Compatible (Battery not included - requires 14.8V)
    • Input Voltage: DC 12-24V
    • Power Consumption: =< 32.5W (15v)

      Environment
    • Operating Temperature: 32° to 104°F (0° - 40°C)
    • Storage Temperature: - 4° to 140°F (-20 - 60°C)


  • Item Includes:

    • 1x Q28 28" 12G-SDI Professional Production Studio Monitor (V-Mount)
    • 1x 15 VDC Power Adapter
    • 1x VESA Mount Plate
    • 2x Base Bracket
    • 1x V-Mount Battery Plate
    • 1x USB Flash Drive


  • GTIN:

    6950821602232
