Belden 4794RBUHD1 B50 12G-SDI Series 7 1-Piece UHD BNC Compression Connector for 4794R Cable - White Band - 50 Pack

ITEM #: BL-4794RBUHD1B50 MFG #: 4794RBUHD1 B50

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$285.25

Our Price:

$234.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4794RBUHD1 B50 - Overview

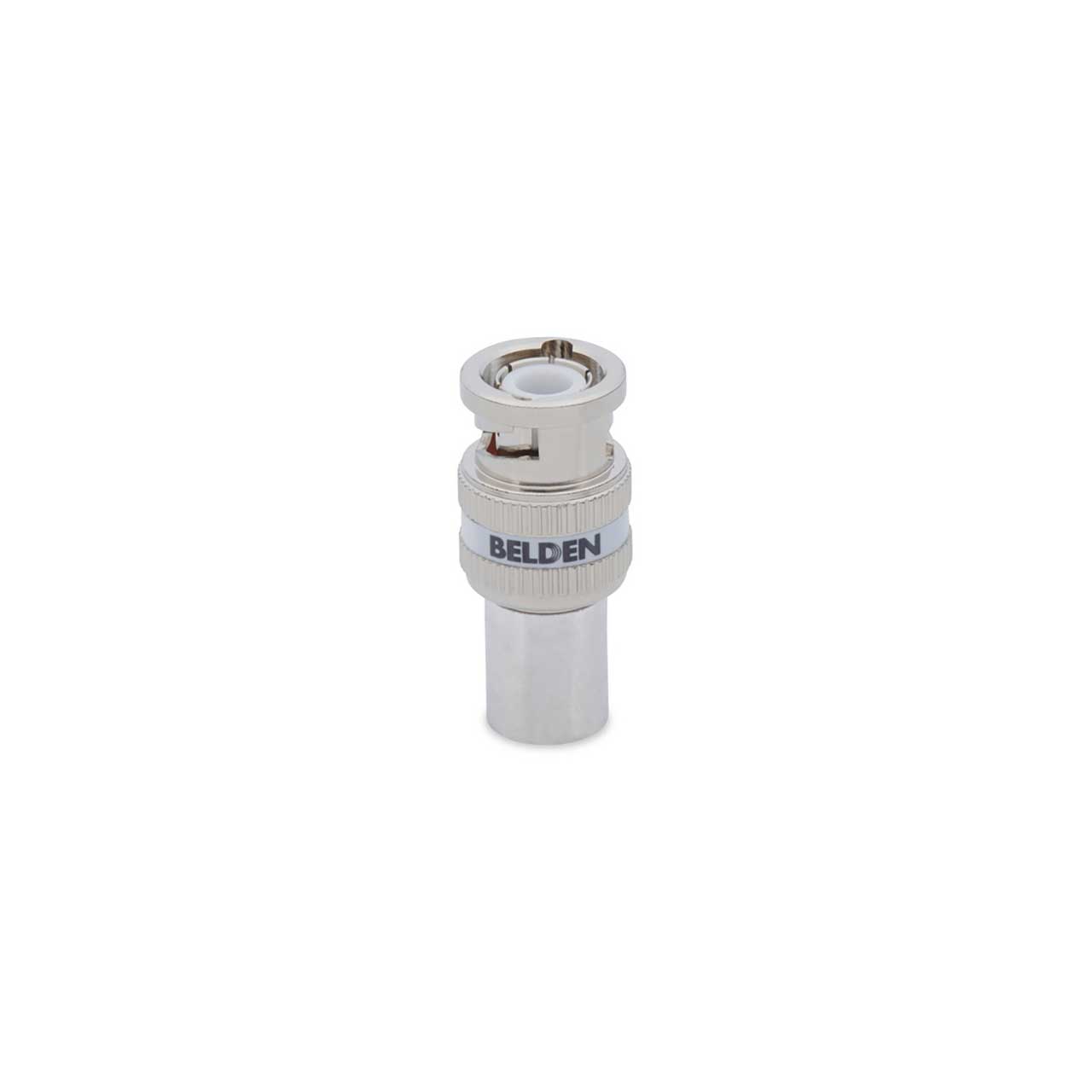

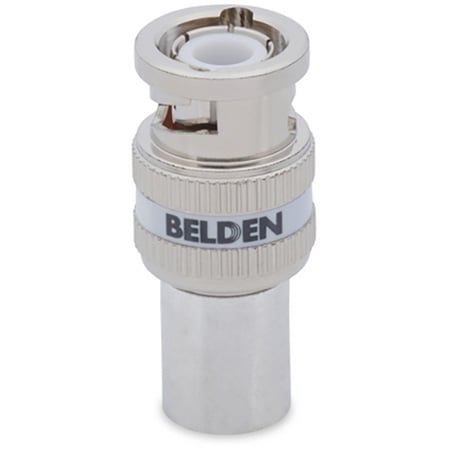

The Belden 4794RBUHD1 B50 is a 12G-SDI, Series 7, 1-Piece UHD BNC Compression Connector for Belden BL-4794R Cable in a 50 Pack. Belden 4794R cable is rated for 12 GHz 4K UHD 75 Ohm 16 AWG Precision Video Cable Coax transmission.

BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. Rated for 6 GHz and 12 GHz broadcast applications. The connectors exceed SMPTE return loss standards, providing excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.

  • Features:

    • Quick Deployment: A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy
    • Excellent Holding Strength: Internal 360-degree compression rings eliminate ingress and egress from the back of the connector
    • Easy identification: Features colored connector bands
    • Secure: Better gripping with patented design


  • Specifications:

    • Nut: Polished Nickel
    • Body: Polished Nickel
    • Contact: Brass, Gold Plated
    • Insulator: PTFE
    • Impedance: 75Ω
    • Return Loss (RL): 5-1485MHz - 15dB (RL) / 1485-3000MHz - 10dB (RL) / 3000-6000MHz - 7dB (RL) / 6000-12000MHz - 4dB (RL)
    • Notes: SMPTE 2082-1 Return Loss or better
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: UHD
    • Color Band: White
    • Locking: No
    • Tool Compatibility: KTH-1000 (crimp), KTH-201 (crimp die)
    • Termination Type: Compression
    • Cable Center Conductor Diameter Limits: 0.0460 - 0.0519"
    • Cable Dielectric Diameter Limits: 0.2283 - 0.2362"
    • Cable Outer Jacket Diameter Limits: 0.3110 - 0.3267"
    • Series: 7


  • Item Includes:

    • 4794RBUHD1 B50 12G-SDI Series 7 1-Piece UHD BNC Compression Connector - 50 Pack


  • GTIN:

    0845671005561
