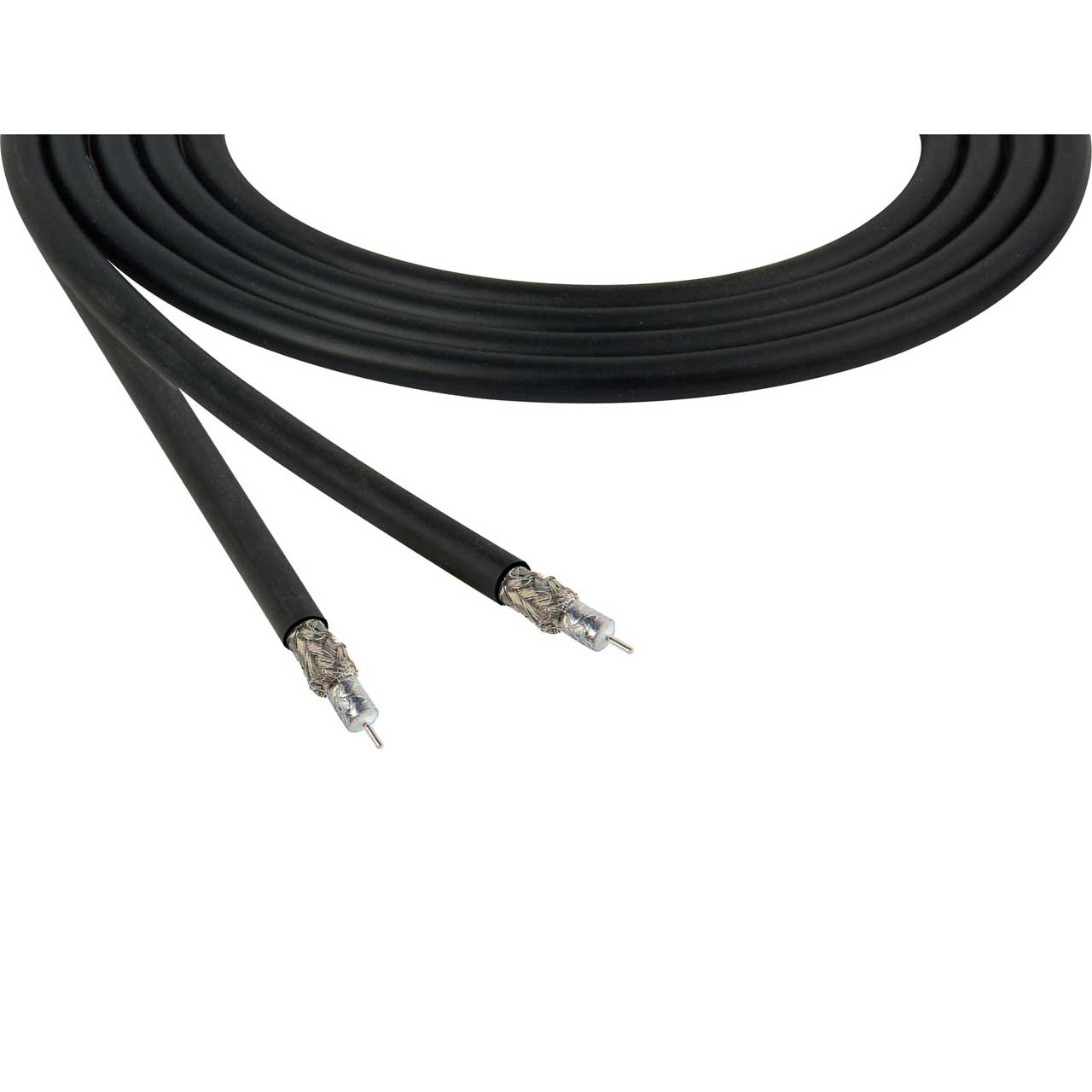

Belden 4794R CMR Rated 12G-SDI 4K UHD 75 Ohm Series 7 Coaxial Video Cable 16 AWG - 1000 Foot Roll - Black

ITEM #: BL-4794R-1000BK MFG #: 4794R 0101000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,307.40

Our Price:

$2,040.00

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4794R 0101000 - Overview

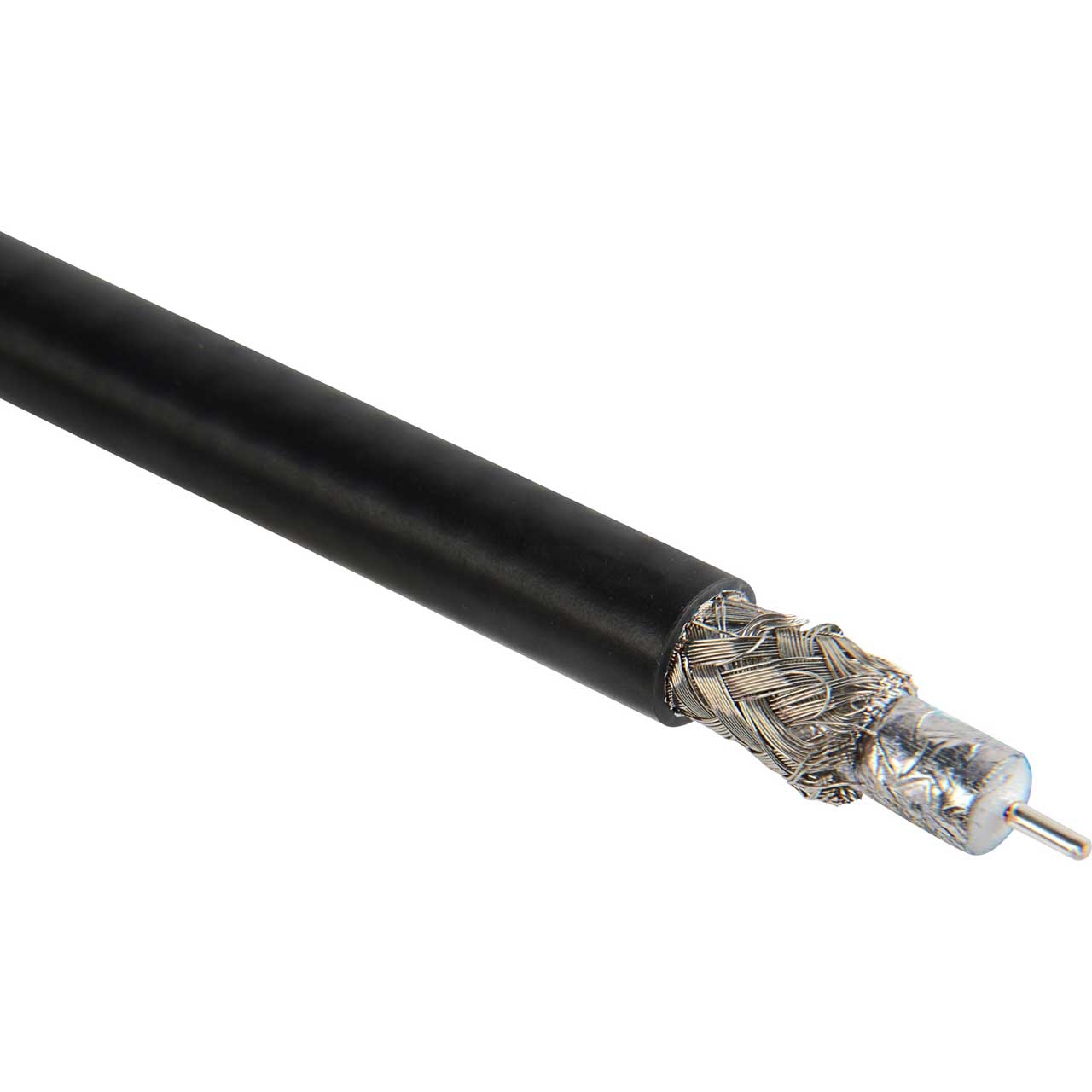

Belden 4794R is a 12G-SDI, 75 Ohm, Series 7, 16 AWG Precision Video Cable featuring a Solid Silvered Copper Conductor with PE Insulation, Foil plus 95% Tinned Copper Braid plus a Foil Shield. This coaxial cable is CMR/Riser Rated with a PVC Jacket.

Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.

Applications
Analog and Ultra-High Definition Digital Video
4K Single-link 12 Gb/s UHDTV
4K D-Cinema
8K Quad-link UHDTV
HD-SDI 1080p
Riser Installations
Broadcast Trucks
Facility Installation
House of Worship
Home Theater
Schools

  • Features:

    • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
    • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
    • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
    • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K


  • Specifications:

    • Series Type: 7
    • Conductor Size: 16 AWG
    • Conductor Stranding: Solid
    • Conductor Nominal Diameter: 0.051 inches
    • Conductor Material: Silvered Copper
    • Insulation Material: PE - Polyethylene (Foam)
    • Nominal Insulation Diameter: 0.225 in (5.72 mm)
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nominal Diameter: 0.320 in (8.13 mm)
    • Overall Cable Diameter (Nominal): 0.320 in (8.13 mm)
    • UL Voltage Rating: 300 V (CMR, CMG)
    • Environmental Suitability: Indoor - Riser, Indoor
    • Aerial: Black only, when supported by messenger wire
    • UL Temperature: 60°C
    • Operating Temperature: -20°C to +75°C
    • Bend Radius Installation Min: 3.2 in
    • Flammability/Reaction to Fire: UL1666 Vertical Shaft
    • NEC/UL Compliance: CMR
    • CEC/C(UL) Compliance: CMG


  • Item Includes:

    • 4794R Coaxial Video Cable 16 AWG - 1000 Foot Roll - Black


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825379201
