Belden 4794RBUHD3 B100 12GHz 3-Piece Series 7 BNC Crimp Connector for 4794/16 AWG Cable - Silver Band - 100 Pack

ITEM #: 4794RBUHDB100 MFG #: 4794RBUHD3 B100

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$994.52

Our Price:

$814.25

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4794RBUHD3 B100 - Overview

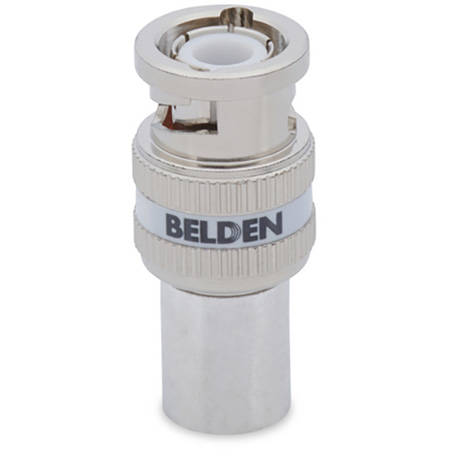

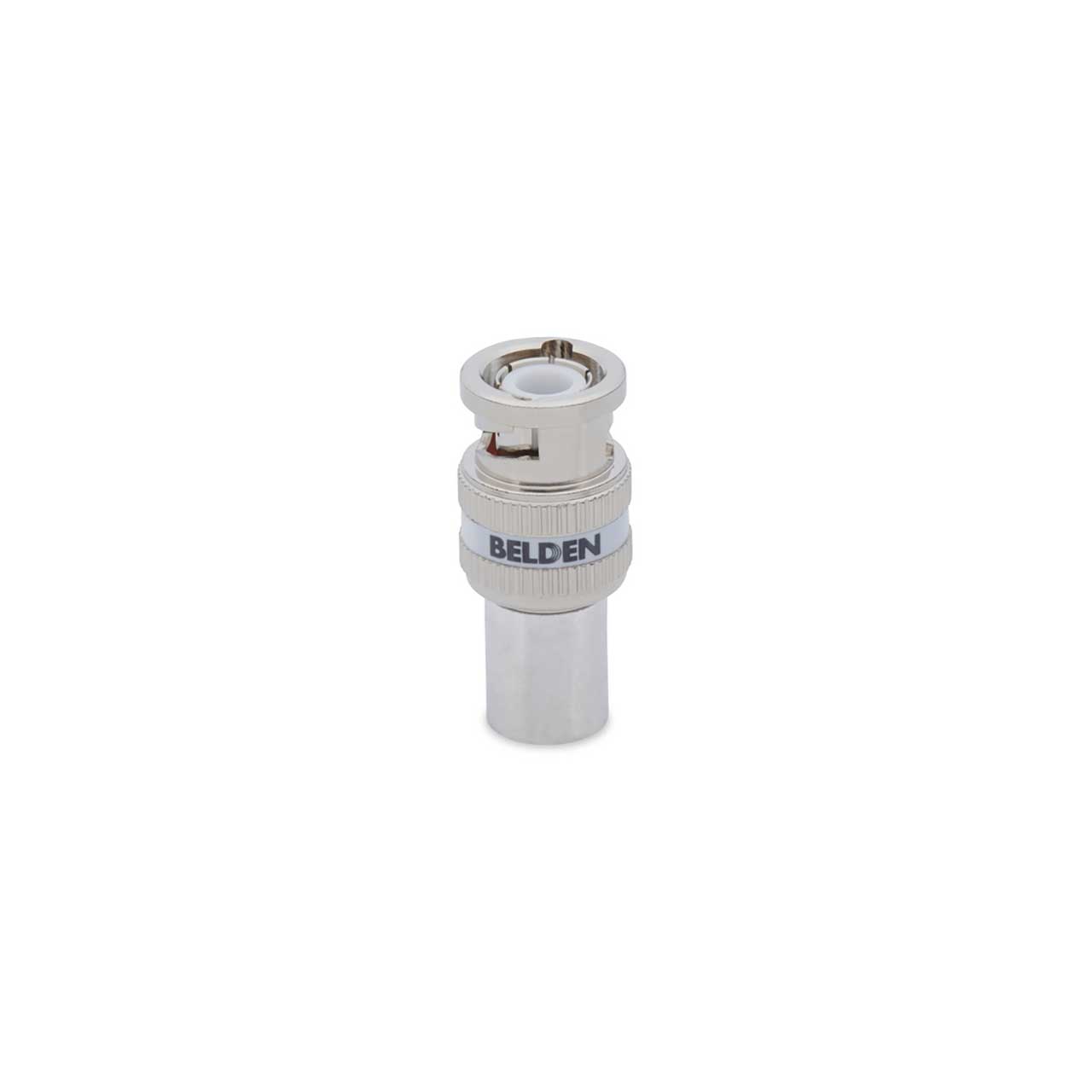

The Belden 4794RBUHD3 is a Series 7, 12 GHz, UHD, 3 piece BNC crimp connector. Suitable for HD-SDI, UHD-SDI, Video, Digital Video, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P applications.

  • Specifications:

    • Packaging: 100 Bulk
    • Number of Pieces: 3
    • Weight: 1.70kgs / 3.747lbs per 100 pack
    • Nominal Characteristic Impedance: 75
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: UHD
    • Locking: No
    • Tool Compatibility: Kings KTH-1000
    • Termination Type: Crimp
    • Cable Center Conductor Diameter Limits: 0.0512 - 0.0531 in
    • Cable Dielectric Diameter Limits: 0.2244 - 0.2303 in
    • Cable Outer Jacket Diameter Limits: 0.3189 - 0.3307 in
    • Suitability - Indoor: Yes


  • GTIN:

    0612825405689
