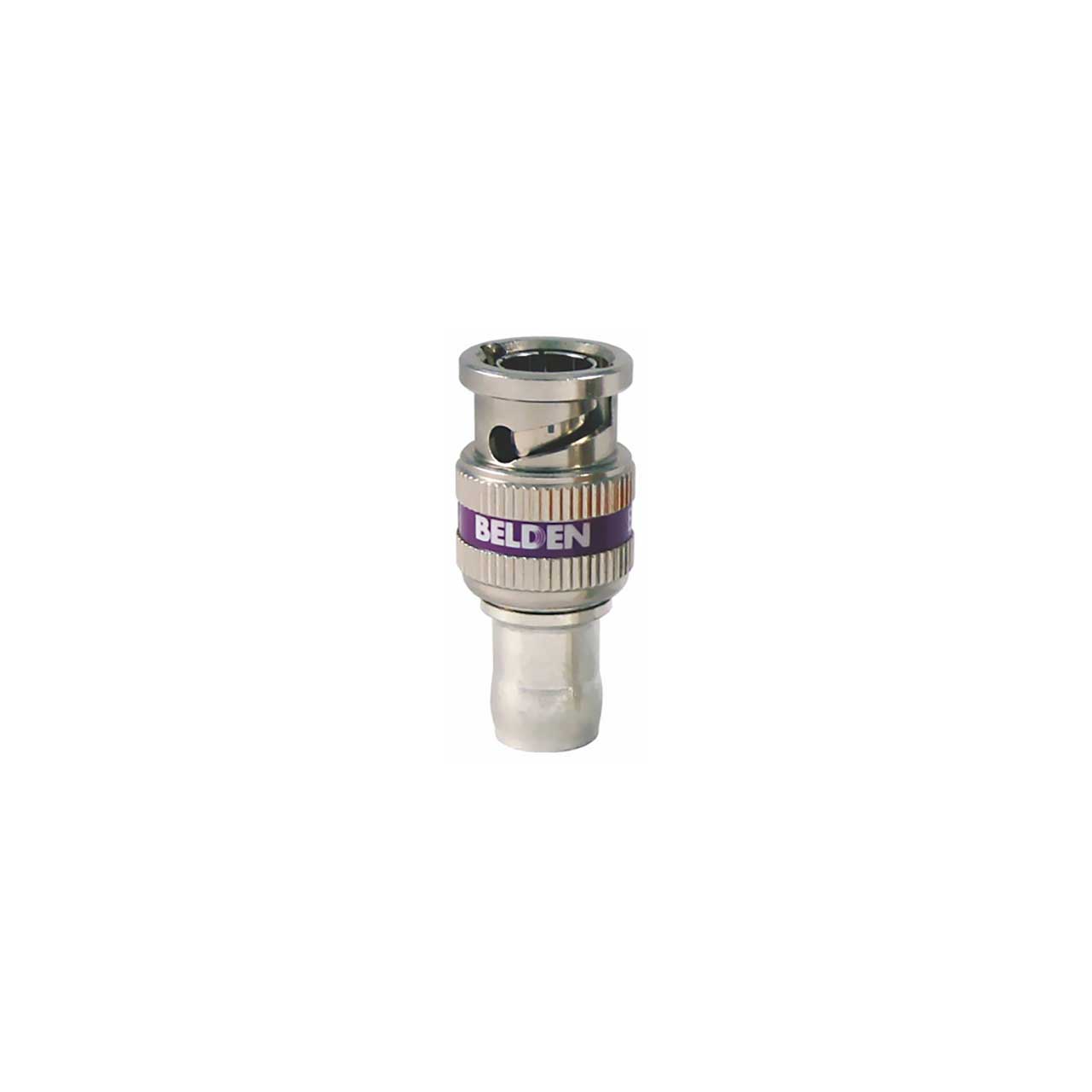

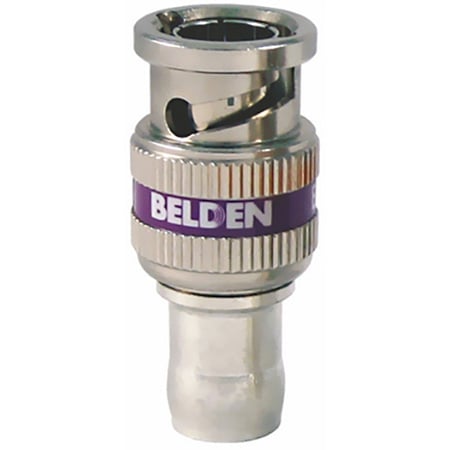

Belden 4855RBUHD1 12G-SDI 1-Piece BNC Compression Connector for 4855/Mini RG59 Cable - Violet Band

ITEM #: BL-4855RBUHD1 MFG #: 4855RBUHD1

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5.57

Our Price:

$5.02

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4855RBUHD1 - Overview

The Belden 4855RBUHD1 is a 12G-SDI,1 Piece, BNC compression style male cable connector designed for Belden 4855R cable with a Violet Band. It's Mini RG-59, 75 Ohm with a Brass and Nickel Plated nut and body and a Brass and Gold Plated center conductor.

BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. Rated for 6 GHz and 12 GHz broadcast applications, one-piece and three-piece connector types are available. The connectors exceed SMPTE return loss standards, providing excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.

Applications
Ultra-High Definition Digital Video
4K Single-link 12 Gb/s UHDTV
4K D-Cinema
8K Quad-link UHDTV
HD-SDI 1080p

  • Features:

    • Quick Deployment: A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy.
    • Excellent Holding Strength: Internal 360-degree compression rings eliminate ingress and egress from the back of the connector.
    • Outstanding Return Loss Performance.


  • Specifications:

    • Number of Pieces: 1
    • Nominal Characteristic Impedance: 75 Ohm
    • Footprint/Type: Coax
    • RG Type: Mini 59
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: UHD
    • Color Band: Violet
    • Environmental Space: Indoor
    • Locking: No
    • Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)
    • Termination Type: Compression
    • Cable Center Conductor Diameter Limits: 0.0208 - 0.0263 in
    • Cable Dielectric Diameter Limits: 0.0964 - 0.1019 in
    • Cable Outer Jacket Diameter Limits: 0.1574 - 0.1692 in


  • Item Includes:

    • 4855RBUHD1 12GHz BNC Compression Connector for 4855/Mini RG59 Cable - Violet Band - EACH


  • Warranty:

    • Limited Lifetime Connector Warranty when partnered with Belden Cable


  • GTIN:

    0845671005516
