Belden 1855ABHD1 6G-SDI 1-Pc BNC HD Compression Connector for 1855A/23 AWG RG59 Mini Coax Cable-Violet Band-Each

ITEM #: BL-1855ABHD1 MFG #: 1855ABHD1

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4.10

Our Price:

$3.40

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1855ABHD1 - Overview

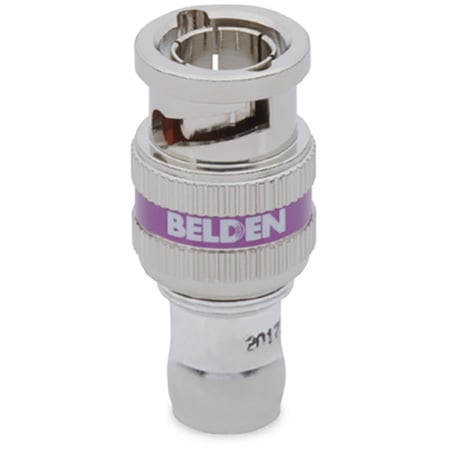

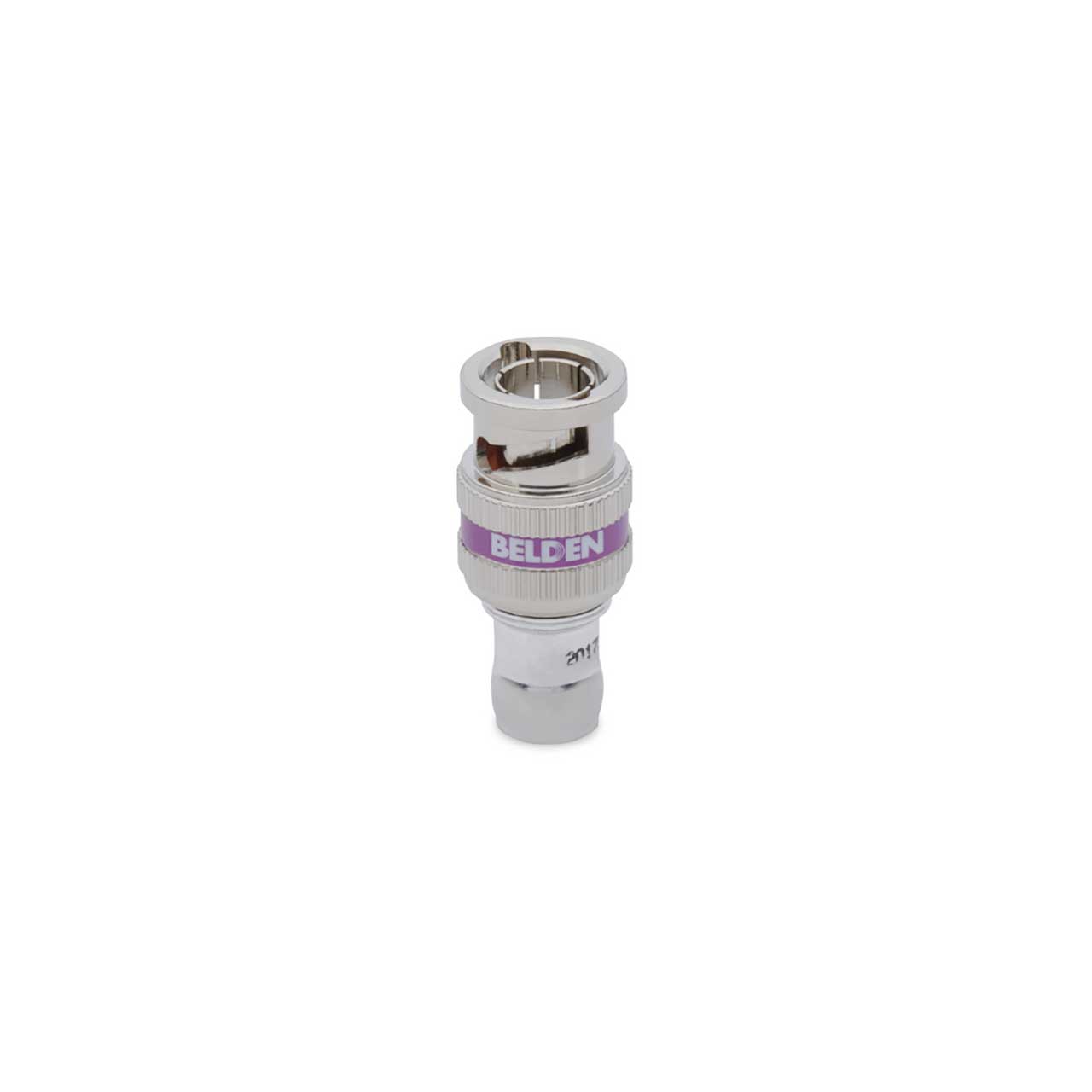

The Belden 1855ABHD1 is a 6G-SDI, HD, Mini RG59, 1-piece BNC Compression Connector that offers faster, more consistent field installation with the same excellent signal quality and performance as traditional 3-piece connectors. Specifically designed for use with Brilliance cable, creating the perfect connector-to-cable combination. 360 Degree compression rings deliver superior pull strength exceeding 100 pounds.

The 1-piece design simplifies and speeds the installation by eliminating loose pins and sleeves. This allows for repeatable and consistent installations every time while delivering return loss performance on par with more time consuming, traditional 3-piece designs.

Applications
HD-SDI
Video
Digital Video
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • 6GHz HD Connector
    • Mini RG59
    • Compression Termination
    • 1 Piece Connector
    • Gold plated Brass Contact
    • PTFE Insulator


  • Specifications:

    • Physical Characteristics (Overall)
    • Packaging: 50 per package
    • Number of Pieces: 1
    • Connector Materials
    • Nut - Brass
    • Nickel Plated Body - Brass
    • Nickel Plated Contact- Brass
    • Gold Plated Insulator - PTFE
    • Electrical Characteristics
    • RETURN LOSS
    • Frequency [MHz]: 5-1485/Minimum Return (RL) 15dB
    • Frequency [MHz]: 1485-3000/Minimum Return (RL) 10 dB
    • Frequency [MHz]: 3000-6000/Minimum Return (RL) 7 dB
    • Mechanical Characteristics
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: HD
    • Color Band: Violet
    • Locking: No
    • Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)
    • Termination Type: Compression
    • Standards RG Type: Mini 59
    • Applicable Environmental and Other Programs
    • Environmental Space: Indoor
    • EU Directive 2000/53/EC (ELV): Yes
    • EU Directive 2011/65/EU (RoHS 2): Yes
    • EU Directive 2012/19/EU (WEEE): Yes
    • EU Directive 2015/863/EU (RoHS 2 amendment): Yes
    • EU Directive Compliance: EU Directive 2003/11/EC (BFR)
    • Suitability
    • Suitability - Indoor: Yes
    • Suitability - Outdoor: No
    • Plenum (Y/N): No


  • Item Includes:

    • 1855ABHD1 6GHz 1-Piece BNC Compression Connector - Violet Band - Sold Each


  • Warranty:

    • Limited Lifetime Connector Warranty when partnered with Belden Cable


  • GTIN:

    0845671002331
