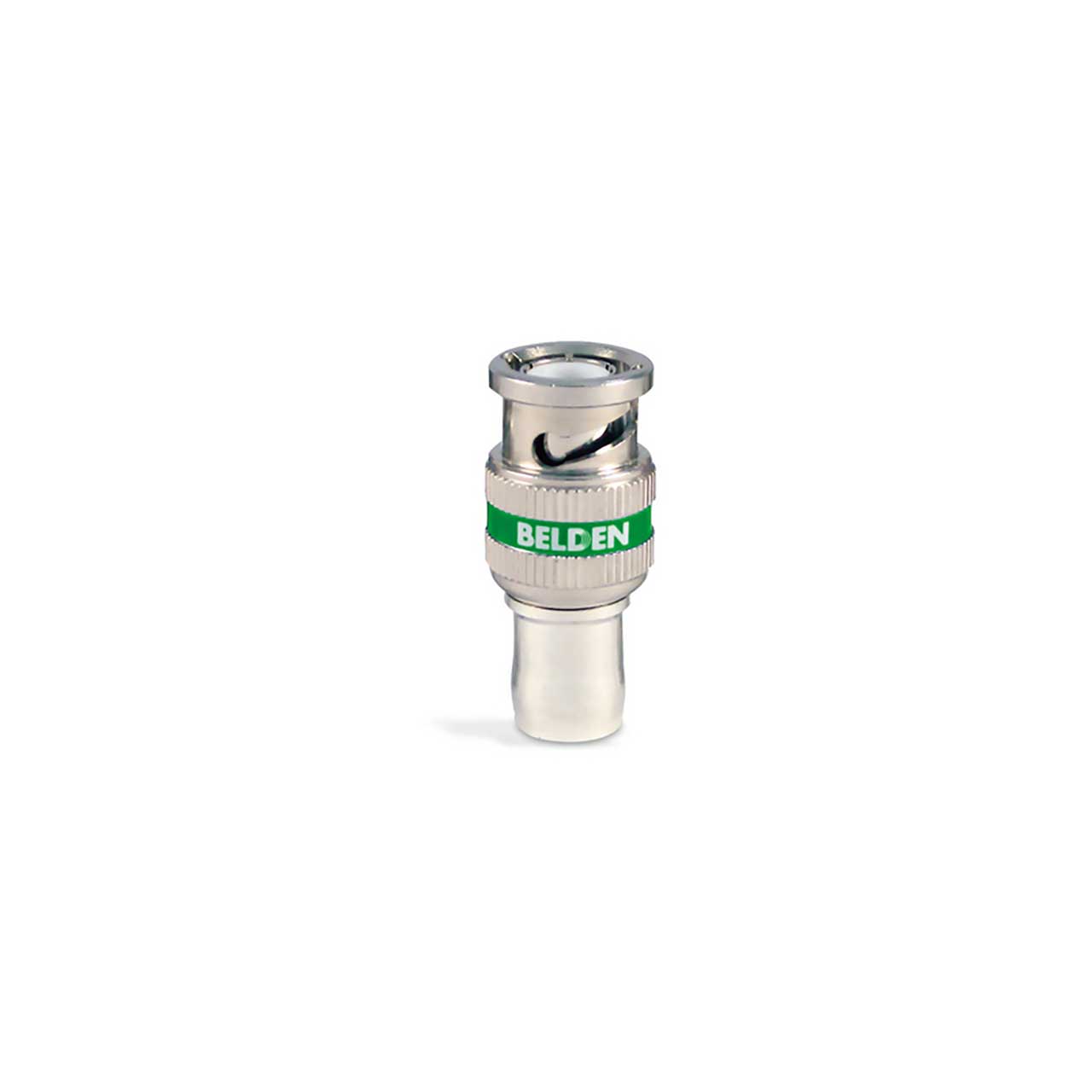

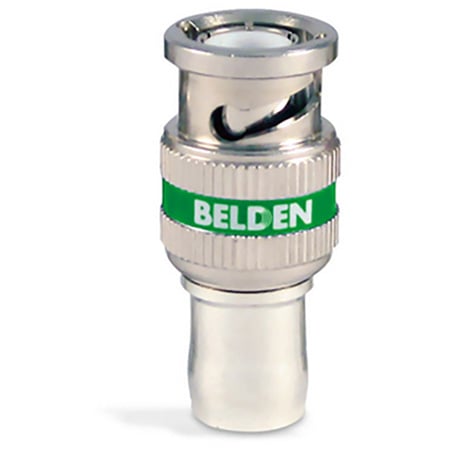

Belden 1694ABHD1 6G-SDI 1-Piece BNC HD Compression Connector for 1694A/RG6 Cable - Green Band - Each

ITEM #: BL-1694ABHD1 MFG #: 1694ABHD1

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.79

Our Price:

$3.25

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in November.
Report Lower PriceLarge Quantity Quote

1694ABHD1 - Overview

The Belden 1694ABHD1 is an 6GHz RG6 BNC 1-Piece Compression Connector with a Green Band sold each and designed for 1694A Cable.

Applications
HD-SDI Video
Digital Video
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • 6G-SDI
    • 75 Ohm
    • RG-6
    • 1 Piece Compression Connector
    • Brass/Nickel Plated Body with Gold Plated Contact
    • Suitability - Indoor


  • Specifications:

    • Packaging: 50 per package
    • Number of Pieces: 1 Connectors
    • Return Loss:
    • 5-1485 MHz - 15dB
    • 1485-3000 MHz - 10dB
    • 3000-6000MHz - 7dB
    • Nut: Brass Nickel Plated
    • Body Brass: Nickel Plated
    • Contact: Brass Gold Plated
    • Insulator: PTFE
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: HD
    • Color Band: Green Locking: No
    • Tool Compatibility: CPLCRBC-BR (compression), PSA59/6 (strip)
    • Termination Type: Compression


  • Item Includes:

    • 1694ABHD1-50 6G-SDI 1-Piece BNC for 1694A/RG6 Cable - Green Band - Single Connector


  • Warranty:

    • Limited Lifetime Connector Warranty when partnered with Belden Cable


  • GTIN:

    0845671002416
