Digital Forecast Bridge X-TS PACK V3 Video and Audio Troubleshooter and Cross Converter Hard Case Bundle

X_TS PACK V3 - Overview

• Features:

  • Digital to Audio / Audio to Digital Converter
  • Up/Down/Cross/Scan converter

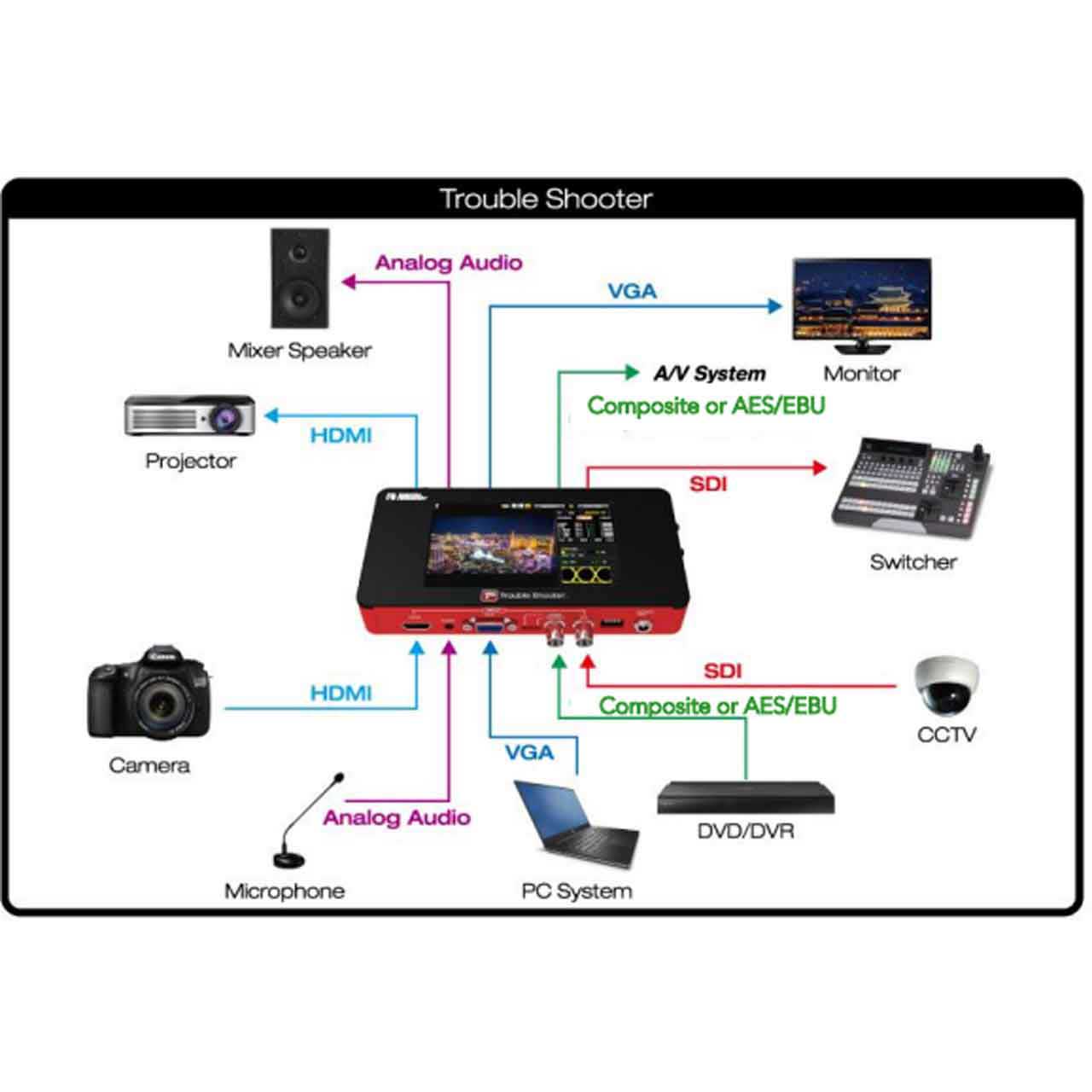

  • Standard Video / Audio signal supported (SDI, HDMI, CVBS, COMPONENT, VGA, DVI,Analog Audio, AES / EBU)
  • Analog Audio Mux / DeMux
  • Jitter Measurement for SDI signal (720p, 1080i, 1080p)
  • Test Pattern Generator : 8 types provided
  • SDI signal integrity check (Loss, TSR, CRC, Line number)
  • HDMI signal integrity check (Loss, Resolution, HDCP)
  • Audio Level Monitoring (up to 8 channels)

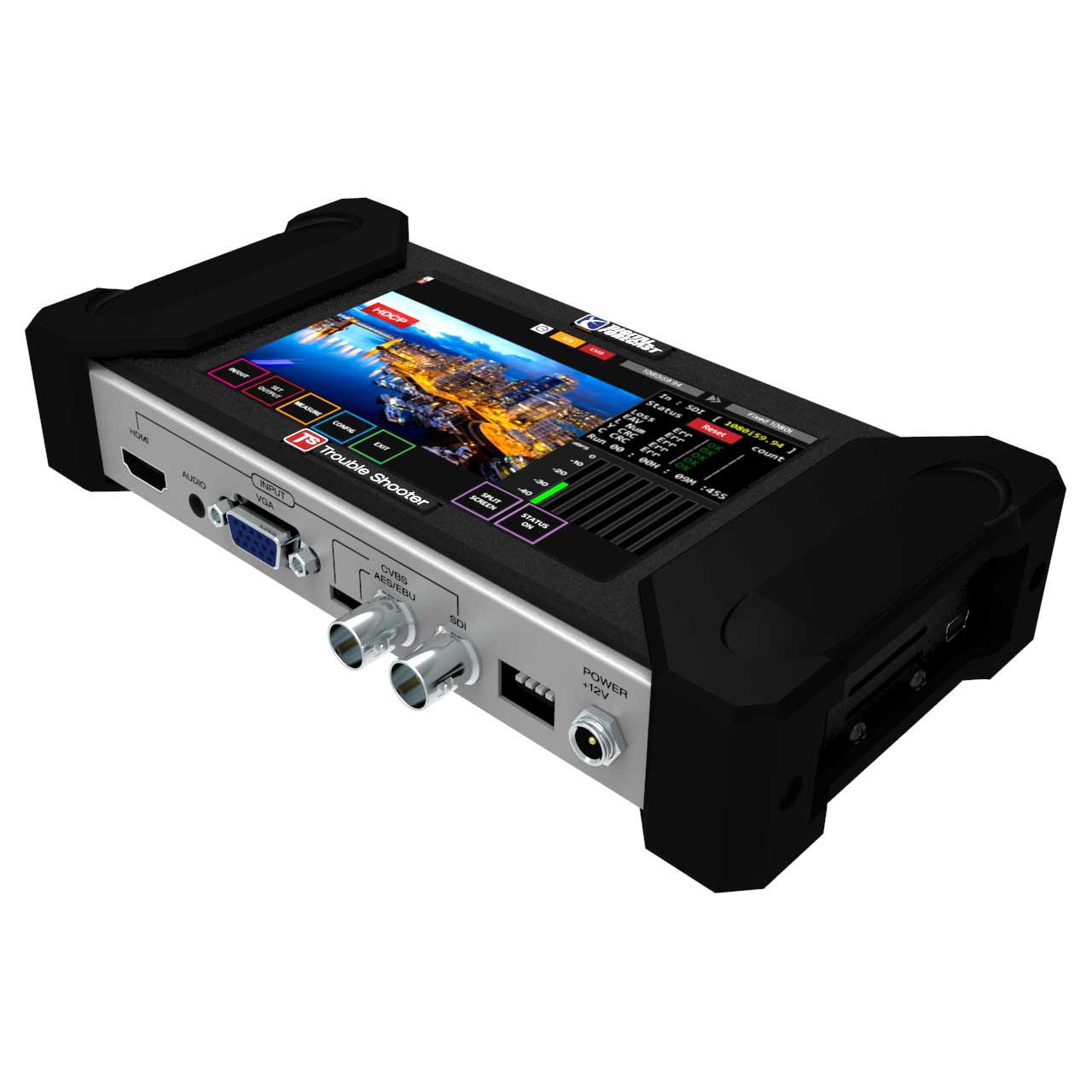

  • 5" Touch Screen LCD (800x480)
  • Includes a Sony battery mounting plate


• Specifications:

  • Operating Environment
  • Power Level: +12VDC
  • Power Consumption: 13 Watts (Maximum 15 Watts)
  • Operating Temperature: 32° to 158°F (0° to 70°C)
  • Humidity: 0 to 95% RH, Non-condensing
  • Case Dimensions: 11.92 x 10.51 x 4.57" (303 x 267 x 116mm)
  • Total Weight: 5.29Lbs (2.4kg)

    Video Standards
  • Supports HDMI v1.3
  • Supports VGA, Comp, CVBS format
  • Supports multi-rate SDI formats
  • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
  • SMPTE 296M: 720p (60/59.94/50)
  • SMPTE-274M: 1080i (60/59.94/50)
  • SMPTE-292M: 1080p (30/29.97/25/24/23.98)
  • SMPTE-424M: 1080p (60/59.94/50) 3G

    LCD Specification
  • Size: 5"
  • Resolution: 800 x 480
  • Pixel Area WxH: 0.135 x 0.132mm
  • Display Area WxH: 108 x 64.8mm

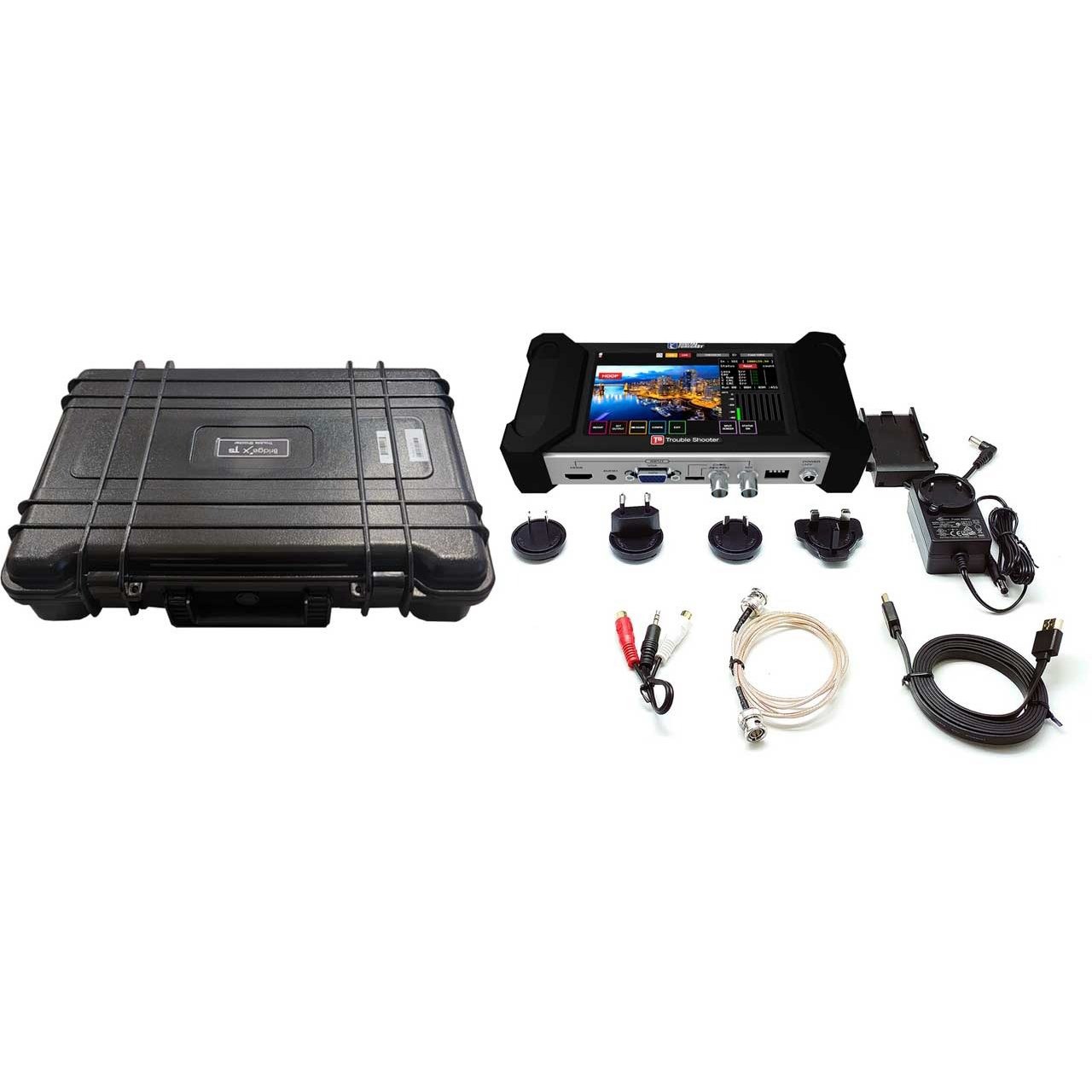

• Item Includes:

  • 1x X_TS main body
  • 1x Side bumper set
  • 1x Power adapter
  • 1x Sony battery plate
  • 1x Stereo RCA to 3.5mm adapter
  • 1x HDMI cable
  • 1x BNC SDI cable
  • 1x Hard shell case
