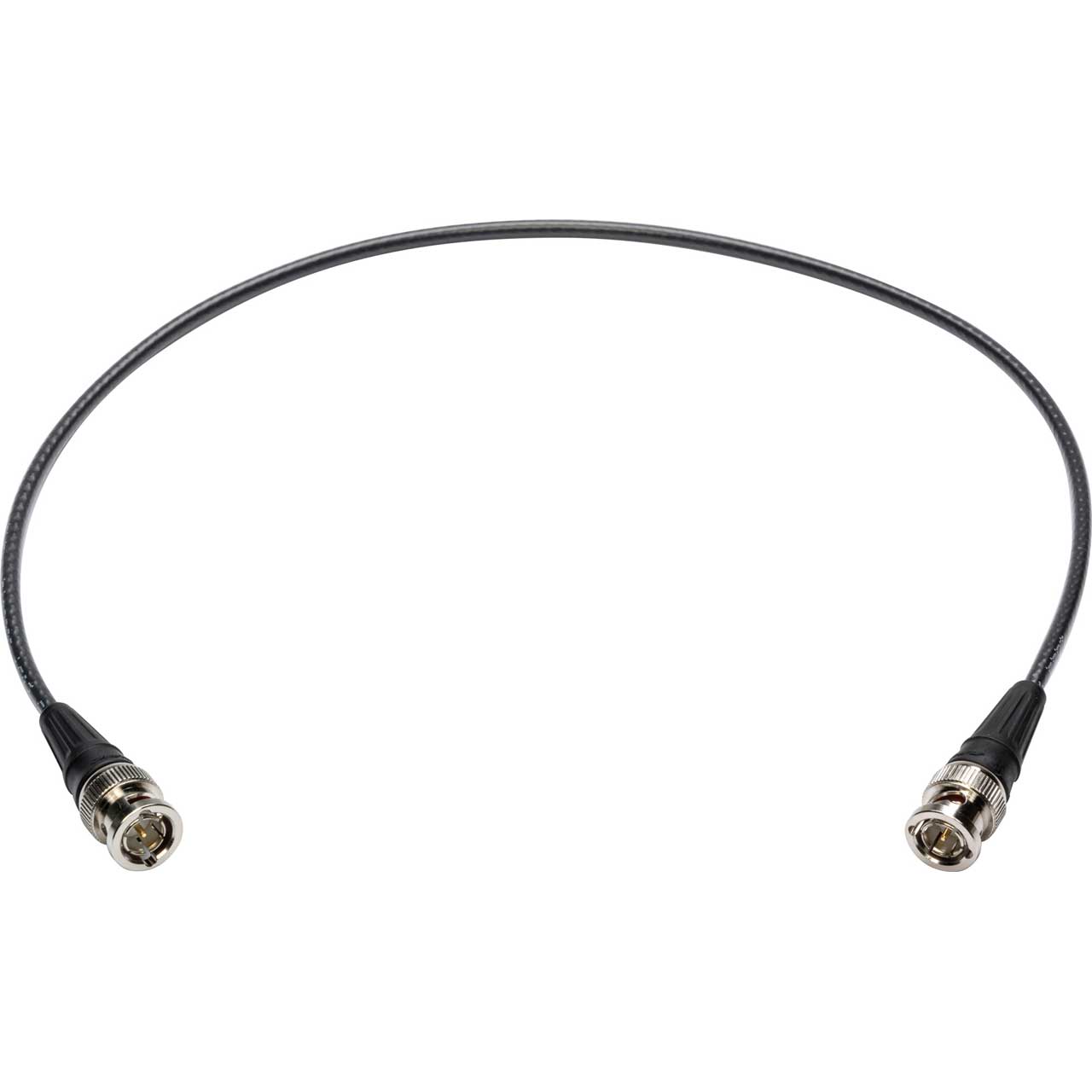

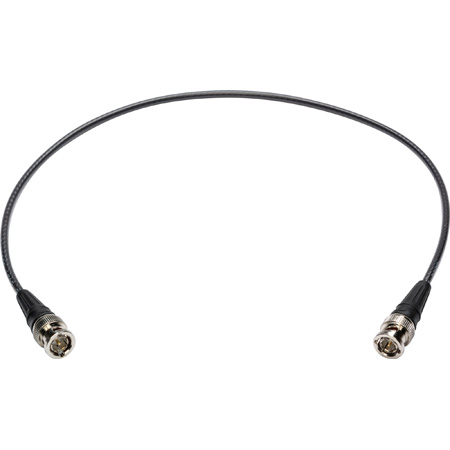

Laird 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Black

ITEM #: 4855R-B-B-BK-006 MFG #: 4855R-B-B-BK-006

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$32.95

Our Price:

$28.95

Availability: In Stock
iAvailability Description Popup


    4855R-B-B-BK-006 - Overview

    Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 117 feet (3G-SDI up to 310 Feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition Mini-RG59 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855 Series is the 12G-SDI equivalent of Belden's famous 1855 cable. It features a silver plated copper center conductor and a low profile diameter of less than 1/8" making it the ideal choice for patch bays and OB trucks. Custom lengths are always available.

    12G-SDI Maximum Distance
    Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

    • Features:

      • Designed for UHD and 4K Video Transport 12 GHz, 4K UHD Precision 75-Ohm Video Cable
      • Single Link BNC Simplifies Installations
      • Flexible Cable Suitable for Studio or Field Applications
      • Optimized Transmission Distance for UHDTV
      • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
      • Quick/Disconnect with BNC Connectors
      • Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards

    • Specifications:

      • Belden 12G SDI Mini-RG59 Coax Cable with PVC Jacket
      • Belden Certified Max Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
      • Laird Certified Max Transmission Distance: 117 Feet for 12G/4K
      • 12G SDI Optimized Amphenol BNC Connectors Compatible with 12GSDI single link format devices
      • Nominal Impedance: 75Ω
      • Conductor: Silver Plated Copper
      • Insulation: Gas Injected Foam HDPE
      • Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
      • Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
      • Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft)
      • Nominal Inductance: .107 ΜH/ft
      • Nominal Capacitance Conductor to Shield: 16.3 pF/ft

        ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

    • Warranty:

      • 1 Year
