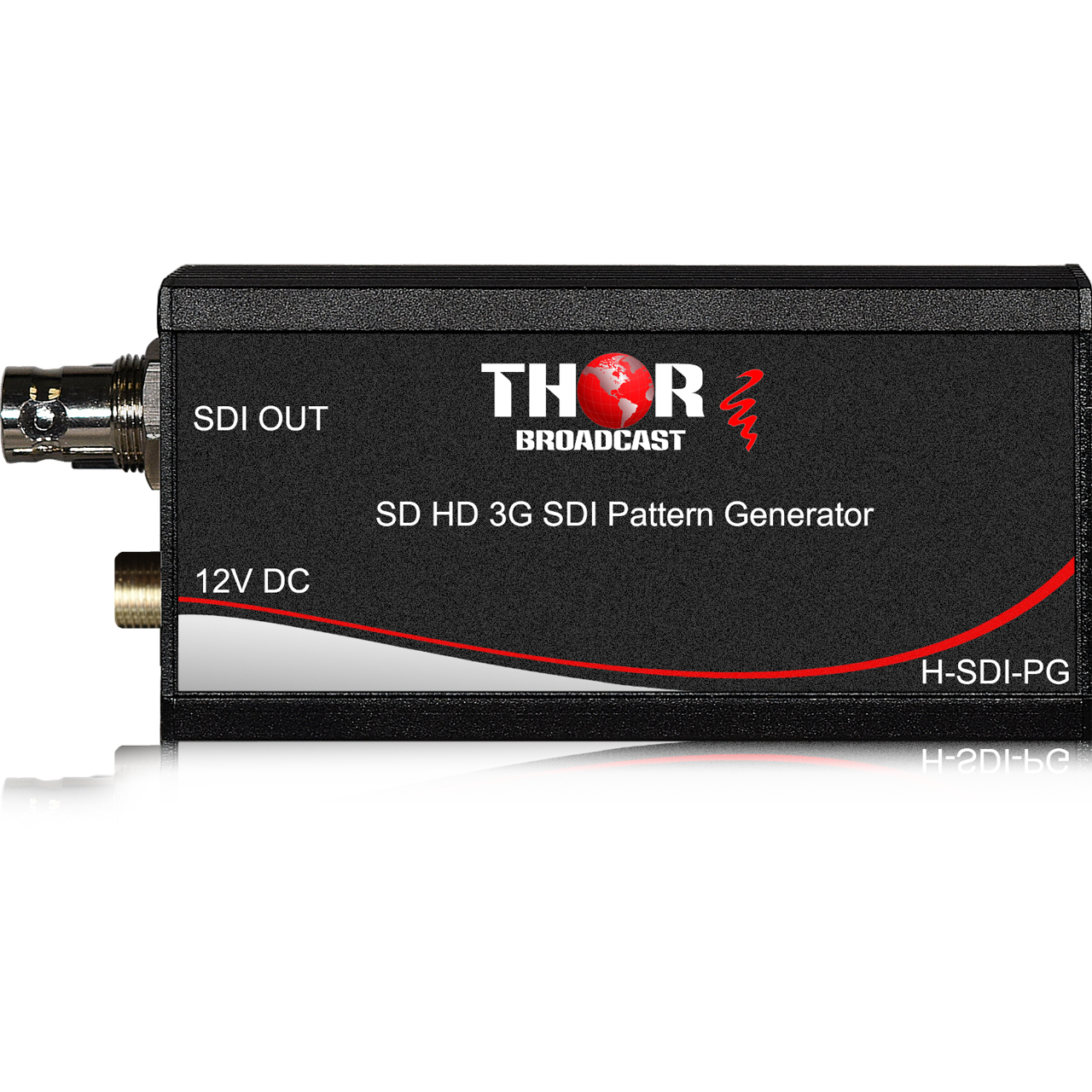

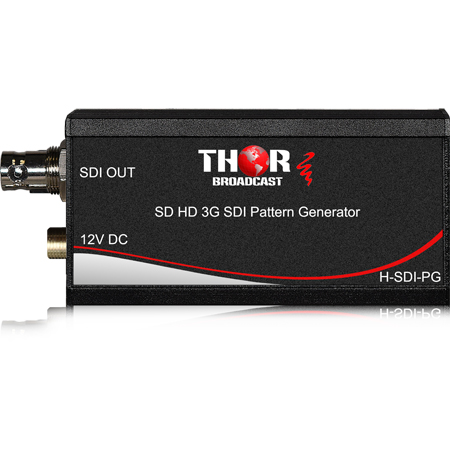

Thor F-SDI-PG Portable SD/HD/3G-SDI Pattern Generator

H-SDI-PG - Overview

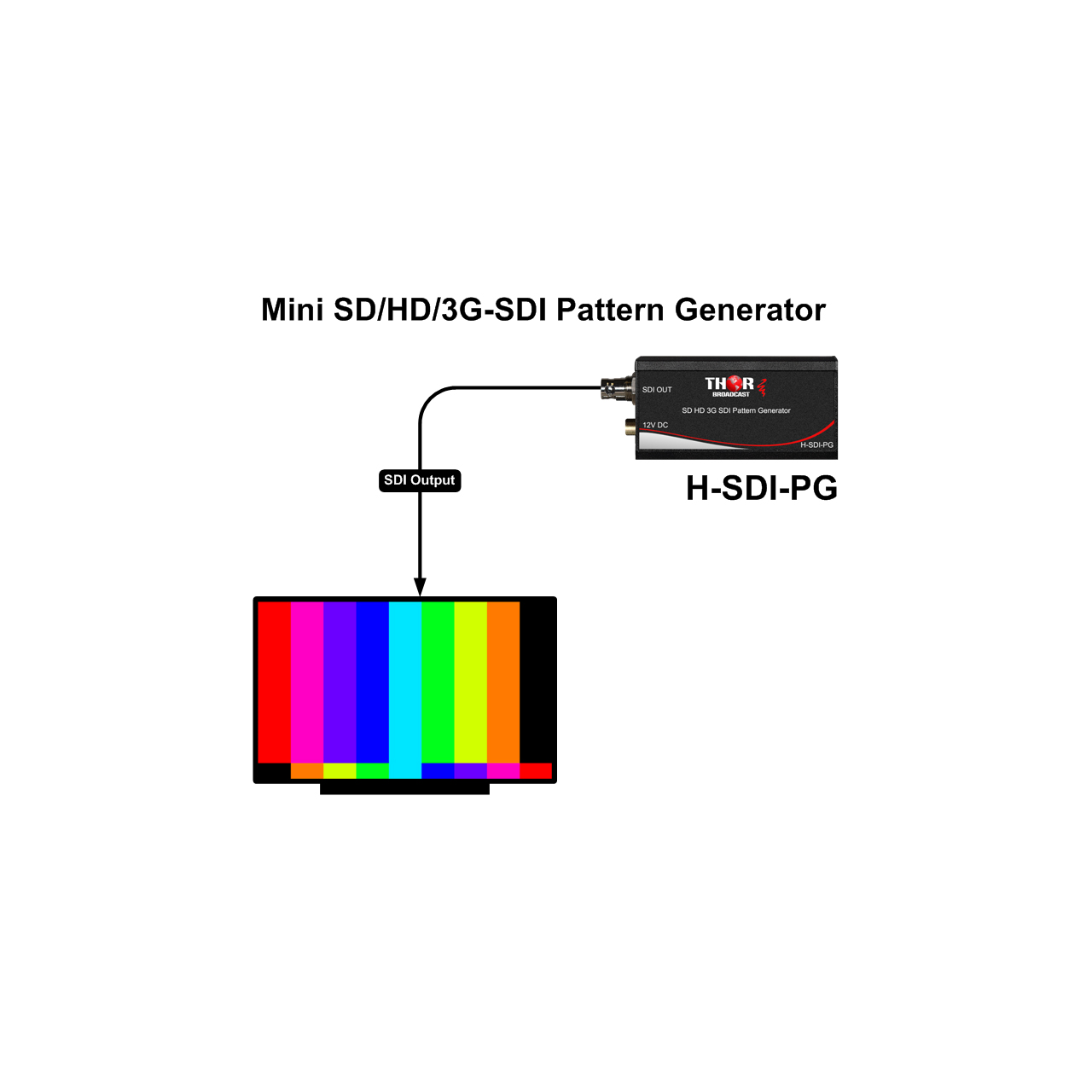

• Features:

  • Supports 2970Mb/s, 1485Mb/s and 270Mb/s color bar pattern with moving circle and embedded 1 KHz audio.
  • Compliant with SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 2970Mb/s, 1485Mb/s and 270Mb/s
  • Supports NTSC and PAL, which can be switched by button on the front panel
  • Supports the most popular SDI format, which can be switched by button on the front panel
  • Supports [email protected]/29.97, [email protected], [email protected], [email protected] format of NTSC
  • Supports 1080P@60/30, 1080I@60, 720P@60, 625I@50 format of PAL
  • Supports embedded 8 channel audio signal of 1 KHz sine wave

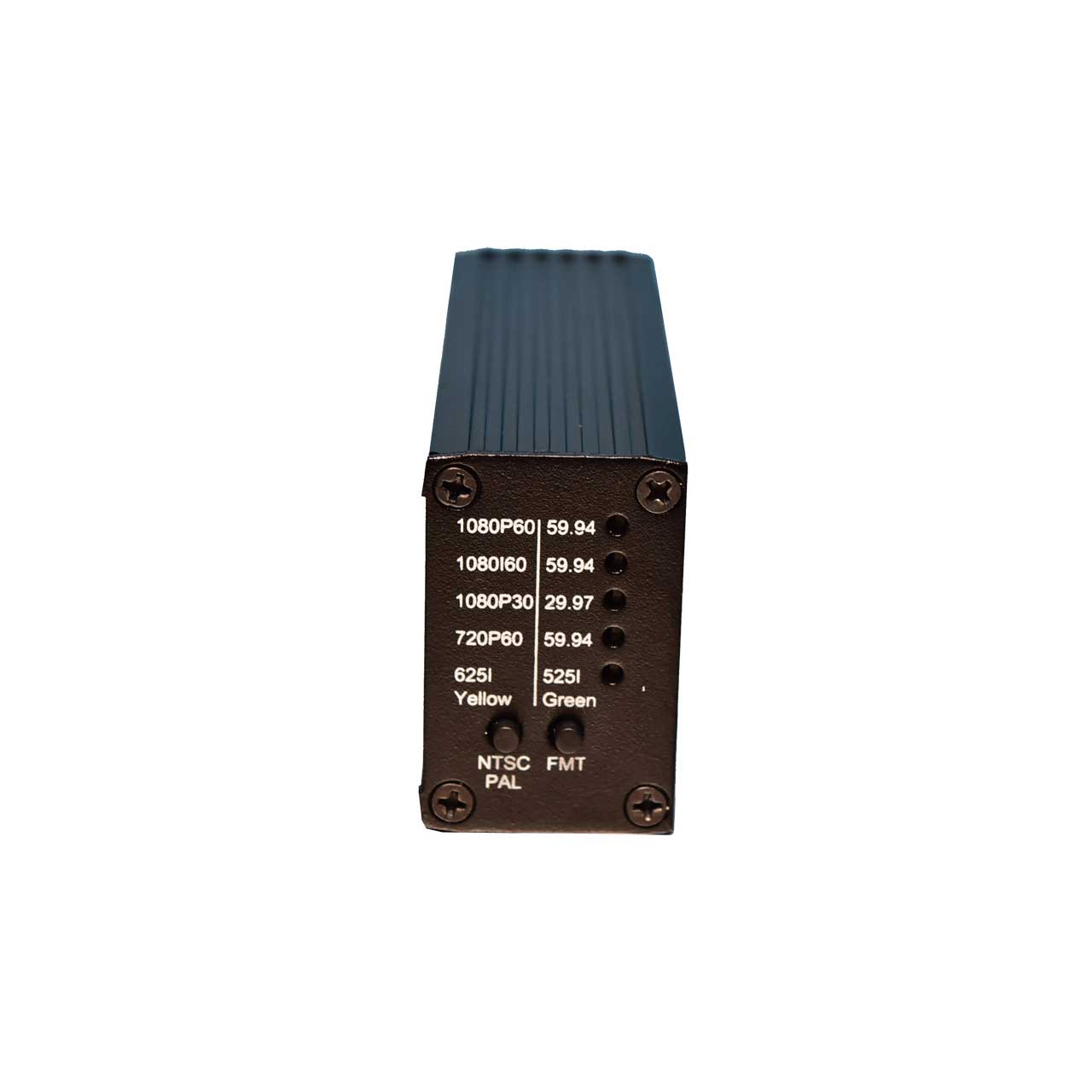

  • Supports NTSC/PAL and SDI format indicator led on the front panel
  • 12V DC power supply, consumption: 1.5W±10%
  • Dimensions: 93.2mmx46.2mmx29.6mm


• Specifications:

  • Connector: BNC
  • Bit rate: 2970Mb/s, 1485Mb/s and 270Mb/s
  • Impedance: 75Ω
  • Return loss: >15dB
  • Output level: 800mVp-p±10%
  • Rise and fall time 3G-SDI: ≤135ps
  • Rise and fall time HD-SDI: ≤270ps
  • Rise and fall time SD-SDI: ≤1.50ns
  • SD-SDI Alignment jitter (1KHz): ≤0.2UI
  • SD-SDI Timing jitter (10Hz): ≤0.2UI
  • HD-SDI Alignment jitter (100KHz): ≤0.2UI
  • HD-SDI Timing jitter (10Hz): ≤1.0UI
  • 3G-SDI Alignment jitter (100KHz): ≤0.3UI
  • 3G-SDI Timing jitter (10Hz): ≤2.0UI
  • Standard: Compliant with SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI and SMPTE-259M SD-SDI
  • Wave: 1 KHz sine wave
  • Quantization grade: 24 bits
  • Sample frequency: 48KHz
  • Dimension: 3.67 x 1.81 x 1.16" (93.2 x 46.2 x 29.6mm)
