Delvcam DELV-SDI-7 Advanced Function 7-Inch 3G-SDI On-Camera Field LED Monitor with HDMI

ITEM #: DELV-SDI-7 MFG #: DELV-SDI-7

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$429.95

Our Price:

$399.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DELV-SDI-7 - Overview

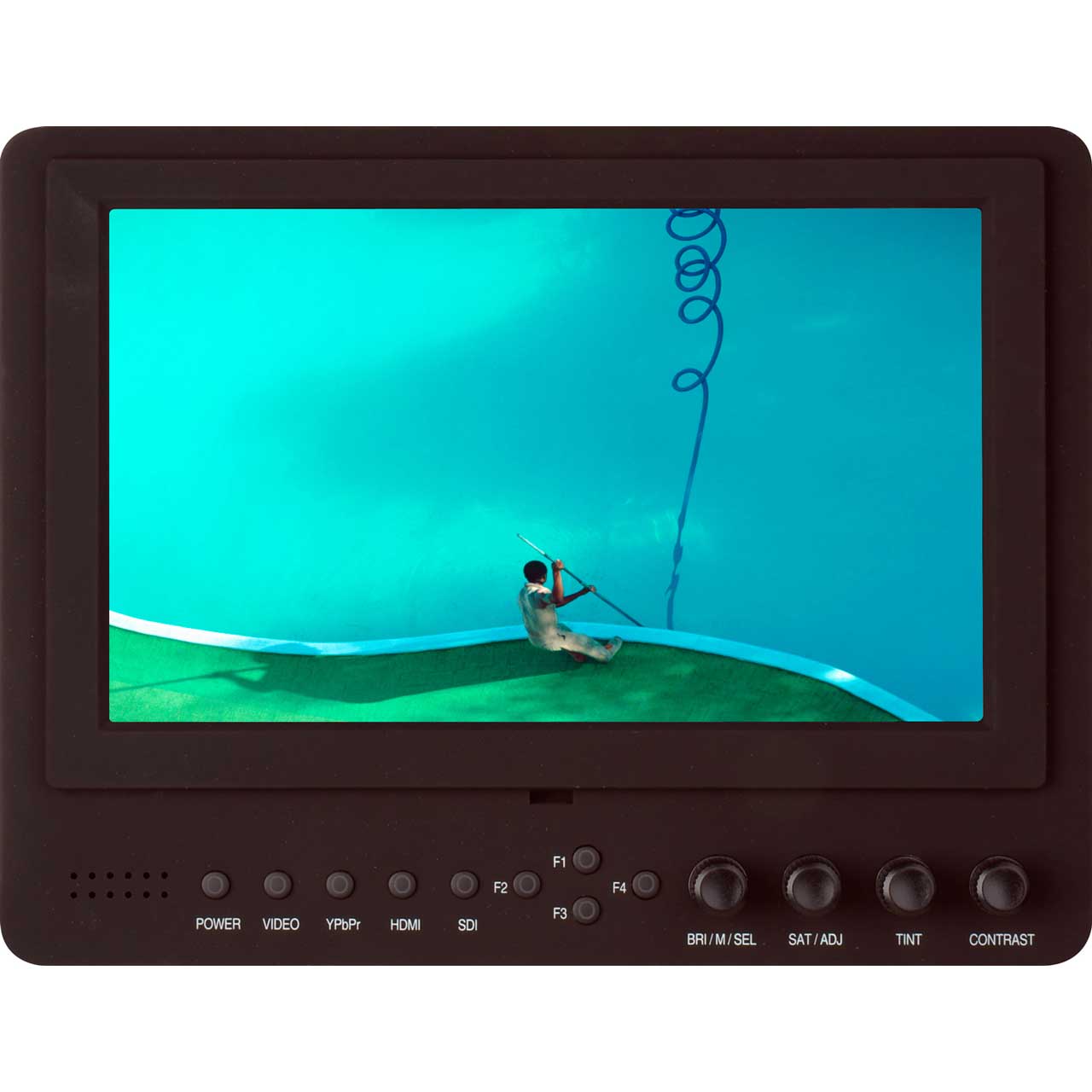

7-Inch 3G-SDI On-Camera Field LED Monitor For Pro-Preview!

Designed for the Pro Video Market

Cameras, lenses, tripods, and lights are all expensive but your field monitor doesn't have to be. Delvcam is famous for manufacturing durable and high quality hardware at a fraction of the cost you would expect to pay for those features. The DELV-SDI-7 creates an even more compelling reason to buy a Delvcam superior resolution, contrast and a generous offering of extras!

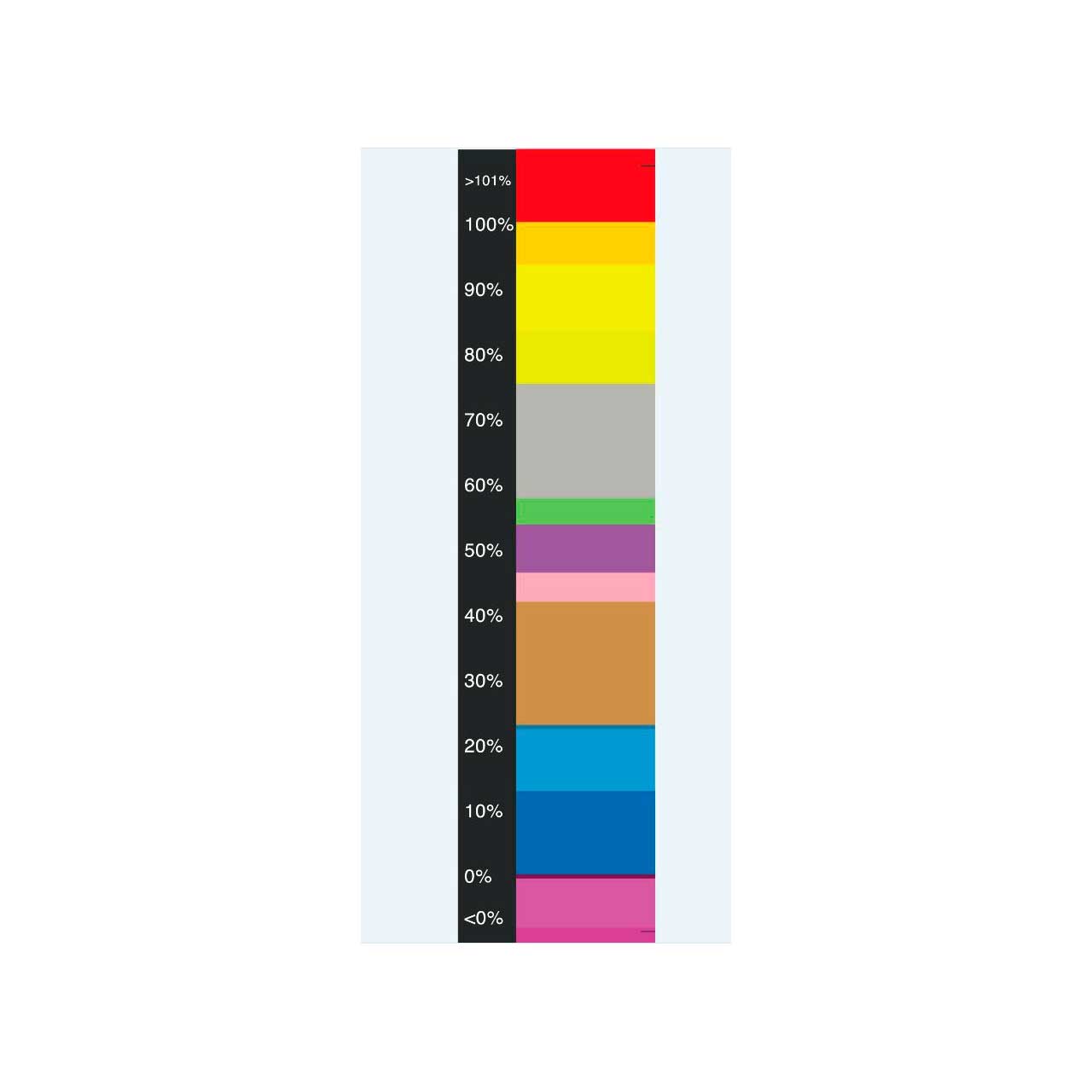

The Delvcam DELV-SDI-7 ushers in a new era of super-bright, high-resolution monitoring at a super low price. This 7 inch 16:9 LED field monitor is fully multiformat with 3G-SDI, HDMI, YPbPr and component video inputs. It also offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.

The DELV-SDI-7 includes an HDMI-output feature which allows you to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected. No matter which camera or AV equipment our customers use with the DELV-SDI-7, there is a video input to suit all applications- 3G-SDI, HDMI, and component and composite through BNC connectors.

The monitor can easily be mounted on a tripod or camera rig with quarter inch standard threads - one on the bottom and two on both sides.

Please Note: This product does not support HDCP encrypted signals.

  • Features:

    • Wide viewing angles
    • High contrast: 800:1
    • Flexible frame rates :24PFS,25FPS,30FPS ,50FPS and 60FPS
    • 5D-II camera mode
    • 3G-SDI, YPbPr & HDMI input/ouput

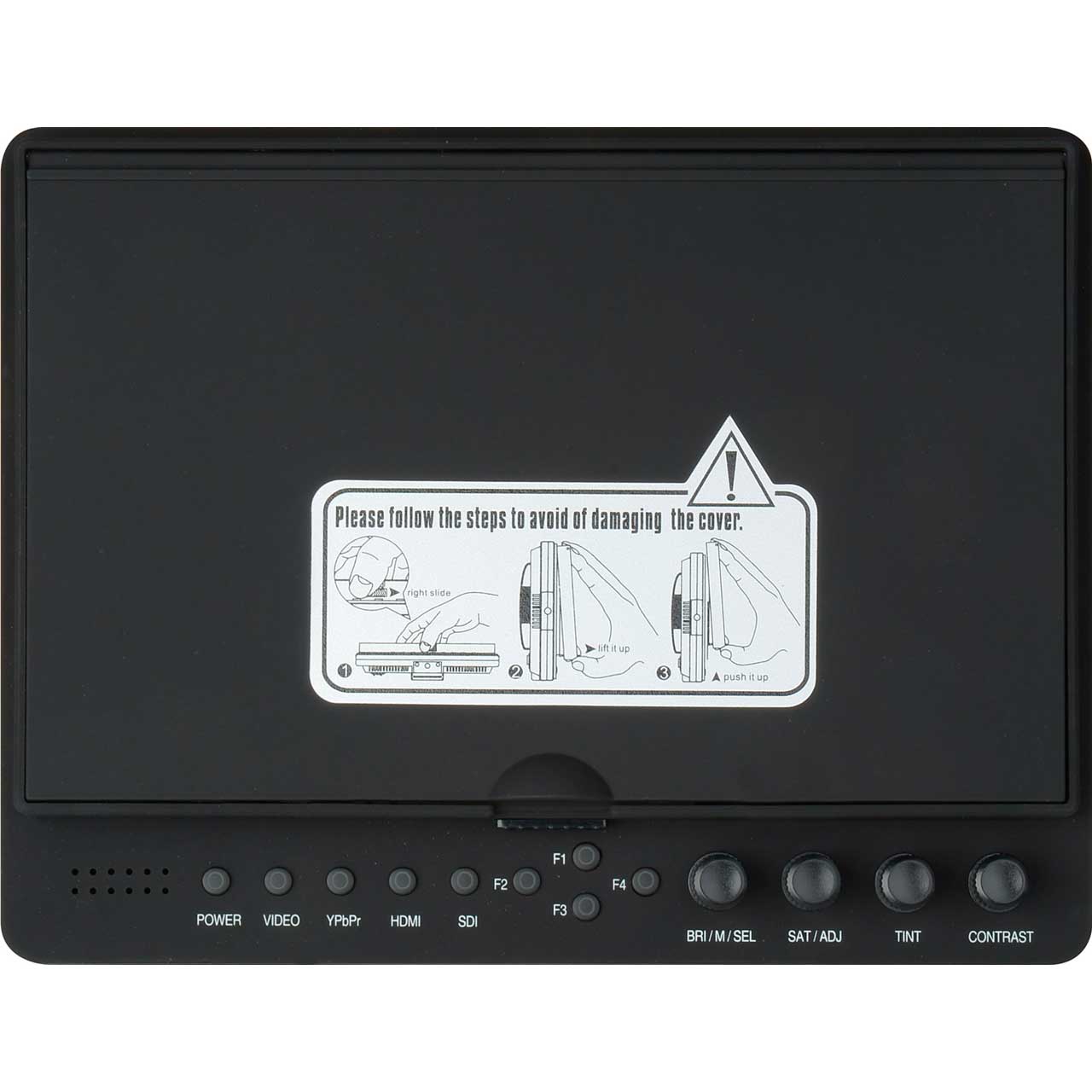

    • Flexible folding sunshade
    • Wide voltage: DC 7-24V

  • Specifications:

    • Display:
    • Panel 7" LED backlit
    • Physical Resolution: 1024x600, support up to 1920x1080
    • Aspect Ratio: 16:9
    • Brightness: 250cd/m2
    • Contrast: 800:1
    • Viewing Angle 160°/150°(H/V)
    • Compatibility: SDI A, SDI B limited to1080i60

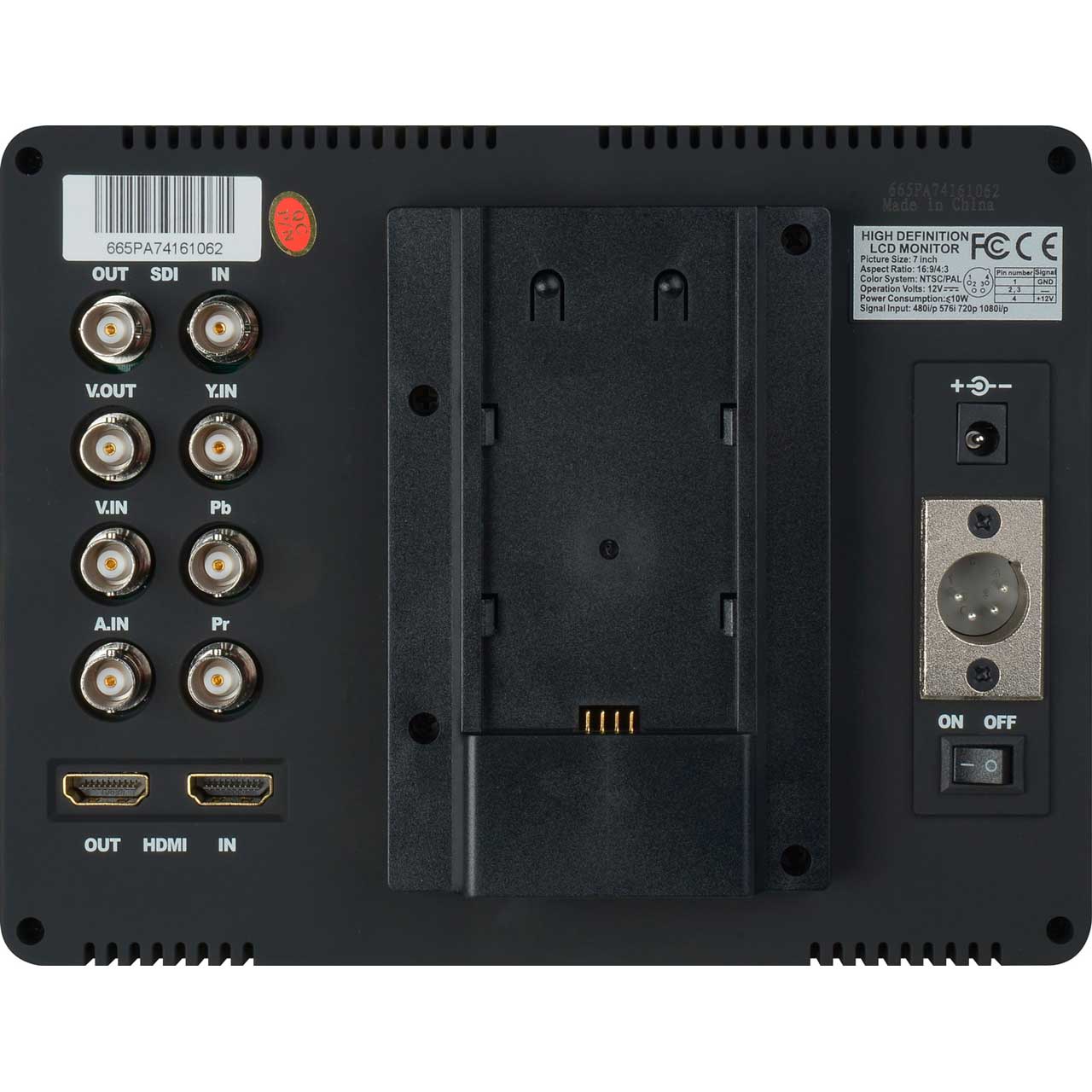

      Input:
    • 3G-SDI 1x; HDMI 1x; YPbPr: 1x (BNC); Video: 1x; Audio 1x

      Output:
    • 3G-SDI 1x; HDMI 1x; Composite Video 1x
    • YPbPr Supported Formats: 480i/59.94Hz; 480p/59.94Hz; 576i/50Hz; 576p/50Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz
    • HDMI Supported Formats: 480i/59.94Hz; 480p/59.94Hz; 576i/50Hz; 576p/50Hz; 720p/29.97Hz; 720p/30Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1035i/59.95Hz; 1035i/60Hz; 1080p/23.98Hz; 1080p/24Hz; 1080p/25Hz; 1080p/29.97Hz; 1080p/30Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz
    • HD-SDI Supported Formats: 480i/59.94Hz; 576i/50Hz; 720p/29.97Hz; 720p/30Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1080p/23.98Hz; 1080p/24Hz; 1080p/25Hz; 1080p/29.97Hz; 1080p/30Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz

    • Power Current: 800mA
    • Input Voltage: DC 7-24V (XLR)
    • Battery Plate Compatibility: LPE6, F970, DU21, QM91D: V-mount / Anton Bauer mount
    • Power Consumption: 10W
    • Operating Temperature: -20C - 60C
    • Storage Temperature: -30C - 70C
    • Dimension(LWD): 7.66 x 5.91 x 1.52 inch
    • Weight 1.06 lbs/1.41 lbs (with cover)

  • Item Includes:

    • Flexible Folding Sunshade Cover
    • Battery Plate QM91D
    • Battery Plate F-970
    • HDMI Type A-C
    • DC Adapter
    • Shoe Mount Adapter

  • Warranty:

    • 1 Year

  • GTIN:

    0854554007394
