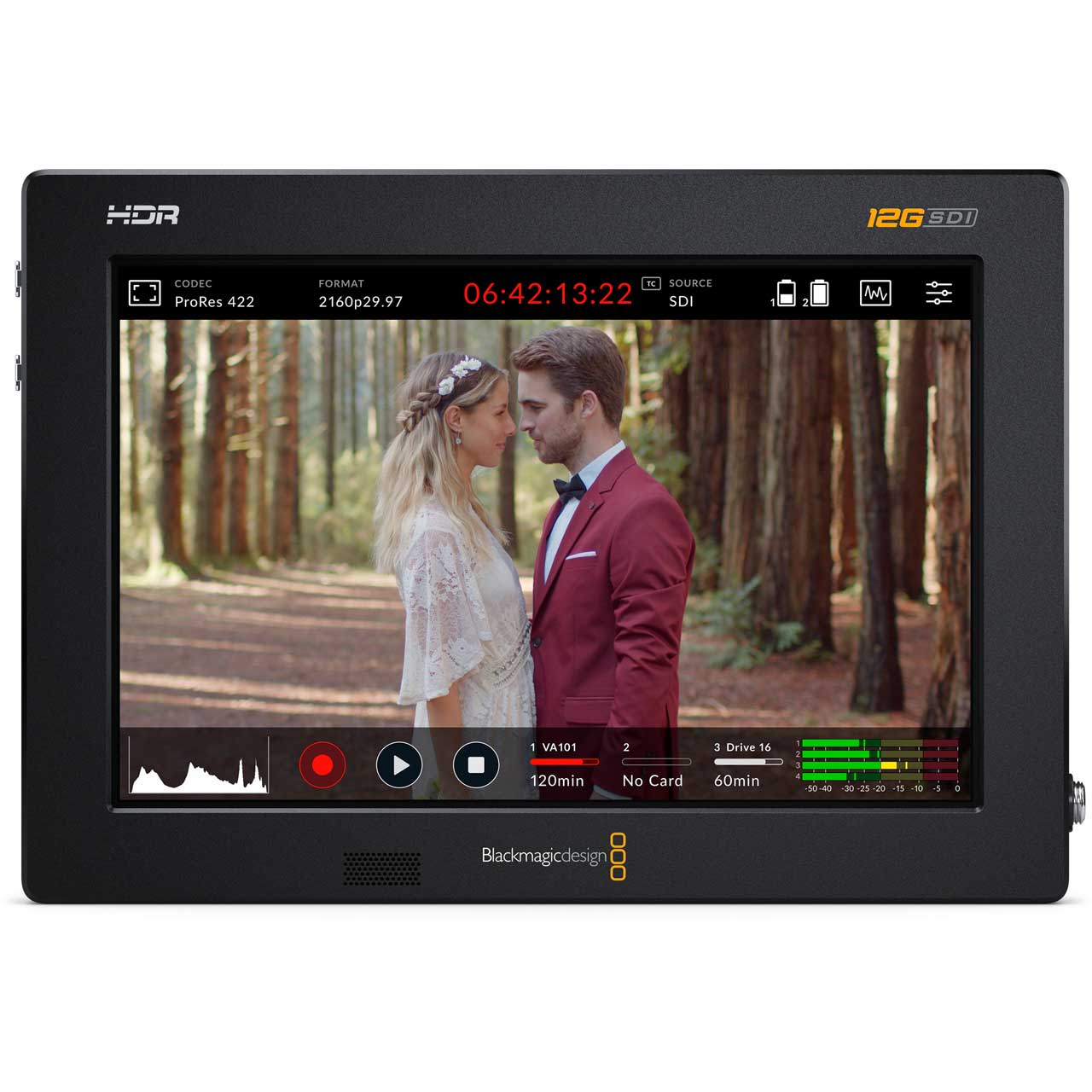

Blackmagic Design HYPERD/AVIDA12/7HDR Video Assist 7-Inch 12G HDR Recording Monitor

HYPERD/AVIDA12/7HDR - Overview

• Features:

  • Perfect for Digital Cinema, Live Recording and Monitoring!
  • Modern Design with 12G-SDI and Bright HDR Screens!
  • Upgrade to Better Recording for Digital Cameras
  • Large HDR Monitor with Easy Touch Controls
  • Dual Media Recorders for Uninterrupted Recording
  • Record Direct to External USB-C Media Disks
  • Advanced 12G-SDI and HDMI 2.0 Inputs and Outputs
  • HDR Support with Bright Wide Gamut LCD
  • Built In Scopes Ensure Compliance to Standards
  • Latest Multi Rate 12G-SDI for SD, HD and Ultra HD
  • Load Custom 3D LUTs to Recreate Film Looks!
  • Post Production Friendly File Formats!
  • The quality of RAW and the speed of video!
  • Professional Multi Channel SDI and Analog Audio
  • Localized for 11 Popular Languages
  • Works with the World's Most Popular Video Software


• Specifications:

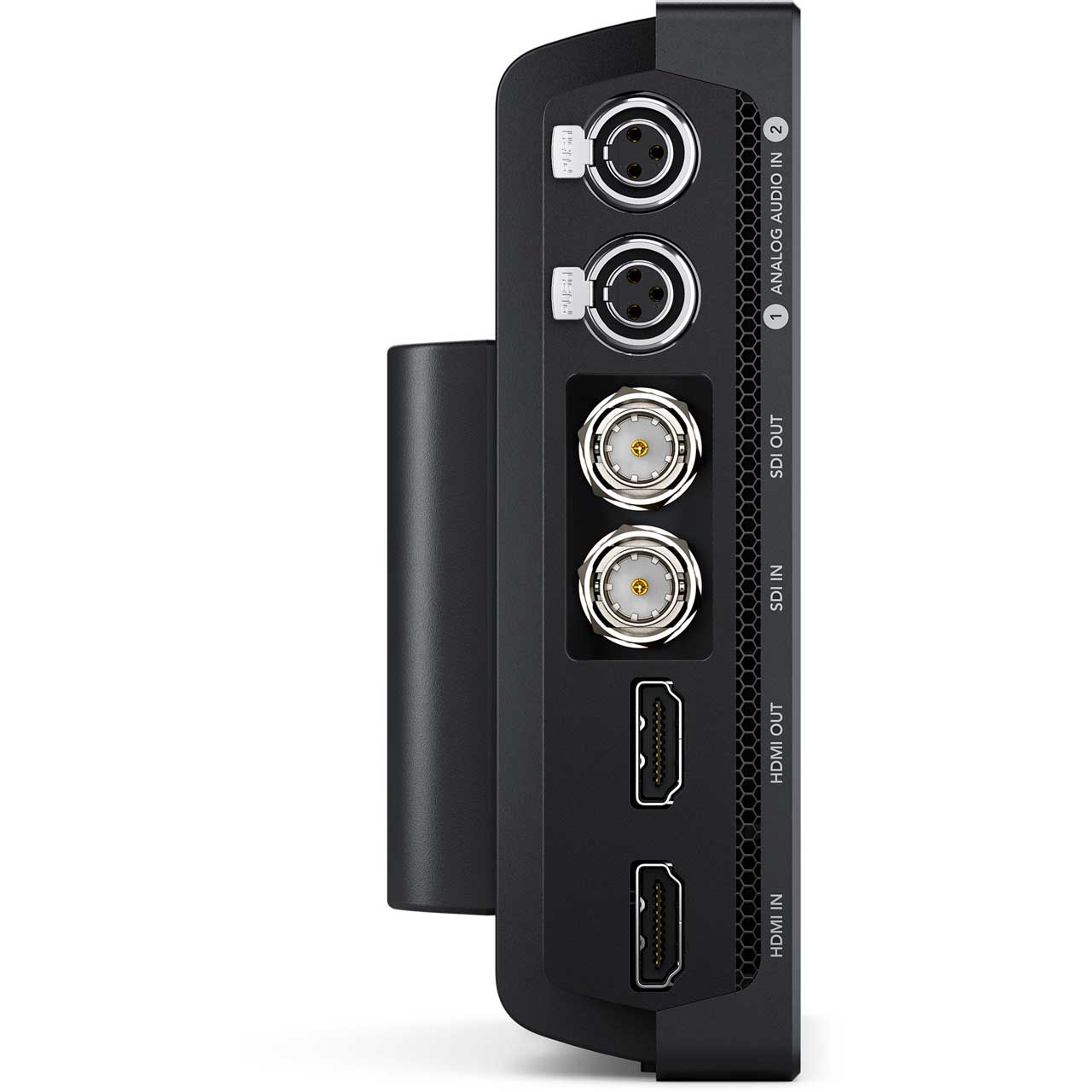

  • Connections
  • SDI Video Inputs: 1
  • SDI Video Outputs: 1
  • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
  • HDMI 2.0a Video Inputs: 1
  • HDMI 2.0a Video Outputs: 1
  • Analog Audio Inputs: 2x balanced mini XLR with phantom power
  • Analog Audio Outputs: 1x 3.5 mm headphone jack.
  • Built in Speaker: Mono
  • Screen Dimensions: 7 inch 1920 x 1200.
  • Screen Brightness: 2500nits
  • Screen Color: P3 wide color gamu
  • SDI Audio Inputs: 16 channels embedded via 12G-SDI
  • SDI Audio Outputs: 16 channels embedded via 12G-SDI
  • HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
  • HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a
  • Remote Control: 1x 2.5mm LANC for Record Start and Stop.

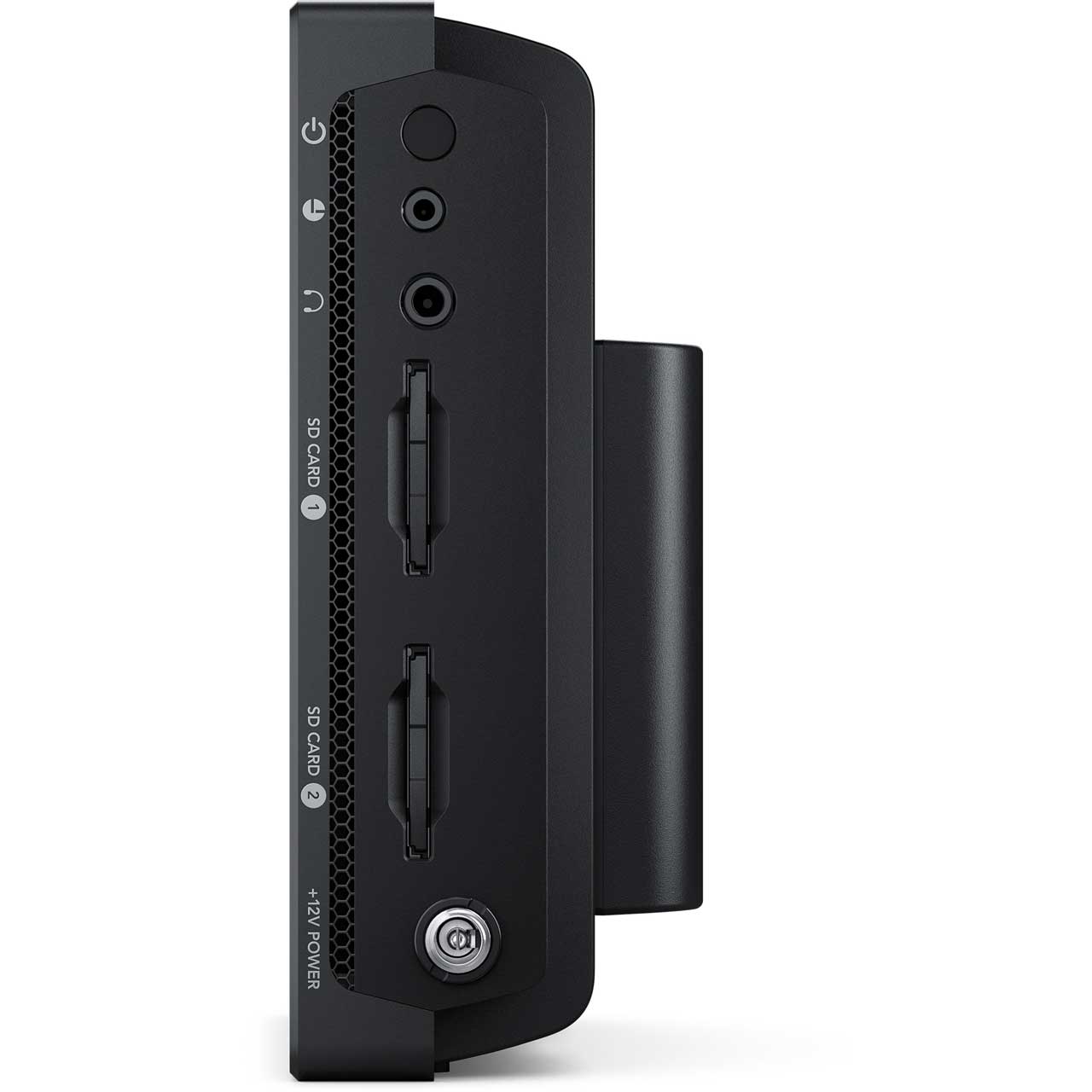

  • SD Interface: Dual UHS-II SD slots
  • Storage Type: Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
  • Computer Interface: 1x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control.

    SDI Video Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30; 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI; 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
  • SDI Metadata Support: HD RP188
  • Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • Video Sampling: 4:2:2 YUV
  • Color Precision: 10-bit
  • Color Space: REC 601, REC 709, REC 2020
  • HDR Support: HDR10, Hybrid Log Gamma
  • Multiple Rate support: SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s

    HDMI Video Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
  • HDMI Color Precision: 10-bit
  • HDR Support: HDR10, Hybrid Log Gamma
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

    Media
  • 2x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
  • Media Type: SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.

    Supported Codecs
  • ProRes 422 HQ, ProRes 422, ProRes 422 LT, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF.

    Control
  • Recorder Control: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
  • External Control: LANC, SDI start/stop, timecode run.

    Software
  • Software Included: Blackmagic Video Assist Operating System
  • Scopes: Waveform, RGB Parade, Vector, Histogram.
  • Viewing Modes: Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.
  • Operating System: Mac 10.13 High Sierra, Mac 10.14 Mojave or later, Windows 8.1 or Windows 10.


• Item Includes:

  • 1x Blackmagic Video Assist 7" 12G HDR
  • 1x Universal power supply with locking connector and international adapters


• Warranty:

  • 1 Year Warranty


• GTIN:

  9338716006438
