SmallHD ULTRA 7 7-inch 6G-SDI 4K Touchscreen Camera Monitor with 2300nits Brightness

Name: SmallHD ULTRA 7 7-inch 6G-SDI 4K Touchscreen Camera Monitor with 2300nits Brightness
Brand: SmallHD
SKU: SMHD-ULTRA-7
Price: 2999.00 USD
Availability: InStock

ITEM #: SMHD-ULTRA-7 MFG #: 16-0727

SmallHD

Our Price:

$2,999.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

16-0727 - Overview

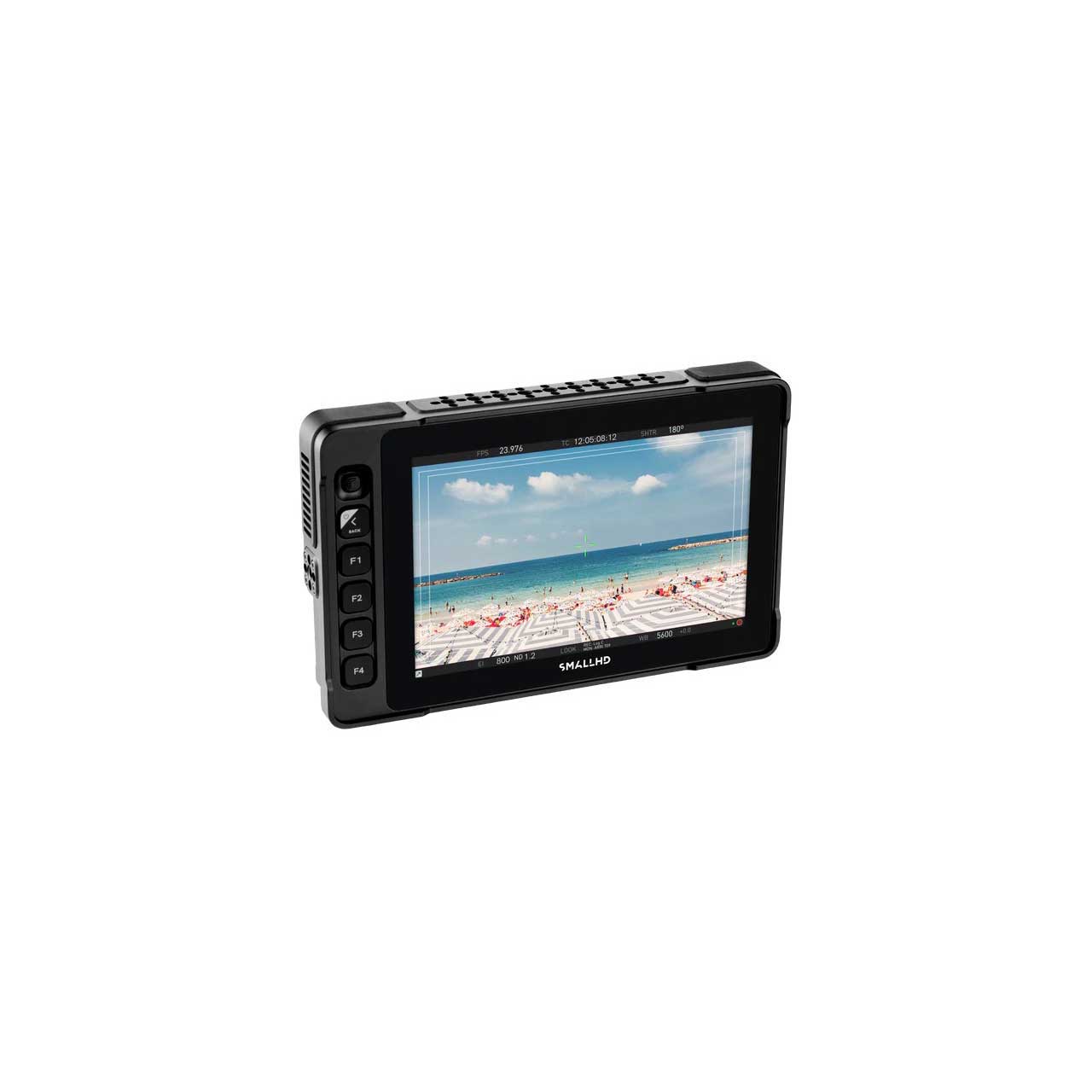

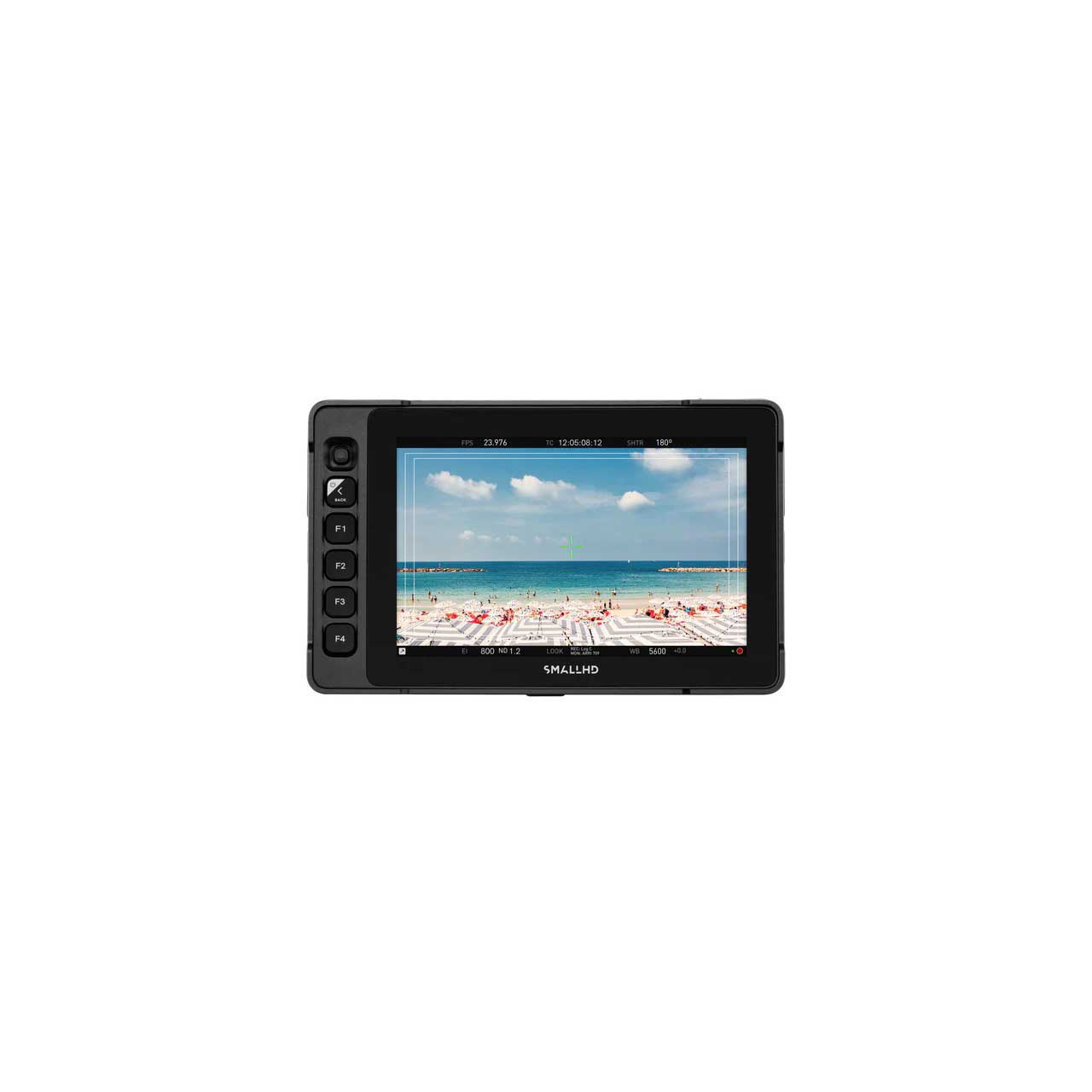

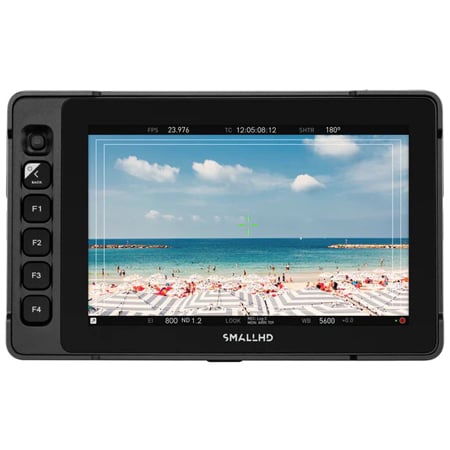

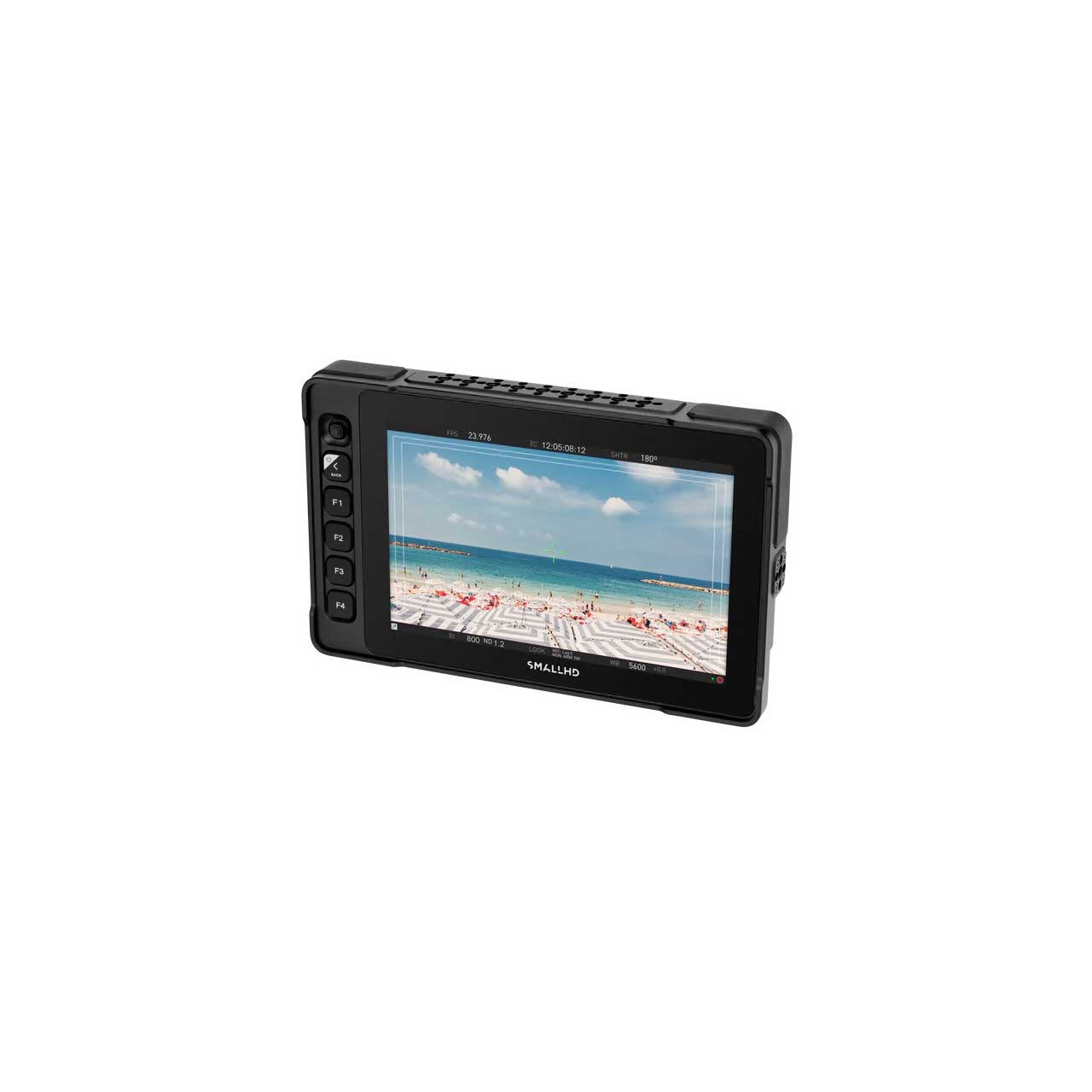

Powerful, bright, and durable, the SmallHD Ultra 7 camera monitor offers a stunning 2300nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerful enough to ingest a 4K signal with 6G-SDI.

Ultra 7 is SmallHD's first IP-certified monitor at IP53, which is defined as water-resistant in damp situations and protection against dust and dirt in extreme environments while operating in variable temperatures ranging from 0°C to 40°C. The chassis is strengthened with a new design aesthetic that includes raised edges protecting the front glass of the display and additional shock-absorbing bumpers that help with drops, tumbles, and impacts.

Ultra 7 is adaptable to all situations and conditions, including optional Gold or V-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).

Features:
- Ultra Bright (2300nits)
- Dust and water resistant with an IP53 rating
- 6G-SDI for modern 4K end-to-end workflows
- Camera Control compatible with all current SmallHD licenses
- Function Buttons for tactile control
Specifications:
- Display
- Max Brightness: 2300nits
- Contrast: 1000:1
- Gamut: 95% DCI-P3 Coverage / 98% REC 709
- Color Depth: 10-bit Processing (8-bit panel)
- Backlight Type: LED Edgelit

  EVF
- Resolution: 1920x1200

  Input Signal
- 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
- 6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
- HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
- SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
- HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

  Output Signal
- 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
- HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
- SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
- HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
- Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

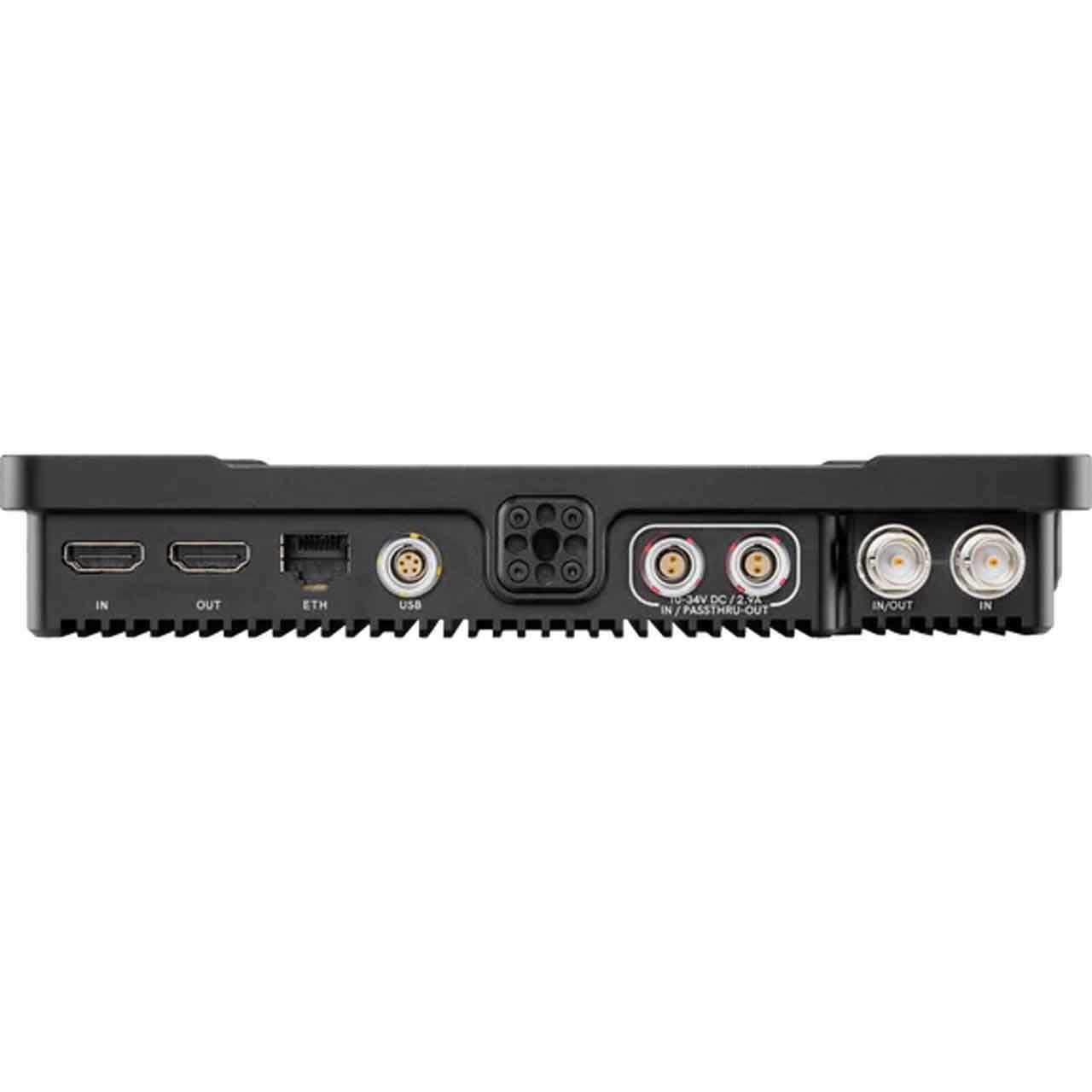

  Data I/O
- SDI: 1x BNC 6G input and 1x BNC 6G input/output (12G BNC compatible)
- HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
- Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
- Ethernet: RJ45

  Power
- Connector: 2-Pin Locking Connector
- Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
- Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
- Battery Types: V Mount, Gold Mount Micro Battery Plates
- Overload Protection: DC input: Reverse polarity

  Software
- Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
- Frame Guides: Preset Aspect Ratios & Customizable
- DSLR Scale: Canon 5DMkii & Canon 7D
- Custom Scale: Yes (Underscan Only)
- Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
- Image Rotate: Automatic or Manual Control
- Image Flip: Automatic or Manual Control
- Cross Conversion: Yes: HDMI > SDI & SDI > HDMI
- Focus Assist: User Adjustable Color Style and Intensity
- Peaking: User Adjustable Intensity
- False Color: Rainbow, Arri Style, Custom with up to 10 nodes
- Zebra: Dual - User Configurable
- Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
- Vectorscope: Yes
- RGB Parade: Fully User Customizable
Item Includes:
- 1x Ultra 7
- 1x D-Tap to 2-pin power cable 36"
