Horita CSG-50 Color Bar Sync Generator - Bars/Black/Sync/Audio Tone Generator

CSG-50 - Overview

• Features:

  • Generates color bars, blackburst, and composite sync signals, as well as a 15 Hz reference frame timing signal

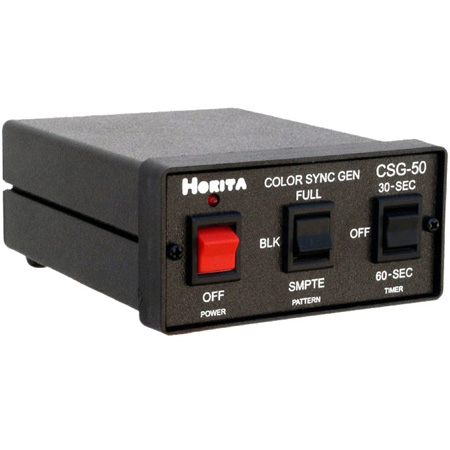

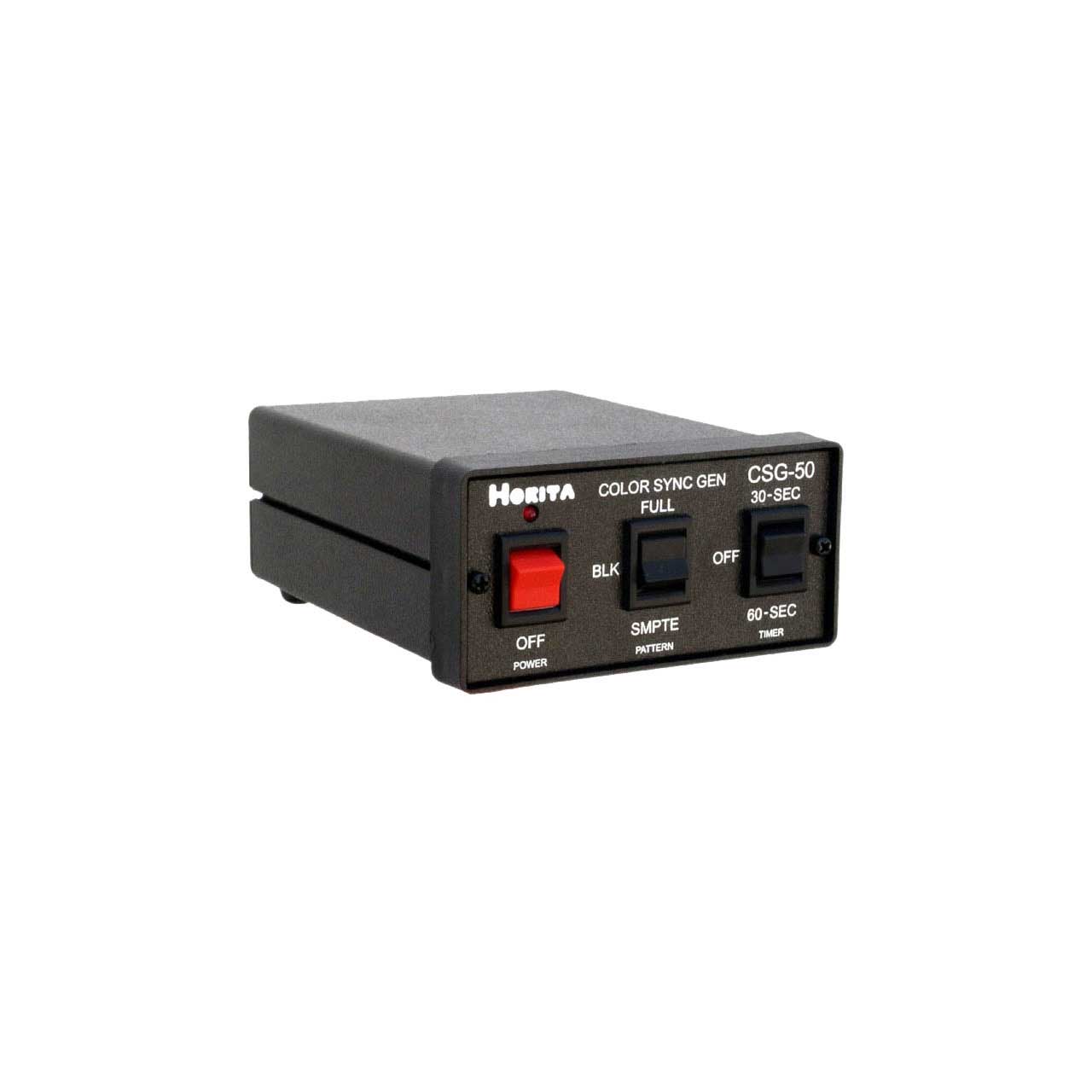

  • Front panel selection of full-field or SMPTE (with "pluge") color bar patterns or blackburst video output
  • Precision digitally synthesized video signals are fully RS-170A SC/H phased and always correct
  • No SC/H adjustment ever required
  • Built-in timer can automatically switch video output from color bars to black and audio tone to silence after 30 or 60 seconds
  • Easy and convenient for producing tape leaders and striping tapes with color bars and tone followed by black and silence
  • Video signals generated by the CSG-50 are in accordance with the industry standard EIA RS-170A video timing specification
  • SMPTE color bars meet SMPTE specifications EG-1-1990. Full-field color bars meet EIA RS-189A specifications for video levels and color bars
  • Includes crystal-controlled, 1KHz, 0dB audio tone output

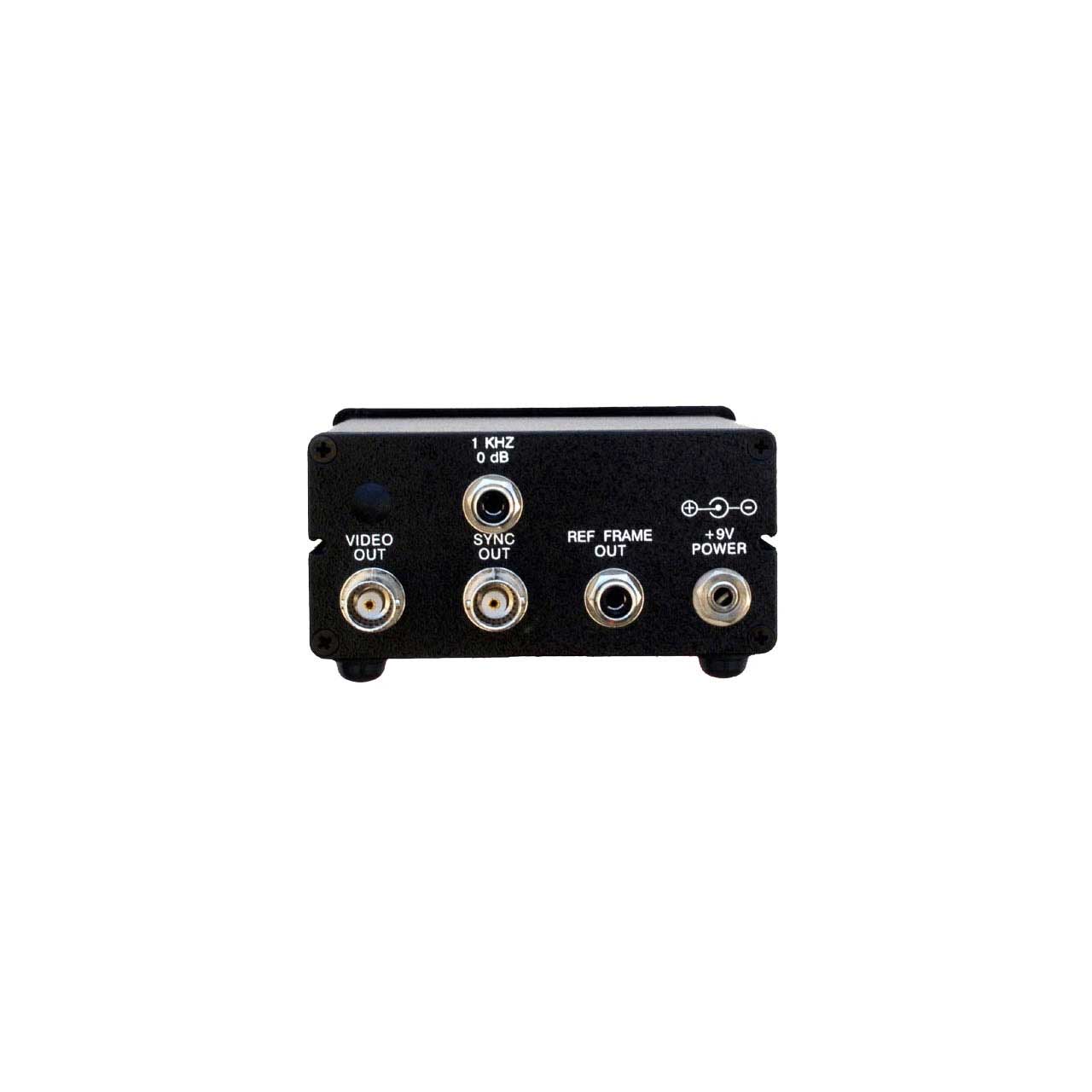

  • Outputs: video, composite sync, 15 Hz ref frame, 1KHz, 0dB audio tone (unbalanced)
  • Also available in 24-frame format

    Plus Multiple Black/SC Outputs
  • All features of CSG-50 PLUS 5 additional outputs which may be configured for all blackburst or in various combinations with sync and subcarrier Up to 7 black/subcarrier outputs provided on Rackmount and Short Rack models
