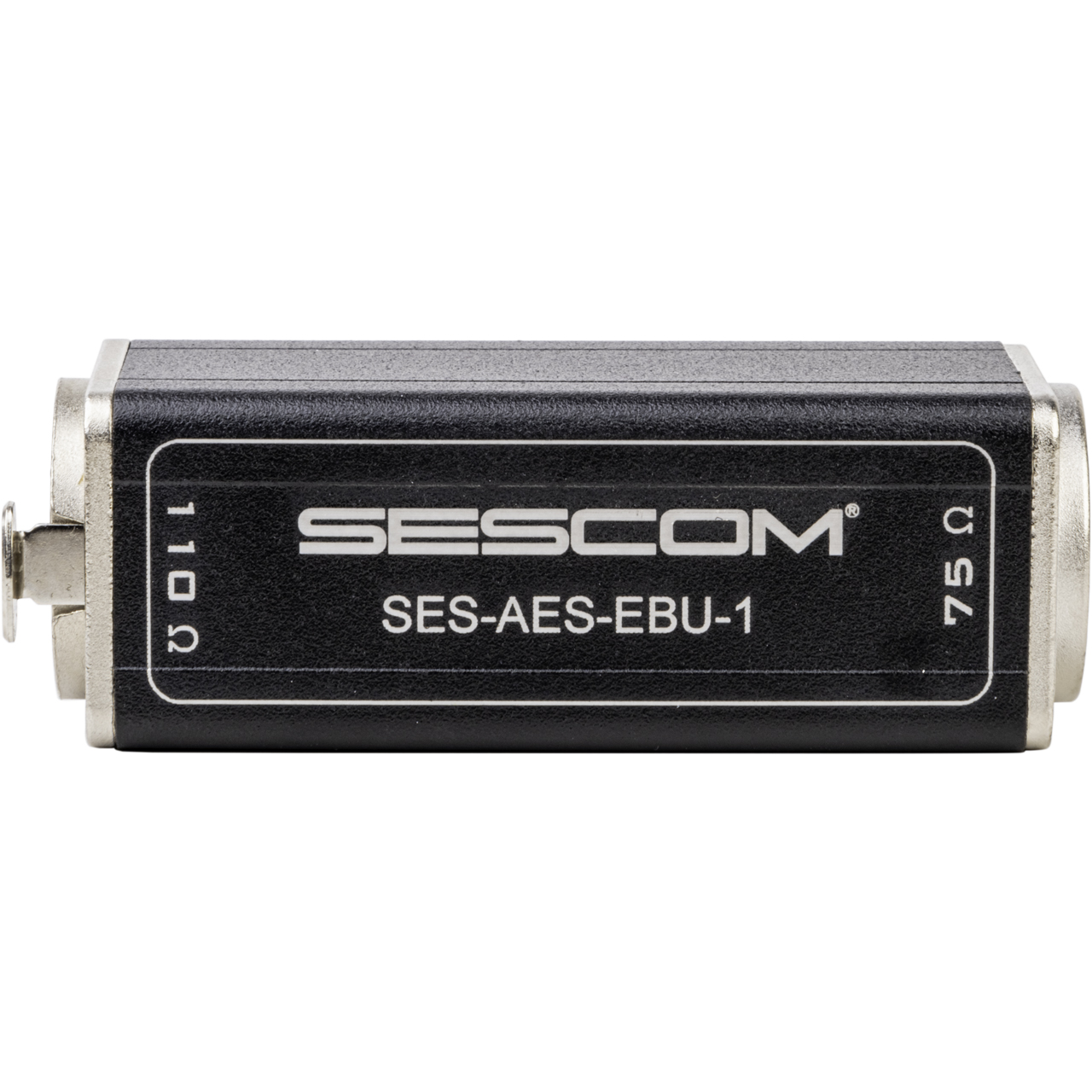

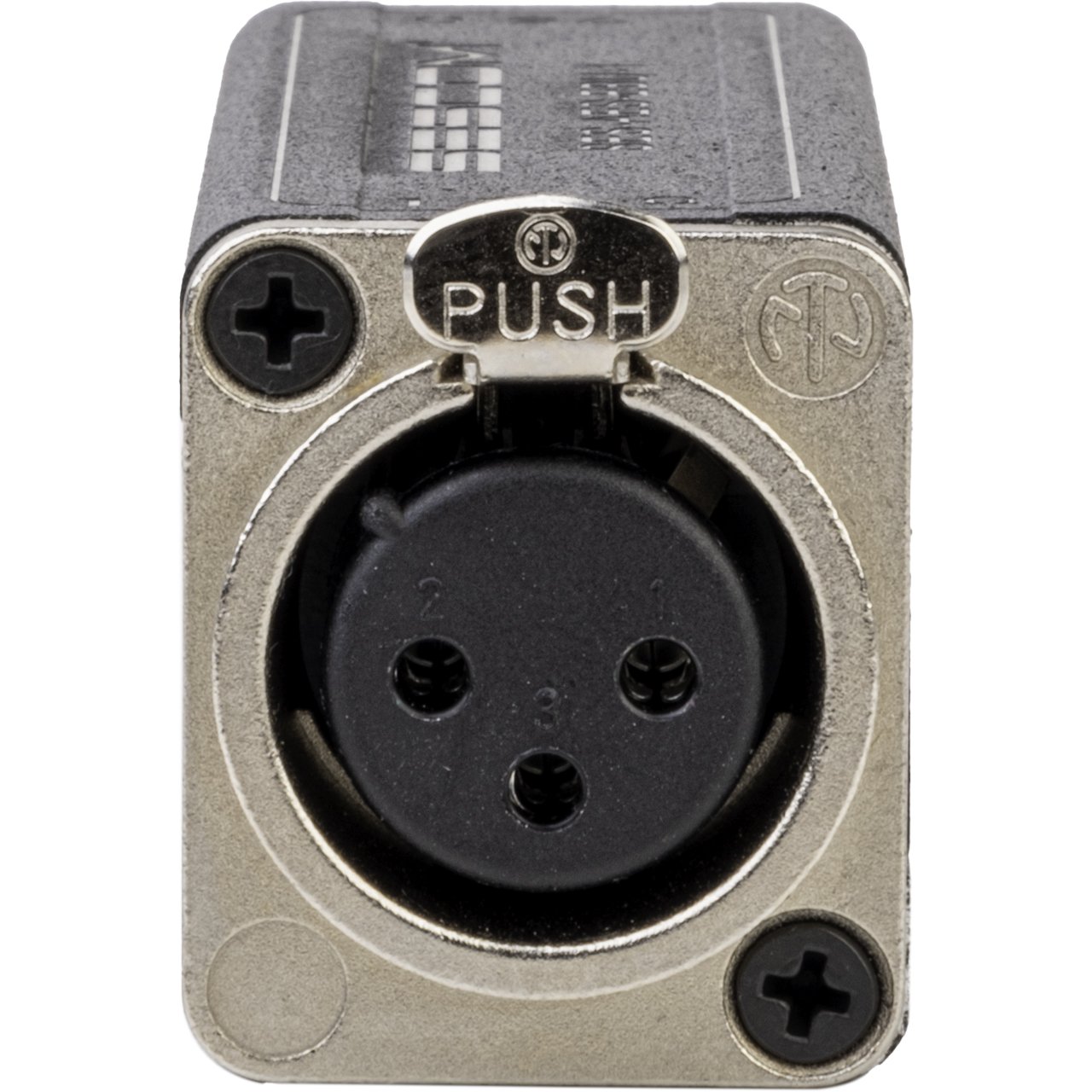

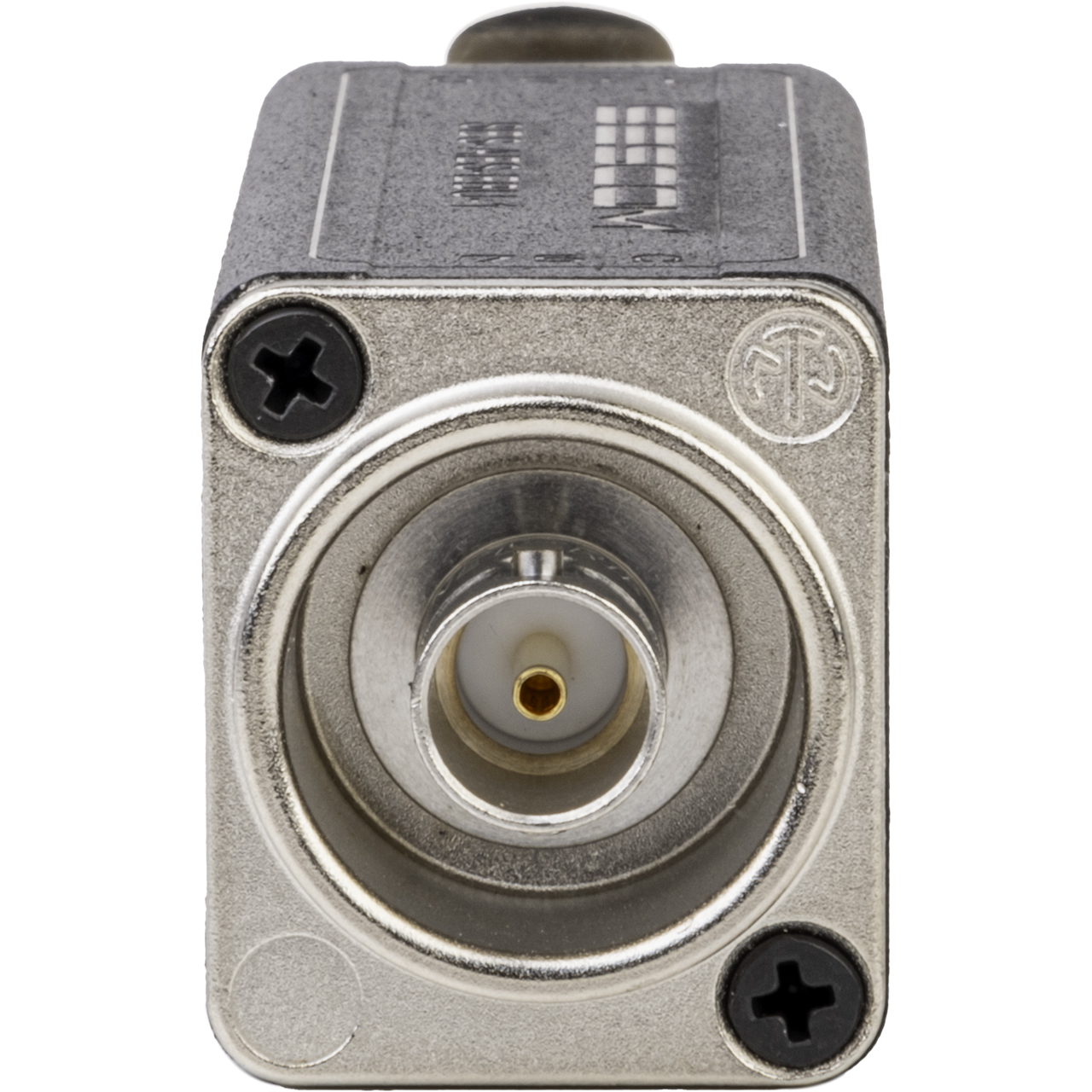

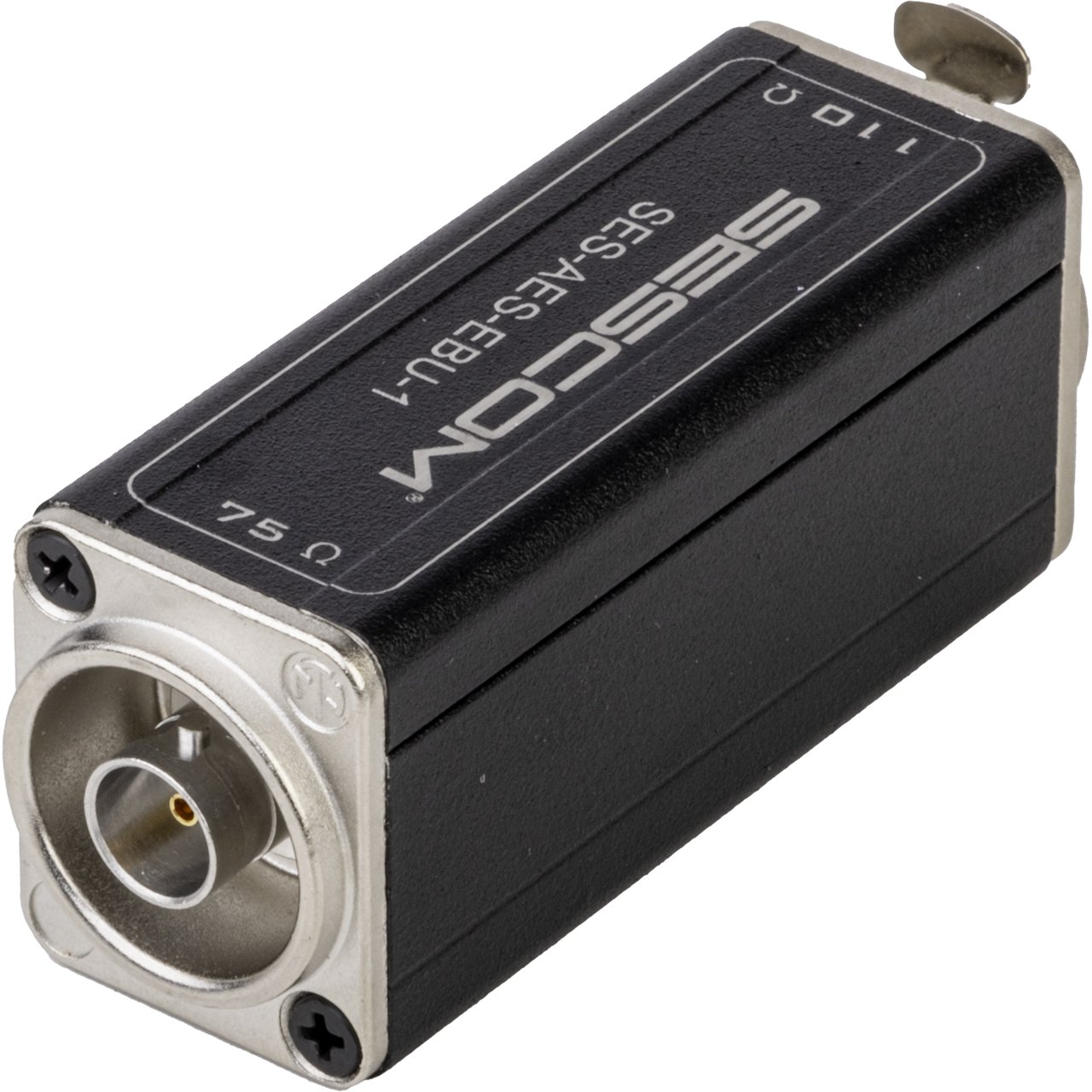

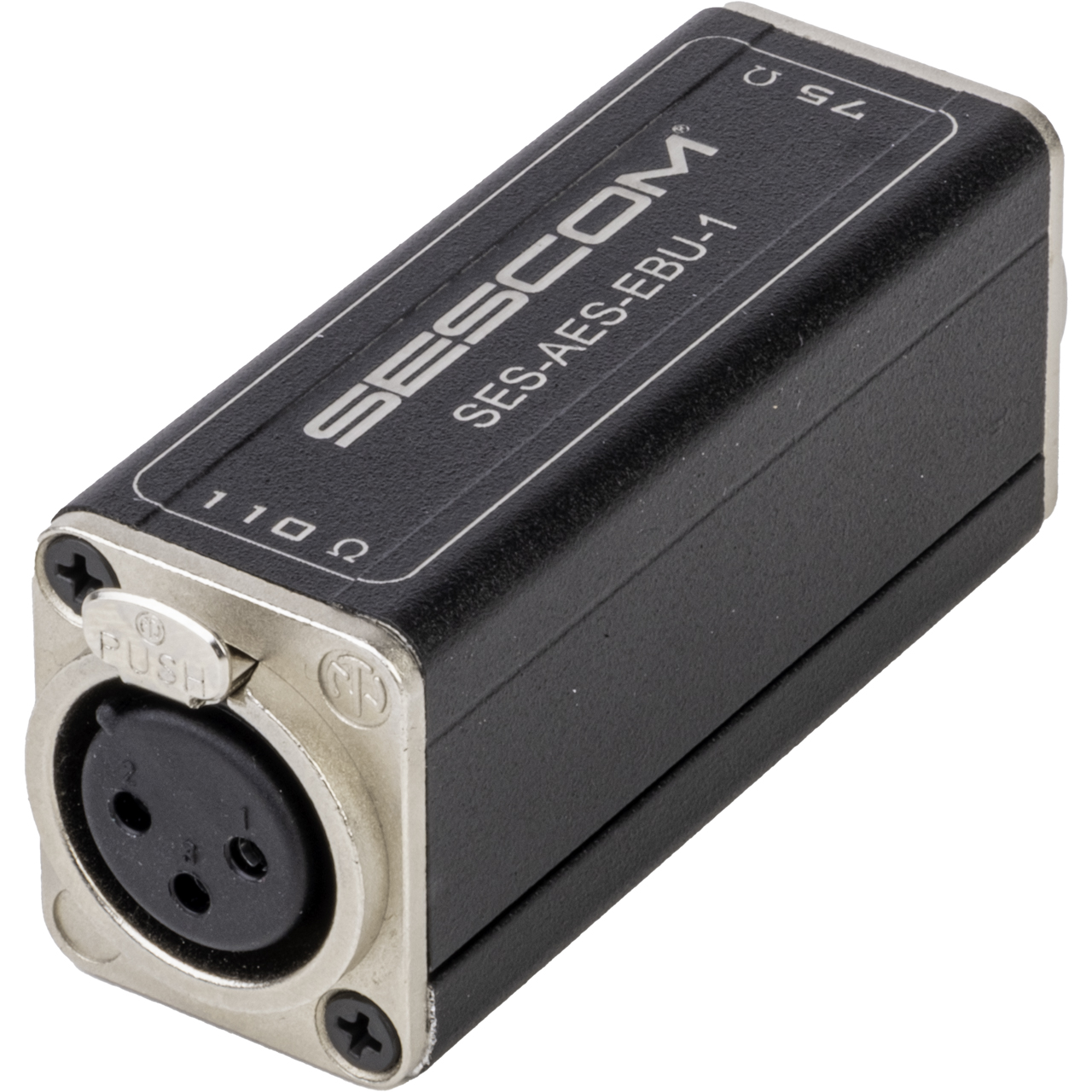

Sescom 3-Pin XLR Female to 75 Ohm BNC Female AES/EBU Impedance Transformer

SES-AES-EBU-1 - Overview

• Features:

  • 110 Ohm Female XLR to 75 Ohm AES-EBU in-line transformers
  • BNC to 3-Pin XLR Receptacle (male & female versions)
  • Provides an excellent impedance transformer at a reasonable cost for meeting the needs between analog to digital conversion
  • Perfect for medium haul cable runs
  • Also allows for longer cable runs via unbalanced coaxial lines rather than twisted pair cables that have greater attenuation at relevant frequencies


• Specifications:

  • Max Voltage / Max Run: 5VPP / 250MW
  • 0.1 MHZ TO 6 MHZ
  • Insertion Loss: < 0.3DB @ 0.1 MHZ TO 10 MHZ
  • VSWR / Return Loss = < 1.1 / > 24.6 DB
  • Dimensions with Connectors: (LxWxH): 2.95 x 1.03 x 1.23 in


• Warranty:

  • 1 Year
