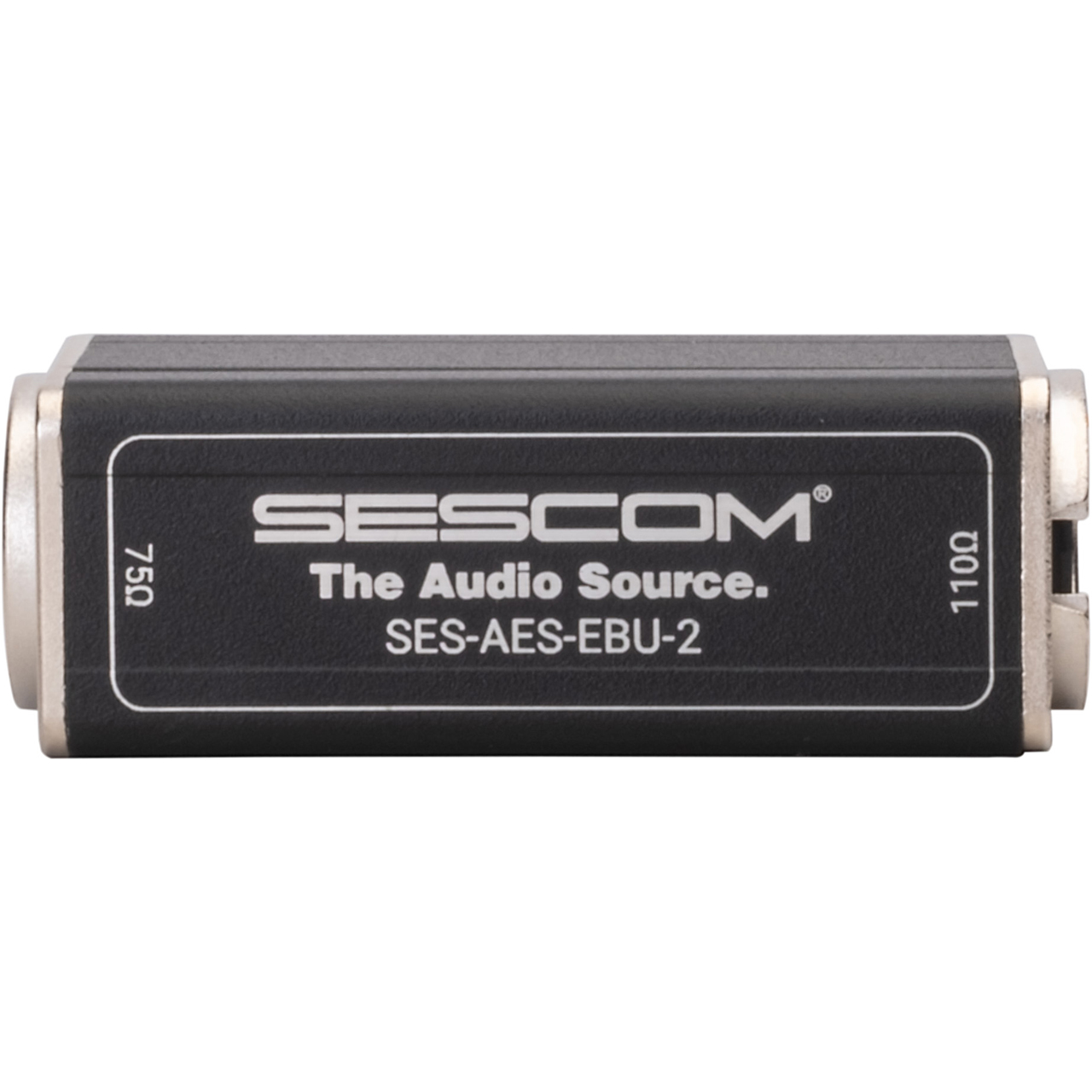

Sescom BNC Female to 3-Pin XLR Male AES/EBU Impedance Transformer

SES-AES-EBU-2 - Overview

• Features:

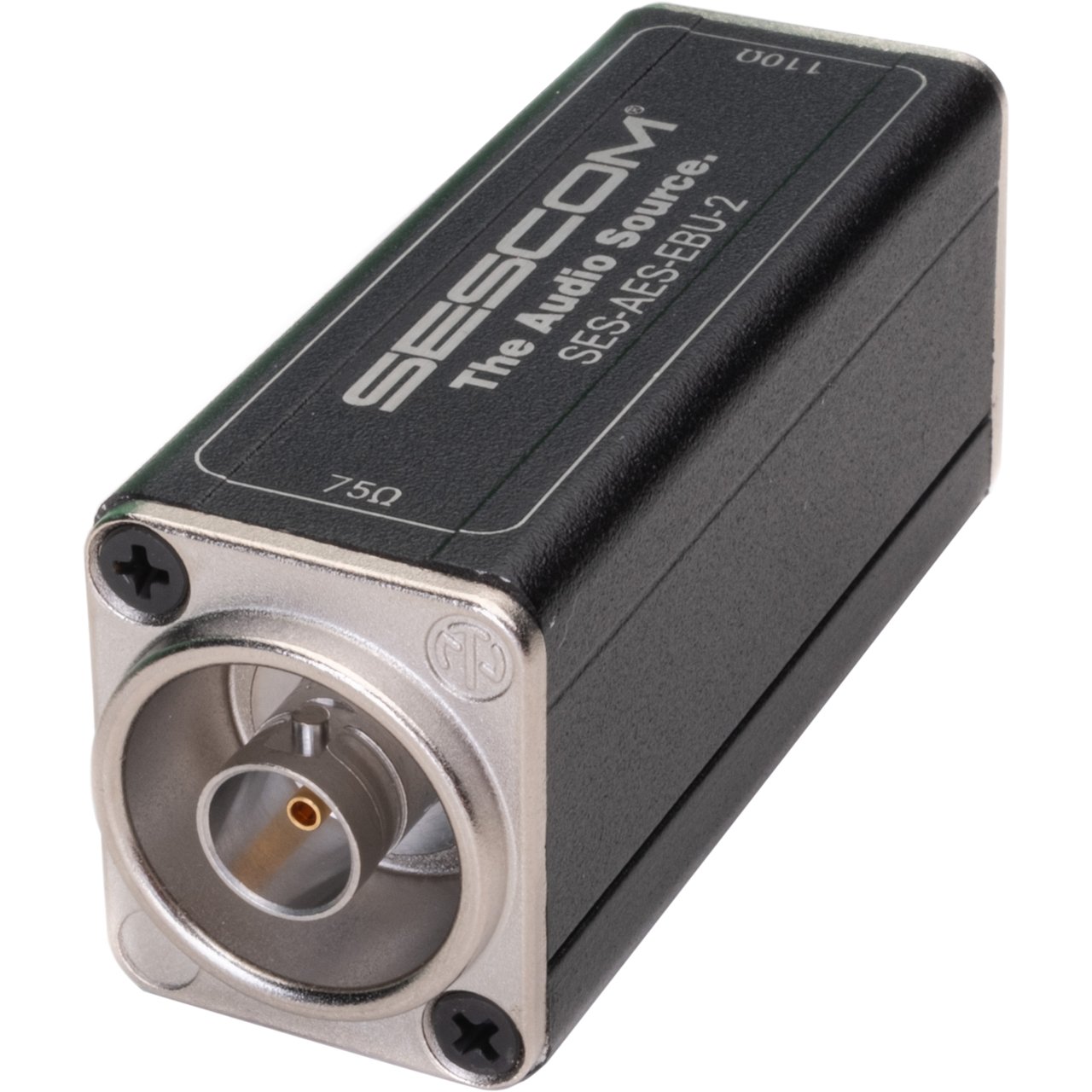

  • 75 Ohm BNC to 110 Ohm Male XLR AES-EBU in-line transformers

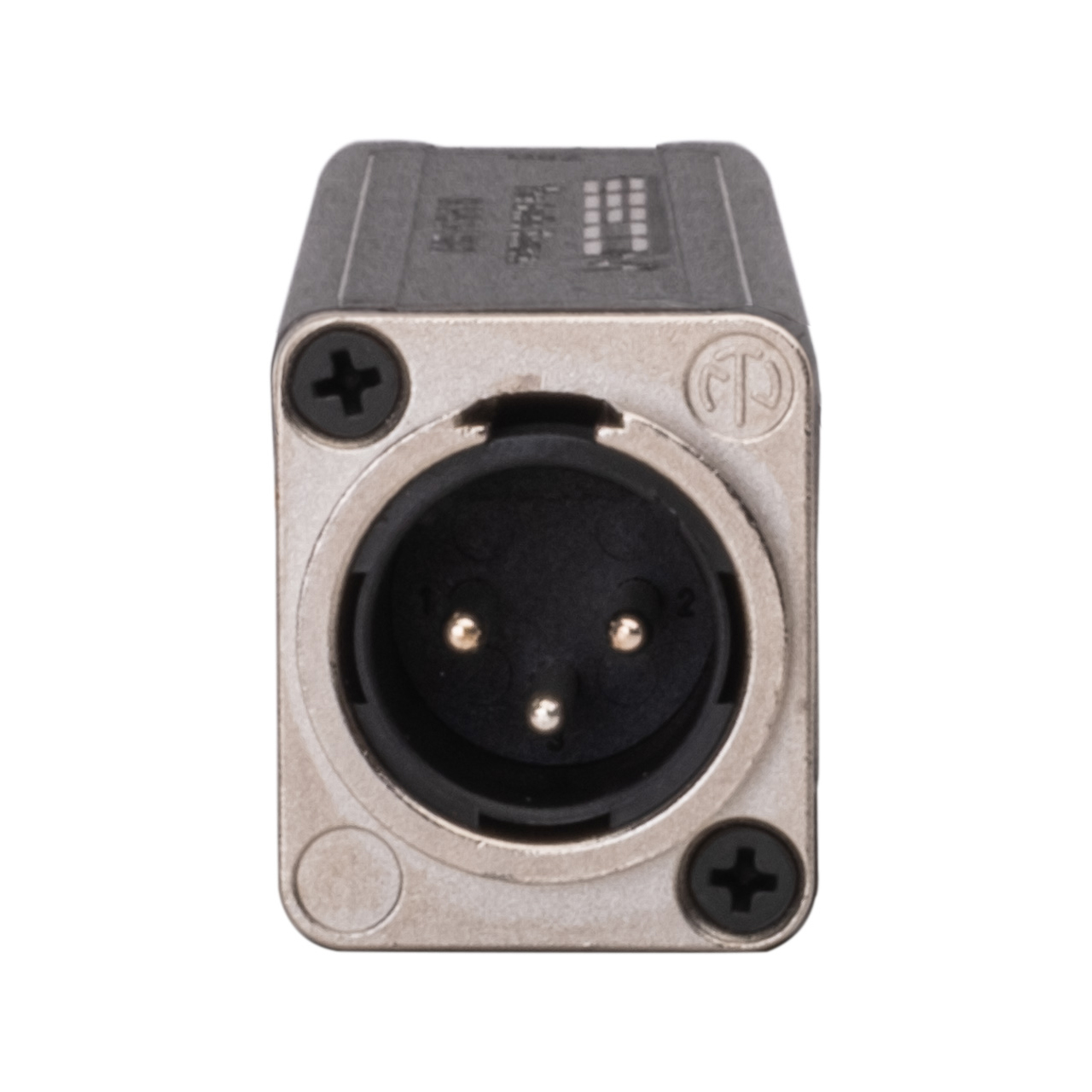

  • BNC to 3-Pin XLR Receptacle (male & female versions)
  • Provides an excellent impedance transformer at a reasonable cost for meeting the needs between analog to digital conversion
  • Perfect for medium haul cable runs
  • Also allows for longer cable runs via unbalanced coaxial lines rather than twisted pair cables that have greater attenuation at relevant frequencies


• Specifications:

  • Max Voltage / Max Run:= 5VPP / 250MW
  • 0.1 MHZ TO 6 MHZ
  • Insertion Loss < 0.3DB @ 0.1 MHZ TO 10 MHZ
  • VSWR / Return Loss = < 1.1 / > 24.6 DB
  • Dimensions with Connectors: (LxWxH): 2.95 x 1.03 x 1.23 in


• Warranty:

  • 1 Year
