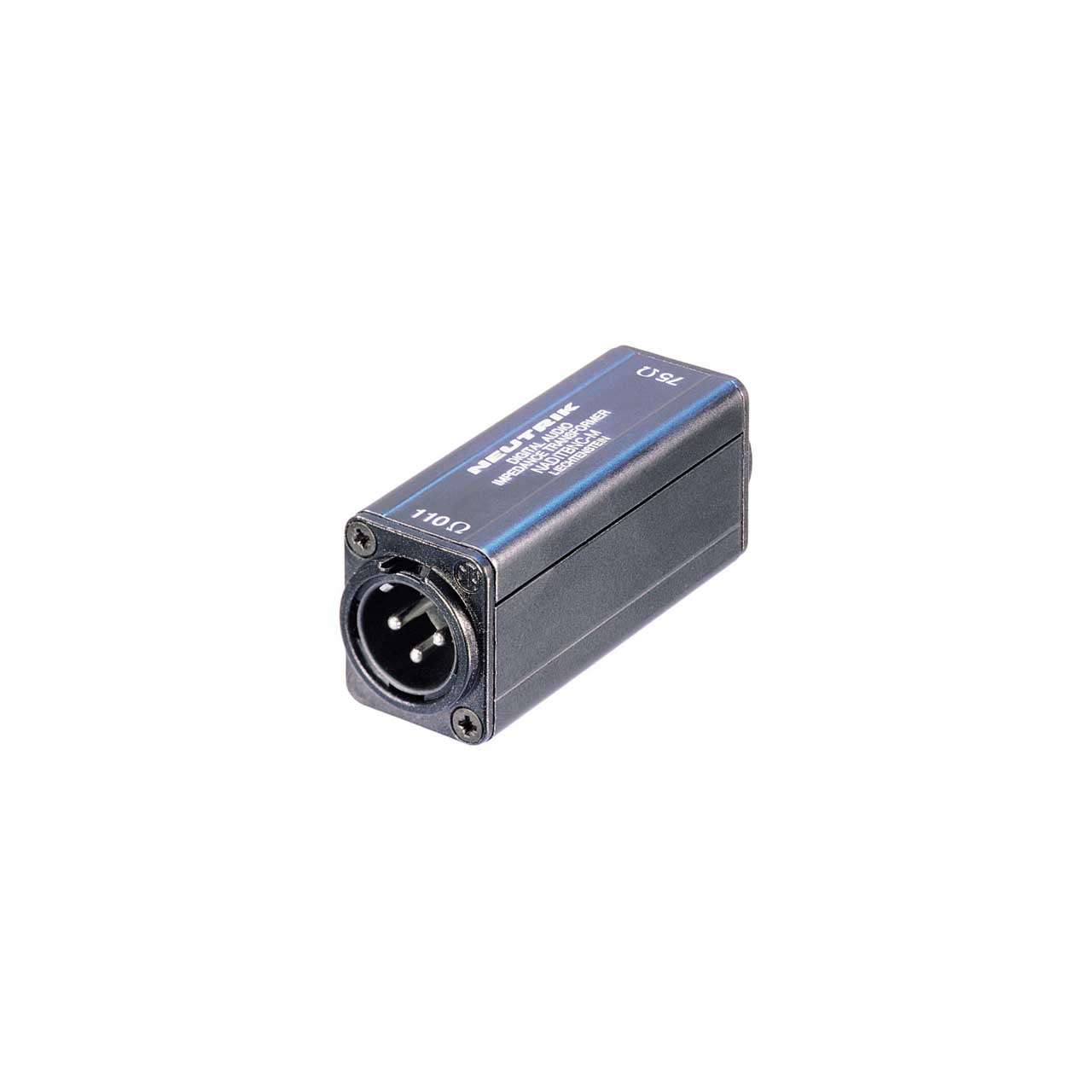

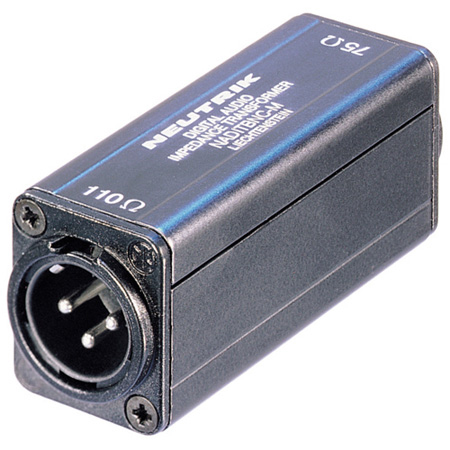

Neutrik NADITBNC-M XLR Chassis Mount Male 110 Ohm input to BNC Female 75 Ohm output adapter

Name: Neutrik NADITBNC-M XLR Chassis Mount Male 110 Ohm input to BNC Female 75 Ohm output adapter
Brand: Neutrik Americas
SKU: NA-BM
Price: 48.37 USD
Availability: InStock

ITEM #: NA-BM MFG #: NADITBNC-M

Neutrik Americas

Types:

Types

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$56.43

Our Price:

$48.37

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NADITBNC-M - Overview

The Neutrik NADITBNC-M is a female BNC 75Ω input to male XLR chassis connector 110Ω output. It allows you to interface balanced and coaxial lines.

Features:
- Allow long cable runs for digital audio signals via low attenuation coax lines
- Match impedances 110Ω to 75Ω
- Match balanced to coaxial lines
- Simple to use, passive units
Specifications:
- Frequency Range: 0.1 - 6MHz
- Rated Voltage: ≤5 V p-p
- VSWR: <1.1
- Return Loss: >26.4dB
- Insertion Loss: <0.3 dB @ 0.1 MHz to 10 MHz
