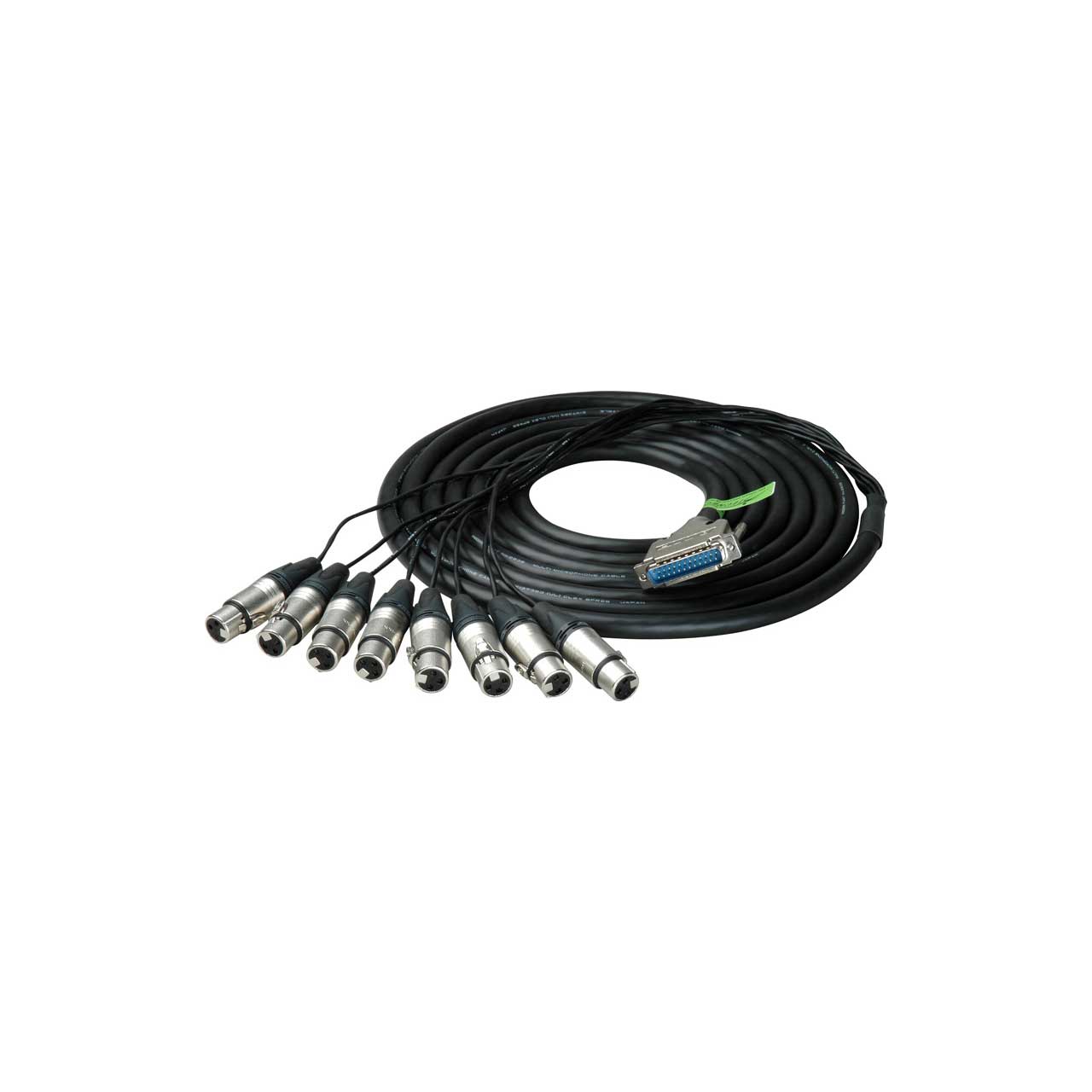

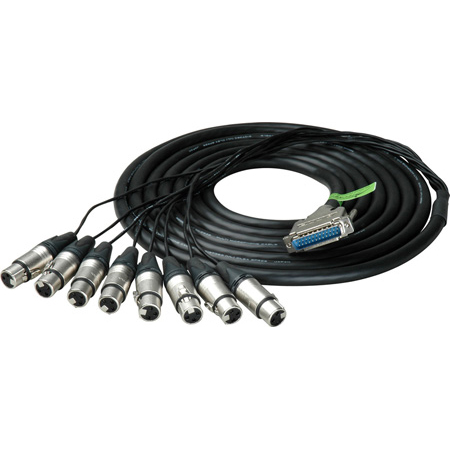

This cable option provides 8 AES/EBU XLR inputs or 16 channels of AES/EBU input. Cables are crafted with Mogami super flexible 3162 multicore 110ohm AES/EBU digital audio cable. All channels are numbered and individually shielded twisted pairs of #24 AWG gauge conductors. Standard fan out is 18 inches for common interface requirements. Designed for superior connectivity and strain relief, these assemblies feature the Neutrik XX series XLR's and industry standard AMP DSub cable hood. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Yamaha MYAE8 standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Apogee, Mackie, Sony and Yamaha machines.
