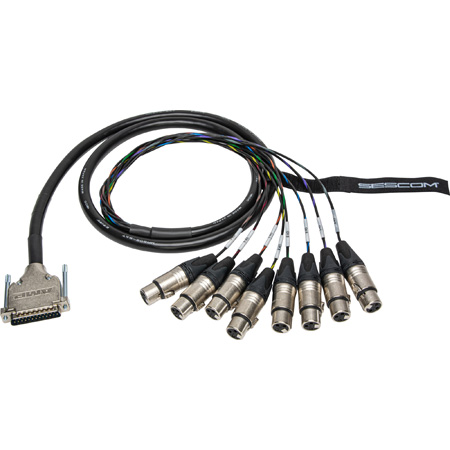

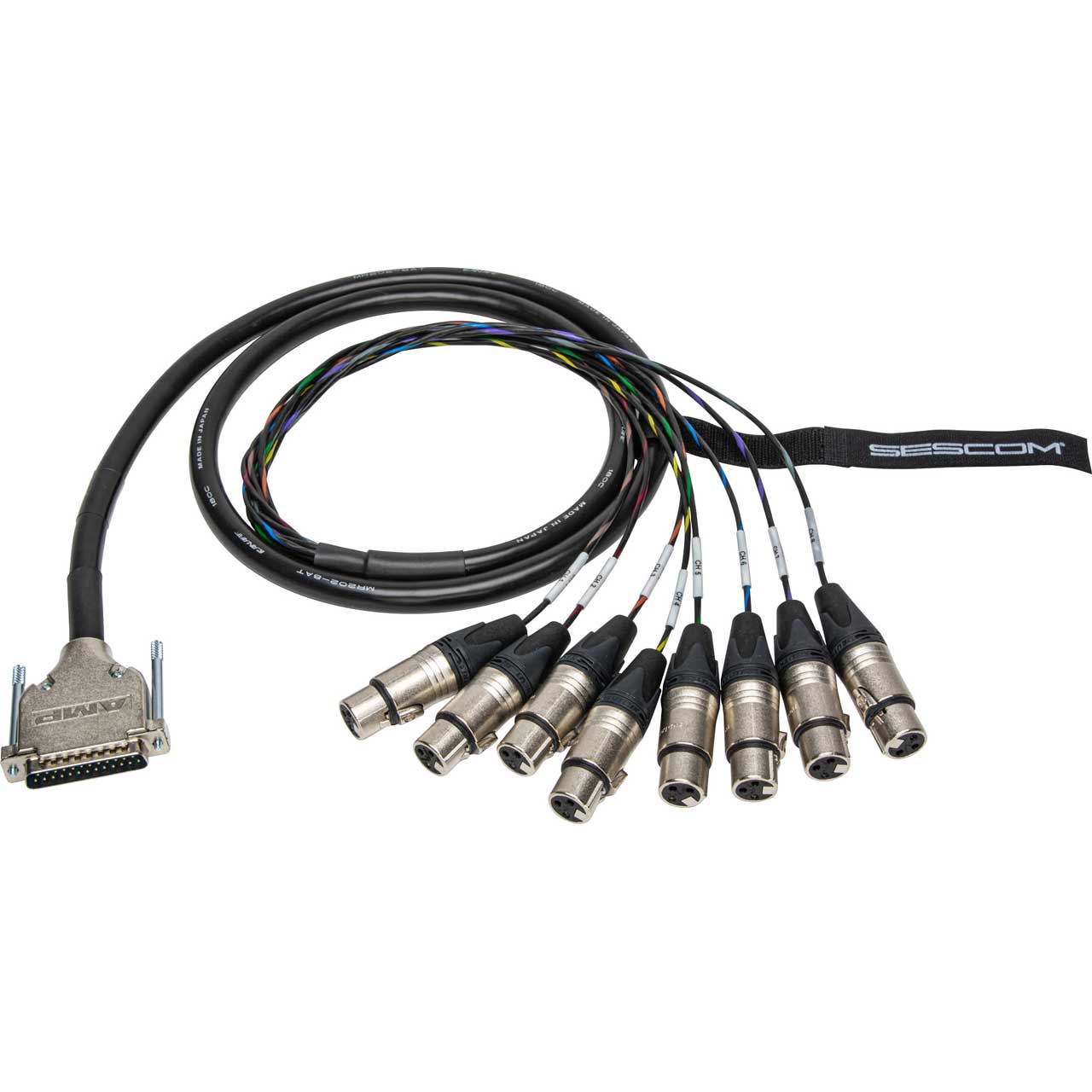

Sescom DB25 DA-88 Audio Cable Canare Analog 25-Pin D-Sub Male to 8 XLR Female - 5 Foot

ITEM #: 25MA-XF-C05 MFG #: 25MA-XF-C05

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$137.95

Our Price:

$124.49

Availability: In Stock
iAvailability Description Popup


    25MA-XF-C05 - Overview

    Cables are crafted with quality Canare MR202-8AT cable. All channels are numbered and individually shielded twisted pairs of #25 AWG gauge conductors. Fan out is 18 inches for common interface requirements. Designed for superior connectivity and strain relief these use the Neutrik XX series XLR's and industry standard AMP DSub cable hood. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Digi, Panasonic, Radar, Tascam and other equipment.

    • Features:

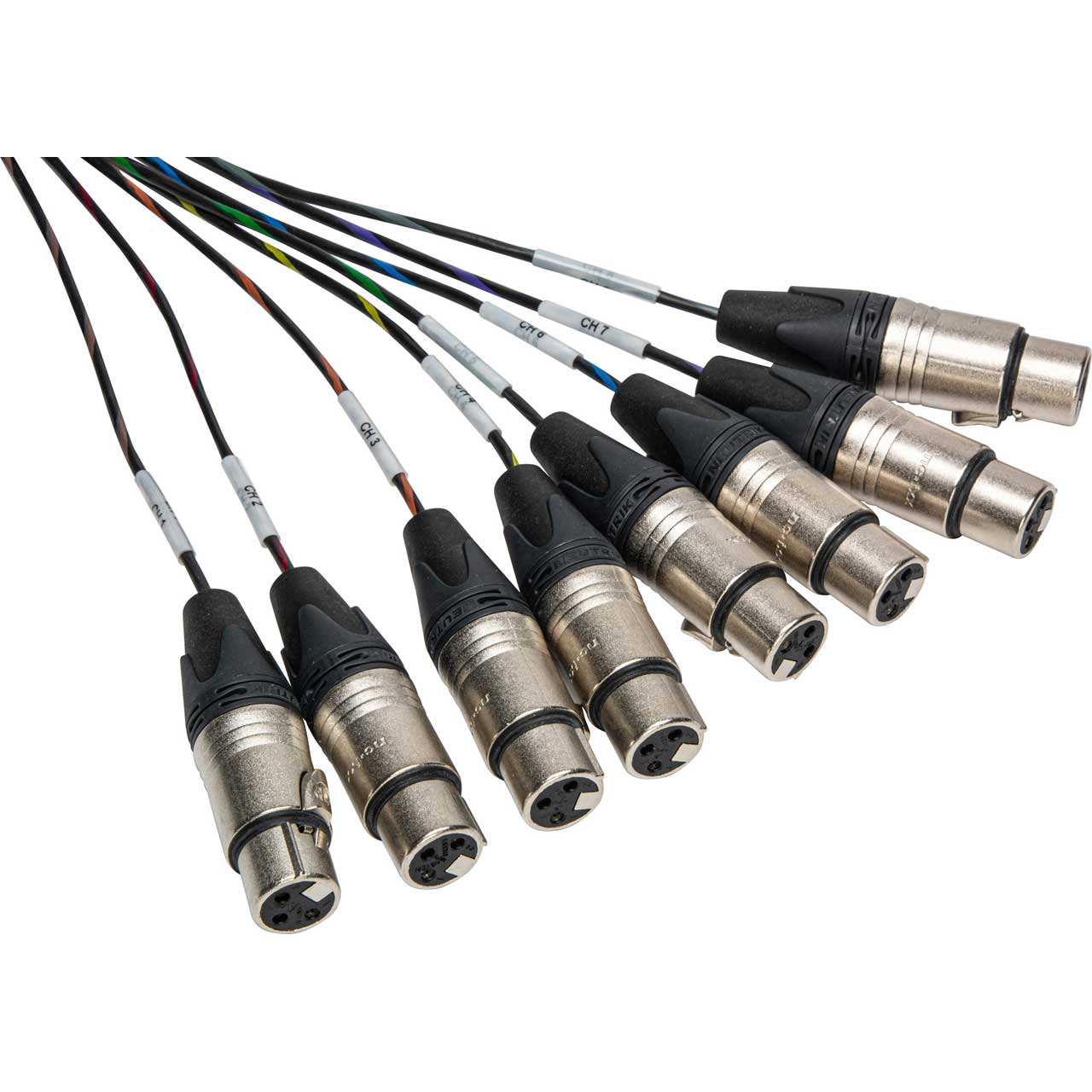

      • DB25 Male to 8 XLR Female Analog Audio In or Out
      • Crafted with Canare Super Flexible MR202-08AT Cable
      • All Channels are Individually Shielded & Twisted with #25AWG Gauge Conductors and #25AWG Drain Wire
      • Channels Are Numbered and Fanned Out 18 Inches
      • Neutrik NC3FXX Female Connectors Provide Low Contact Resistance and High Integrity
      • Overall PVC Jacketed for Strength and Durability

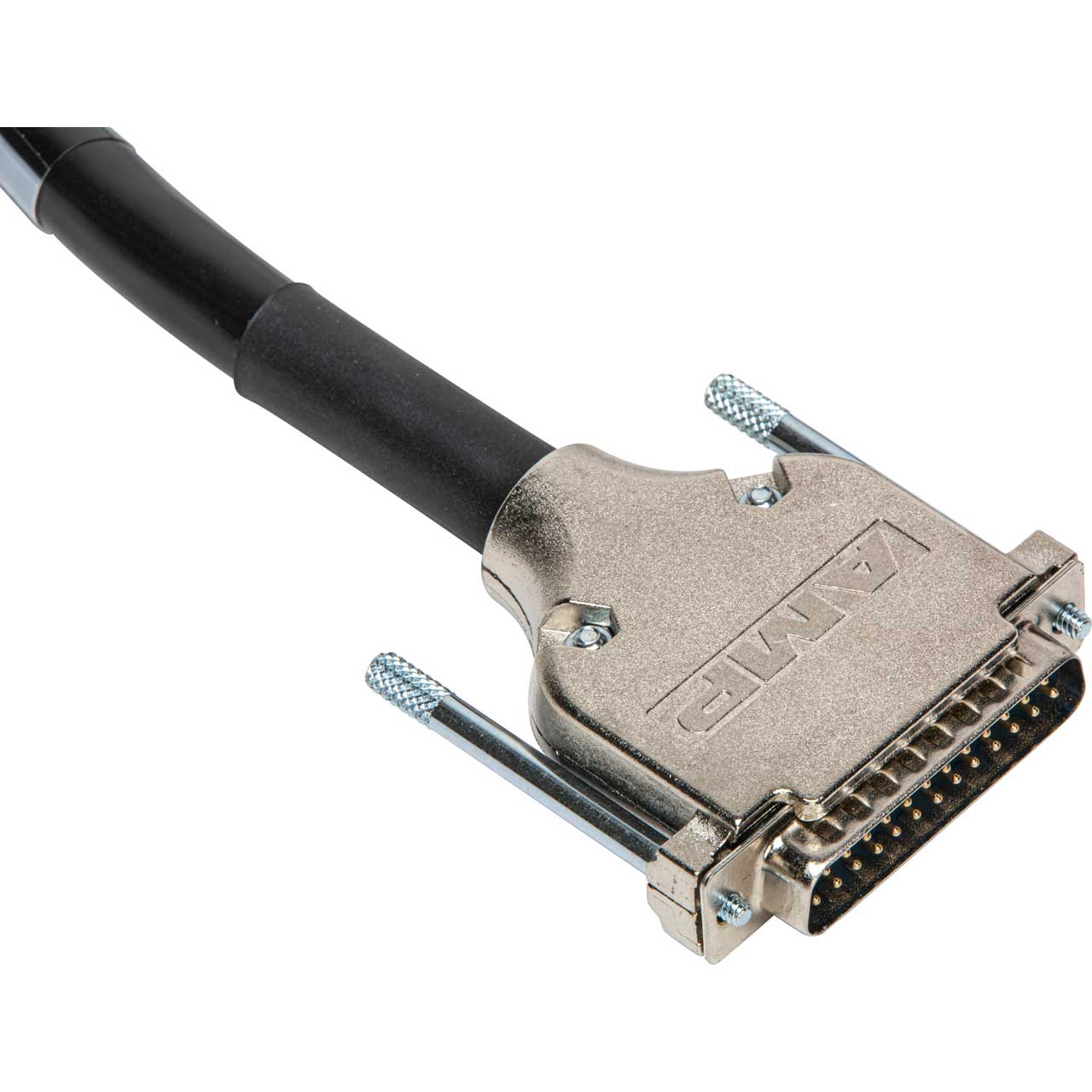

      • Industry Standard AMP 25 Pin Metal Hoods for Durability
      • Made In The USA

    • Specifications:

      • Nominal DC Resistance Conductor: 32.5 ohms/1000
      • Nominal Capacitance Between Conductors: 23.2 pF/ft.
      • Sescom 25-Pin D-Sub (Multipin) Cable Assemblies are Wired to the Digi/Tascam D-Sub Standard and are Comparable to Assemblies Commonly Referred to in the Industry with Terms Such as DA88 Snake, DB25 Breakout, and DB25 Snake
      • Compatible with Panasonic, Radar, Digi, Tascam, and Other Equipment

    • Warranty:

      • 1 Year
