Belden 1855ABHD3 6G-SDI 3-Pc BNC HD Crimp Connector for 1855A/23 AWG Mini RG59 Coax - Purple Band - Each

ITEM #: BL-1855ABHD3 MFG #: 1855ABHD3

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.15

Our Price:

$2.70

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1855ABHD3 - Overview

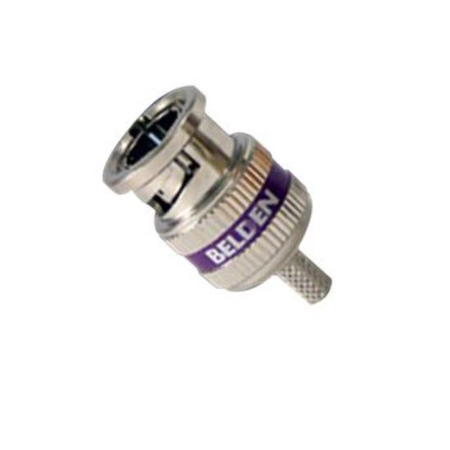

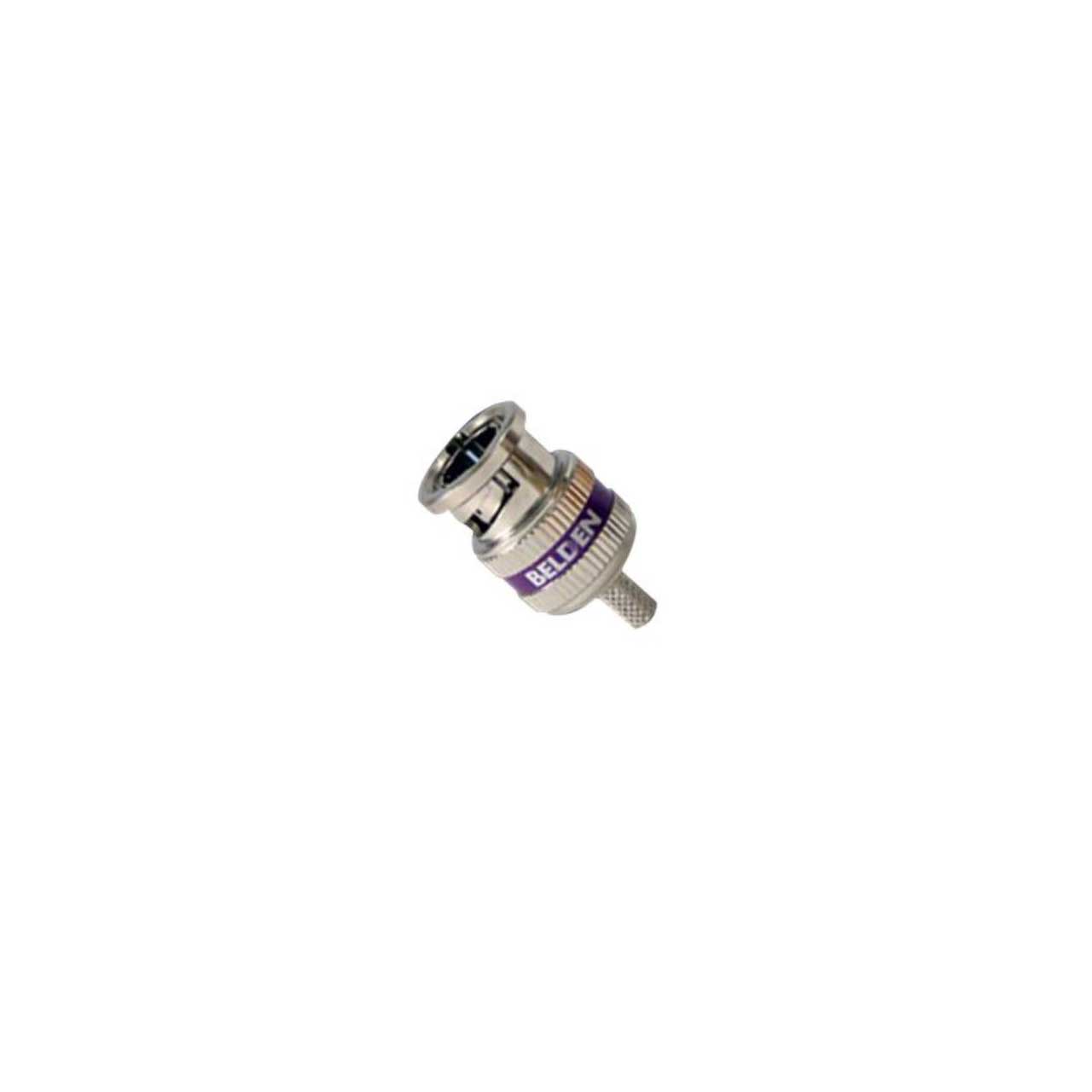

The Belden 1855ABHD3 3-Piece BNC HD Crimp Connector is designed for RG59/23 AWG RGB/Mini Coax cable like Belden 1855A. The 3-piece connector delivers excellent return loss performance and quality that exceeds expectations of the typical 3-piece connector; featuring a precision machined BNC nut and extended head knurl nut for easy grip. Excellent Return Loss through 4.5GHz exceeds SMPTE specifications. Enhanced to fit perfectly with Belden Brilliance Cable for strong and dependable signal delivery and performance.

Applications
HD-SDI
Video
Digital Video
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080

  • Features:

    • 6 GHz Mini RG-59 Connector
    • 75 Ohm
    • BNC HD Male
    • Violet Band for 1855A
    • Suitability - Indoor


  • Specifications:

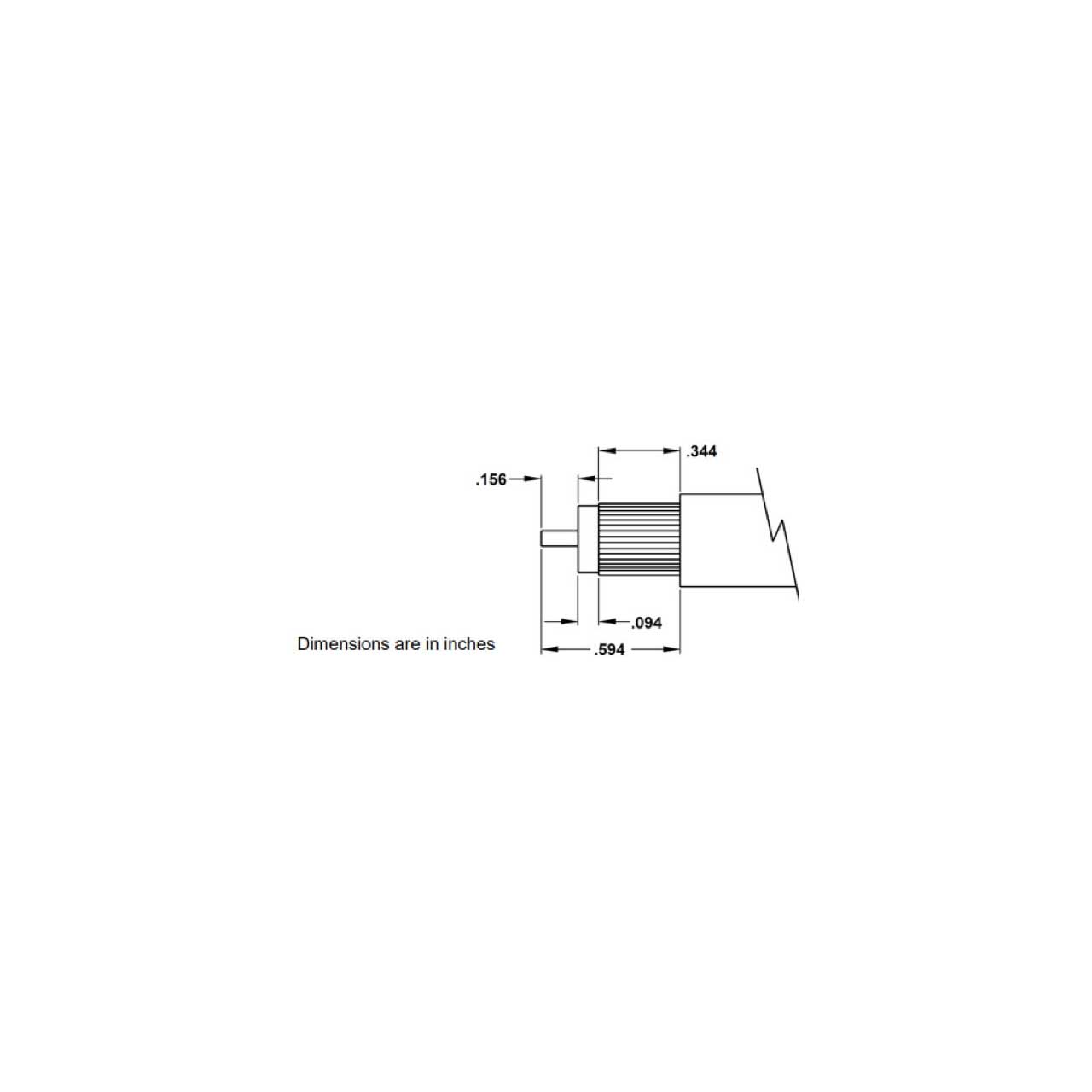

    • Trim Code 3-661-1: A = 0.624"/ B = 0.312" / C = 0.155"
    • Center Pin Crimp Size: 0.046"
    • Center Pin Crimp Cavity: 0.042"
    • Ferrule Crimp Size: 0.278"
    • Ferrule Crimp Cavity: 0.178
    • Connector Series Name: HD
    • Number of Pieces: 3
    • Nominal Characteristic Impedance: 75 Ohm
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Nut: Brass, Nickel Plated
    • Body: Brass, Nickel Plated
    • Contact: Brass, Gold Plated
    • Return Loss Frequency [MHz]: 5-1485 - Minimum Return (RL) 15 dB
    • Return Loss Frequency [MHz]: 1485-3000 - Minimum Return (RL) 10 dB
    • Return Loss Frequency [MHz]: 3000-6000 - Minimum Return (RL) 7 dB
    • Electrical Characteristics Notes: SMPTE 2081-1 Return Loss or better
    • Nominal Characteristic Impedance: 75 Ohm
    • Insulator: PTFE
    • Color Band: Violet
    • Locking: No
    • Termination Type: Crimp
    • RG Type: Mini 59
    • Environmental Space: Indoor


  • Item Includes:

    • 1855ABHD3 6GHz 3-Piece BNC HD Crimp Connector for 1855A/22-24 AWG Mini RG59 Coax - Purple Band - Each


  • Warranty:

    • Limited Lifetime Connector Warranty when partnered with Belden Cable


  • GTIN:

    0845671002348
