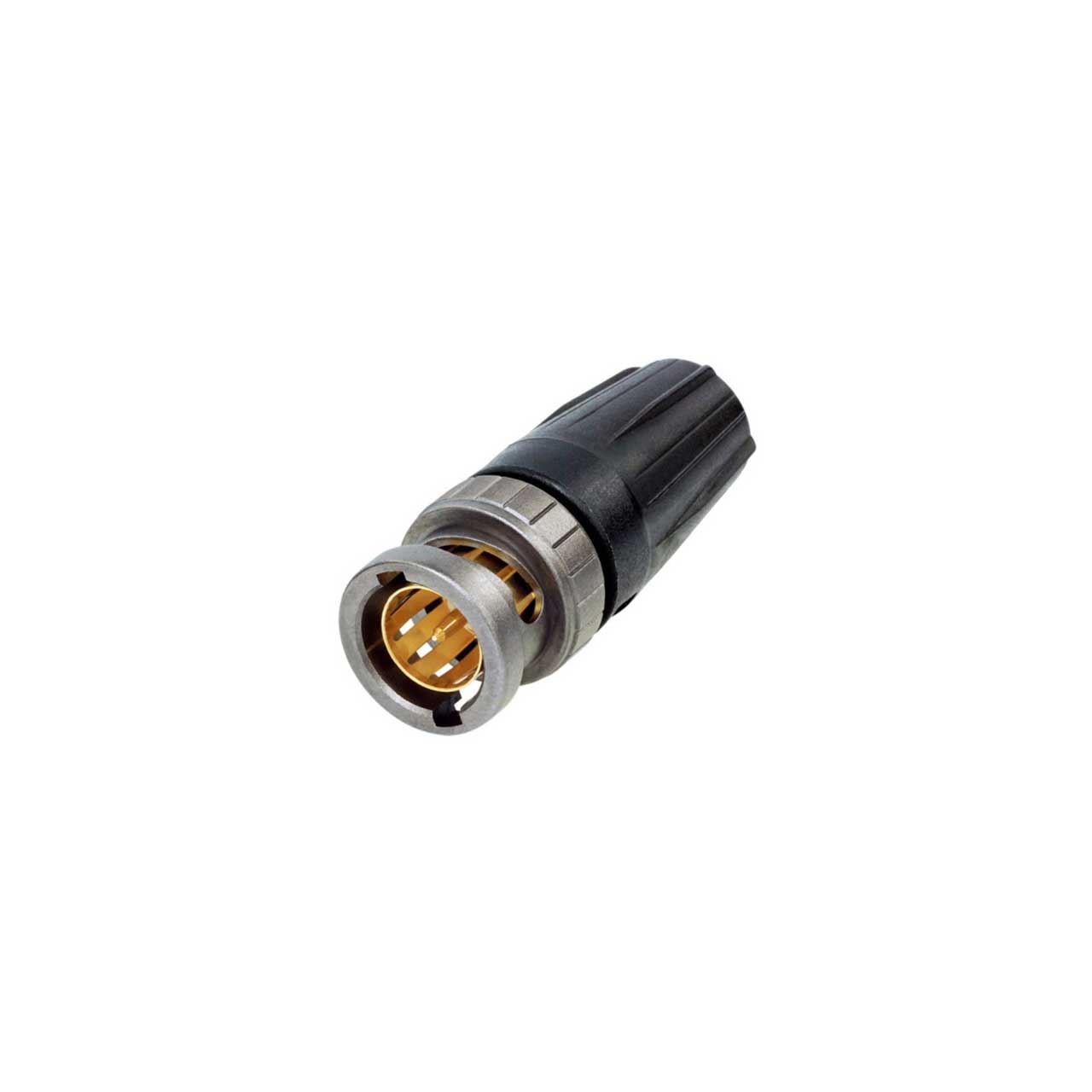

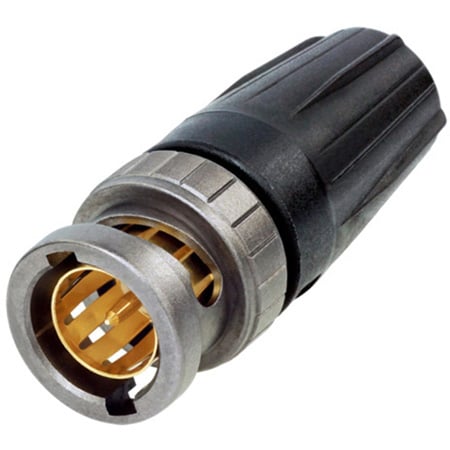

Neutrik NBNC75BDD6X 4K/8K 12G-SDI Rear TWIST UHD BNC Connector for Belden 1855A

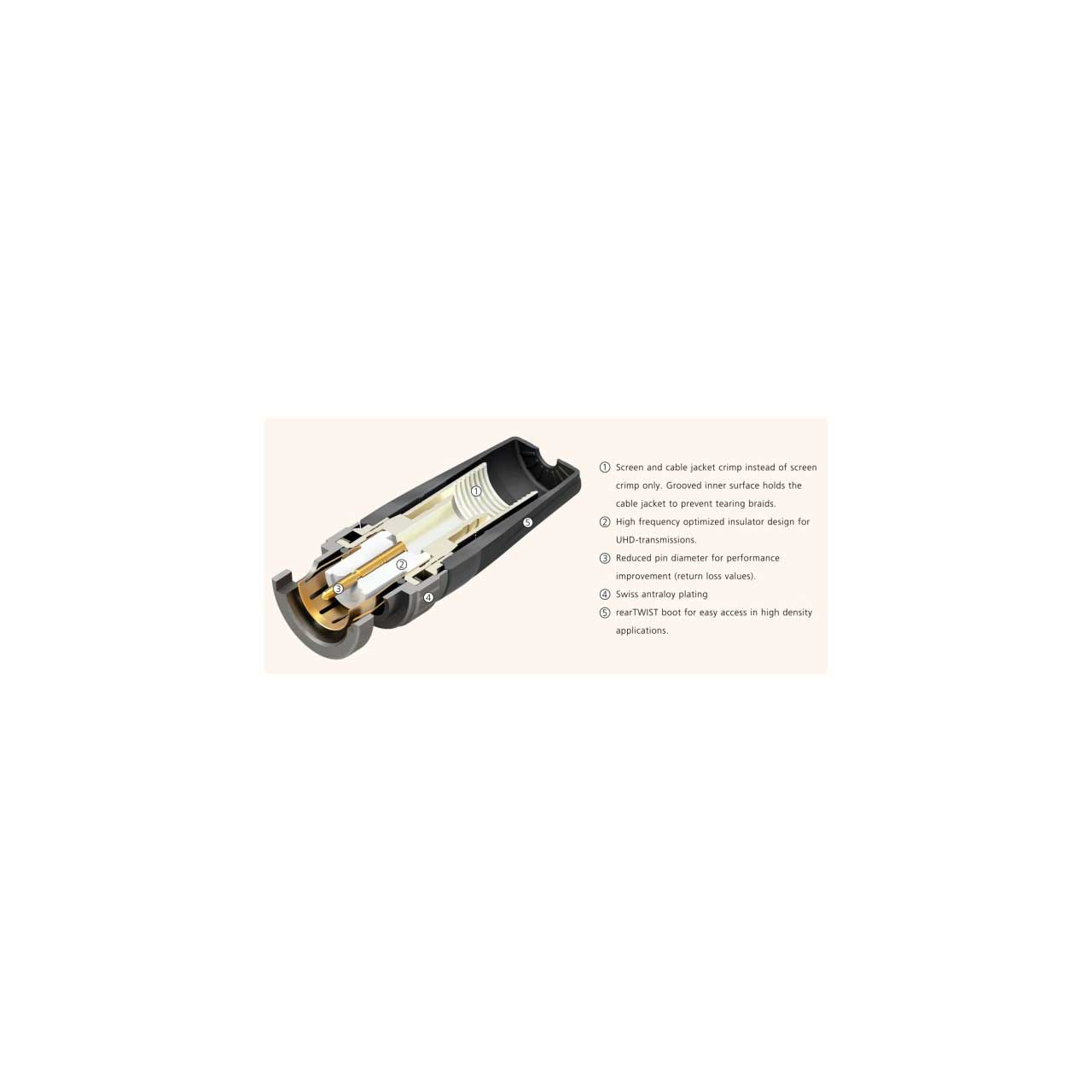

NBNC75BDD6X - Overview

• Features:

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies


• Specifications:

  • Electrical
  • Contact resistance: ≤ 3 mΩ (inner)
  • Contact resistance: ≤ 2 mΩ (outer)
  • Dielectric strength: 1.5 kVdc
  • Impedance: 75 Ω
  • Insulation resistance: > 5 GΩ
  • Rated voltage: < 50 V

    VSWR
  • ≤1.06 / >30 dB up to 6 GHz
  • ≤1.13 / >24 dB up to 12 GHz
  • ≤1.22 / >20 dB up to 18 Ghz

    Mechanical
  • Cable O.D.: 4.3 mm
  • Cable retention: > 30 N (center)
  • Crimp size: 4.53 Hex crimp (shield)
  • Crimp size (pin): 1.07 crimp
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles

    Wiresize
  • Locking device: Bayonett
  • Cable anchoring: Jacket crimping

    Material
  • Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Antraloy
  • Insert: PP

    Environmental
  • Temperature range: - 30 °C to +85 °C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2


• GTIN:

  7613187009501
