Belden 4855RBUHD3 12G-SDI 3-Piece UHD BNC Crimp Connector for 4855R/Mini-RG59 Cable - Violet Band - Each

ITEM #: 4855RBUHD3 MFG #: 4855RBUHD3

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4.28

Our Price:

$3.73

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4855RBUHD3 - Overview

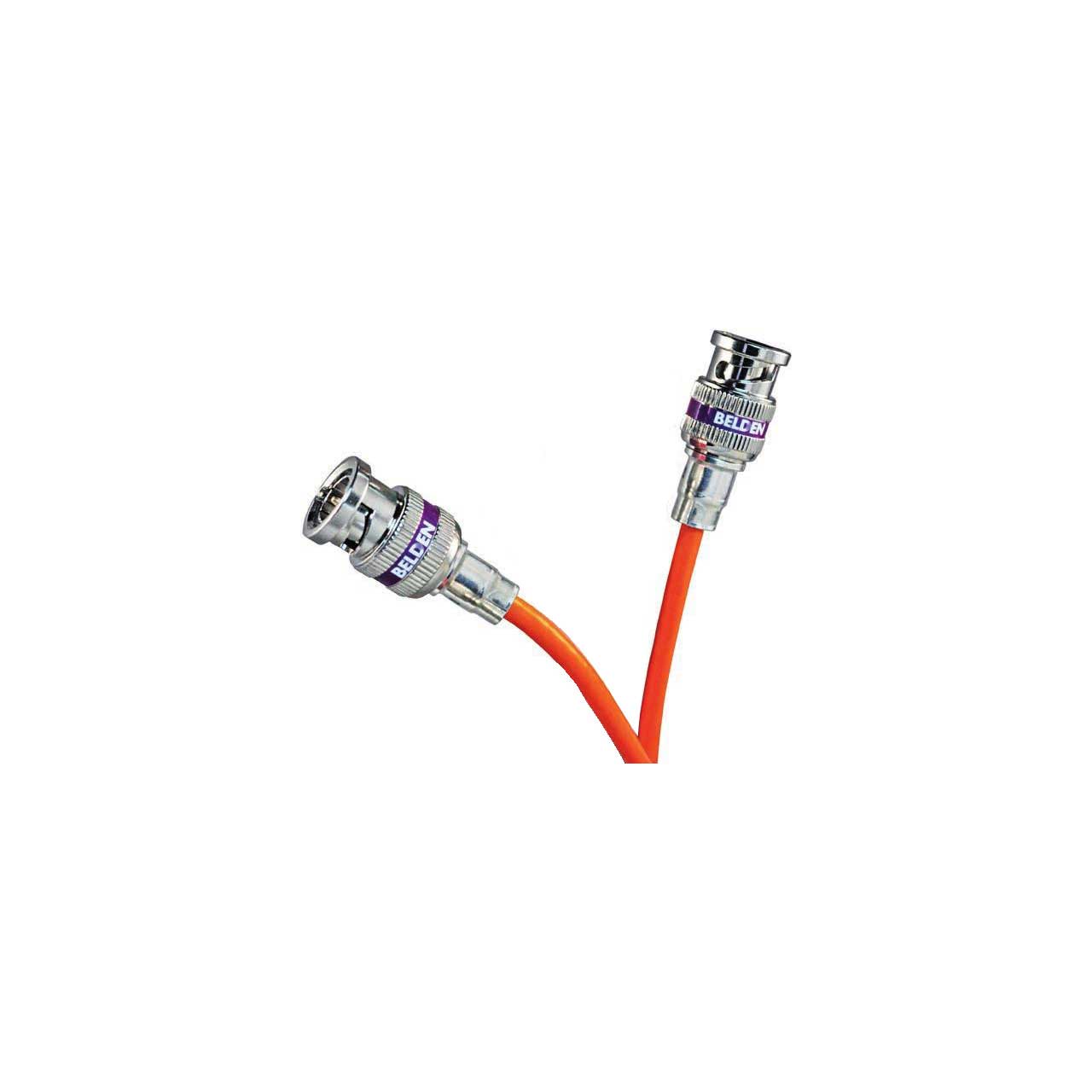

The 4855RBUHD3 is a Mini RG-59, 12 GHz, UHD, BNC, 3 piece crimp connectors that work with Belden 4855R cable.

APPLICATIONS
HD-SDI
UHD-SDI
Analog Video and Digital Video
SMPTE 2082-1 12 Gb/s UHDTV
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • Mini RG-59
    • Suitable for Indoor Use
    • Nickel Plated Brass with Gold Plated Brass Contact
    • BNC Type Male/Plug Crimp Connector
    • UHD Series
    • Violet Band
    • Non Locking


  • Specifications:

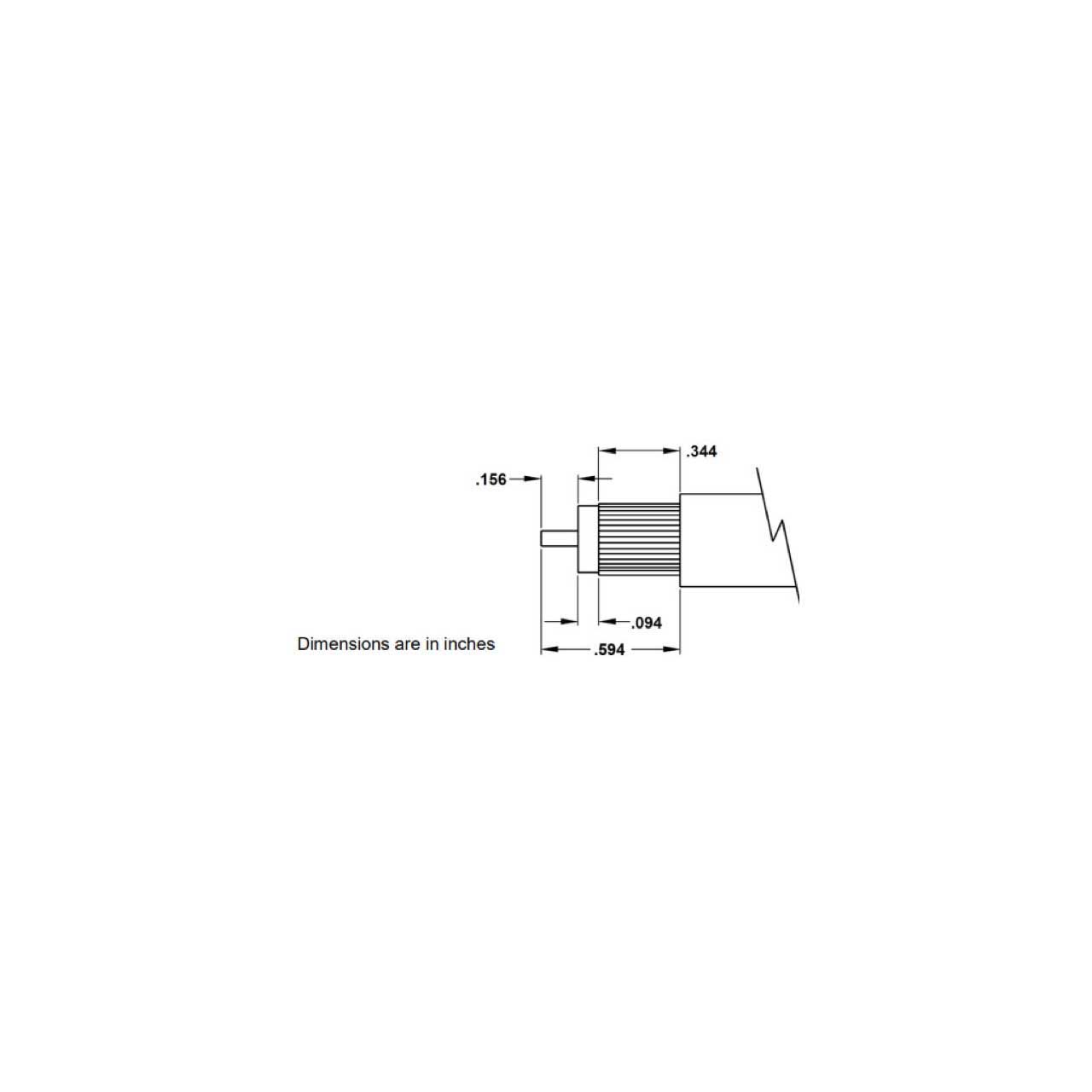

    • Trim Code 3-661-1: A = 0.624"/ B = 0.312" / C = 0.155"
    • Center Pin Crimp Size: 0.046"
    • Center Pin Crimp Cavity: 0.042"
    • Ferrule Crimp Size: 0.278"
    • Ferrule Crimp Cavity: 0.178
    • AWG Size: 23
    • Packaging: each
    • Number of Pieces: 3
    • Nominal Characteristic Impedance: 75Ω
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: UHD
    • Color Band: Violet
    • Locking: No
    • Tool Compatibility: BB3PHCT (crimp), BB3PST (strip)
    • Termination Type: Crimp
    • Cable Center Conductor Diameter Limits: 0.0208 - 0.0244 in
    • Cable Dielectric Diameter Limits: 0.0964 - 0.1019 in
    • Cable Outer Jacket Diameter Limits: 0.1574 - 0.1692 in
    • RG Type: Mini 59


  • Item Includes:

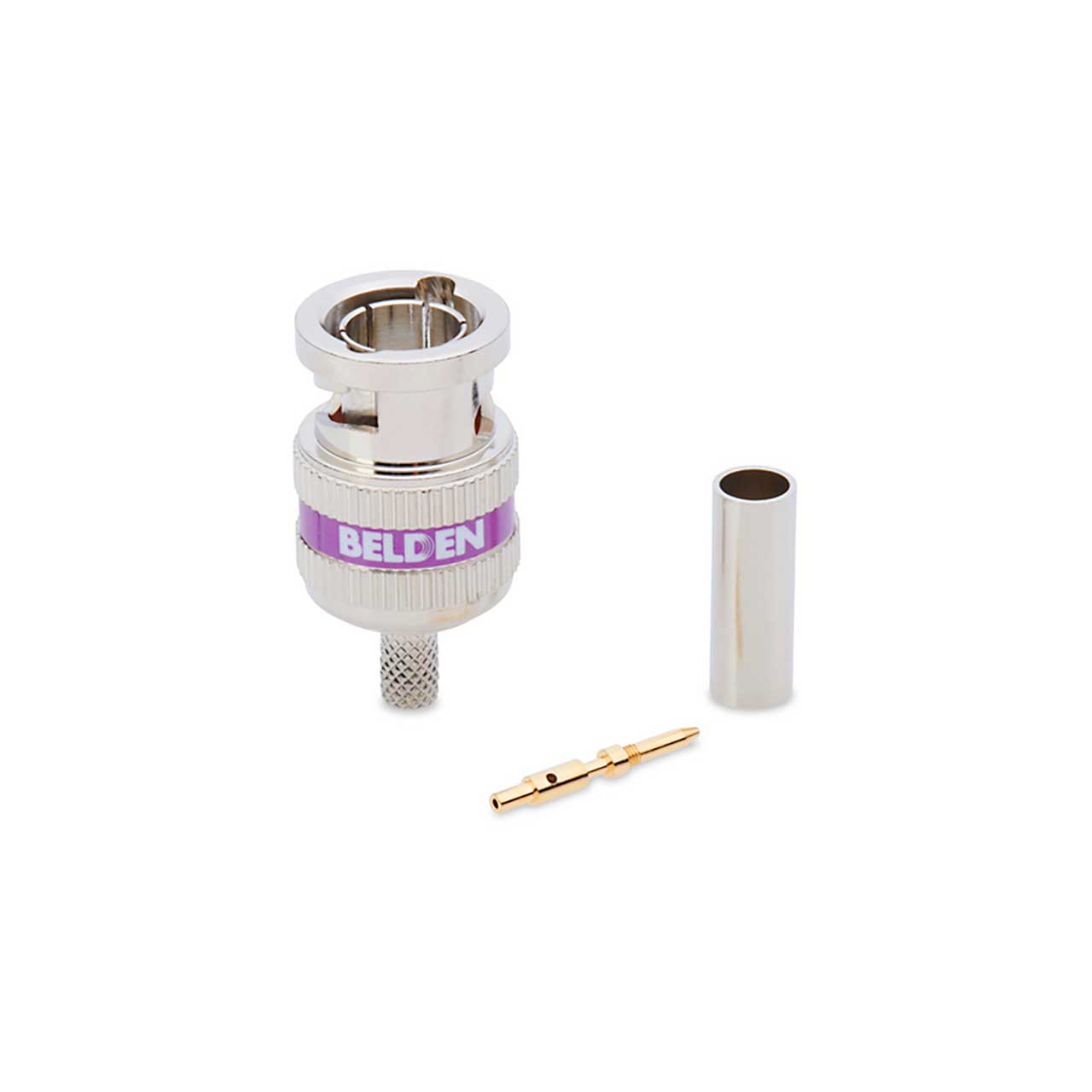

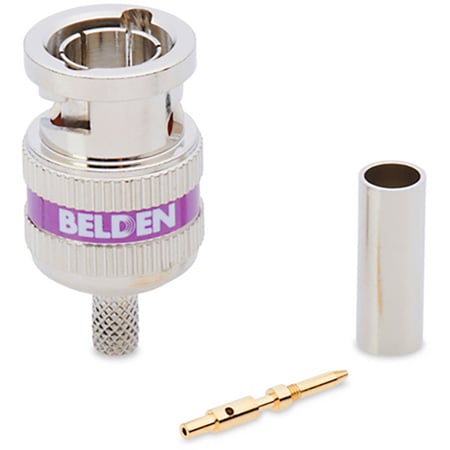

    • 4855RBUHD3 3-Piece (connector, center pin, and compression ring) BNC Crimp Connectors


  • Warranty:

    • Limited Lifetime Connector Warranty when partnered with Belden Cable
