Multi-Standard Operation - SDI, HD-SDI, 3G SDI, 6G SDI, 12G SDI!

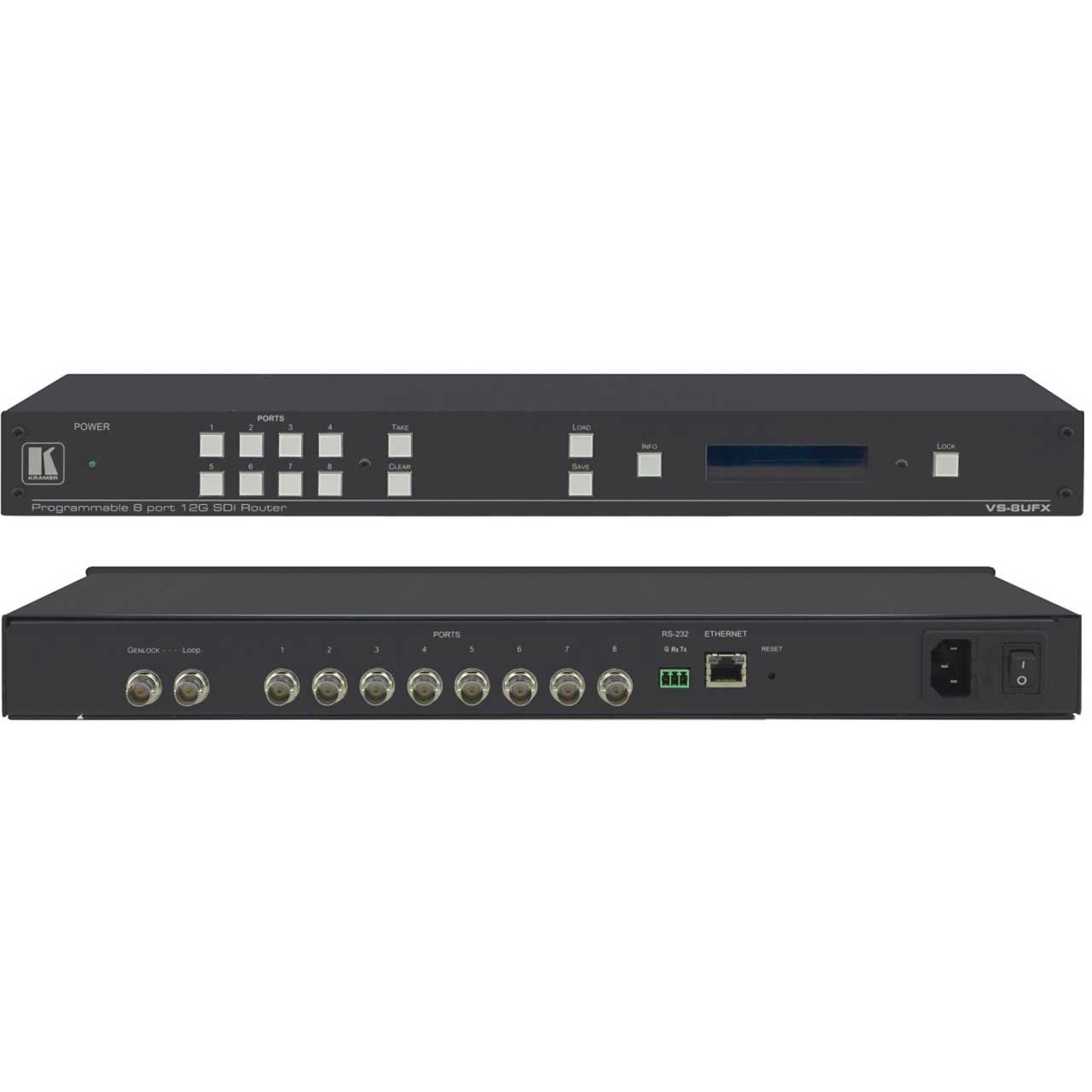

The Kramer VS-8UFX is an 8-port matrix switcher for SDI signals for up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x7 distribution amplifier, 7x1 switcher, 4x4 matrix switcher or any other possible input-output combination. VS-8UFX is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller.
-
- Max. Data Rate - 12Gbps.
- HDTV Compatible.
- Multi-Standard Operation - 12G-SDI - SMPTE ST-2082-1, 3G-SDI - SMPTE 424M, HD-SDI - SMPTE 292M, SDI - SMPTE 259M/344M
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Supports ANC Data - Embedded audio, teletext, time code, etc.
- Cable Equalization - Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.
- Clean Switching - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
- Versatile Genlocking - Using an analog signal.
- Memory Locations - Stores 8 multiple switches as presets to be recalled and executed when needed.
-
- Please Note: Kramer recommends: Belden 4794R and 4855R 12G-SDI coax cable.
PORTS - 8 12G HD-SDI/HD-SDI/SDI video: On BNC connectors (by default, 1 to 4 are set as inputs and 5 to 8 are set as outputs)
- 1 Genlock: 75Ω on a BNC connector
- STANDARDS COMPLIANCE
- 12G-SDI: SMPTE ST-2082-1
- 3G HD-SDI: SMPTE 424M
- HD-SDI: SMPTE 292M
- SDI: SMPTE 259M/344M
- VIDEO
- Max. Resolution: 4K@60Hz (4:2:2)
- Max. Data Rate: 12Gbps
- USER INTERFACE
- Controls: Front Panel Buttons, RS-232, Ethernet, Web pages
- Indicators: LCD display, Power LED
- EXTENSION LINE
- SD: Up to 300m
- 1.5G HD: Up to 200m
- 3G: Up to 100m
- 6G: Up to 100m
- 12G: Up to 80m
- COUPLING:
- AC
- POWER
- Source: 100-240V AC
- Consumption : 33VA max
- ENCLOSURE
- Size: 19", 1U
- Type: Aluminum
- Cooling: Fan ventilation
- ENVIRONMENTAL CONDITIONS
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: -40° to +70°C (-40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
- REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
- Safety: CE
- Environmental: RoHs, WEEE
-
- VS-8UFX Programmable 8 port 12G SDI Router
- Power cord (1)
- Set of rack ears (1)
- Rubber feet (4)
- Quick start guide (1)
-
-
