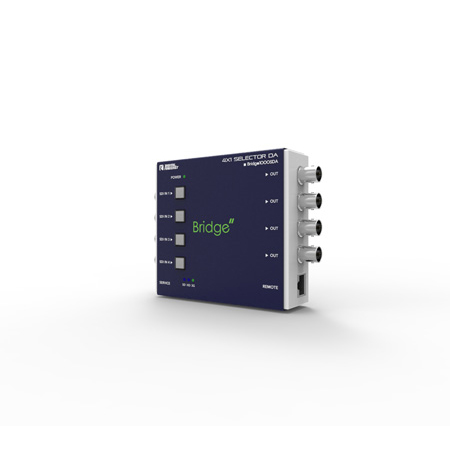

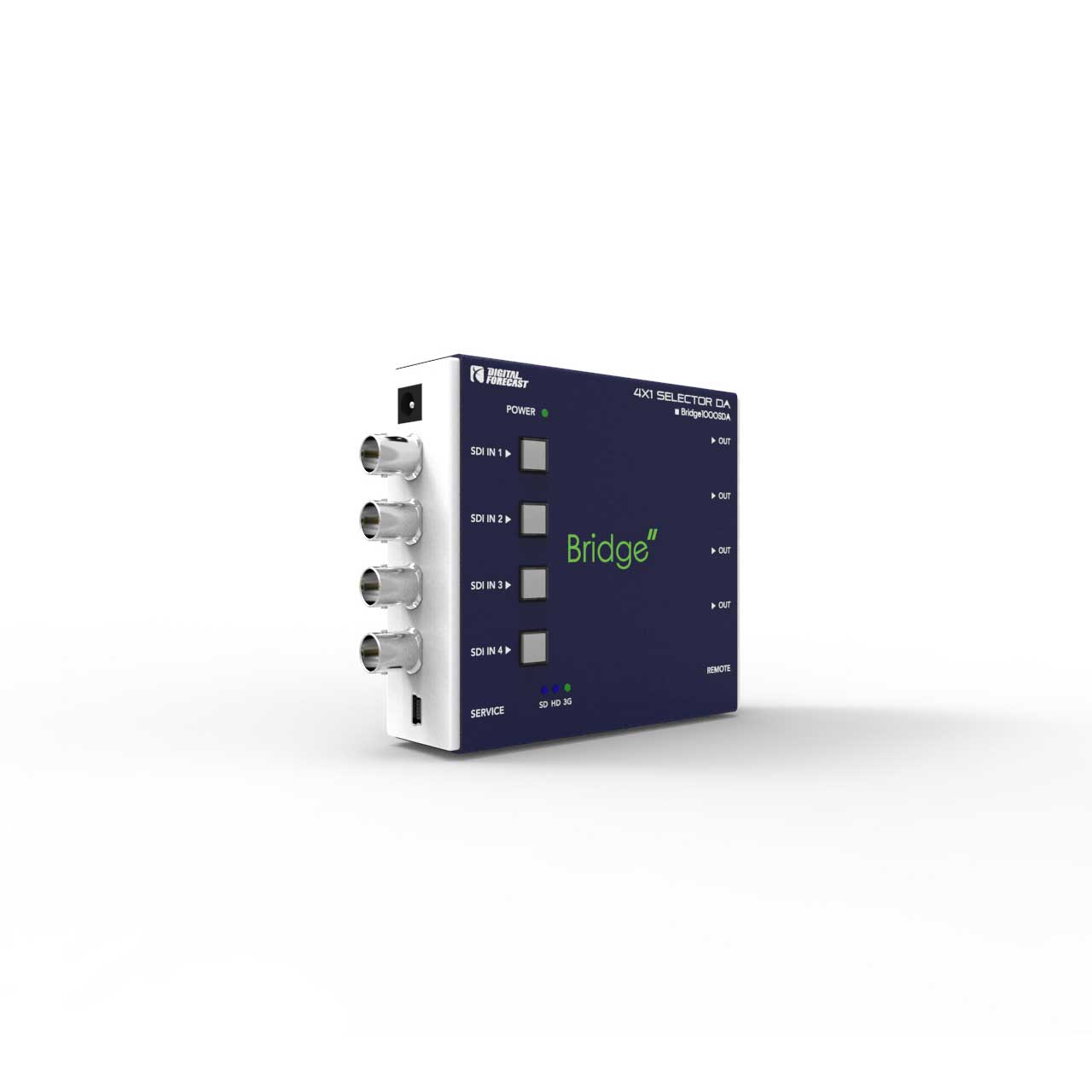

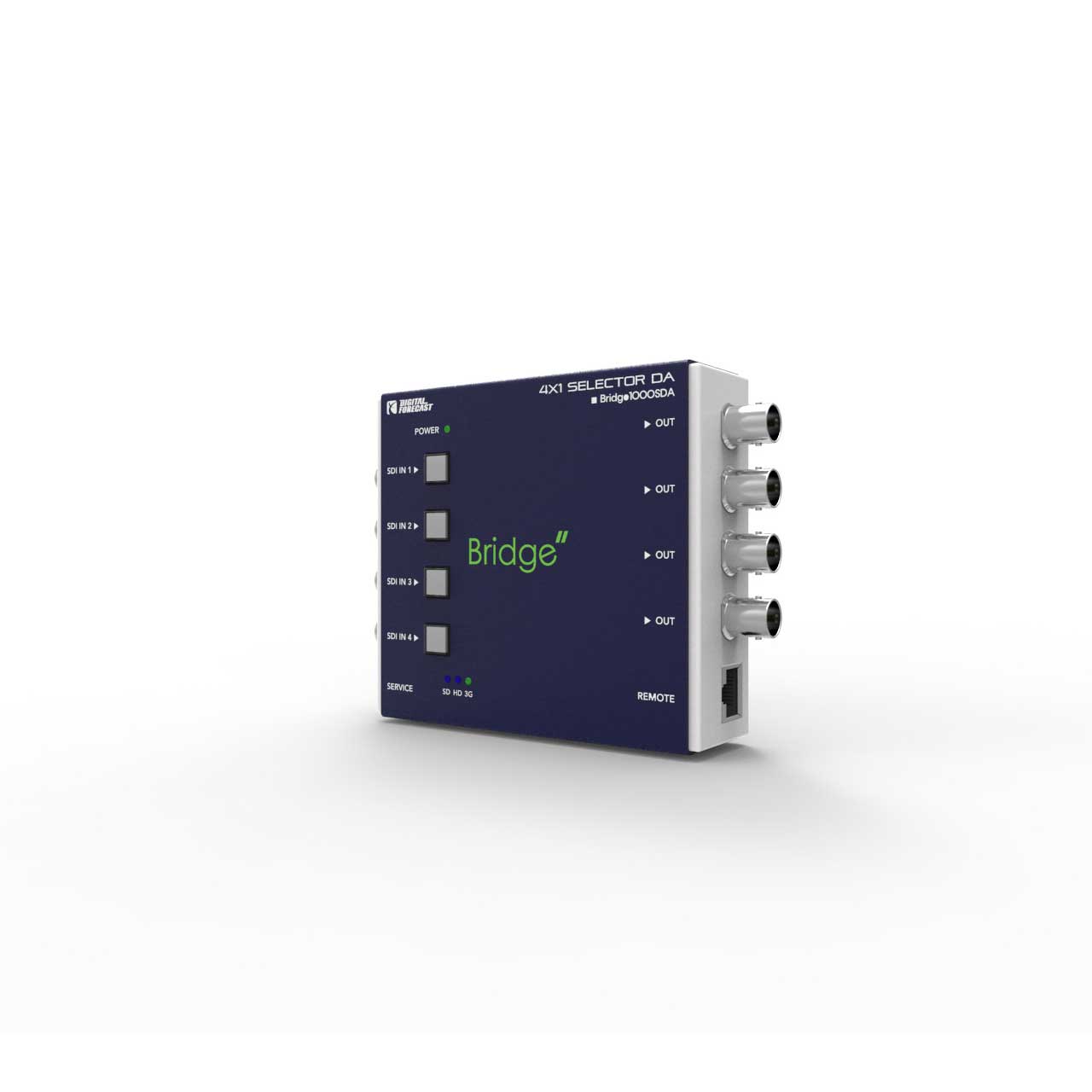

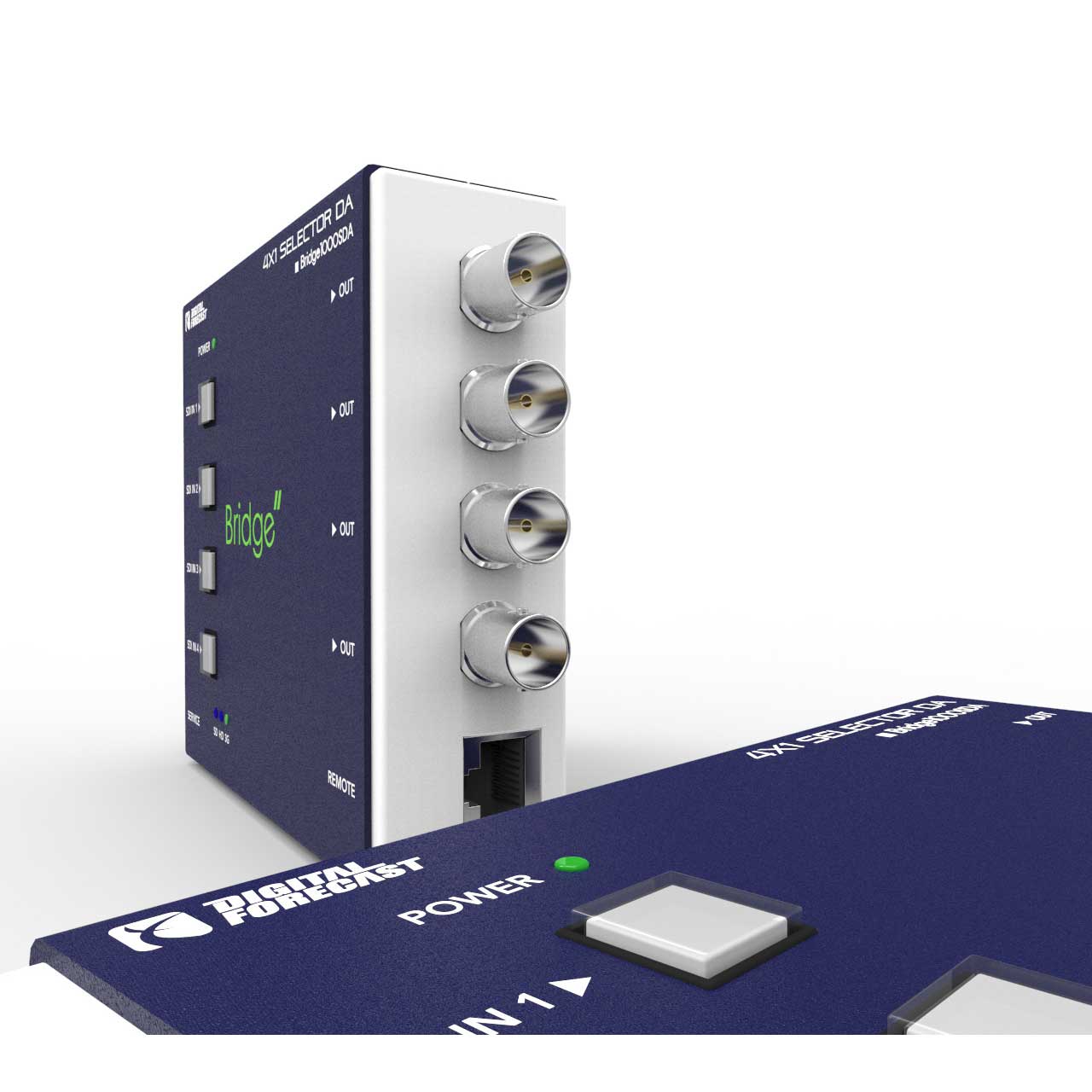

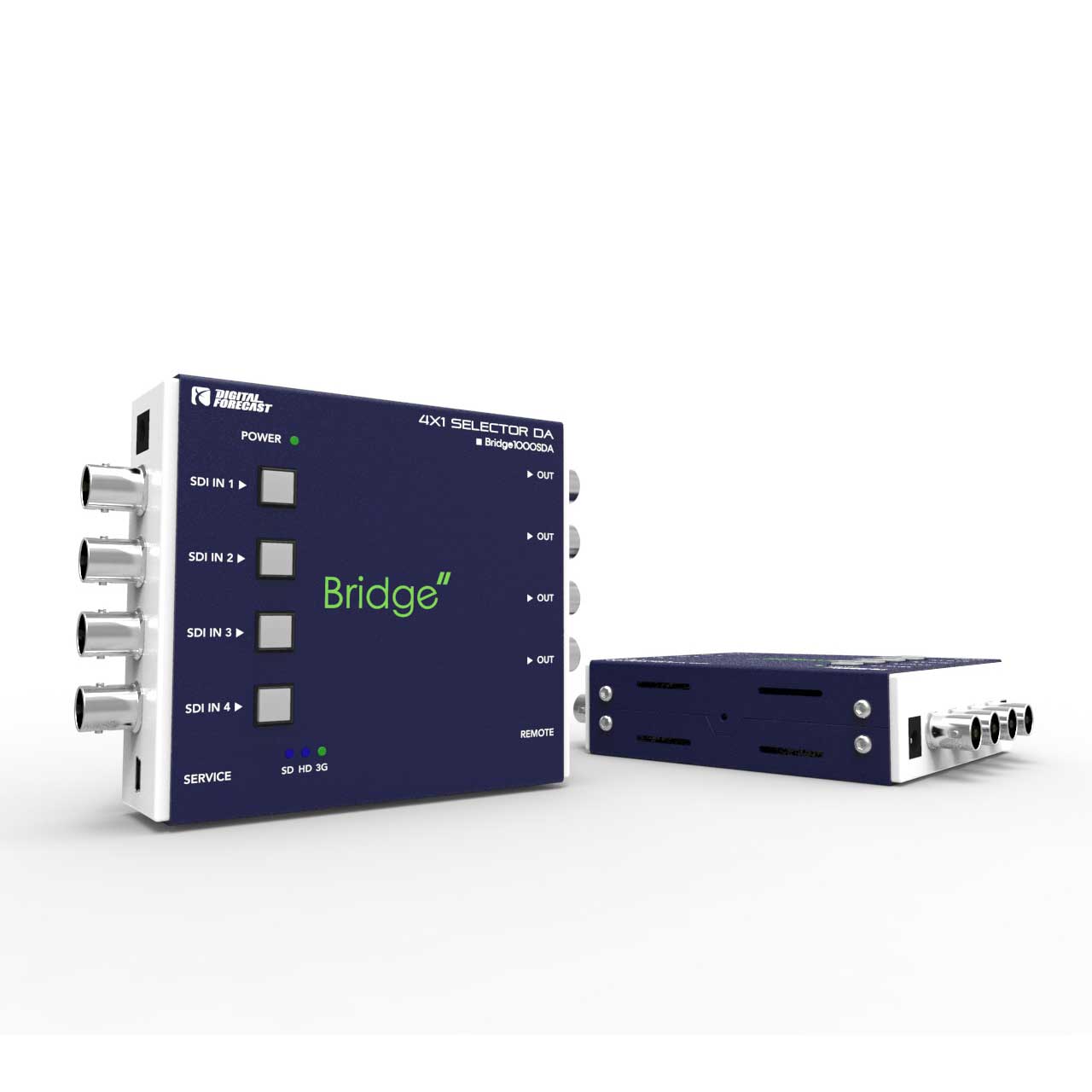

Digital Forecast Bridge Mini 1000 SDA 4x1 3G/HD/SD SDI Switcher with 4 Ouput Distribution Amplifier

ITEM #: DF-BRIDGE1000SDA MFG #: BRIDGE1000 SDA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
DIGITAL FORECAST
Free Shipping with $49 Minimum Order

List Price:

$400.00

Our Price:

$380.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BRIDGE1000 SDA - Overview

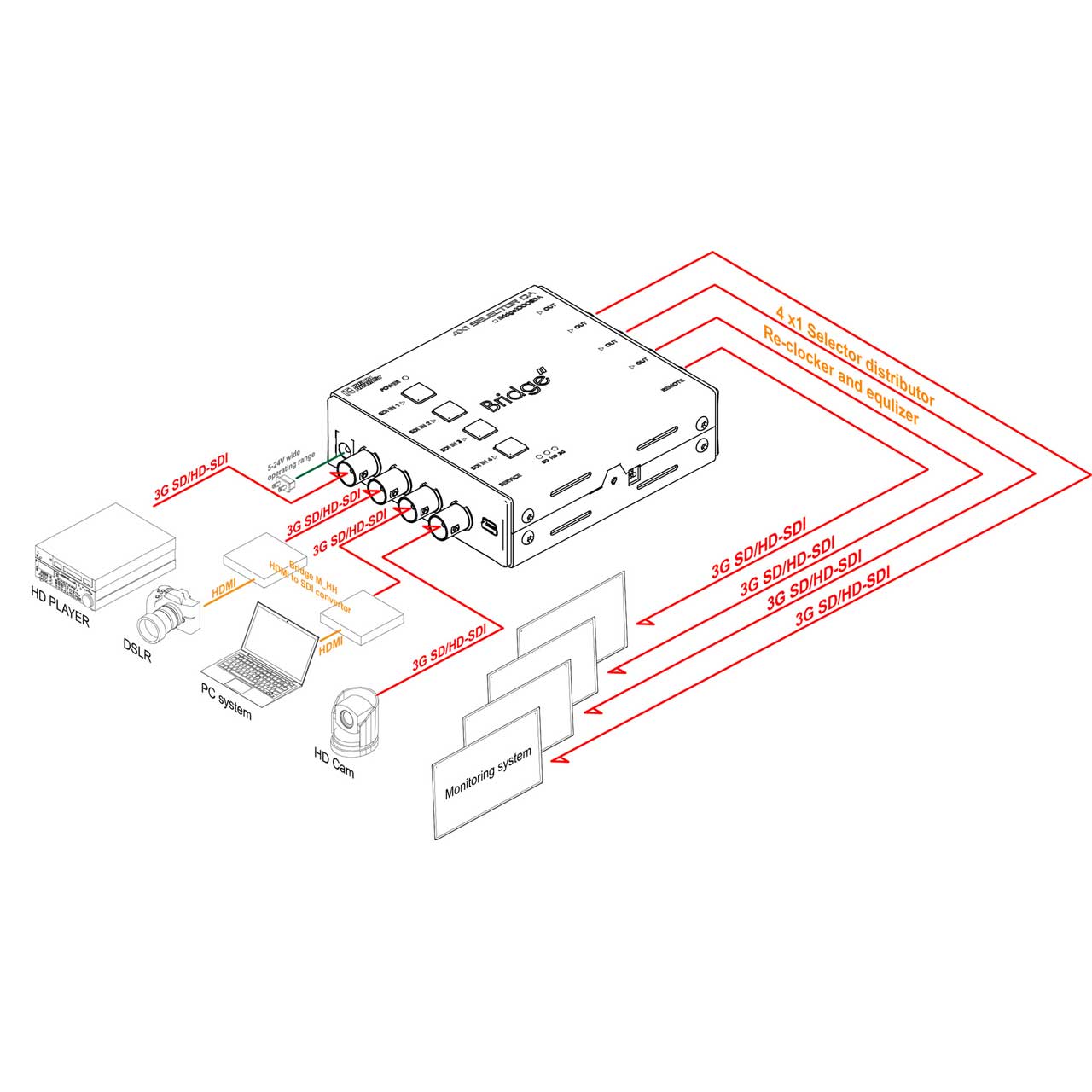

Bridge1000 SDA is SDI 4 x1 Selector distributor. The selected SDI signal output is transmitted to four SDI signal outputs making this unique product a 4x1x4 switcher and DA combo. The unit supports up to 1080p60 format and can be remotely controlled vis RS232 or RS422.

  • Features:

    • SDI 4 x1 Switcher and 1x4 DA in One
    • 4 Selectable SD/HD/3G-SDI Inputs
    • 1 Selected Source to 4 SDI out (SD/HD/3G)
    • RS422 or RS232 Remote Controllable
    • 12V DC Power Supply


  • Specifications:

    • Supports multi-rate SDI formats
    • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
    • SMPTE 296M: 720p (60/59.94/50)
    • SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29. 97 /25/24/23. 98)
    • SMPTE-424M: 1080p (60/59.94) 3G
    • Dimension (W x H x D) : 106 x 96 x 30 (mm)
    • Weight: 225 g
    • Power Level: +12 VDC
    • Power Consumption: 4.27Watts (Max: 5 Watts)
    • Operating Temperature: -20° ~ 70°
    • Humidity: 0 to 95% RH, non-condensing


  • Item Includes:

    • Power Adaptor


  • Warranty:

    • 2 Years


  • GTIN:

    0704006295247
