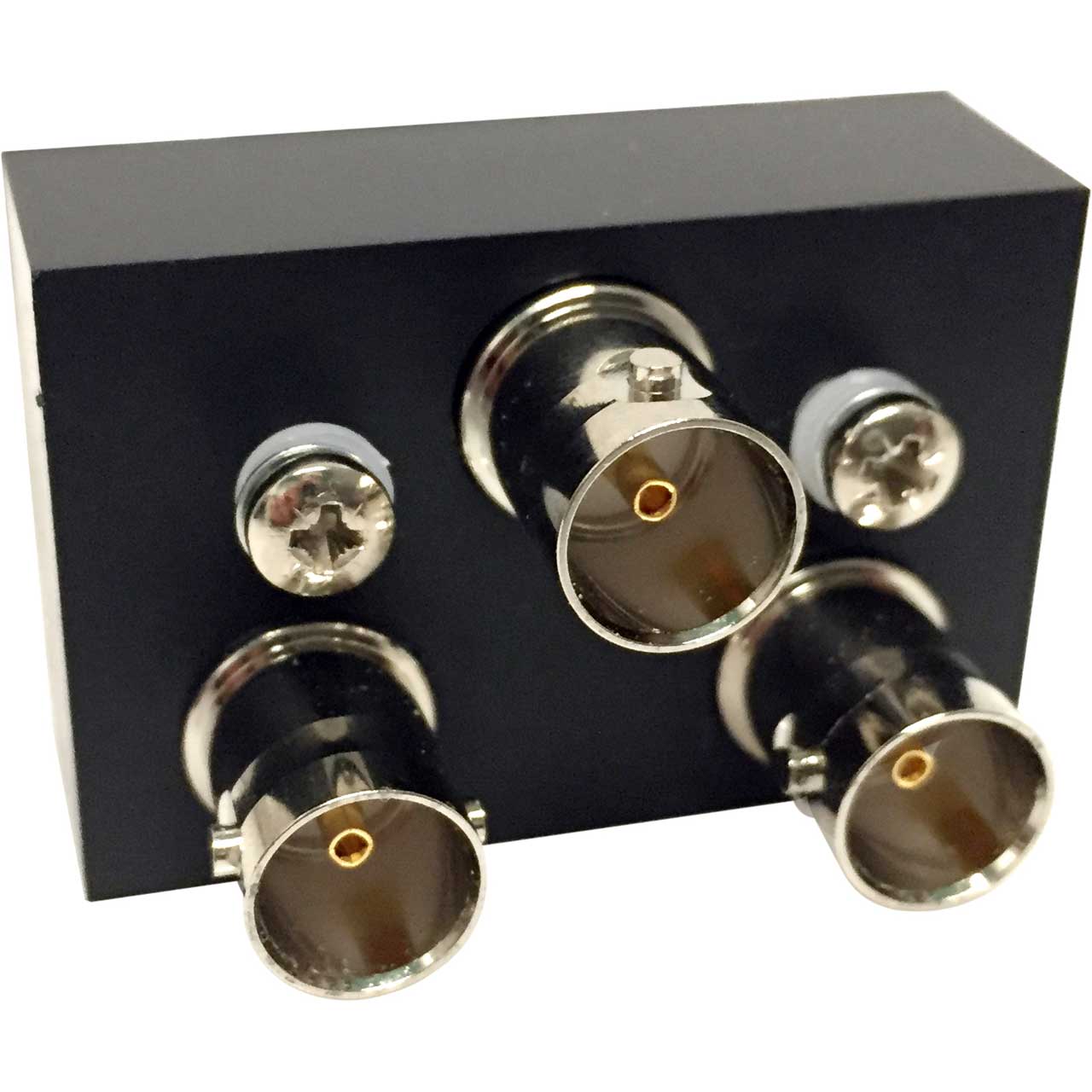

LEN L3GR01 3G-SDI Serial Digital Video Relay

Name: LEN L3GR01 3G-SDI Serial Digital Video Relay
Brand: LEN
SKU: LEN-3GR01
Price: 247.00 USD
Availability: InStock

ITEM #: LEN-3GR01 MFG #: 3GR01

LEN

List Price:

$260.00

Our Price:

$247.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

3GR01 - Overview

The LEN L3GR01 serial digital video relay provides full broadcast quality switching, for all data rates up to 3 GBits/sec. It is ideal for applications such as power failure switching, where a local SDI source is automatically switched in on failure of an incoming SDI signal from a remote source

Features:
- Two way 3G-SDI digital video signal relay
- Transparent to all 3G, HD and SD formats with data rates up to 3GBit/s
- Size 45 x 30 x 15 millimetres
- Optional rack frame to hold eight relays
Specifications:
- Impedance: 75 Ohms
- Insertion Loss: < 0.4 dB from DC to 360 MHz
- Amplitude roll-off: < 0.2 dB from 360 to 540 MHz, < 0.3 dB from 360 to 3 GHz
- Return Loss: > 15 dB 0.1 to 3GHz

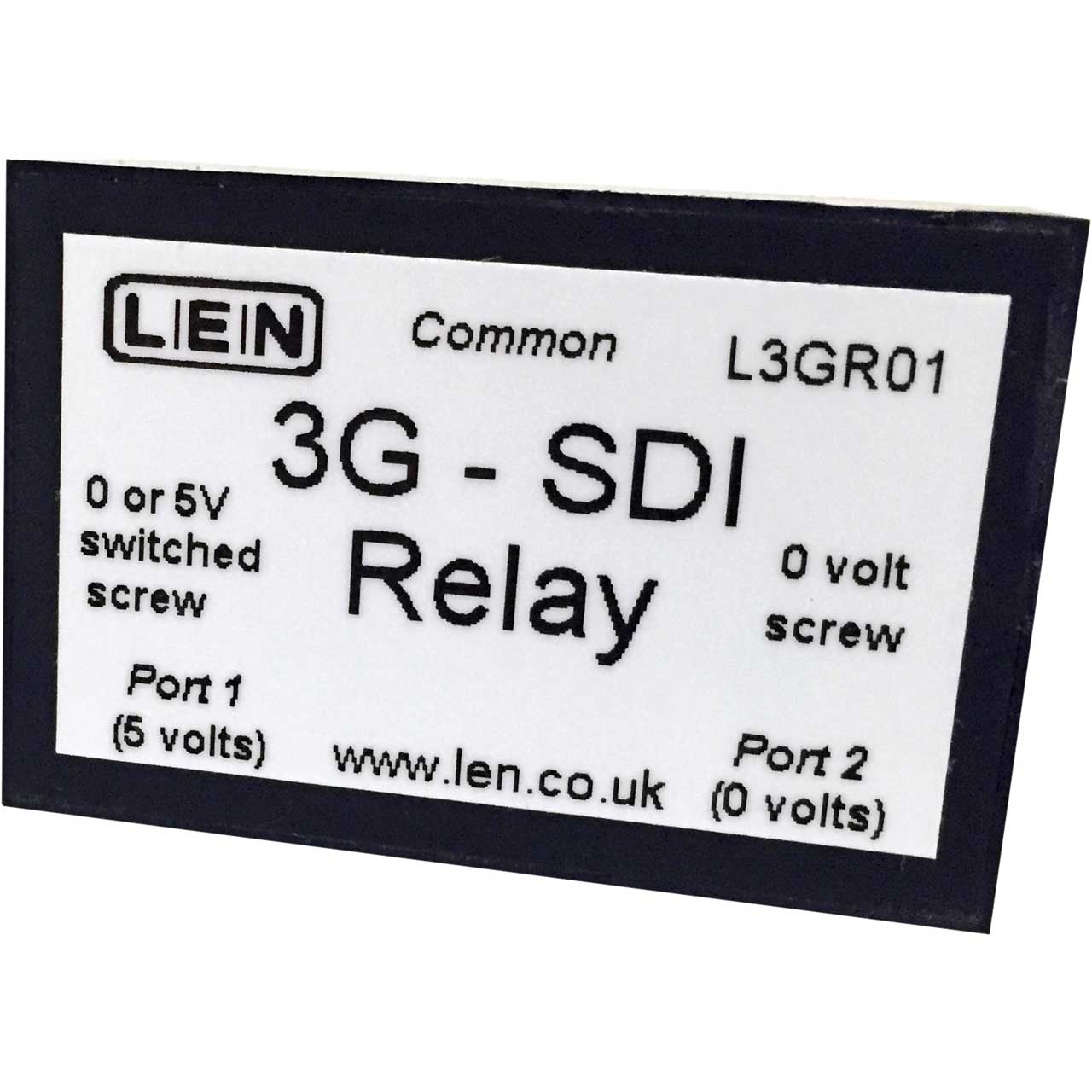

- Control Voltage: 5 volts DC (via mounting screws)
- Enclosure: ABS box, 45 x 30 x 15 mm (excluding connectors)
- Weight: 32 gm
- Connectors: BNC Female
- RoHS compliant: Yes
Item Includes:
- 1x LEN L3GR01 3G-SDI Serial Digital Video Relay
