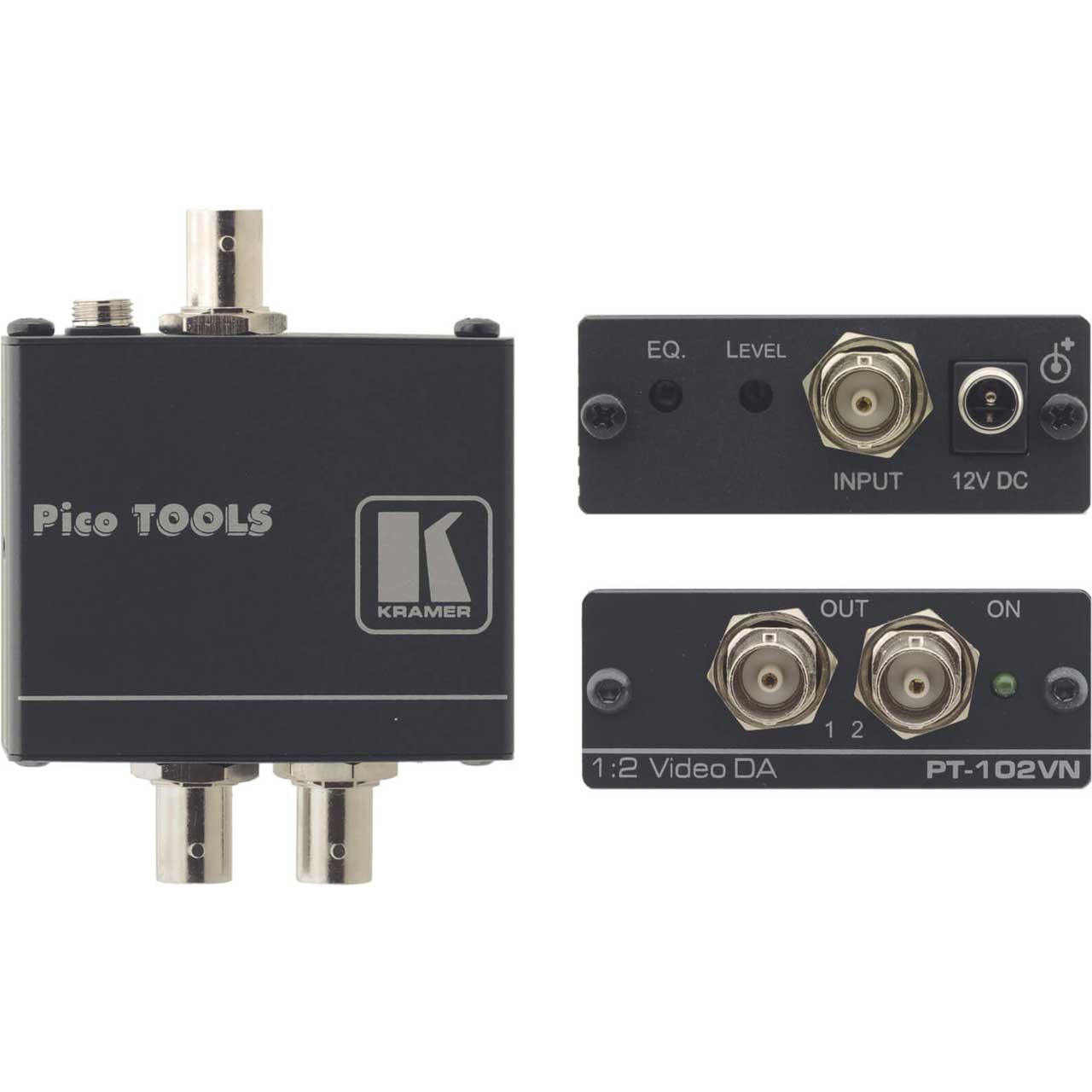

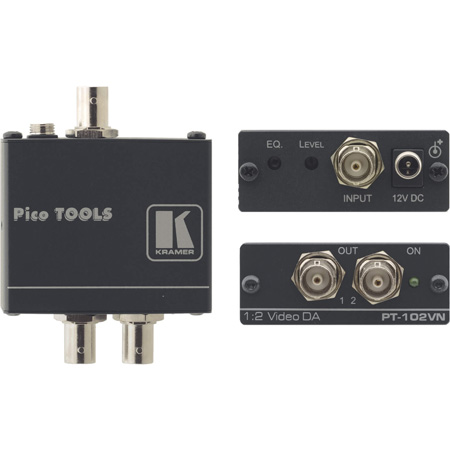

Kramer PT-102VN 1:2 Composite Video Distribution Amplifier

PT-102VN - Overview

High Bandwidth - 430MHz (-3dB)

• Features:

  • High Bandwidth - 430MHz (-3dB).
  • Level (Gain) and EQ (Peaking) Controls.
  • Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 composite or SDI video, 1Vpp/75Ω on a BNC connector


  • OUTPUTS
  • 2 composite or SDI video, 1Vpp/75Ω on BNC connectors


  • MAX. VIDEO OUTPUT
  • 2Vpp


  • VIDEO BANDWIDTH (-3DB)
  • 430MHz


  • DIFF. GAIN
  • 0.05%


  • DIFF. PHASE
  • 0.05Deg


  • K-FACTOR
  • <0.05%


  • S/N RATIO
  • 76.1dB


  • CONTROL
  • Gain: - 1.2 to +6dB
  • EQ.: 0 to +7.5dB @50MHz via trimmers accessible from the front panel


  • POWER CONSUMPTION
  • 12V DC, 35mA


• Item Includes:

  • PT-102VN 1:2 Video DA
  • Power supply/12V DC (1)
  • Rubber feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7290012307065
